Description
Boom Details

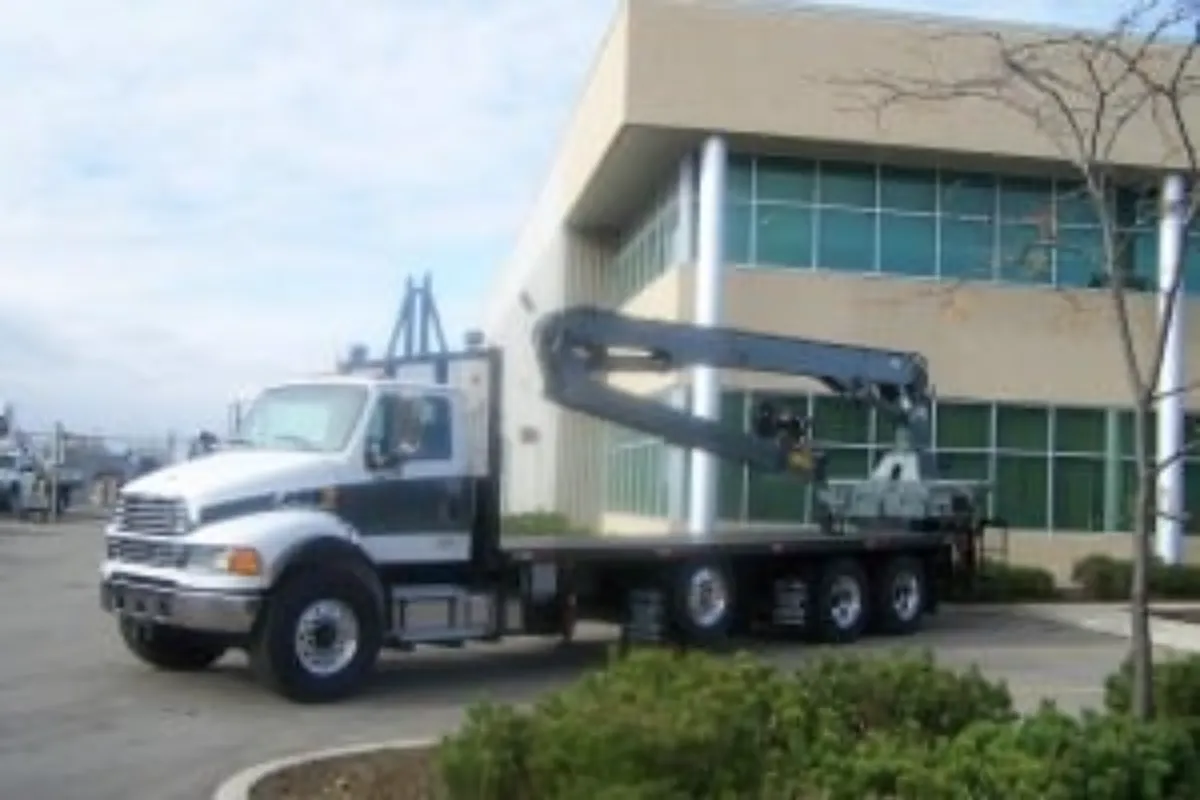

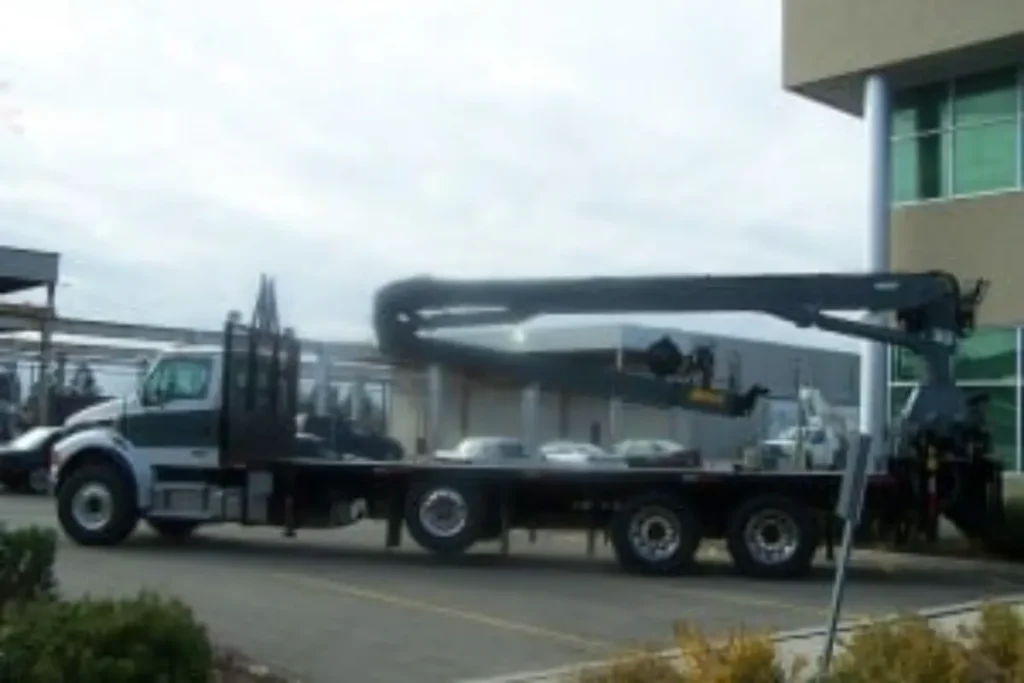

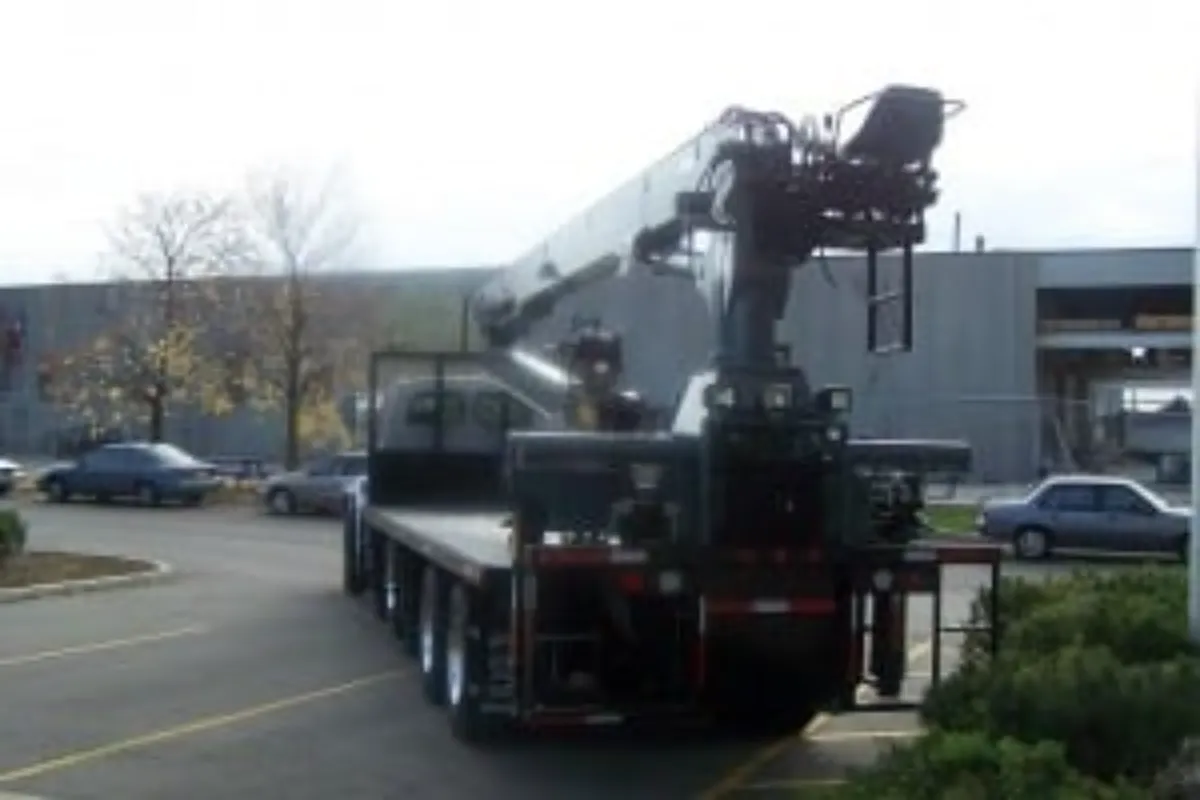

ATLAS 300 BOOM UNLOADER: Installed at Rear of Truck on a Pre-Engineered Extended Sub-Frame Behind Deck
- 2,200 lbs Capacity at 63’ Horizontal Reach, 2 Hydraulic Extensions to 63’ (75’ Vertical Reach)
- 4 Hydraulic Out and Down Stabilizers – 2 At Boom Base and 2 At Front Under-Frame Mounted
- 400 Degree Boom Rotation w/Dual Rack and Pinion at Pedestal
- Top Seat Controls with Dual Joysticks and Foot Pedals for Boom Functions – Rotating Access Ladder
- Tandem-Pump with Split Valve for Optimum Speed and Multi-Function Operation for Quick and Efficient Loading/Offloading
- Hydraulic Hook Rotator at Boom Tip with Custom “T” Hook
- Engine Start/Stop & RPM Control Switches at Operator’s Control Station at Top Seat
Deck Details
25’ X 102” STEEL CHECKER PLATE FLAT DECK – LOW PROFILE: To Accommodate Up To 9’ 6” Tall Form Cages
- 6” Main Sill Sub-Frame & Extension with X-Braces for Torsional Support Tied to Truck Frame by Sheer Plating at Front, Center and Rear, Side Welded Cross Members
- 70” x 8’ Headboard 24” Checker Plate with the Rest Mesh
- Boom Rest on Top of Headboard & Removable Boom Rest Post at Center of Deck
- 14 Under-Deck Sliding Tie-Down Winch Straps on Passenger Side
TRUCK DETAILS
2009 STERLING ACTERRA TRI-AXLE TRUCK: 78,000 lb GVWR, Hardly Used – Under 10,000 Miles
- Cummins 350 HP
- Exhaust Brake
- Fuller 8LL Transmission
- 4.30 Axle Ratio
- 20,000 lb Front Axle on 425/65R22.5 Flotation Tires on Aluminum Rims
- 20,000 lb Self-Steer Lift Axle 101” Ahead of 1st Drive Wheel with 385 Type Flotation Tires
- 46,000 lb Tuftrac Suspension on RT40145 Rears – 60” Spread
- Full Double-Frame Chassis
- Options Include: A/C, AM/FM Stereo, Cruise, Dual Heated Mirrors, Rear Differential Locks and Full 4-Way Lock-ups, Single Aluminum Fuel Tank, Air High-Back Driver’s Seat, Single Passenger Seat, Chrome Bumper and Grill, Power Windows & Door Locks, Tilt Steering, Air Ride Cab, Trailer Air Tow Package Plumbed to the Rear of Truck, etc…
Options Included Are:
- 1” Plate Installed at Rear of Truck Frame for Possible Pintle Hook with Heavy Duty Pintle Hook
- 2 36” Aluminum Toolboxes w/Barn Doors Installed
- 10 Spot Lights: 3 on Headboard, 3 at Rear Bumper, 4 on Boom, with 3 Switches in Cab
- 21’ Extra-Wide Spread Auxiliary Stabilizers Installed at Front Under Frame
- Self Greaser System for Boom
- Rear Tail Board 18” Removable with 24” Height Added 20” In From Sides
- 2 Rear Steps, Extra Step Access on Driver’s Side for Crane (Dual Access)
Like New Condition
Call for Details at:888-557-2244 or 416-679-3838
