Description
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

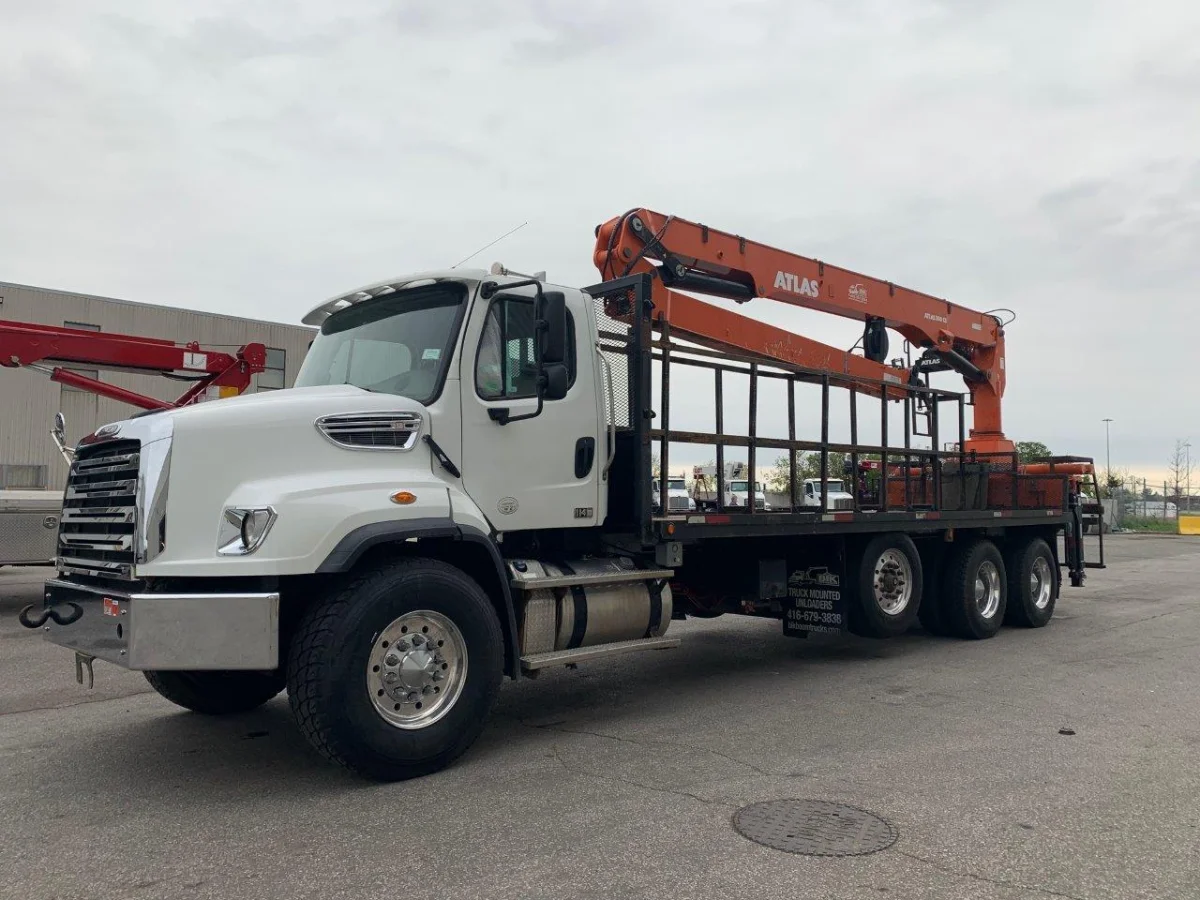

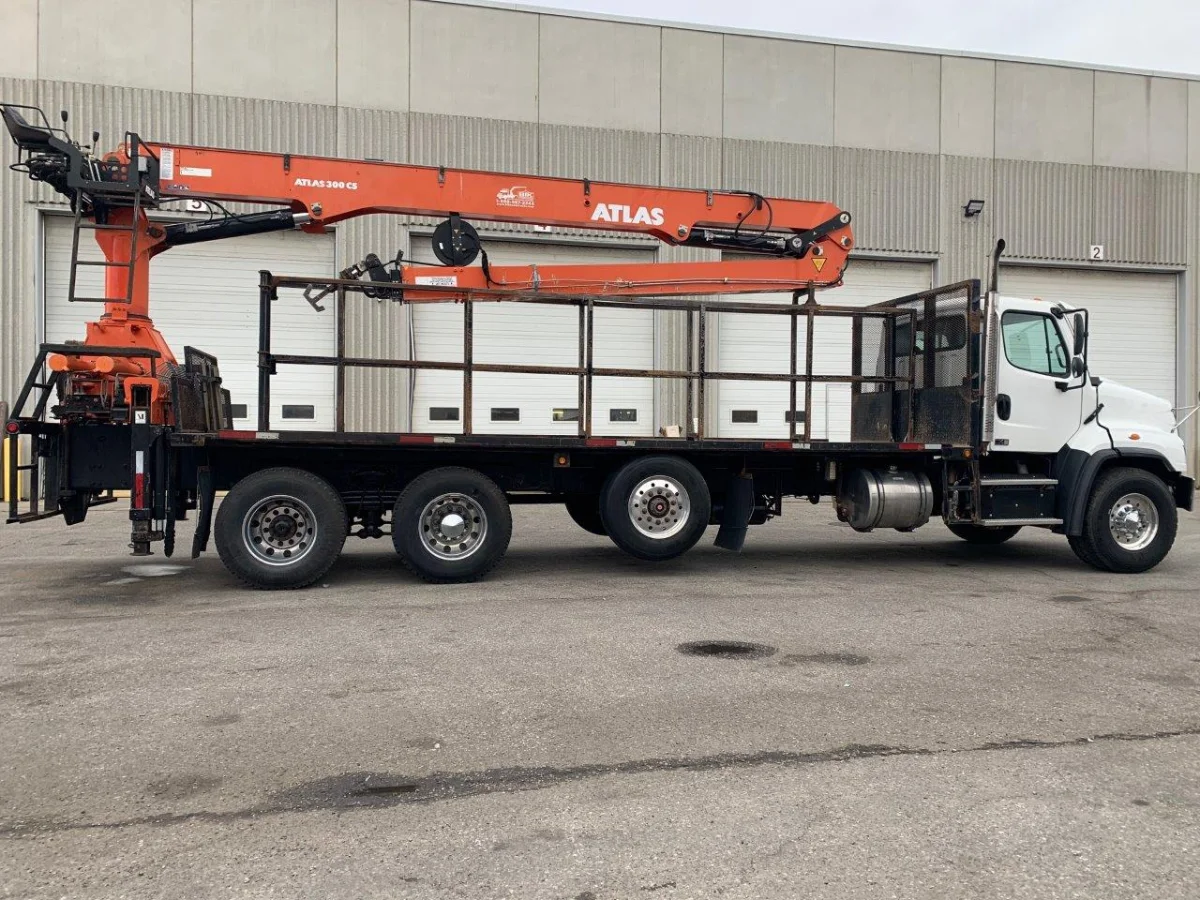

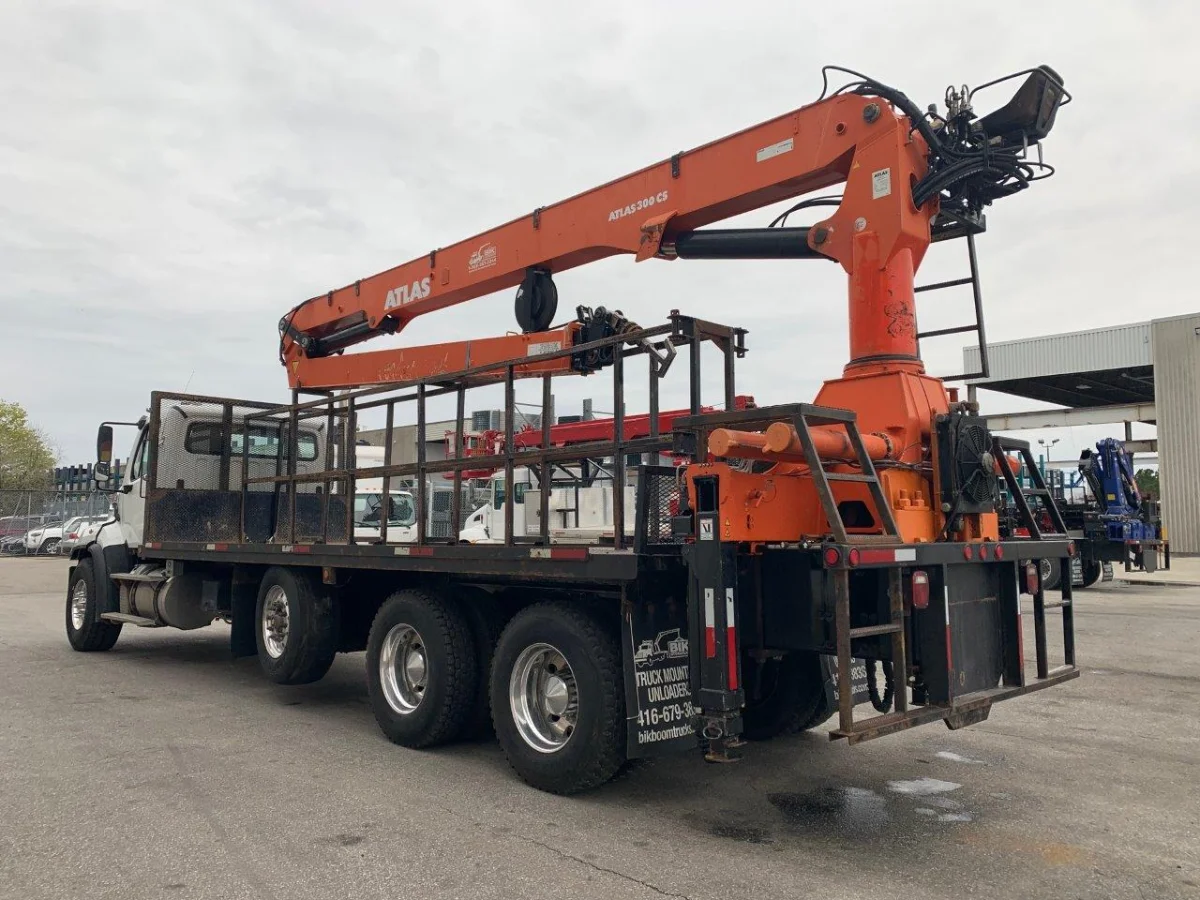

ATLAS 300 Boom Unloader: on a pre-engineered extended sub-frame behind deck at rear. 2,300 lbs capacity at 63’ Horizontal reach , Long 1st boom, 2nd boom has 2 hyd extensions to 63’ horizontal (75’ vertical) Unit Reverse Mounted to achieve simulated reach of 66’ horizontal (rearward) Hydraulic out and down stabilizers at boom.
Standard Features Include:
- 400 degree BOOM ROTATION w/ Dual Rack and pinion at pedestal – greater turning power compared and less maintenance
- TOP SEAT controls with dual joysticks and foot pedals for boom functions – rotating access ladder
- Tandem-Pump with split valve for optimum speed and multifunction operation for quick and efficient loading/offloading
- Simplified Hydraulics – Load Holding valves on all cylinders , Hydraulic Overload Device, Hydraulic emergency stop valve, Boom colour is Orange from factory, load charts are displayed at operator’s station, Hydraulic Hook Rotator at boom tip with “T” hook
Also Included:
Custom access ladders to boom top seat on both sides of base at rear – 1” drawplate at rear of truck frame (for possible pintle hook) Junction box at top seat to operate: Engine start/stop, Engine RPM control
Pair of PVC stabilizer pads installed holder at rear DOT bumper, 36” Aluminum storage box installed
22’ 2” x 102” Steel Checker plate Flat Deck – LOW PROFILE: to accommodate up to 9’2” tall Form Cages
Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear, top welded 3” cross members, Checker plate steel deck surface, 60” + headboard , Center Divider with 4-vertical mounted winch straps to wrap around cages for transport, 6 – under deck sliding tie-down winch straps on passenger side, winch bar holder and winch bar, dual ladder access, reflectors and side lights as required by DOT standards.

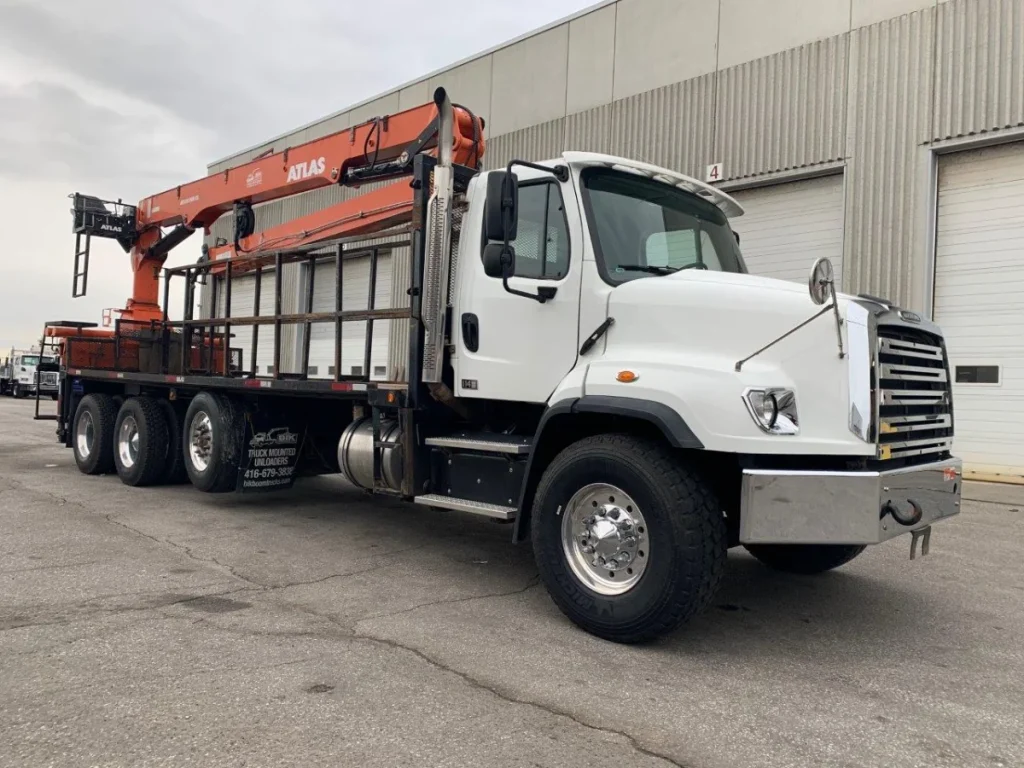

Used – 2014 Freightliner 114 SD Tri- Axle Diesel Truck:

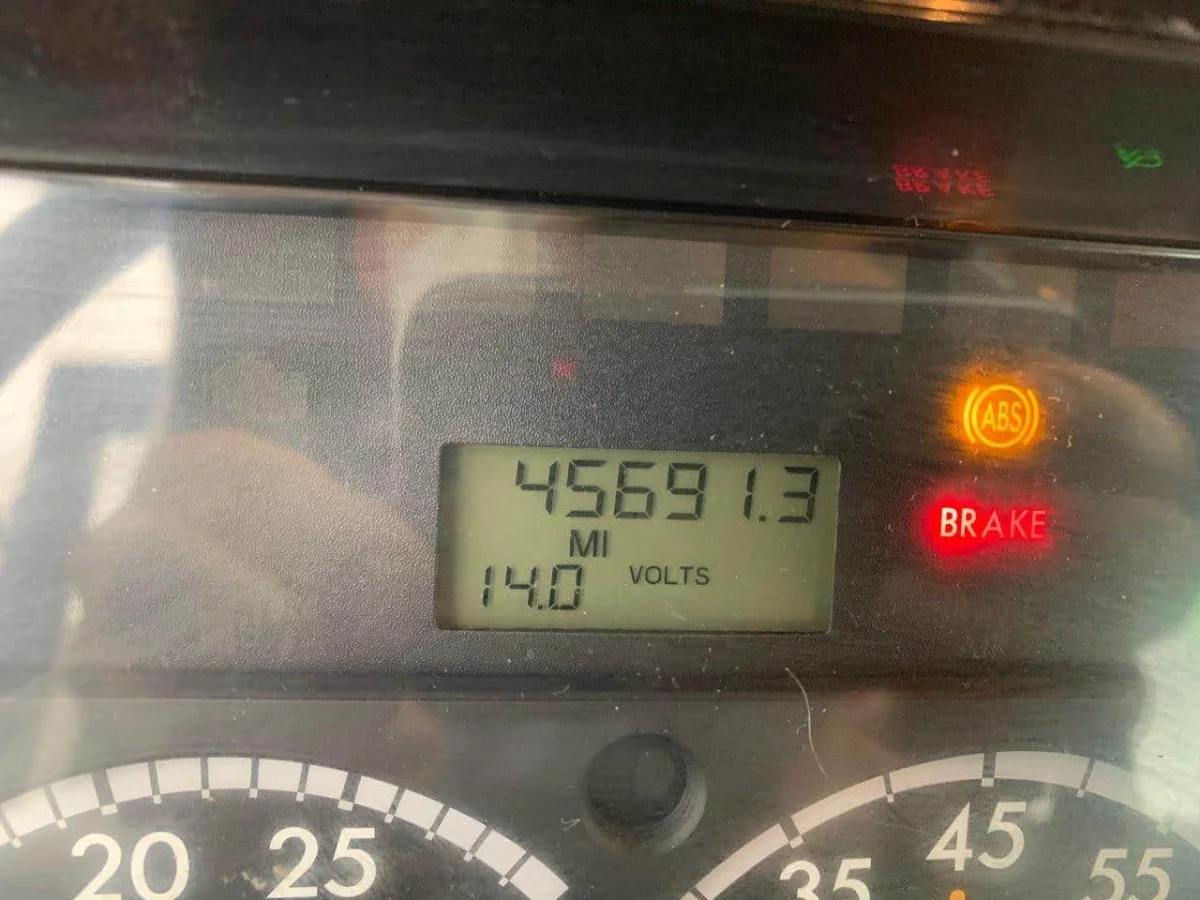

- 80,000 lb GVWR, CUMMINS Diesel 380 hp , 1,250 ft/lb torque, Fuller 8LL trans., Low Miles
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims, 20,000 lb self steer lift axle ahead of t/a with 385 type floatation tires, – 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on steel white rims, 278” wheel base, double frame chassis, 54” spread at tandems,

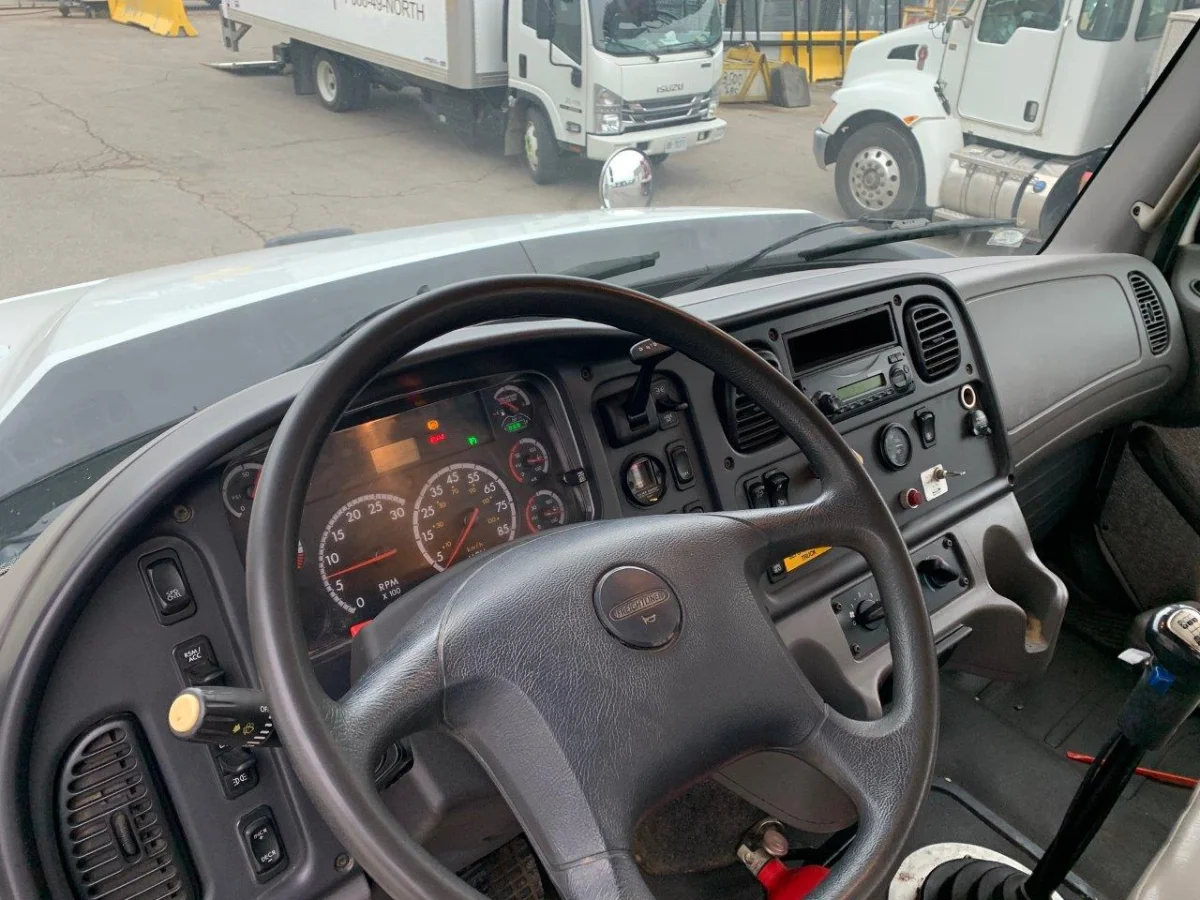

- Truck Features Include: Air Cond., AM/FM stereo, cruise, chrome bumper, painted grill, heated mirrors, hood mirrors,
eng block heater, painted ext sun visor, trailer air tow package, diff locks with rear wheel lock ups, 80 gal alum fuel tank, etc…
Ideal Form Cage Handler
CALL FOR DETAILS AT: 866-216-0895
