BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

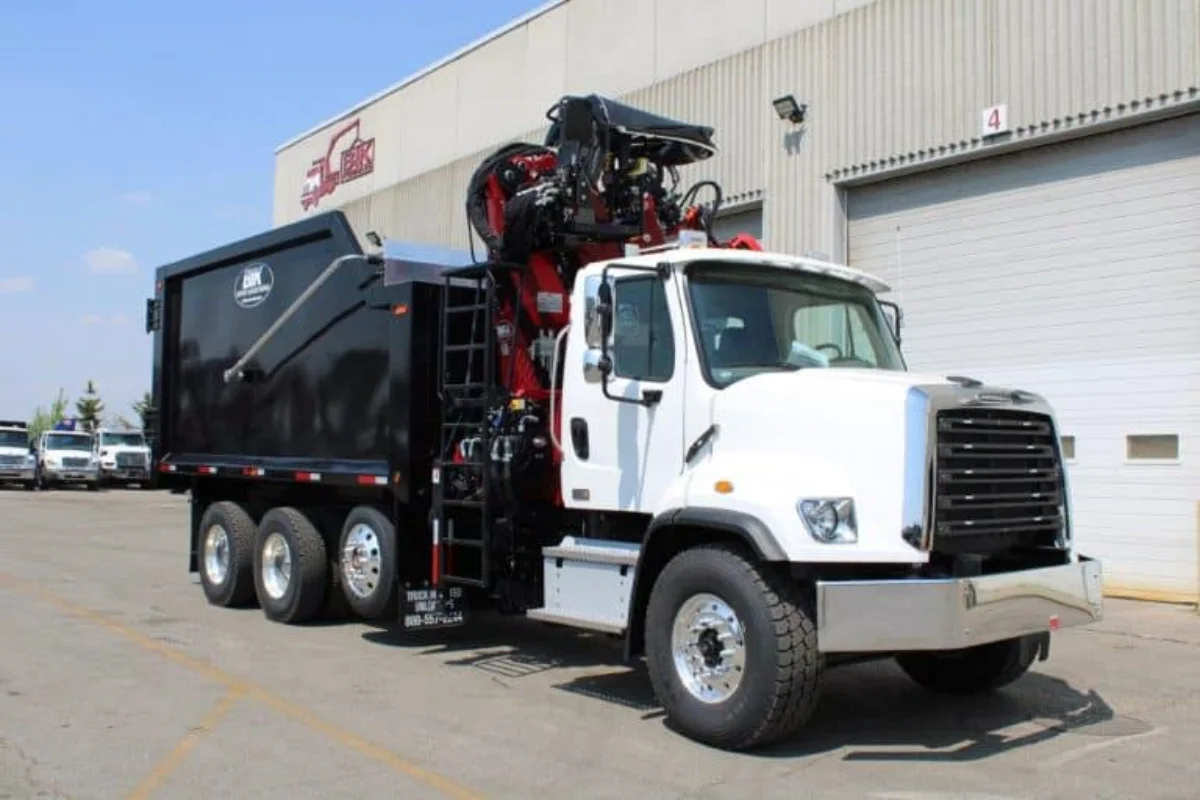

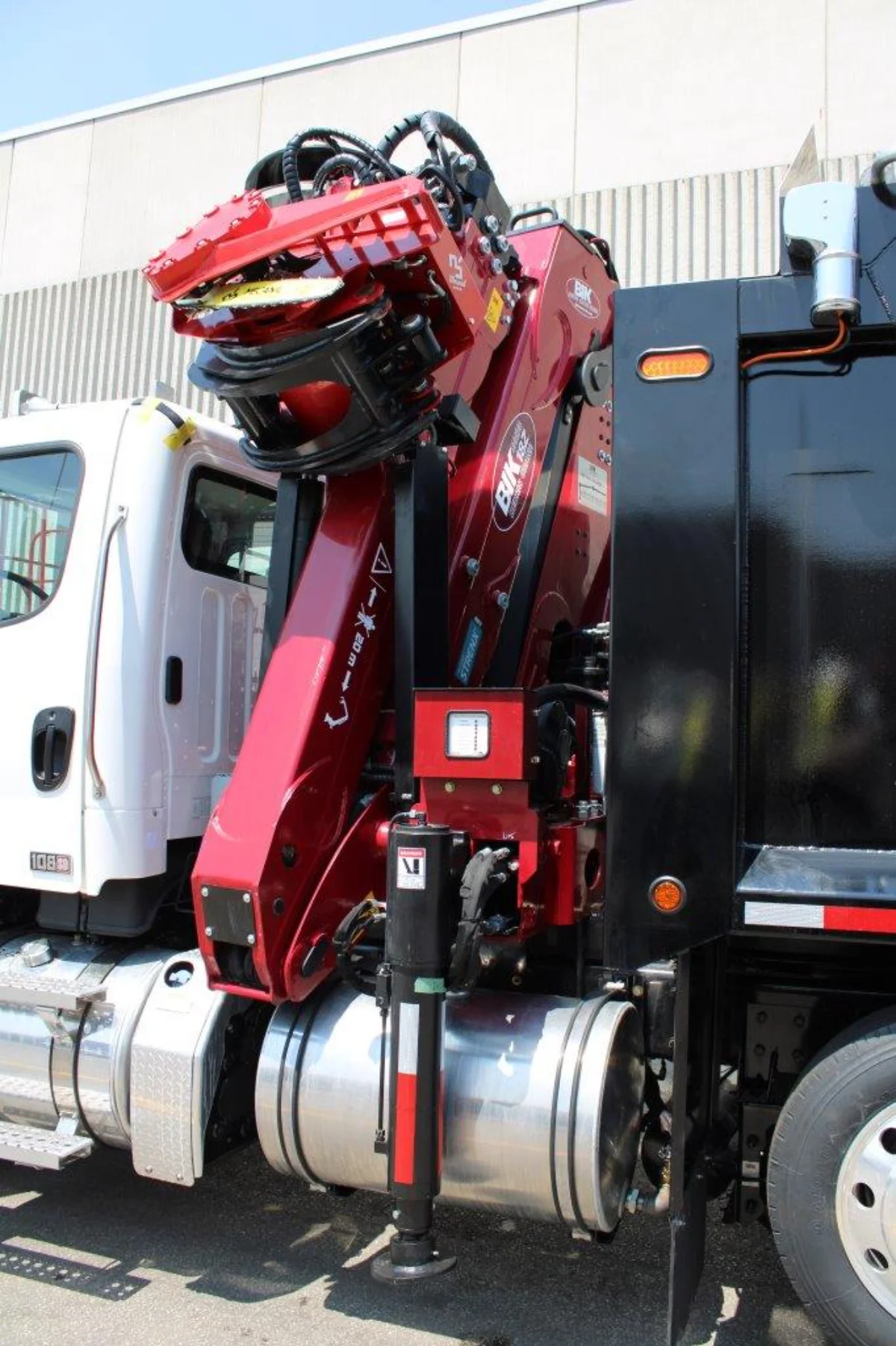

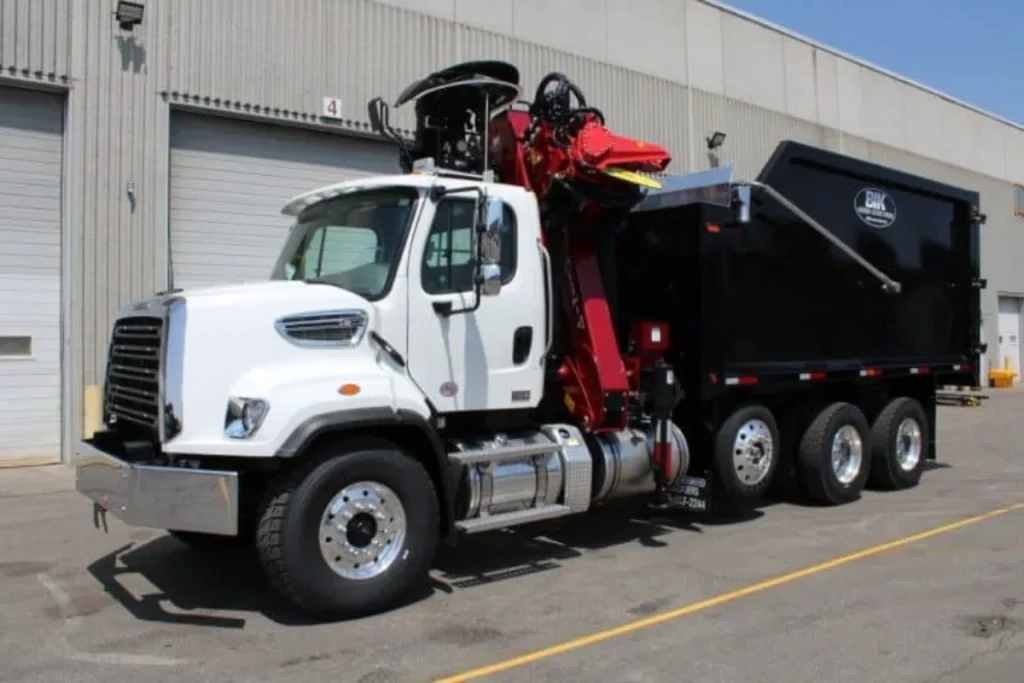

New – BIK “Debris-Crane” Series DC-18Z – 18 TON/M FOLDING BOOM

Basic loader Options:

• Hyd Extending Main Boom with 2- hyd ext in secondary arm
  • Horizontal Capacity
    • 8,400 lbs @ 15′
    • 6,250 lbs @ 19.5′
    • 5,300 lbs @23′
    • 4,100 lbs @ 29′
    • 3,200 lbs @ 35′
• Foldable Boom in “Z” type during transport with attachment connected – with standard Debris grapple
• Telescopic Main Boom with Double Extension cylinder/chain system on the second boom, – Power Linkage system on Main Boom
• Planetary Gear (Dual) Rotation Motors & Continuous Boom Rotation – for maximized slewing torque and reliability

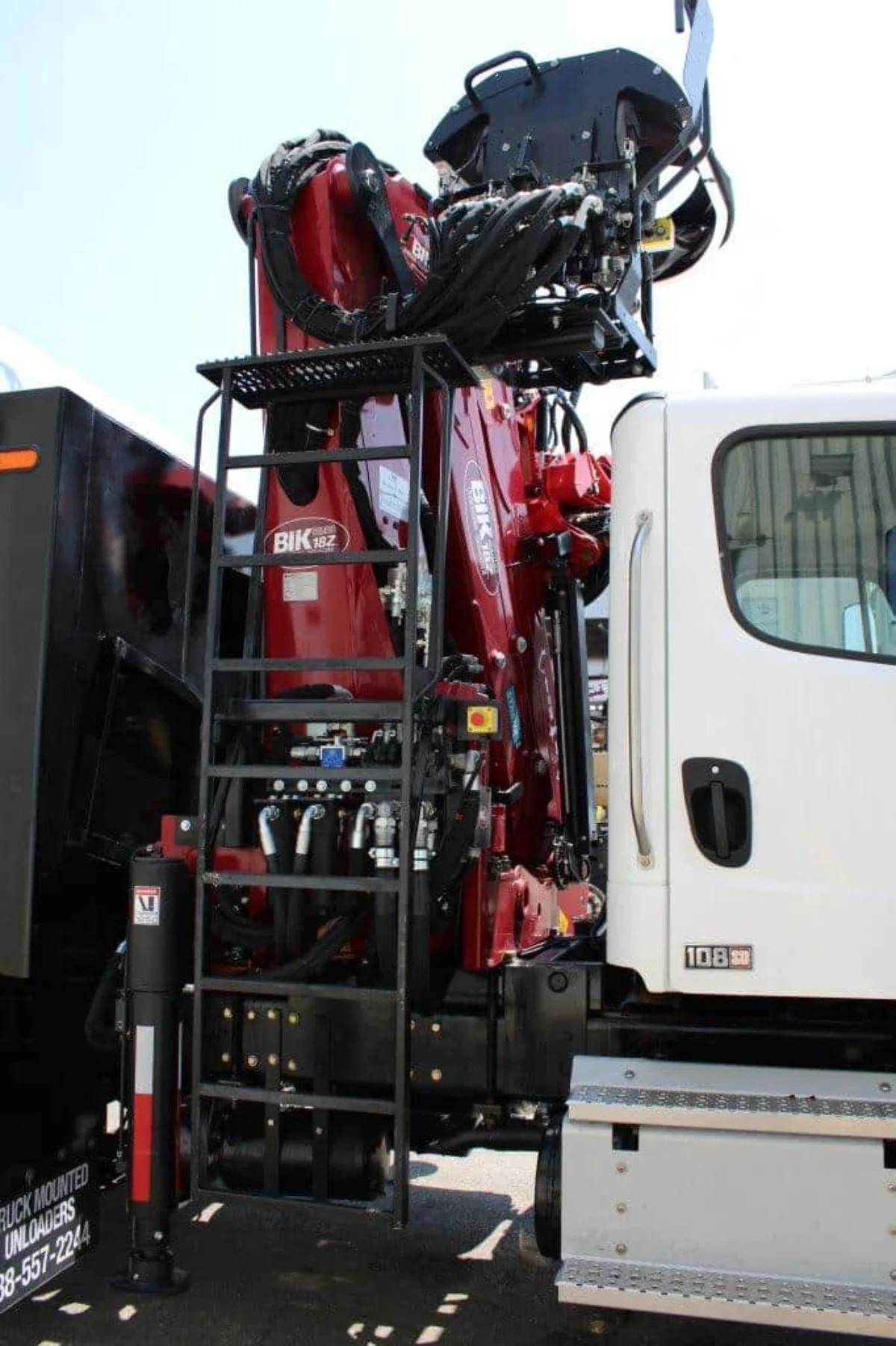

• High Controls from Top Seat with mechanical dual joystock and foot pedals for boom/grapple controls
• Flip-Up style Hydraulic Out & Down Stabilizers – 16’ Xtra Wide Spread, Dual sided ground level controls
• Control Panel at Top Seat to manage: Heated Seat, Truck Horn alert, Truck Engine on/off and High RPM control
• Top Seat Cover foldable “hood” over seat to shield operator from rain during operation of boom
• Carter Protection on first and second boom cylinders, Hydraulic Load Limiting Device, Boom is Factory painted Burgandy Colour
• Tandem pump / Double Circuit system for optimum speed for simultaneous multi function use
• Other Features Include: High Pressure Filters, Emergency Stop Botton, Manometer with “Traffic Light”, LED spot lights on secondary boom
• Installed at Rear on sub base, all hydraulic & electrical connections with AW46 hyd oil, Engineer Stability load tested and certified

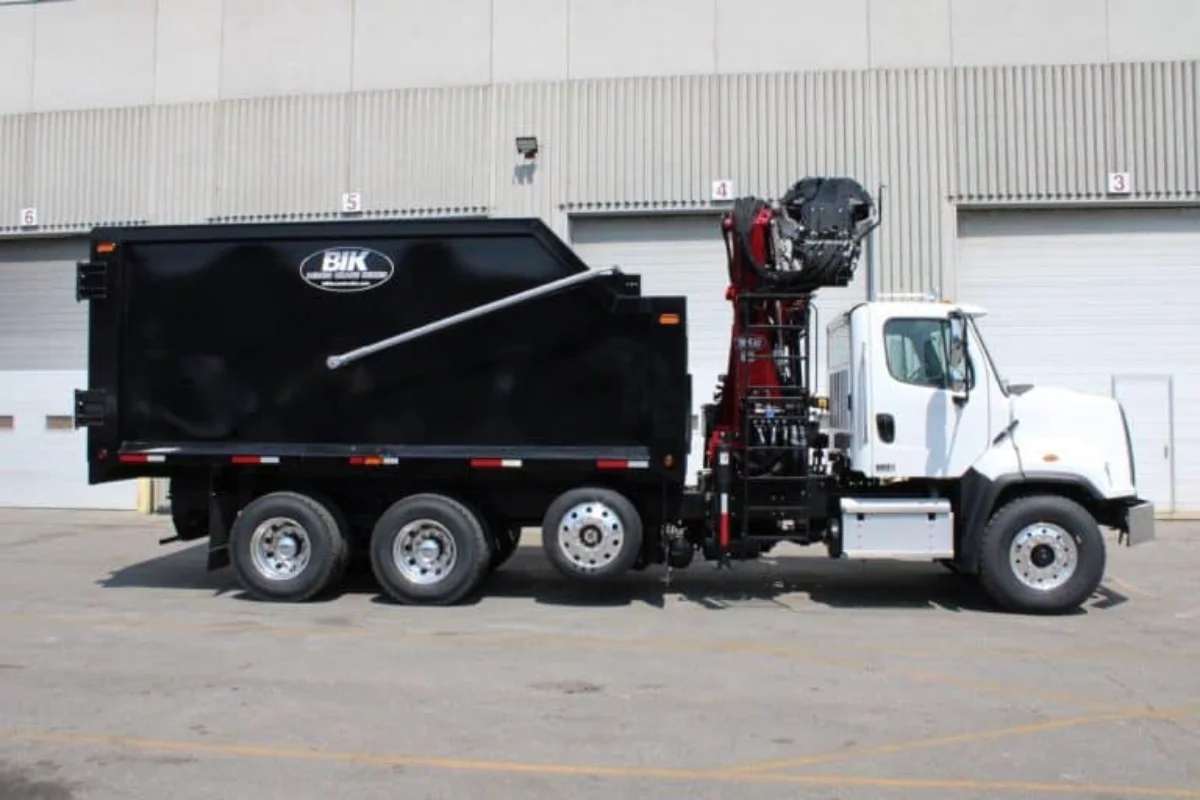

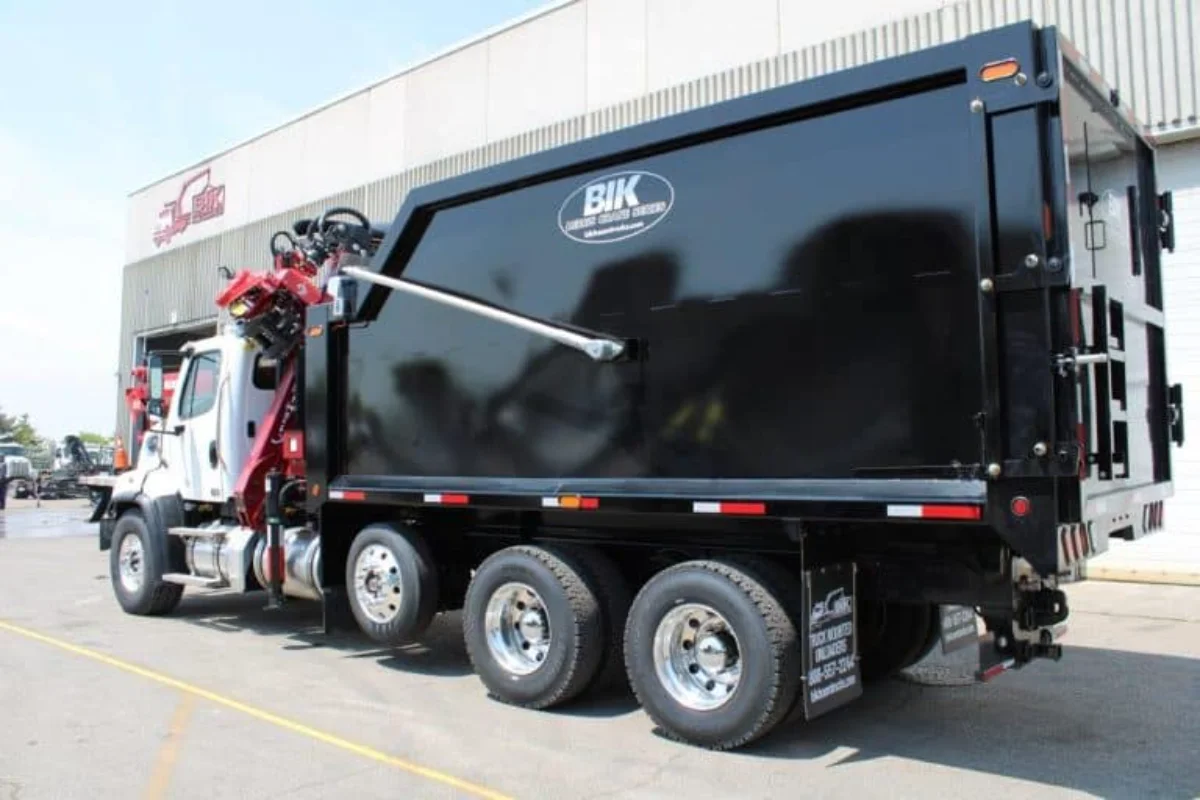

New – 18’ x 102” 70 Steel Dump Body:

• Made with AR 450 Plate 1/4” Steel, 25’ Long x 102” Wide, 8’ High; Ground to Top of Sides
• Single 3-stage telescopic dump cylinder, 3×4 x 3/8 Longsills
• 4” Heavy I–Beam Crossmembers, 2 x 4 x 1/4 Tubing Inside Body
• 45° Taper / 45° at front of Body for Loader to Swing Past, Air operated roll tarp system

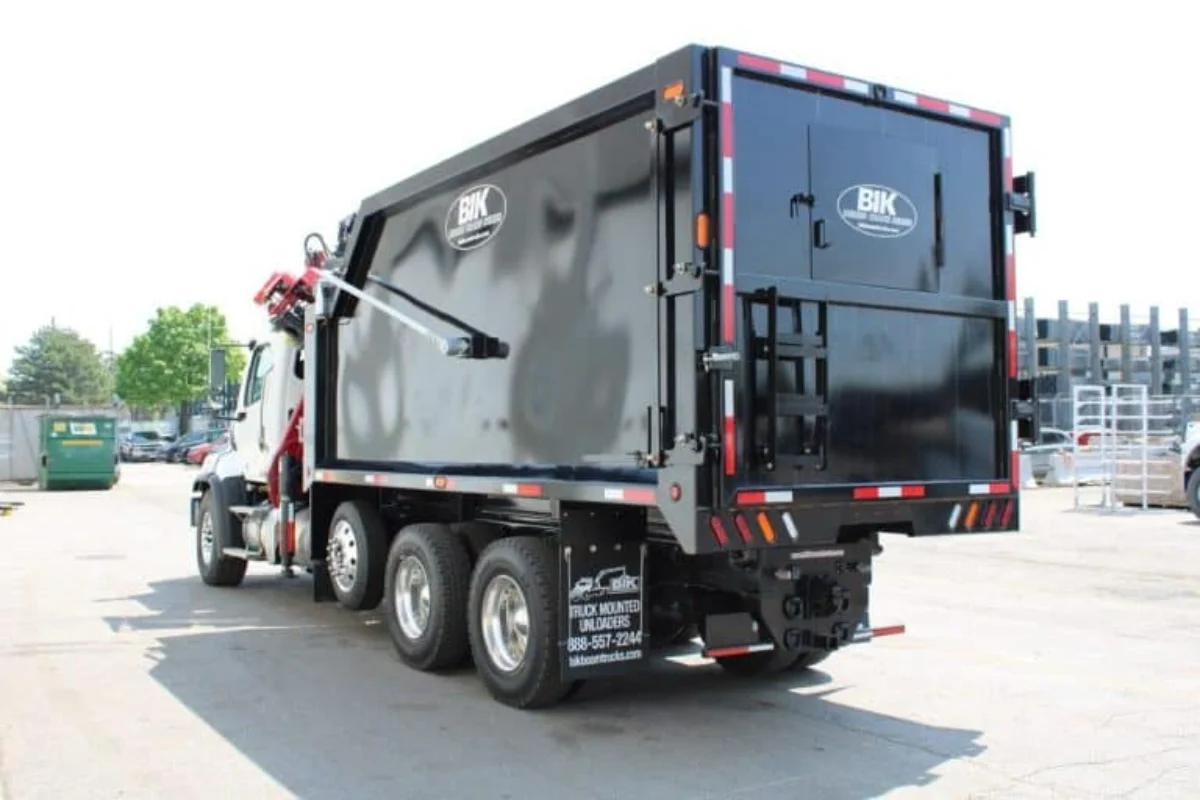

• Barn door opening at rear dump, top-rear dual sliding hatch door for chipping from rear
• Penny Lights Down Sides; Six per Side, Five Total Midturn at Bottom
• Strobes in Rear of Body, Mud Flap Brackets in Rear with Flaps, sandblasted/primed and painted gloss black

New – Freightliner 108SD 4- axle Diesel Truck –

• 67,000 lb GVWR
• 9L Cummins Diesel, 380 hp, Truck cab White
• Allison RDS 3000 series Automatic Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
• 13,000 lb self steer lift axle installed ahead of t/a with low profile 17” tires/alum rims
• 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims, double frame chassis

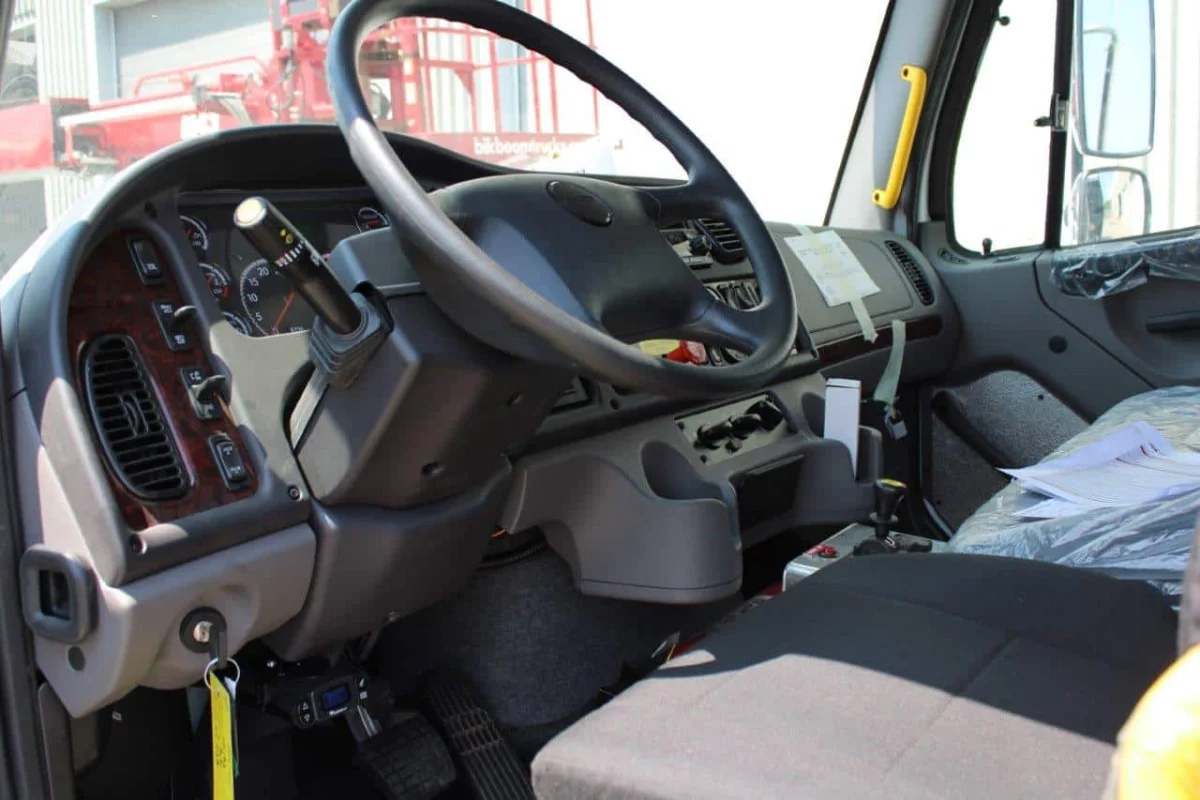

• Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc…

Also Included:

• (1) – 36” Aluminum Storage Box Installed under deck

Options at Extra Cost:

• Heavy duty pintle hook installed at rear
• (1) Additional Aluminum storage box installed
• Add (1) New Mecanil SG-280 Grapple Saw with custom quick disconnect lever portion
• Mecanil SG-280 Grapple Saw (instead of the Heiden Trash grapple included above)
