BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

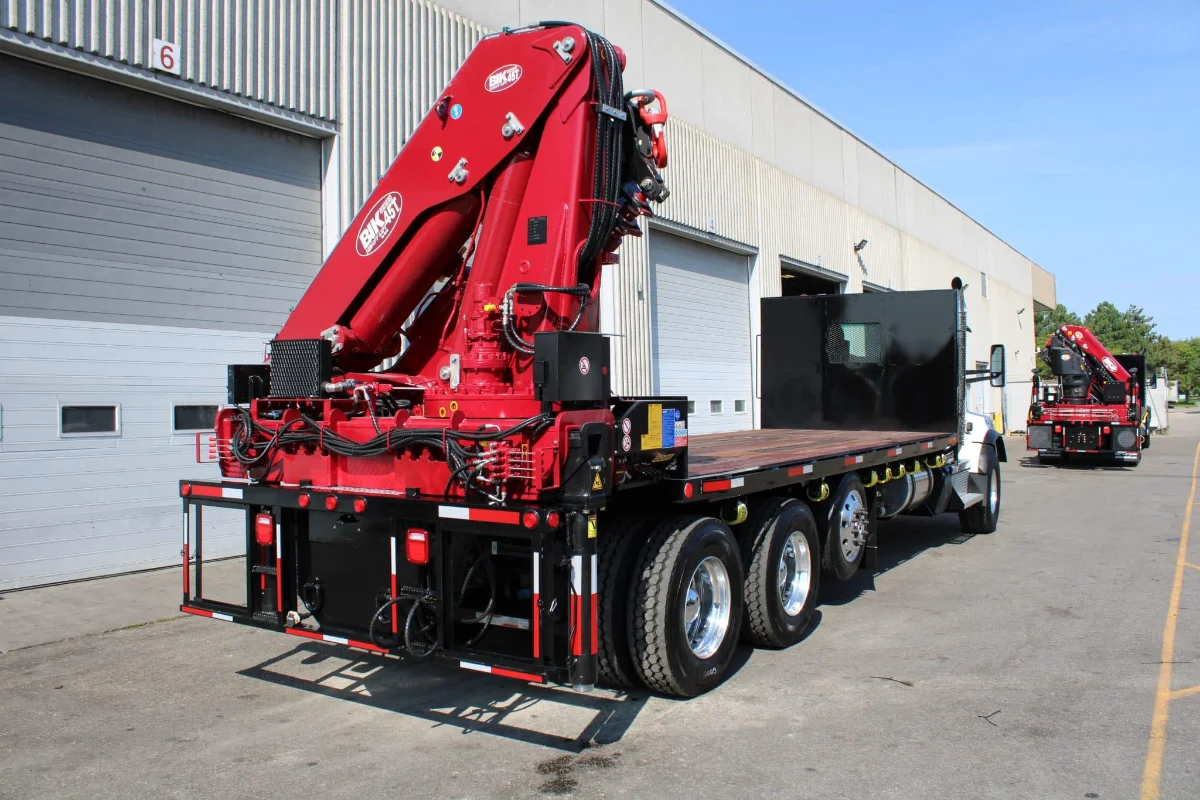

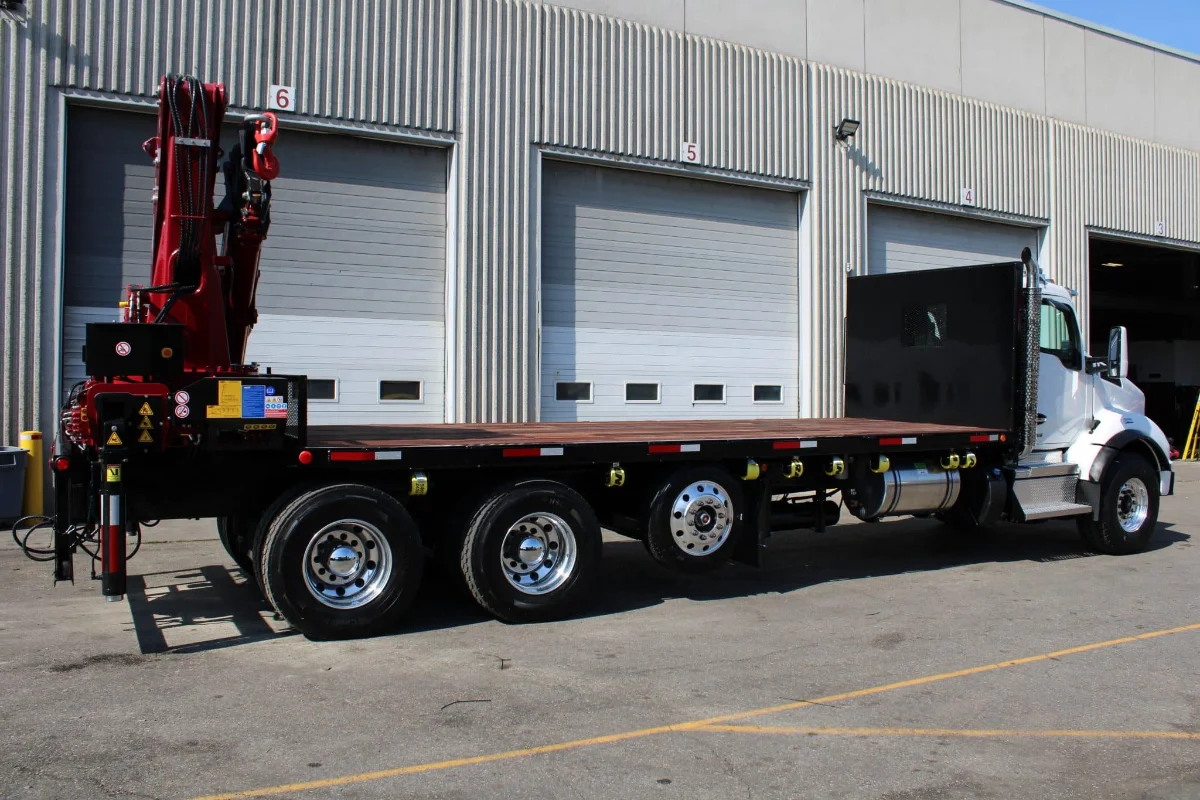

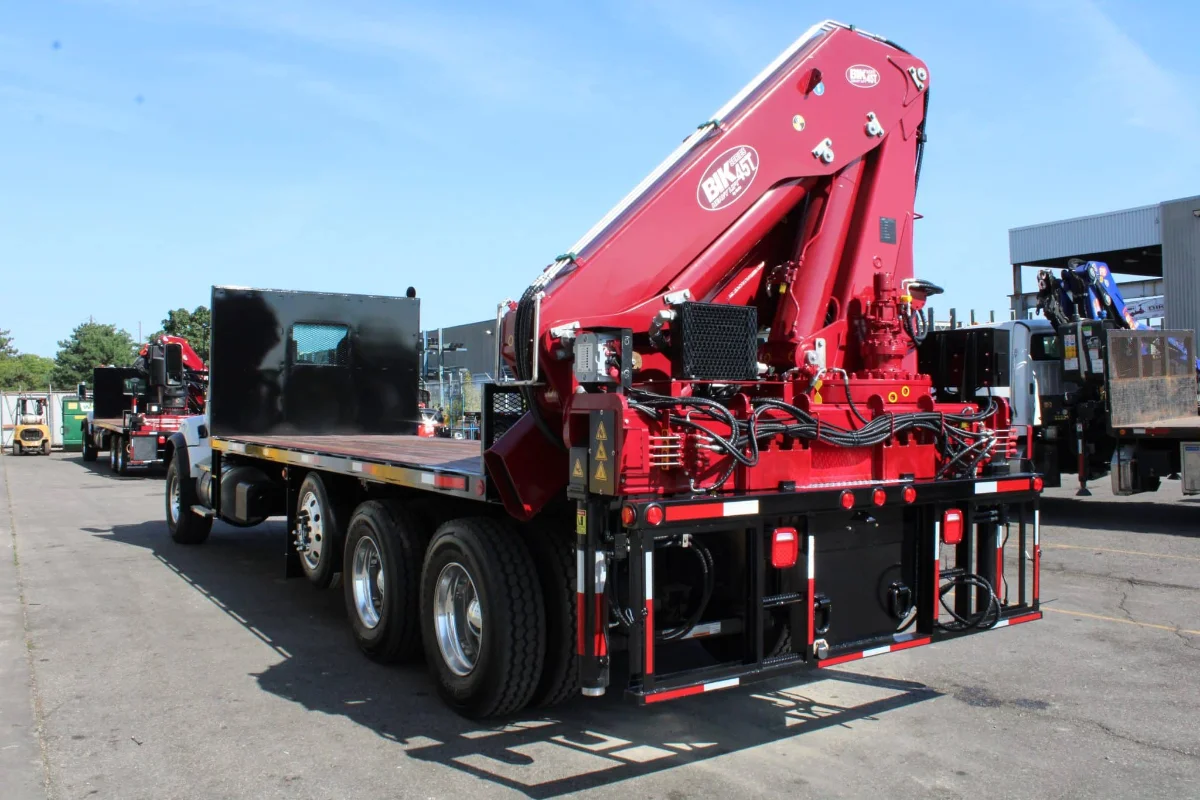

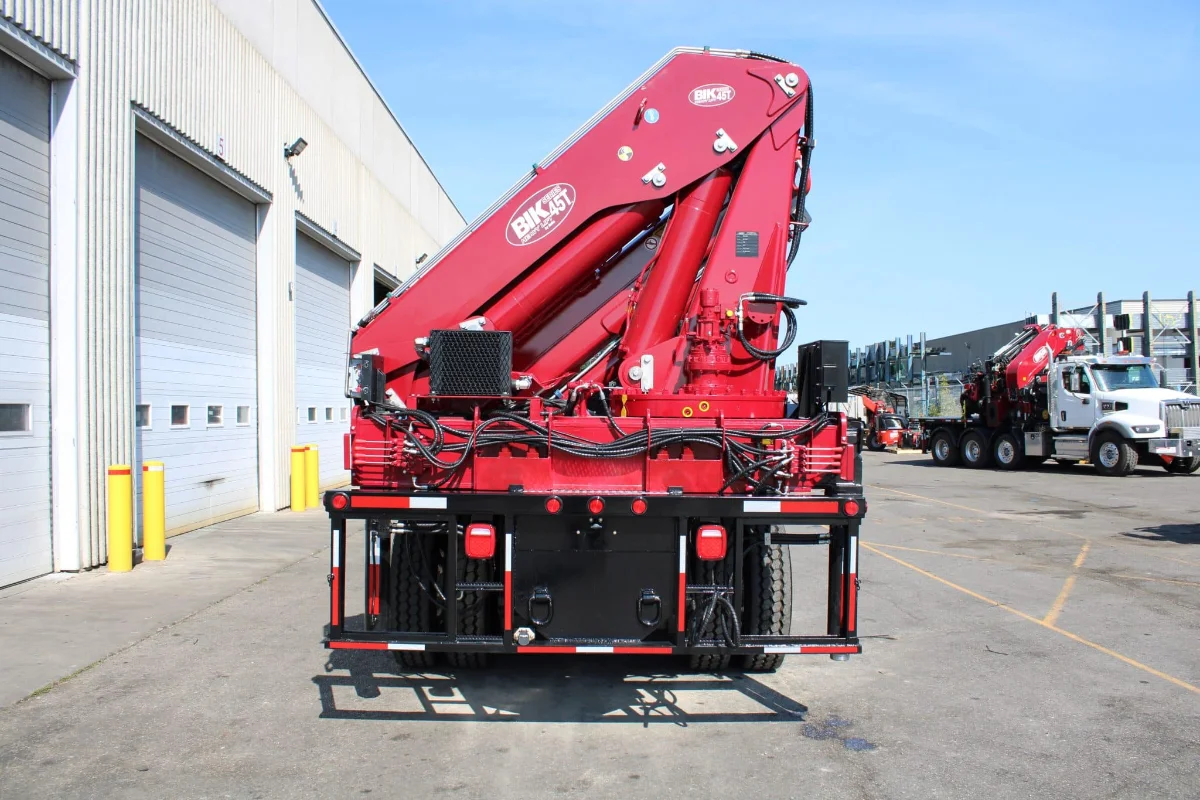

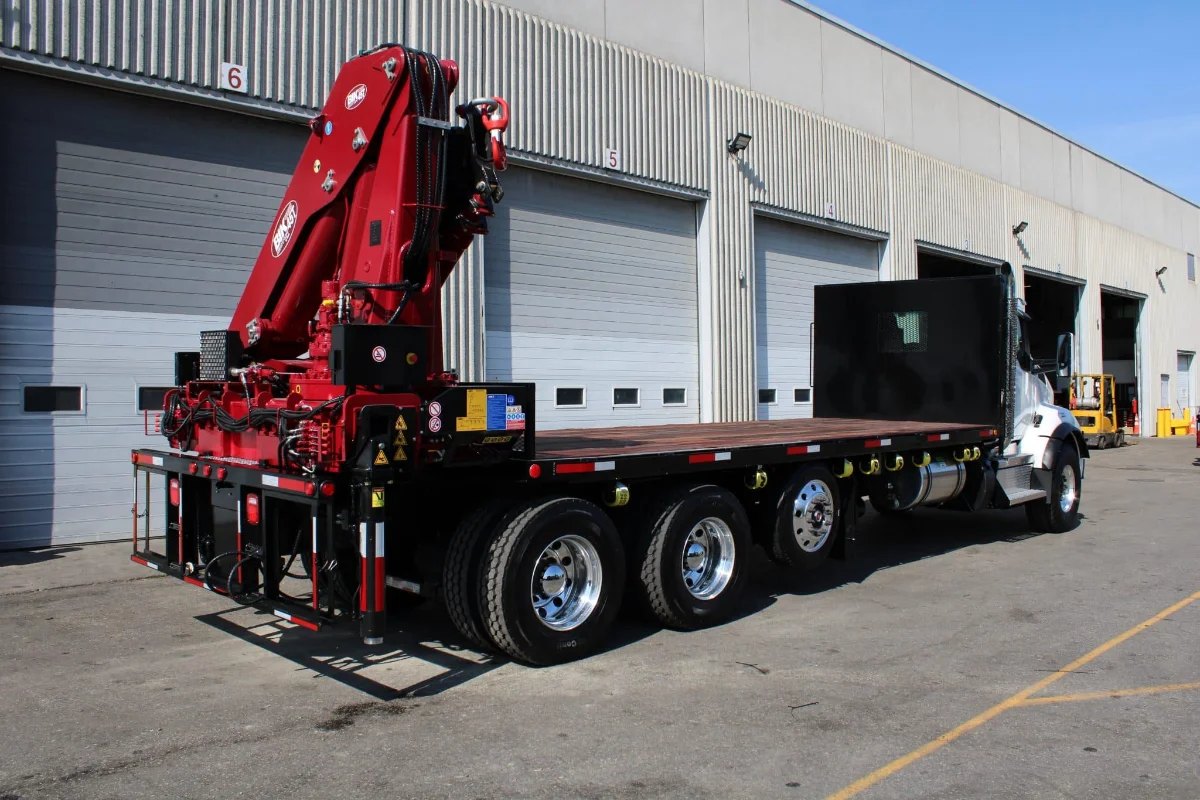

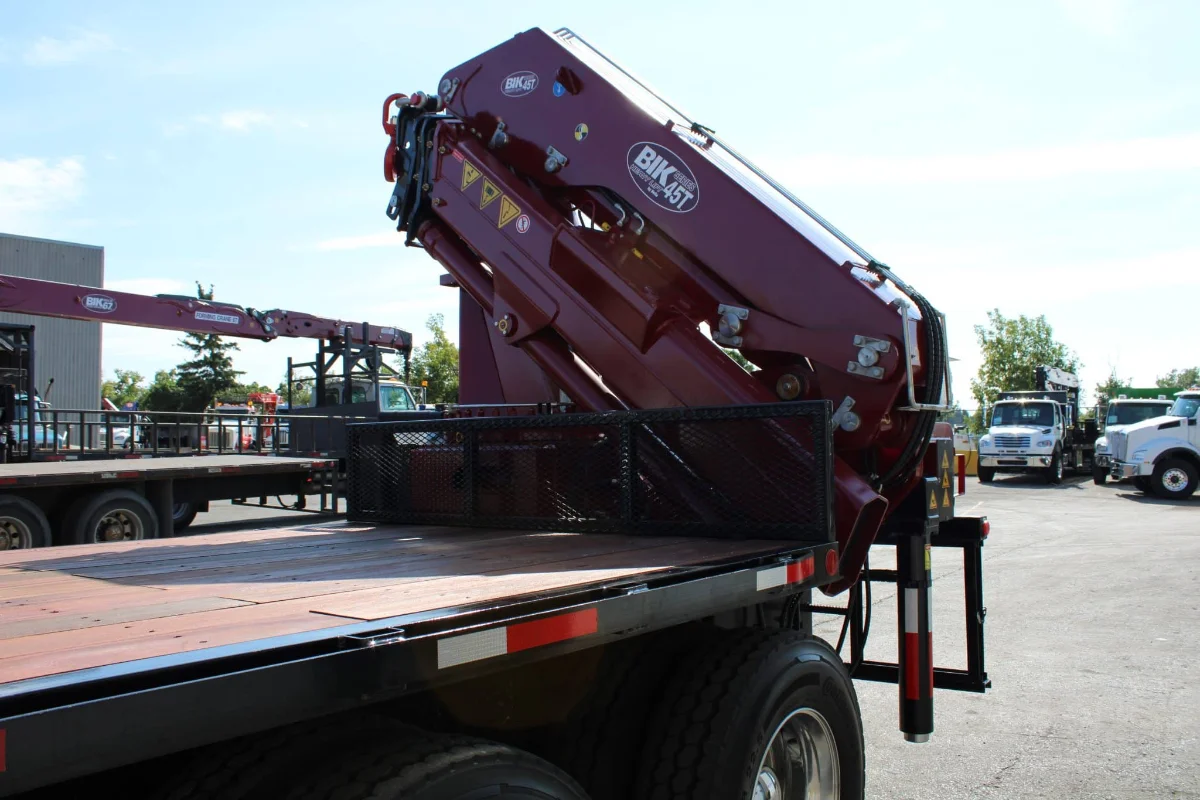

New – BIK “Heavy Lift” Series HL45T – by Heila: with hyd out & down stabilizers, 3-hydraulic extensions to 36’ of side reach.

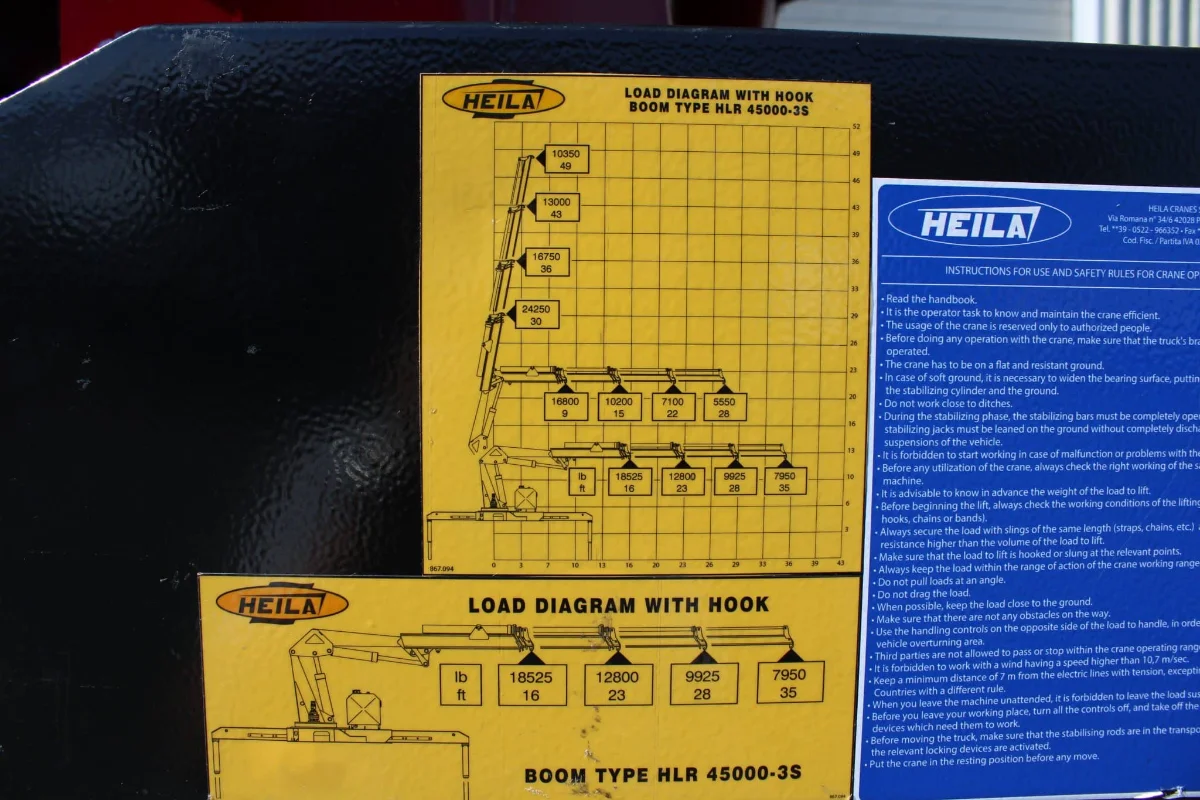

Boom Capacities:

• 34,000 lb @ 10’
• 18,500 lb @ 17’
• 12,450 lb @ 23’
• 10,000 lb @ 30’
• 8,000 lb @ 36’
• Installed END OF FRAME on shear-plated Sub Frame, prepped, primed and painted. New Air Operated PTO, Hydraulic Pump, Supply and Return Lines,  Hydraulic tank mounted under deck w/ shut-off valve, 12V connections to radio remote control.
• DANFOSS Proportional Valve Controls – single sided operator control station w/ fully proportional operator control
• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control,
• Radio Remote includes: 5-micro mode speed reducing settings , emergency stop, 2-batteries with in-cab charger,  50’ back-up cord
• Hydraulic Overload Load LImiting Device- Greatly increases life span of crane and provides added safety.
• PLANETARY PEDESTAL ROTATION – Superior Control & Turning Torque to 10 deg angle – Best in its class, reduced maintenance
• 450 degrees rotation, Hydraulic OUT and DOWN  2-sided, independently controlled stabilizers beneath pedestal.
• Ground Level main Danfoss valve bank , easy access for manual controls at ground leveL

• Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
• Hardwood Deck surface
• 66” Headboard
• Reverse Rail sliding track on passenger side
• 8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black.
• All steel painted Gloss Black
• To include removable tailboard height to be determined by rotation of crane

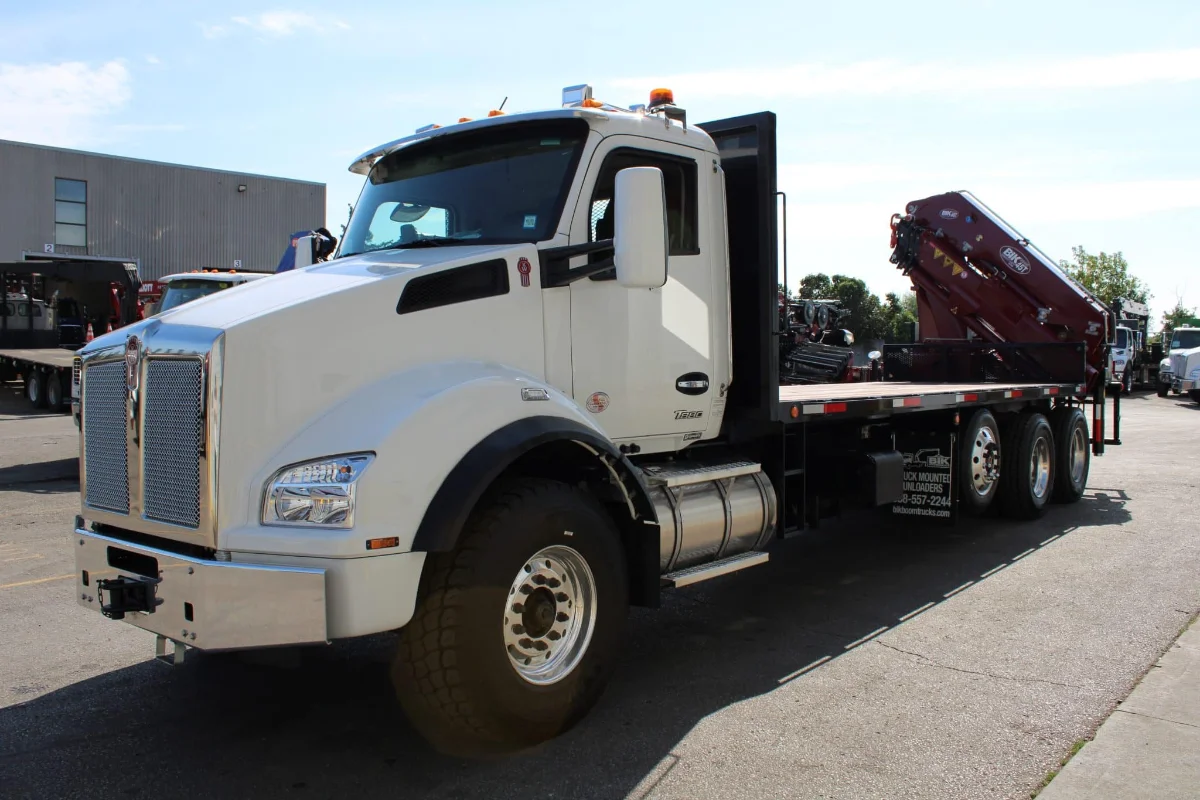

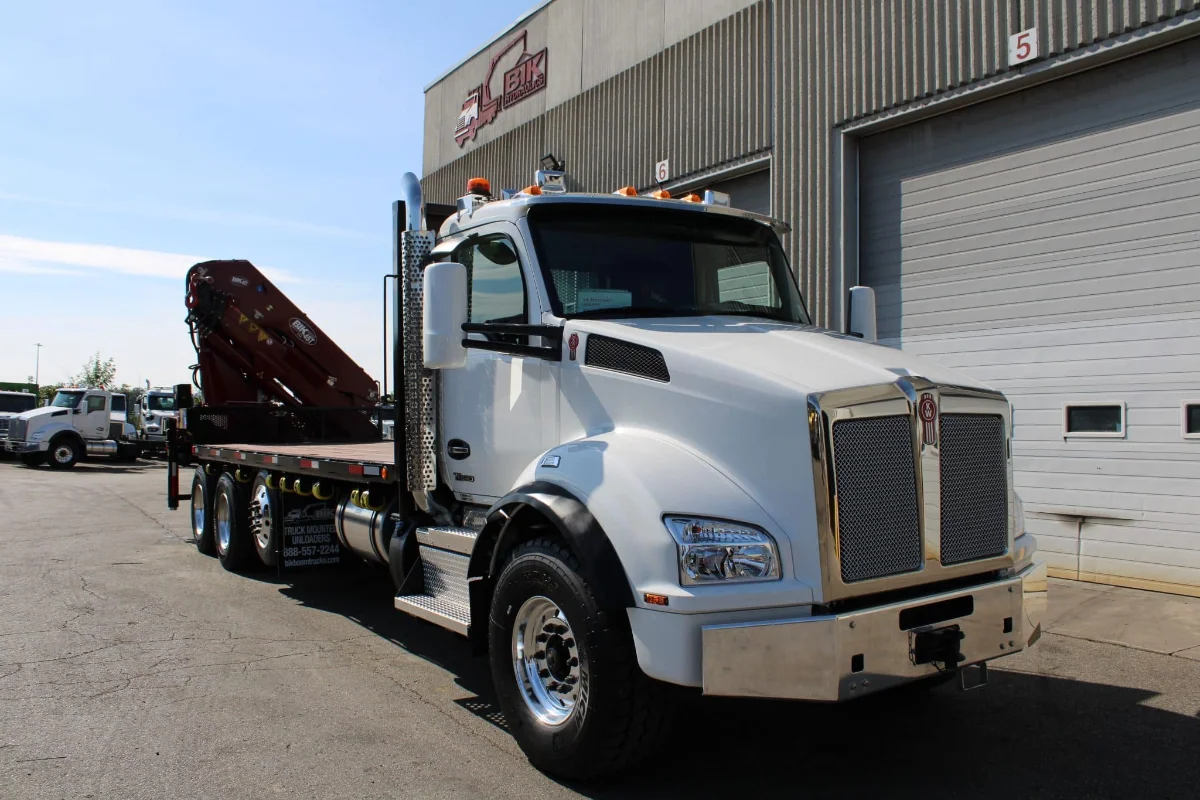

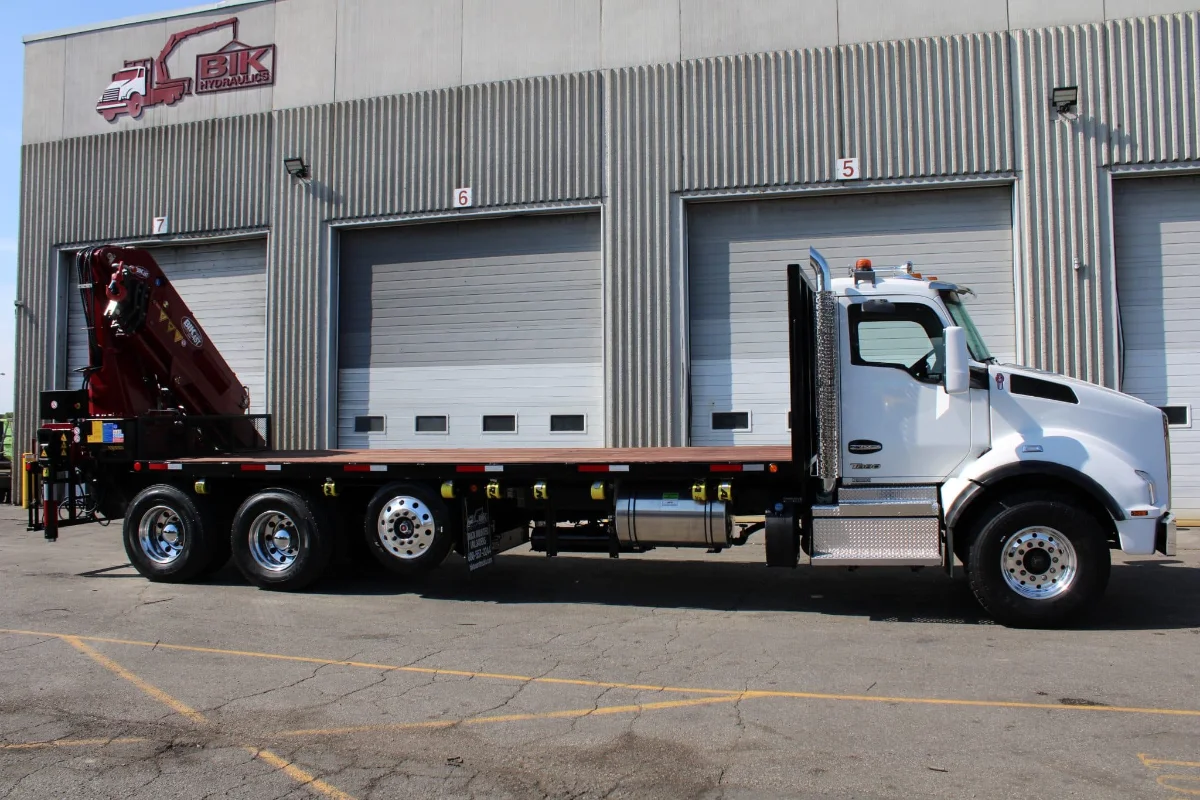

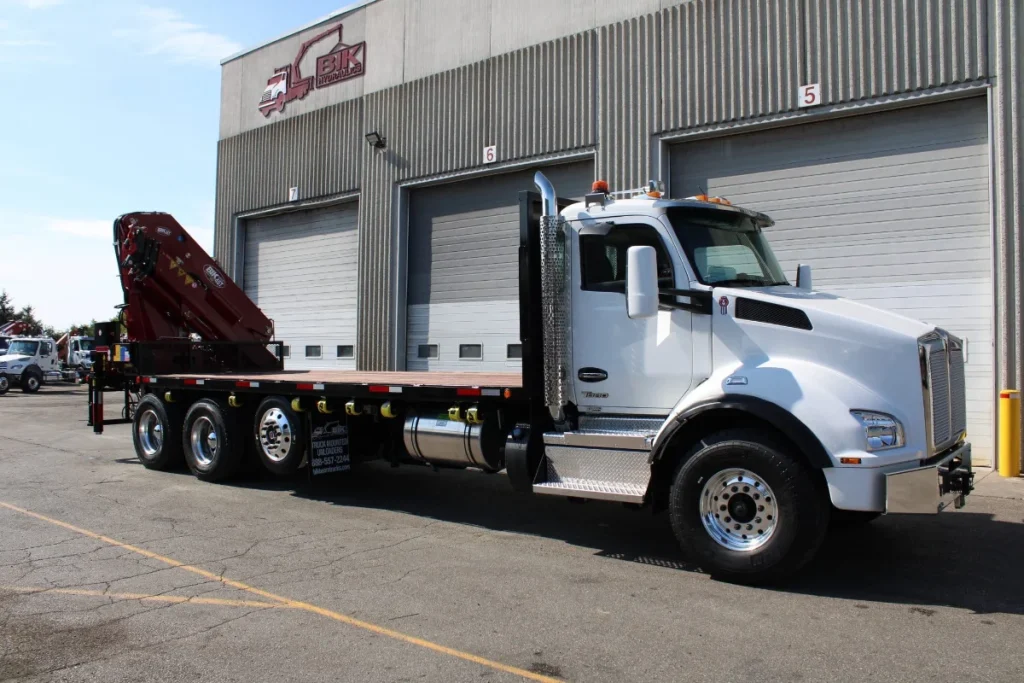

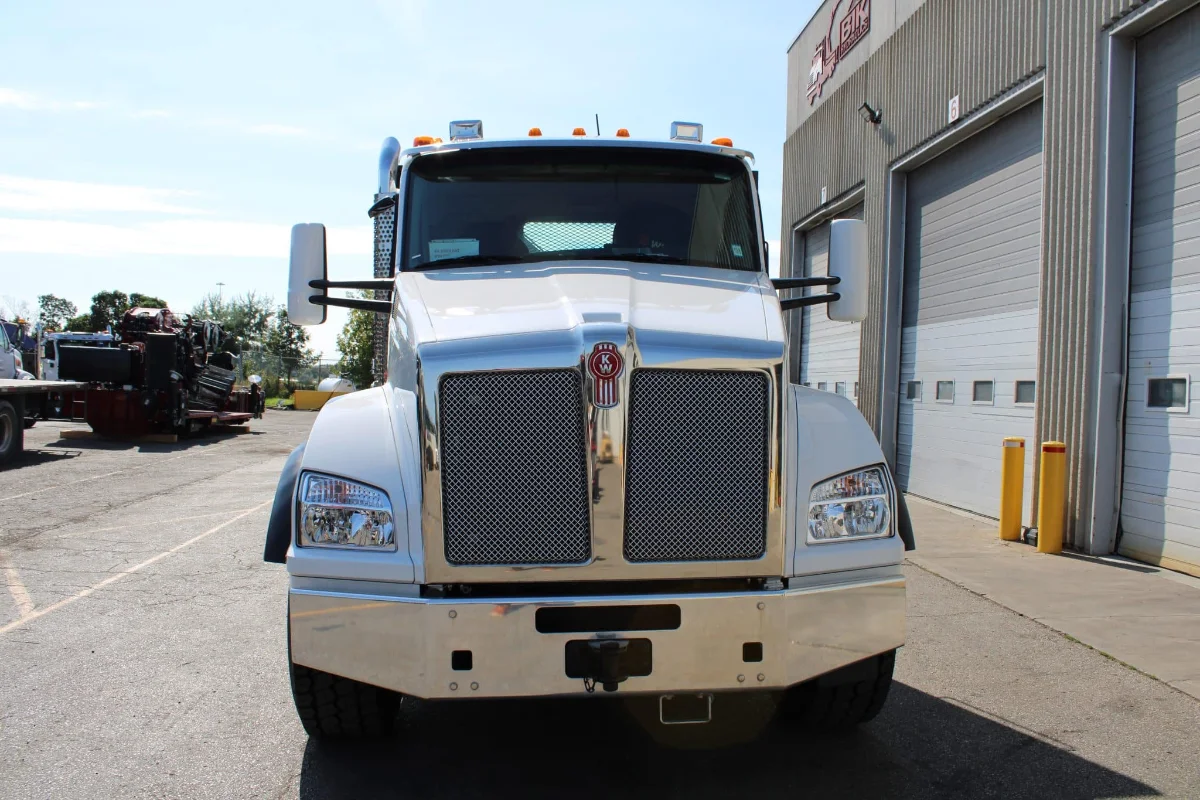

New – Kenworth T880 3- axle Truck – 70,000 lb GVWR

• PACCAR  505 HP / 1,850 ft/lb torque
• Eaton Ultrashift 18 spd AutoTrans
• 20,000 LB fronts with 425 / 65R22.5 tires
• 13,000 lb self steer lift axle installed ahead of t/a w/low profile 22.5” tires on alum rims
• 46,000  LB Rears on air ride
• Double Frame, Polished ALCOA Alum Wheels  front and rear
• Chrome single polished Exhaust
• Chromed Grille & Bumper
• Single 100 gallon aluminum fuel tanks
• Options including: Dual roof mounted strobe lights, A/C, Tilt/Telescopic steering, AM/FM/CD player , Jake Brake,  air driver’s seat,  fixed  passenger seat, cruise, heated mirrors, painted sun visor, All-way inter-axle and diff lock-ups, Cab Painted White,  Air ride cab, full differential locks,  trailer air tow package, etc…

Also Included Are:

• (2) pcs – Aluminum stabilizer pads with holders at rear
• Program radio remote control for engine stop/start and truck shut off
• 1” drawplate installed at rear w/Heavy duty pintle hook
• 1- Alum box installed under deck
• 13,000 lb lift axle (as described above)

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
