The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.

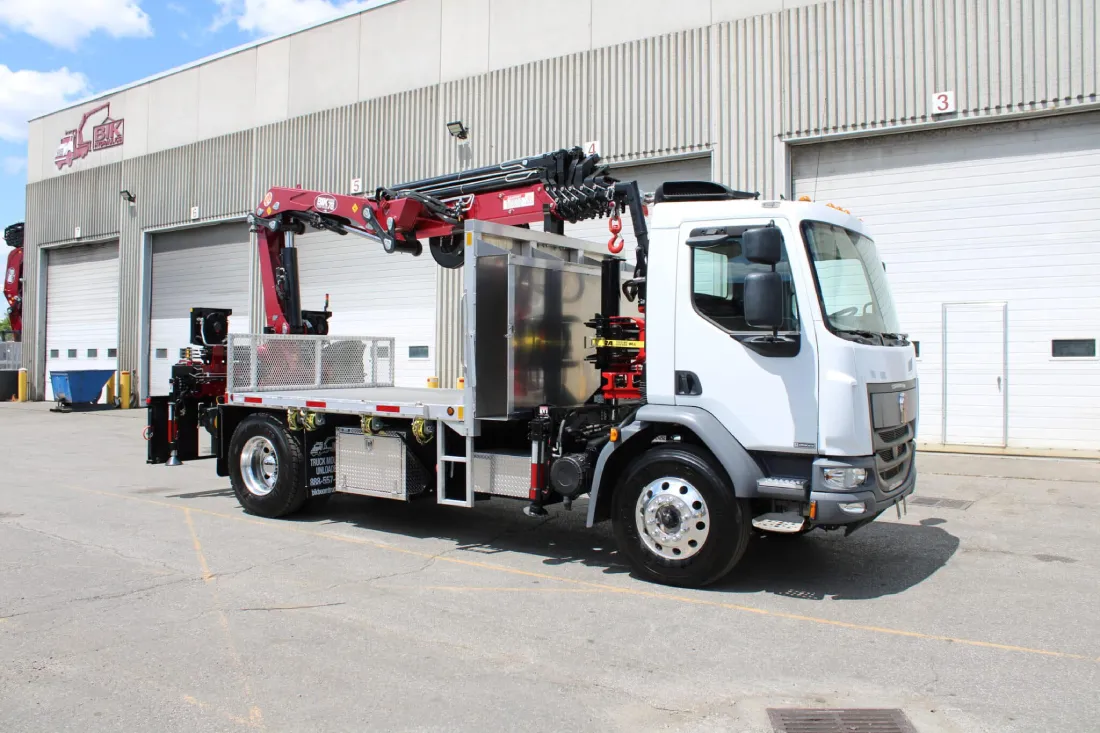

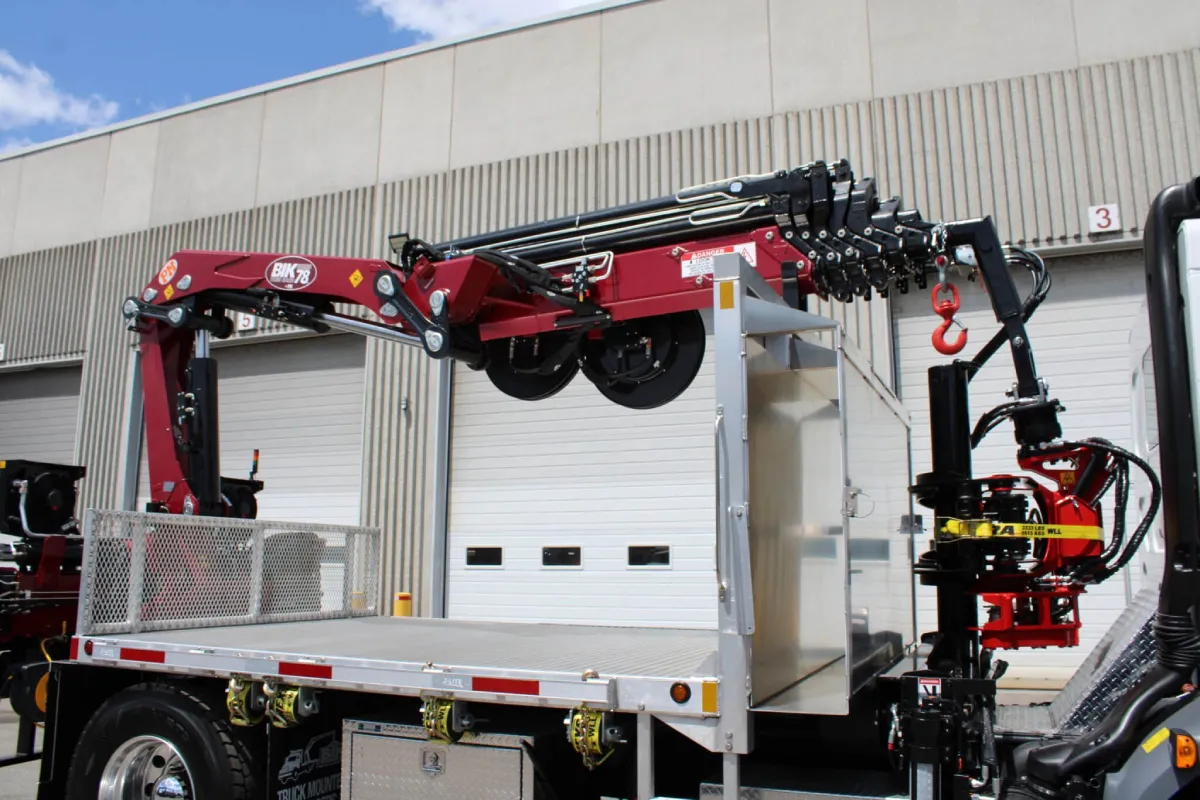

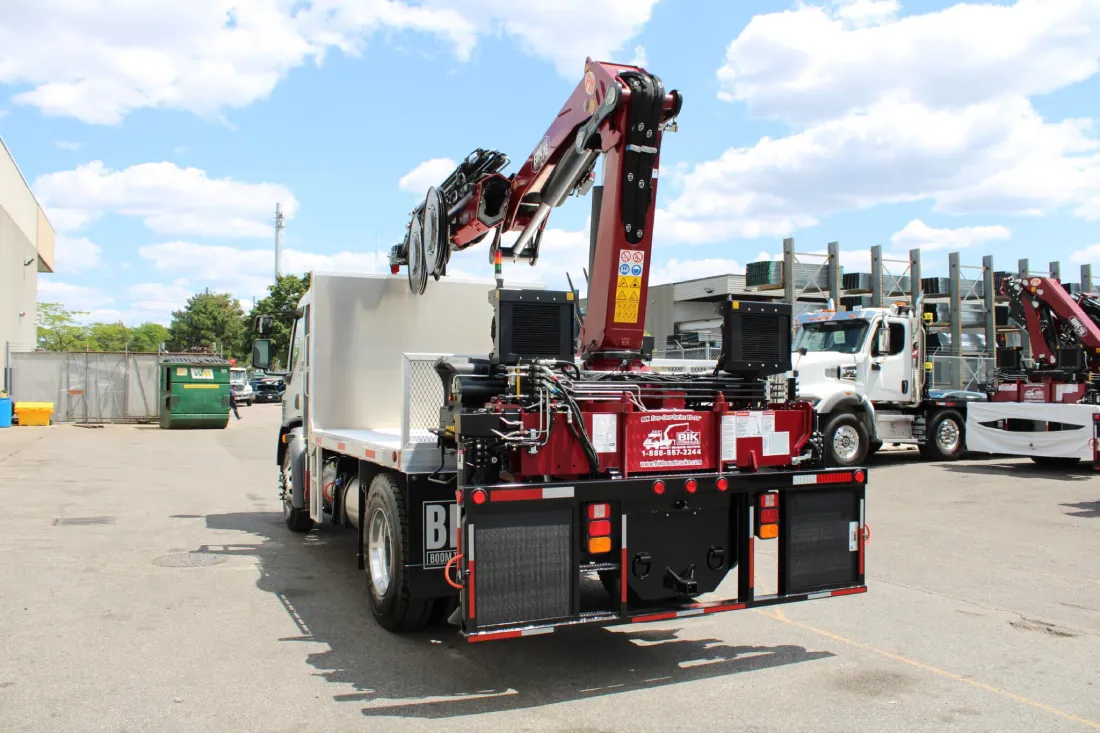

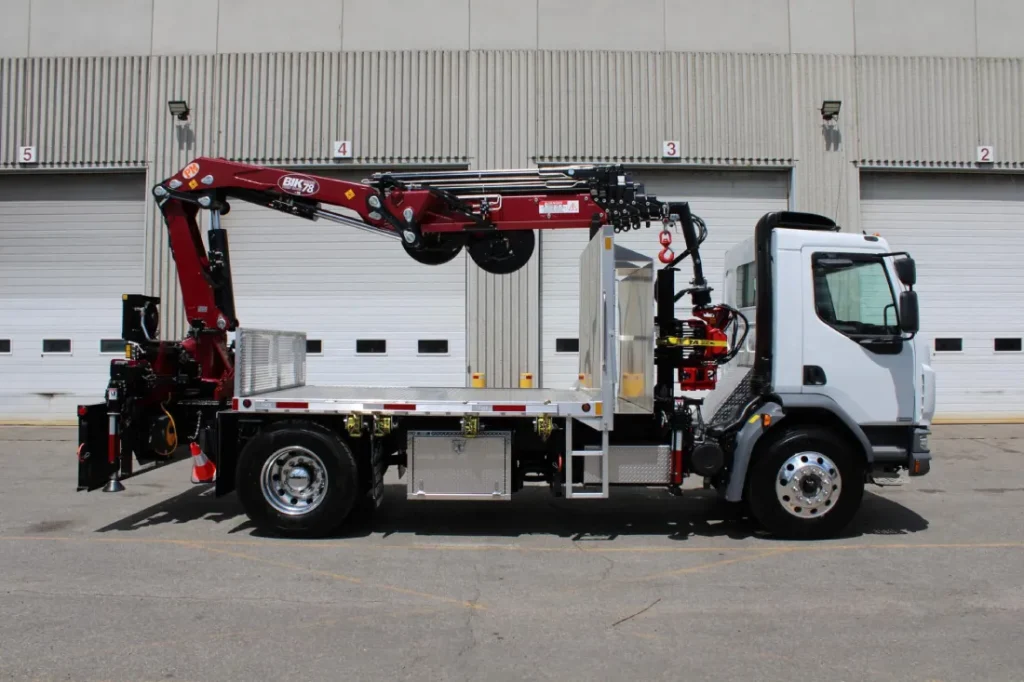

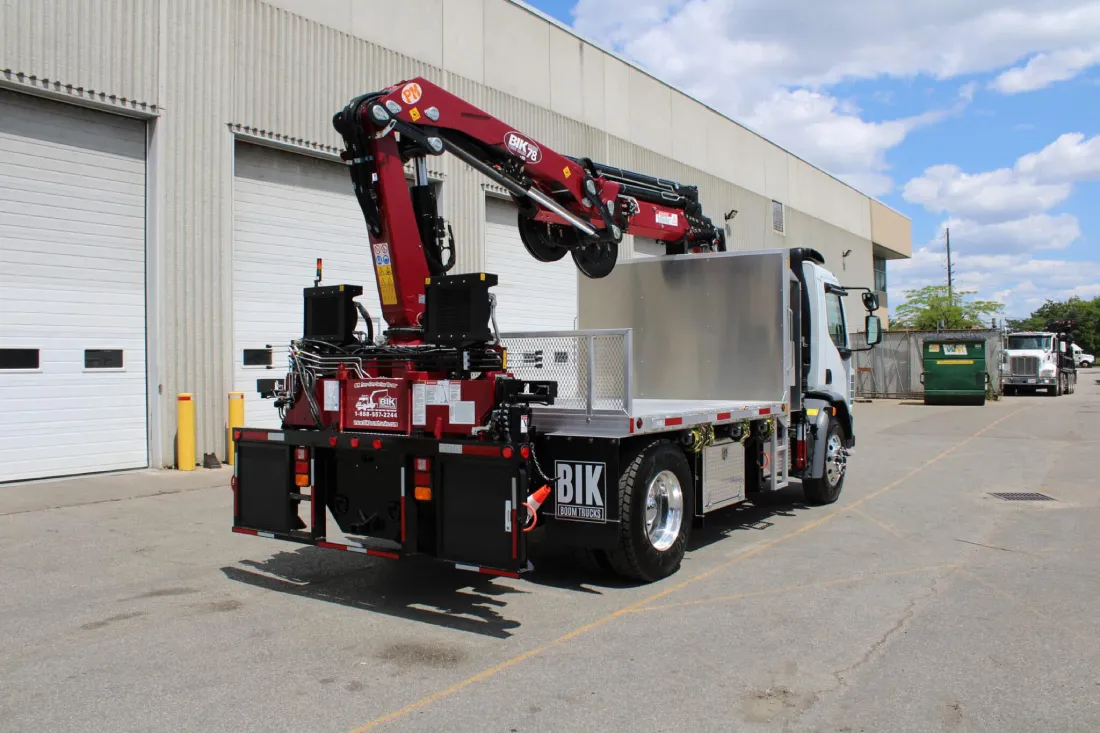

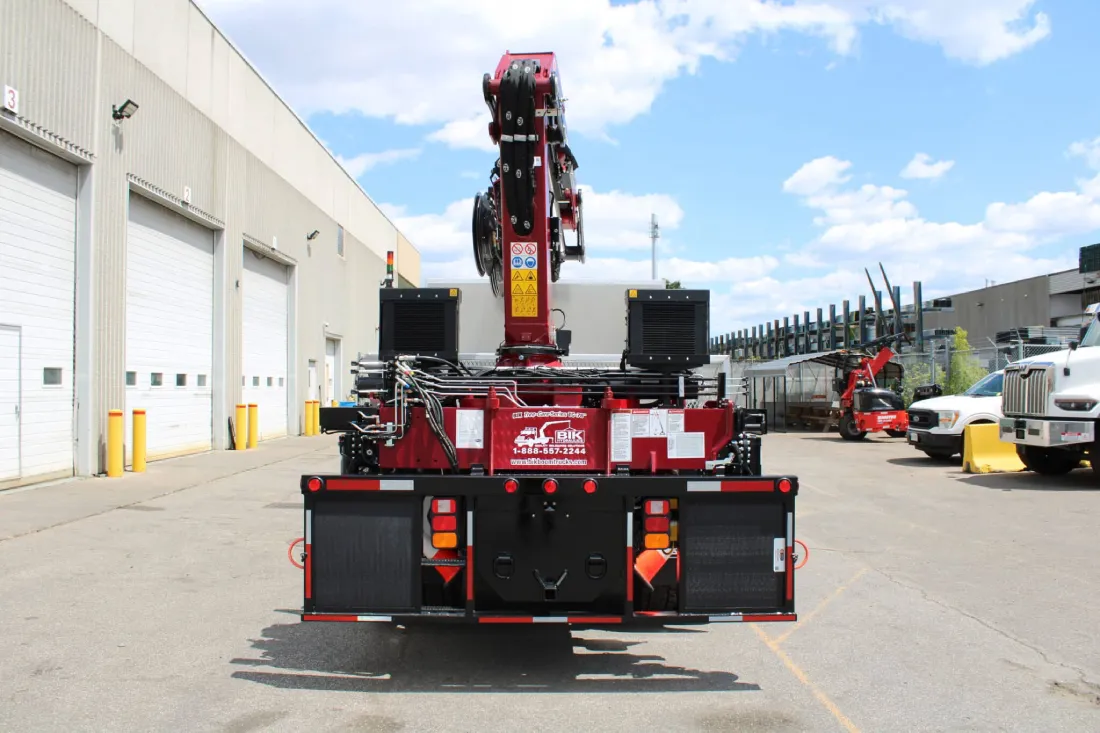

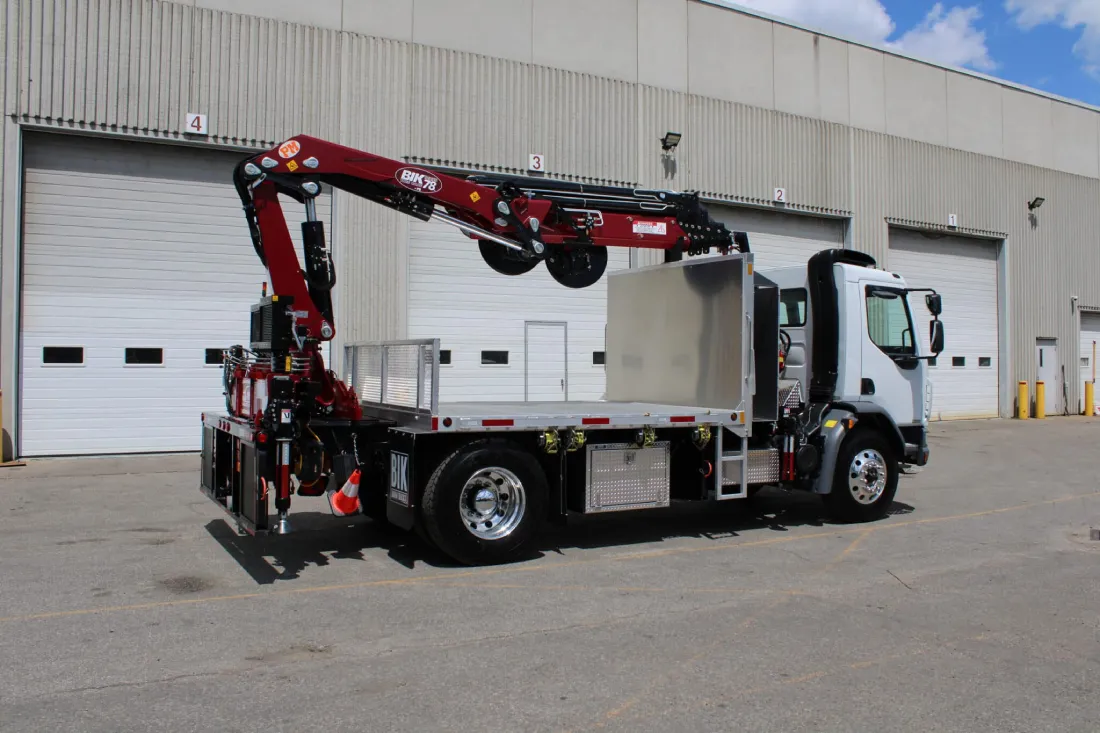

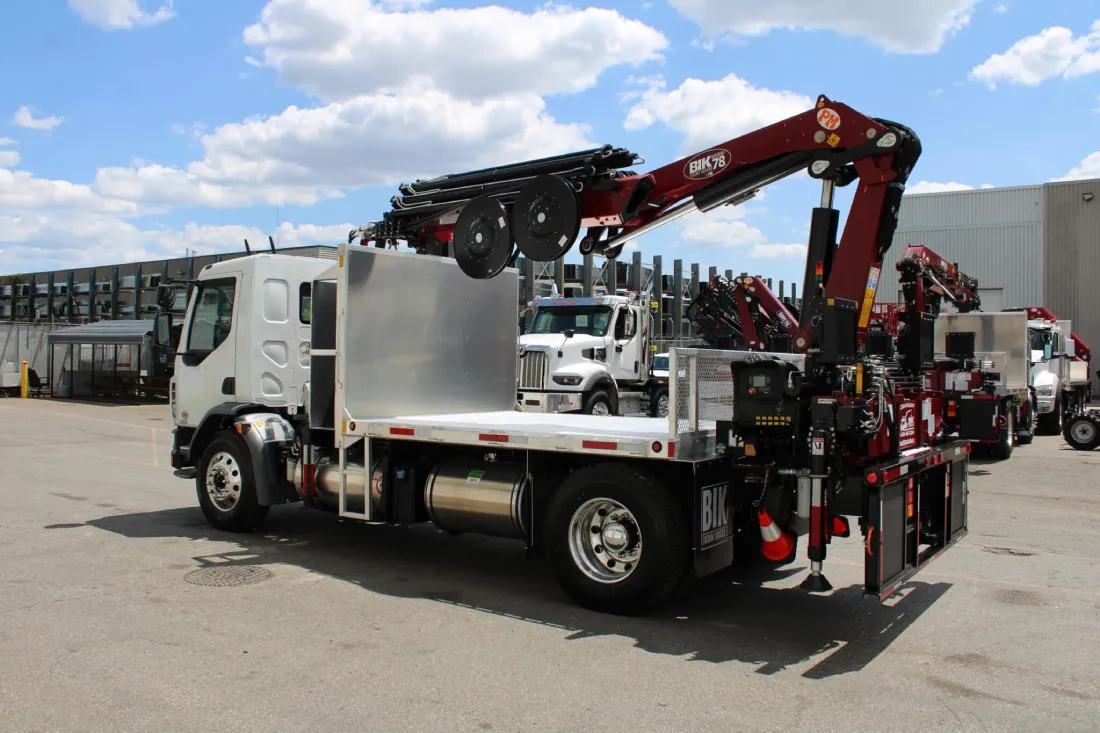

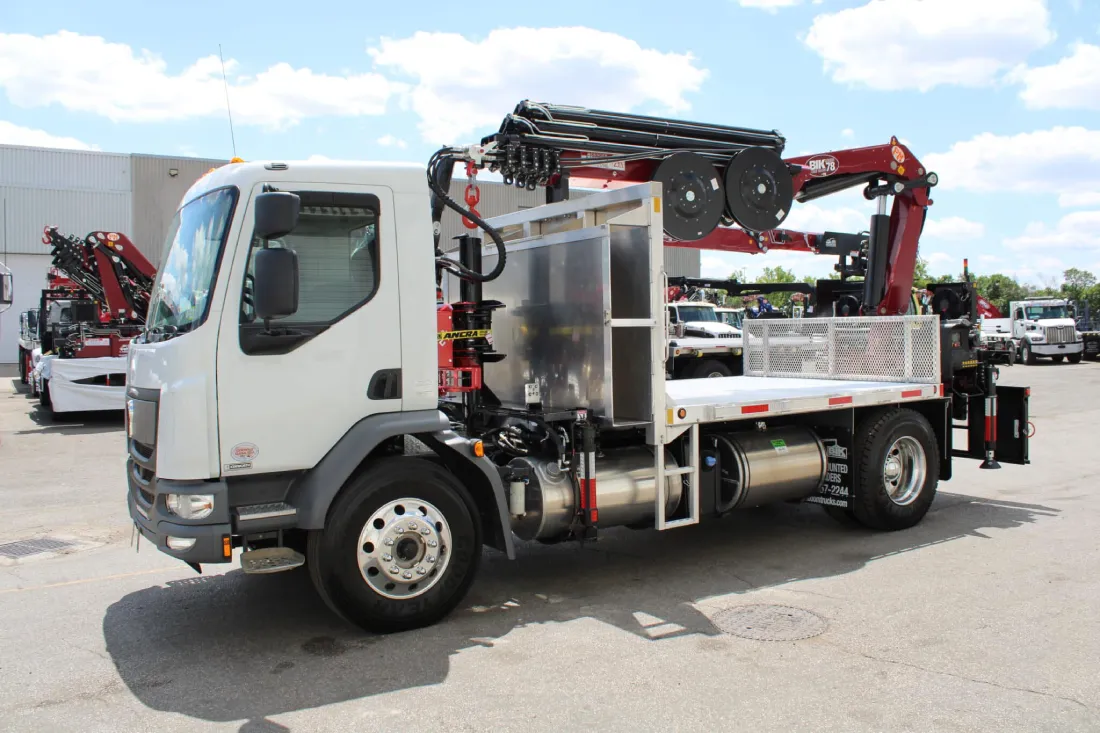

BIK Tree-Care Series TC-78  (PM 23.5 ton/m):  6-hydraulic extensions & one manual grapple extension

• Vertical Reach of 78’ –   Handles 2,900 lbs @ 78’ Vertical Reach
• HORIZONTAL Capacities:
  • 9,800 lb at 14’
  • 5,900 lb at 20’
  • 4,330 lb at 26’
  • 2,560 lb at 40’
  • 1,750 lb at 65’
•  408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted BIK Burgundy,  Double pilot operated on slewing and pilot operated check
• valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom, mounted behind the cab of the truck.
• DANFOSS Proportional Valve Controls – single-sided operator control station,  Load Holding Valves on all cylinders
• PM Power-Tronics electronic monitoring & load control with stabilizer deployment sensors & digital read-out on the remote

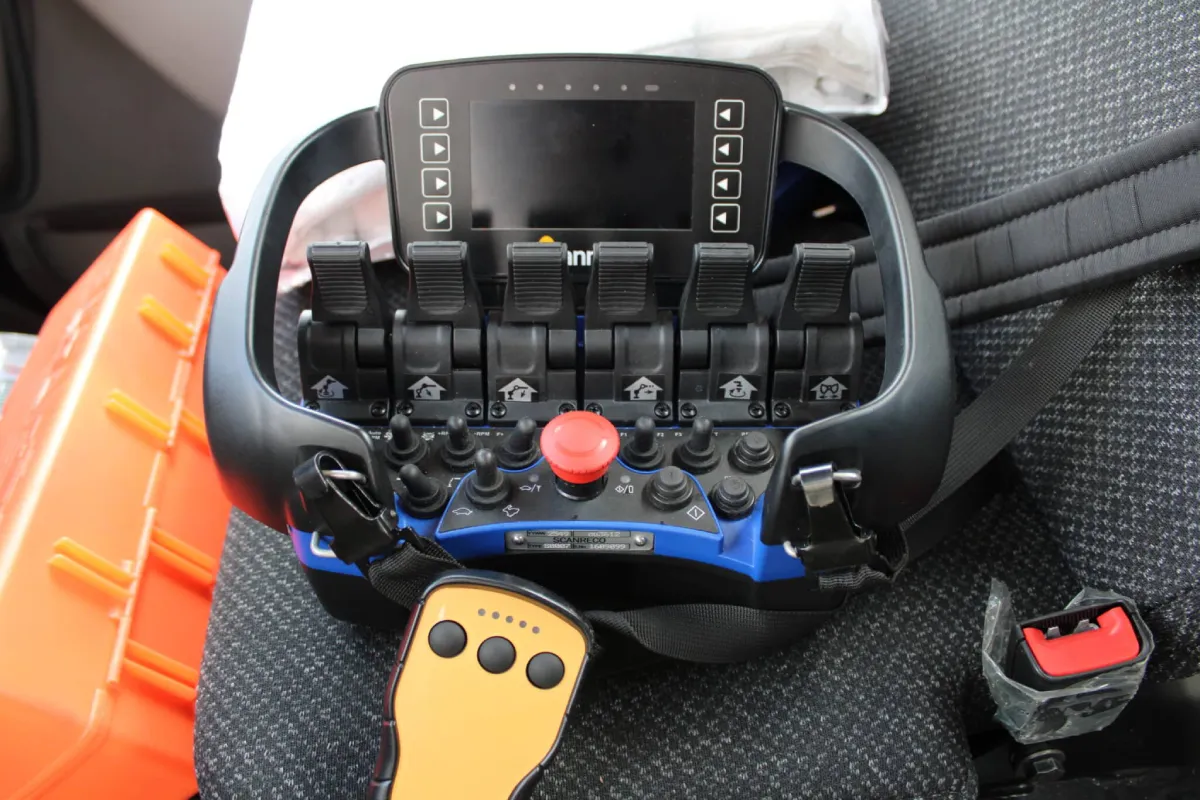

• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
• Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord

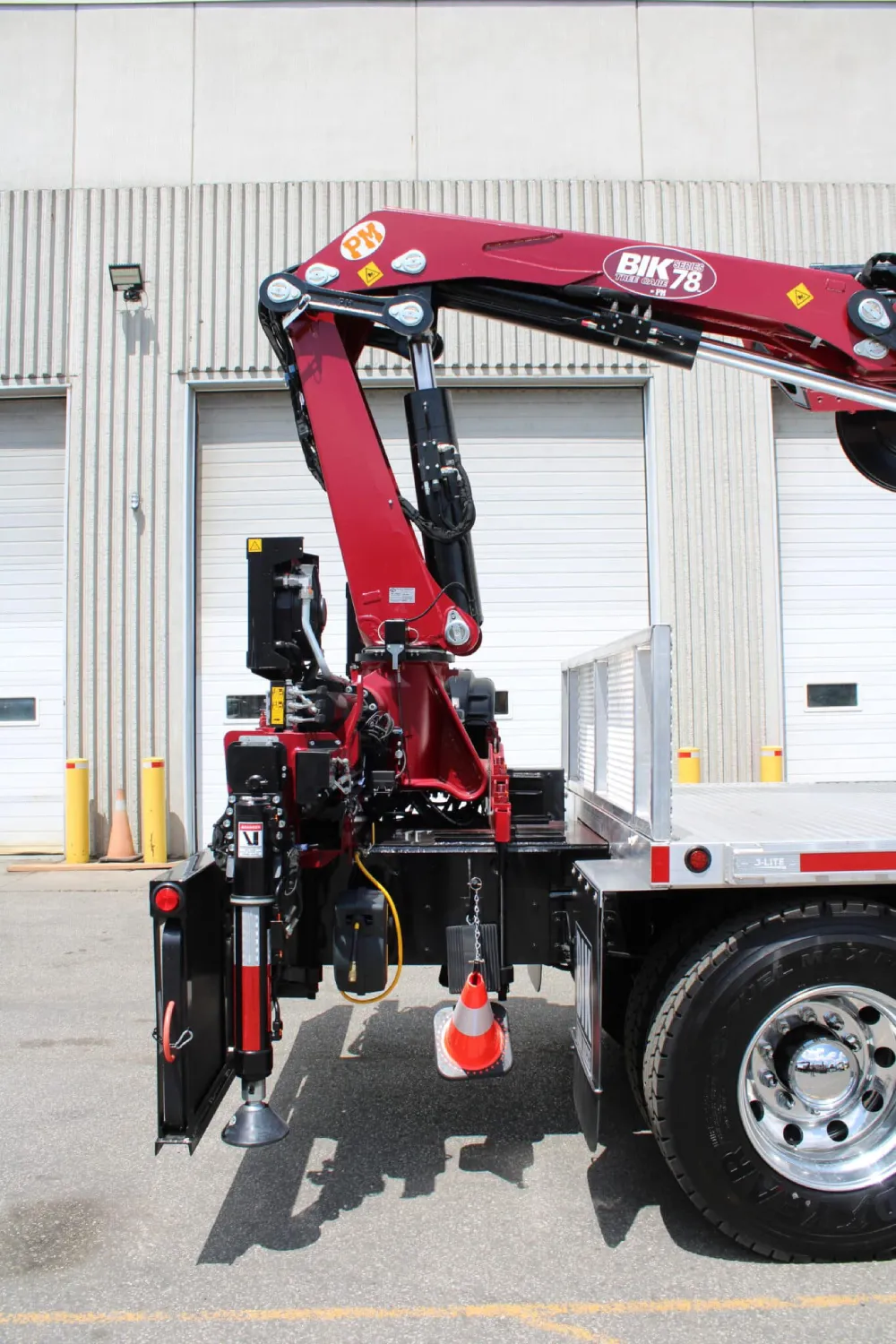

• Hydraulic OUT and Hydraulic DOWN Extra Wide  – 21’ 6” span, 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
• 15 degree negative angle  on folding arm   –  Hydraulic Overload Protection – simplified system that prevents boom from overload
• Two functions plumbed  to end of 6th extension
• Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
• Installed end of frame, Engineer stability tested & certified to 100%  of load chart (360 degrees),

Warranty: 1-Yr. parts & labour on the entire boom, 3-Yr. on Structural Components

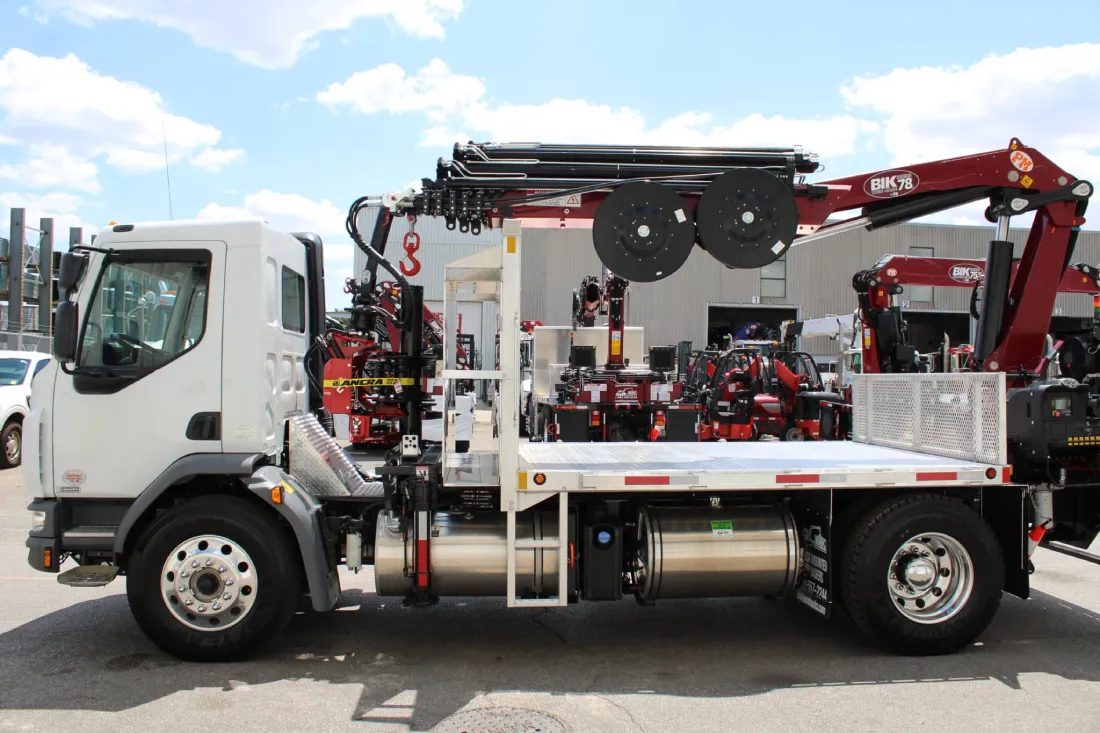

New – 11’ x 102” Aluminum Deck Body:

• 60” aluminum headboard
• deck surface
• Main sill X-braces & support
• 2-Deck access Ladders at Headboard
• 2-Ladders at rear, reflectors and Mud-flaps
• 6 – Sliding Winches and track under deck
• painted black
• Boom rests on headboard with Grapple saw rest ahead of the headboard. Matt rack behind headboard.

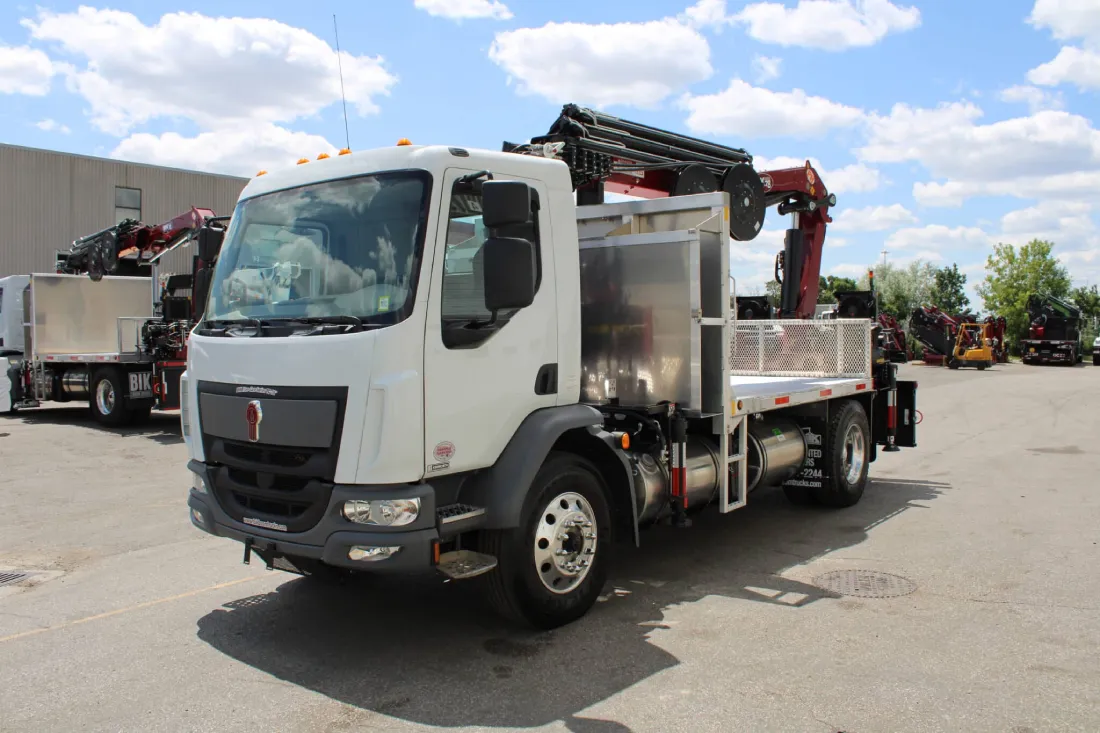

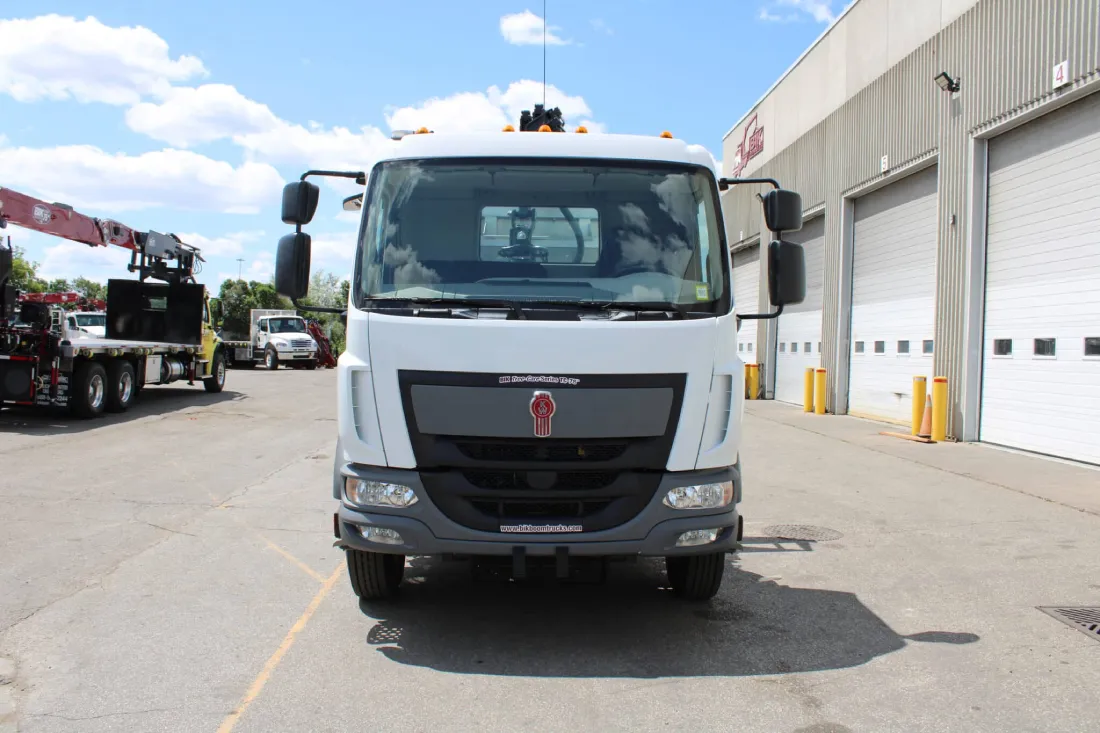

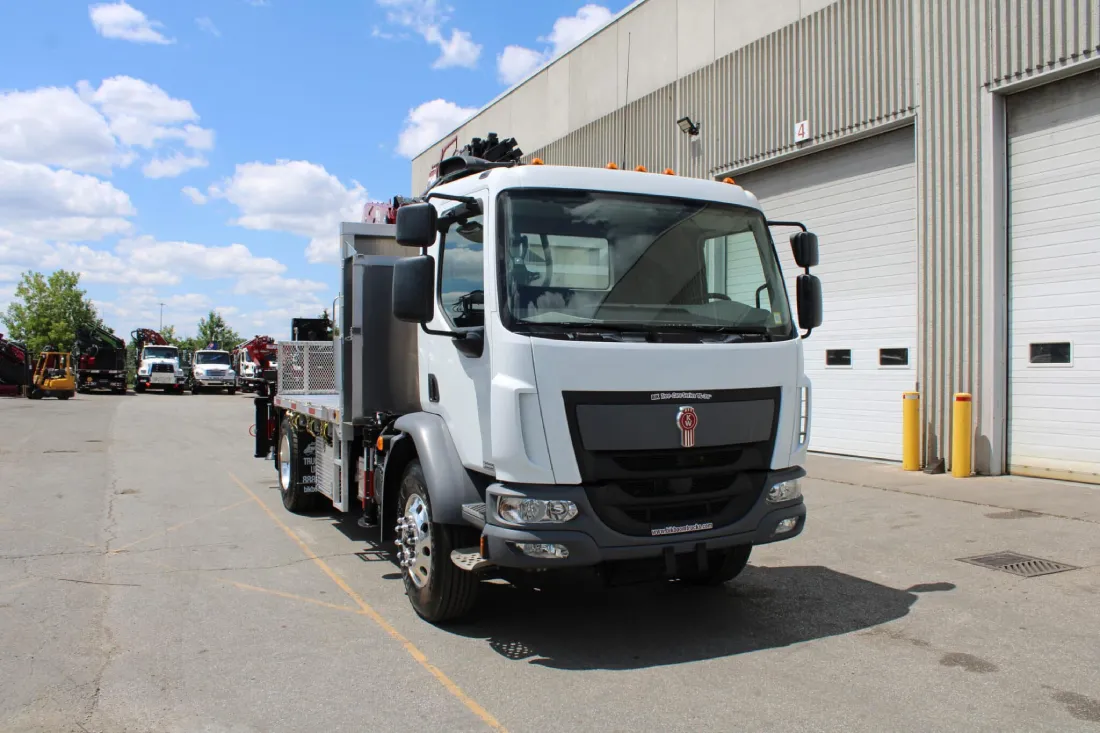

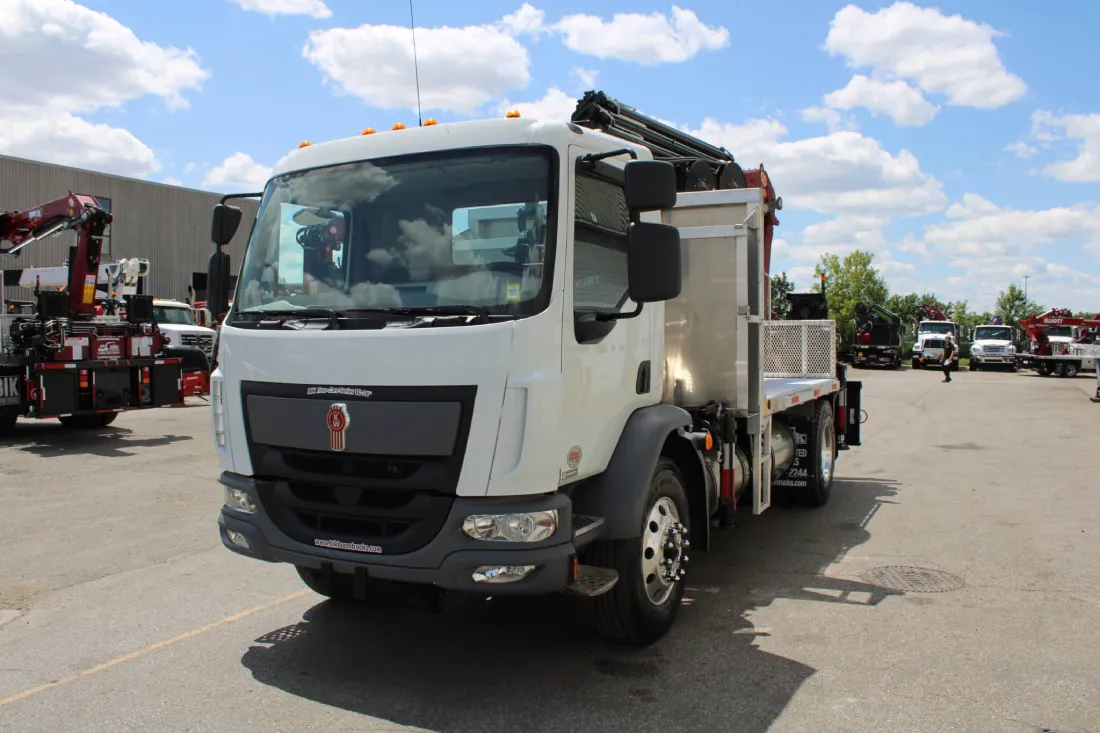

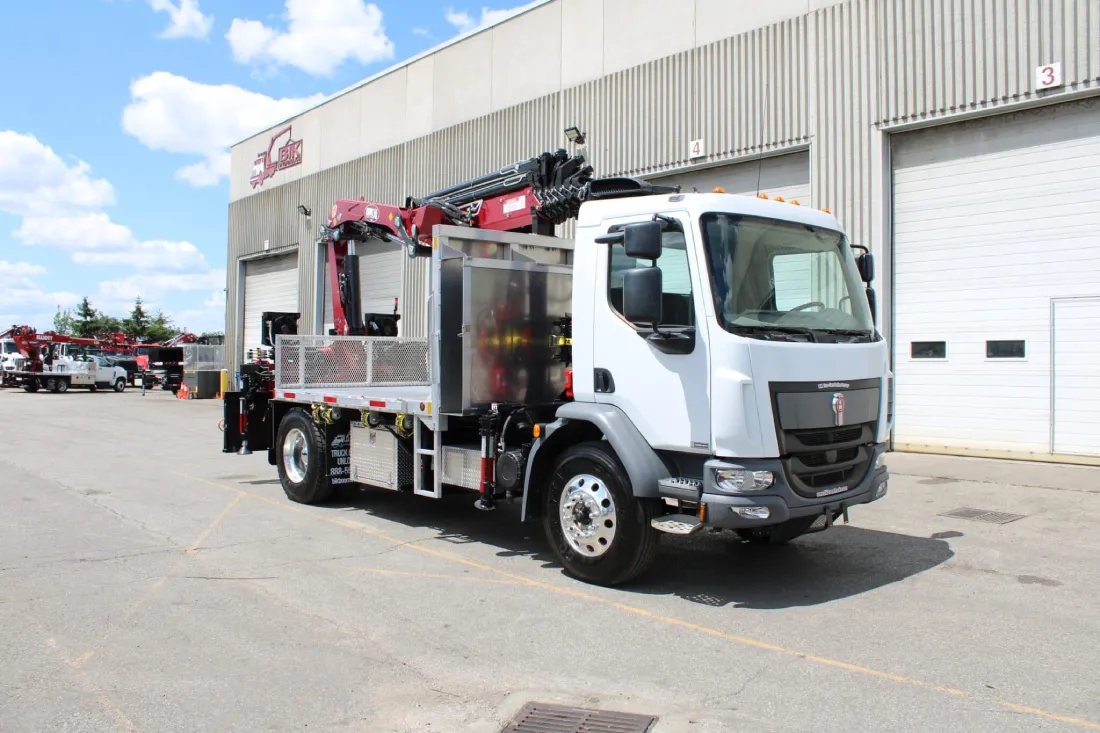

New – Kenworth K370 Cab-Over Single-Axle Diesel Truck: 26,000 lb end rating – NON-CDL

• Cummins 260 hp Diesel
• Allison 6-spd automatic transmission
• 12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims
• 21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner
• air brakes

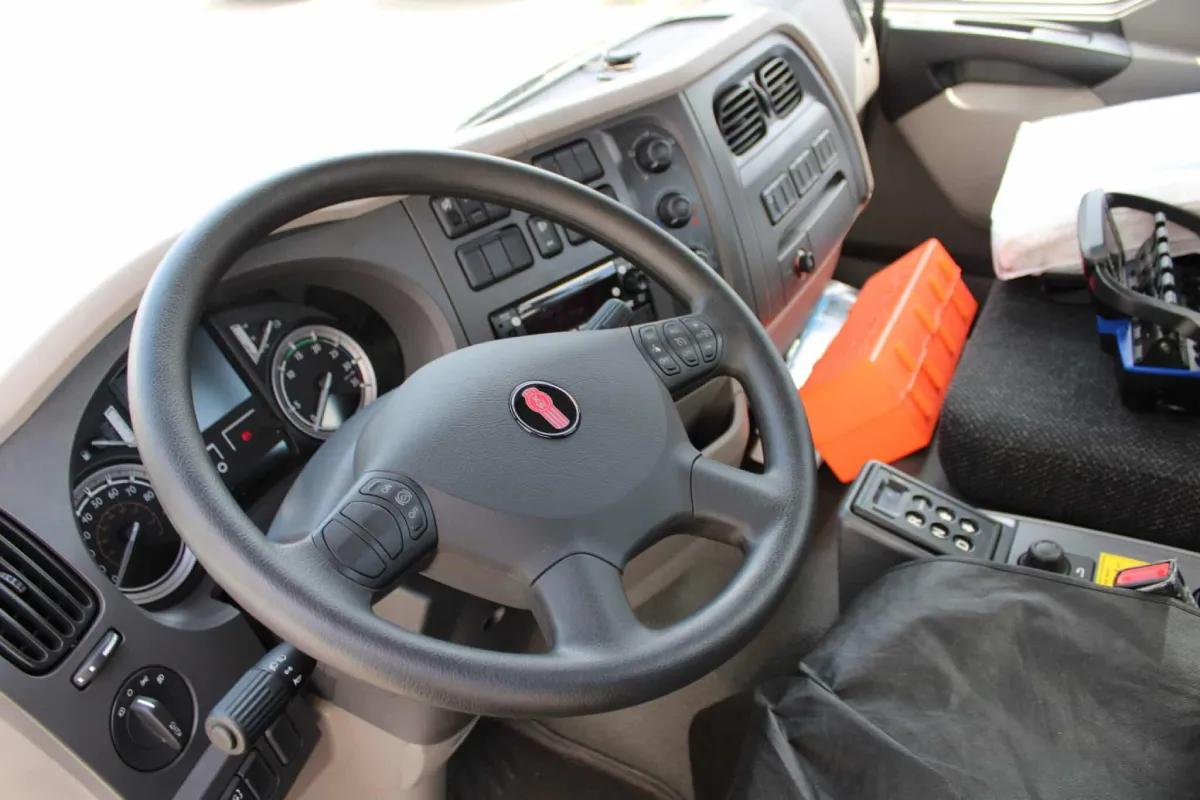

• Truck Features Include: Air cond., AM/FM stereo, Bluetooth, USB port, power windows, tilt steering, power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc

Also Included:

• (2) pcs  2” PVC stabilizer pads with holders
• 36” Alum storage boxes installed

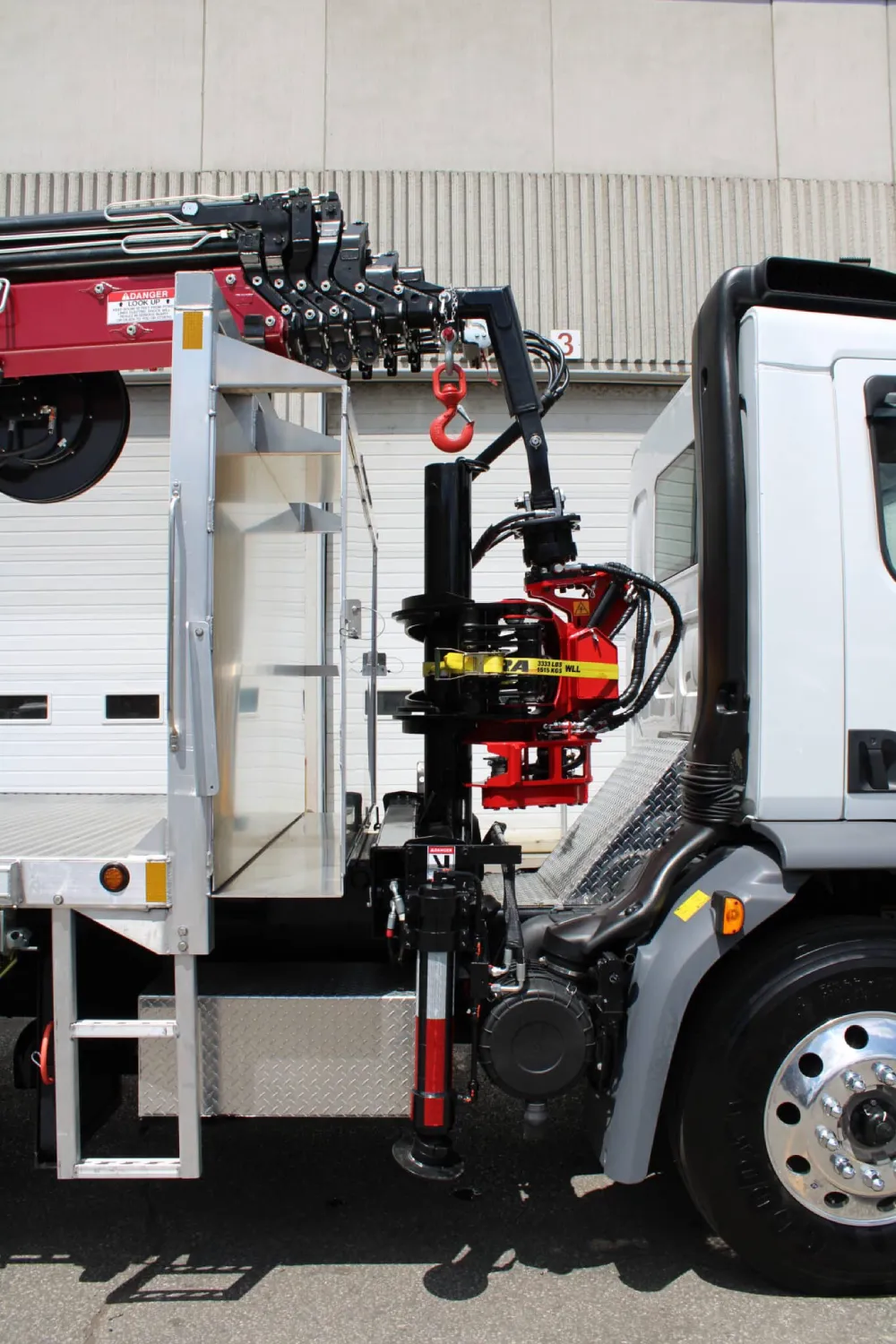

• Mecanil SG-220 Grapple saw w/spare parts kit,
• Grapple saw holder/stow bracket mounted behind cab, Boom operation familiarization provided at your facility for 2 days by an expert operator
• Drawplate with Reese-type pintle hook receiver with electric trailer brake actuator installed

Other Options at Extra Cost:

• (1) Aluminum self-levelling man basket
• Additional 3’ Aluminum storage box installed under deck

Handles 2,900 lbs @ 78’ Vertical Reach

NON-CDL with Full Capacity Rating in all Areas
