While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

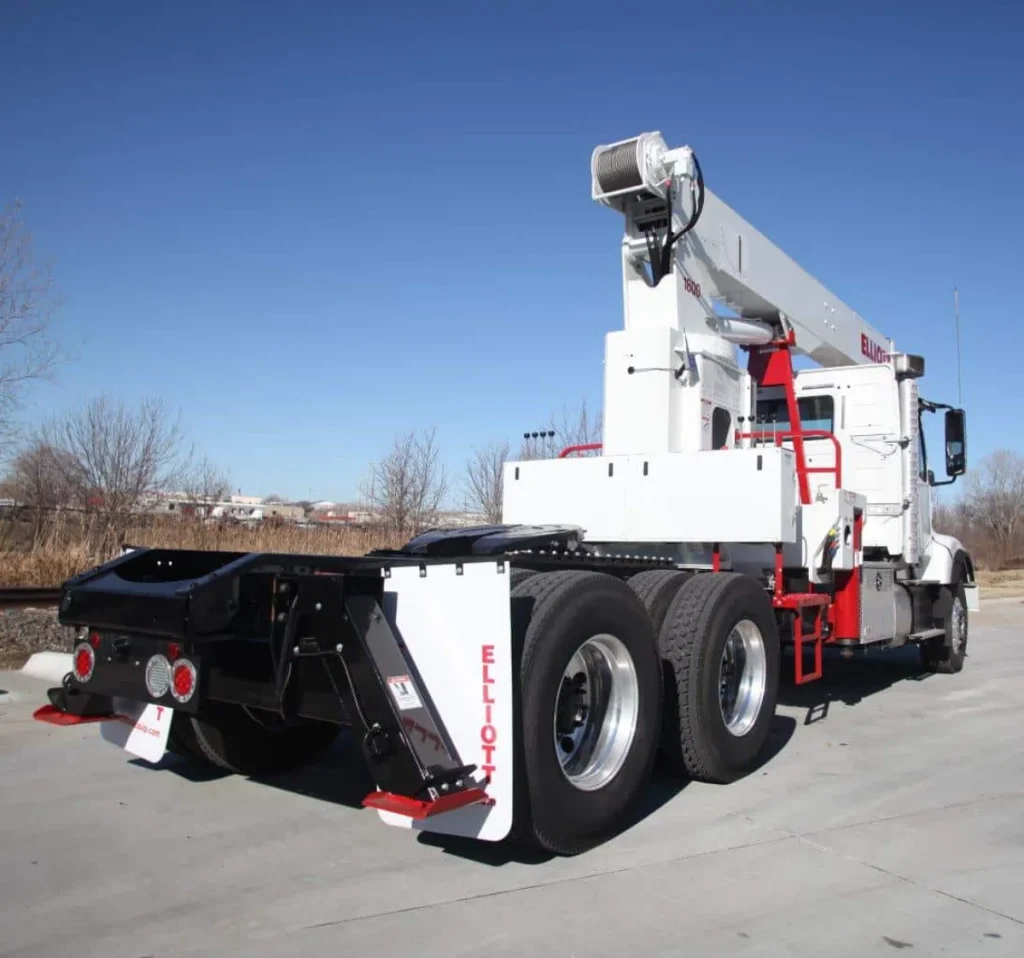

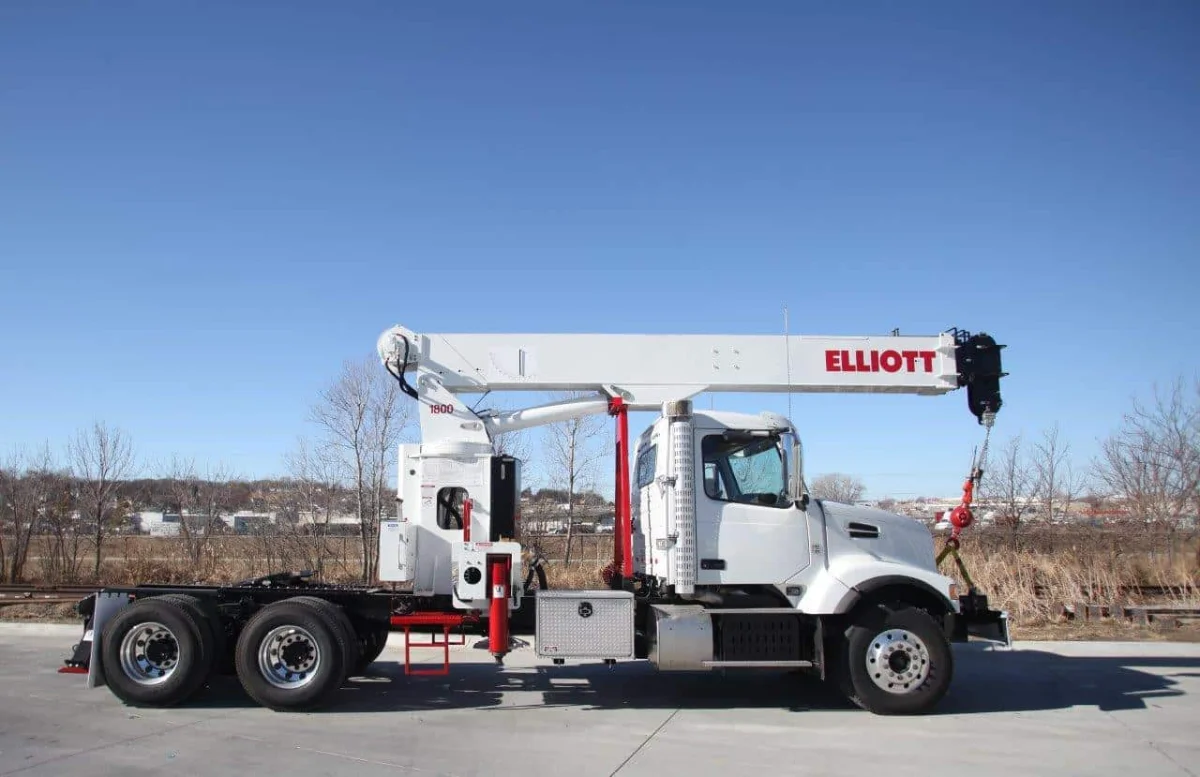

NEW – REDESIGNED ELLIOTT MODEL 1881 TM – 18-TON TRACTOR MOUNT CRANE:

• 21 – 81 ft. 5-Section Proportional Boom – 91 ft. Sheave Height
• Boom Stows Forward of Truck Chassis – Mounted Forward of the Rear Tandems
• ALL NEW – Hydraulic Out & Down Stabilizers at Boom Base, 10′ A-Frame Auxiliary Stabilizers Behind Rear Axle

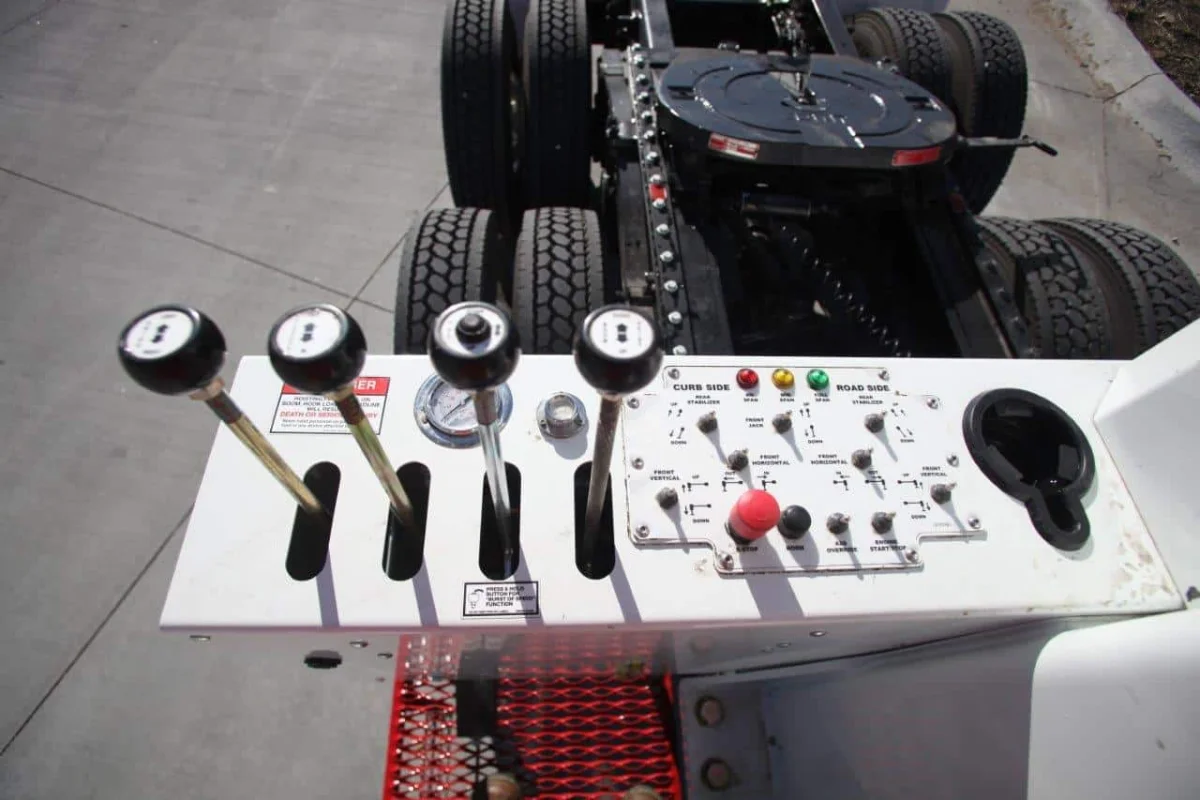

• Dual Operator Console Stations:  w/Engine Start/Stop, Load, Range, Hoist and Jib Charts, Electronic Foot Throttle
• 1 Set Operator’s and Service Manuals
• 275′ – 9/16″ 6 x 37 EIPS Wire Rope with 3-Sheave Boom Head, Headache Ball w/Swivel Hook
• 39,600 lb. Single Line Pull with 12,700 lb. Bare Drum Pull
• 3-Section Gear Pump, 70-Gallon Tank w/Sight and Temp Gauge, 10 Micron Return Line Filter
• Anti-Two Block Device with Load Moment Limiter
• Painted Elliott Imron White, Red, and Black w/Red Decals
• Including:  372 Degrees Non-Continuous Rotation – 180 Degrees Area of Operation, Bubble Level Indicators, Boom Length and Angle Indicators, 2-Speed Hoist, Outrigger and Stabilizer Audio Motion Alarm, Flared Outrigger and Stabilizer Pads, Audible Awareness Warning Horn, Single Gate Valves on Suction Line and Tanks, 3-Section Gear Pump, Air Shift P.T.O. Crane Frame with Sub-Spacer Mounted Forward of Rear Tandem.

NEW – 2017 VOLVO VHD64 TANDEM AXLE DIESEL TRUCK – 66,000 lb GVWR:

• Volvo D-13 Diesel 465 hp, 1,650 ft/lb Torque
• Volvo I-Shift Automated 12-Spd Transmission
• 20,000 lb Fronts with 315/80 R22.5 Front Flotation Tires on Aluminum Rims
• 46,000 lb Rears on Volvo T-Ride Suspension with 11R22.5 Tires on Aluminum Outer – Steel White Inner Rims
• 252″ Wheel Base, Double-Frame Chassis, 54″ Spread at T/A, 3.73 Rear Axle Ratio
• Truck Features Include:  Air Cond., AM/FM/CD/MP3/USB/Bluetooth Radio, Cruise, Tilt Steering, Power Windows, Heated Mirrors, Engine Block Heater, Engine Brake, Trailer Air Tow Package, Differential Locks with Rear Wheel Lock-ups, etc…

Call for Details at: 888-557-2244 or 416-679-3838
