While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

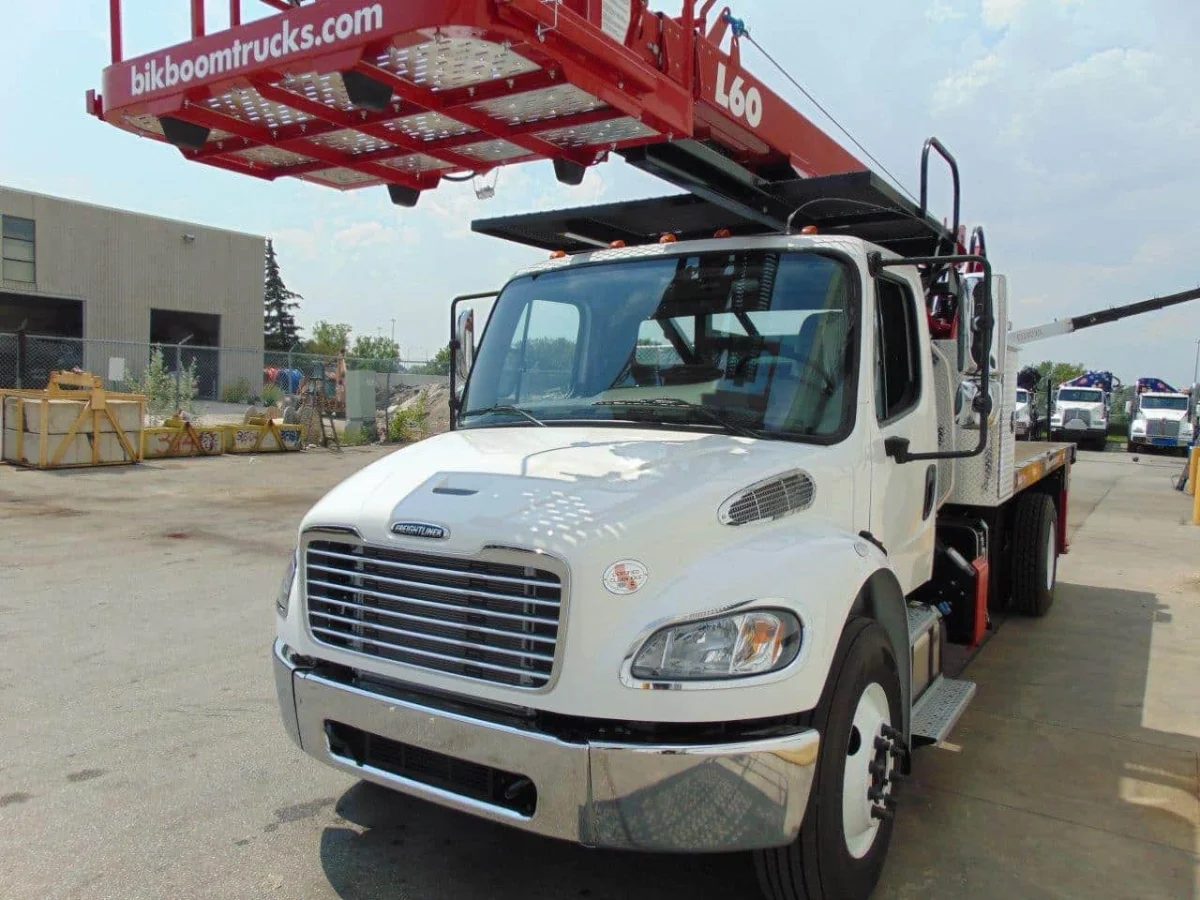

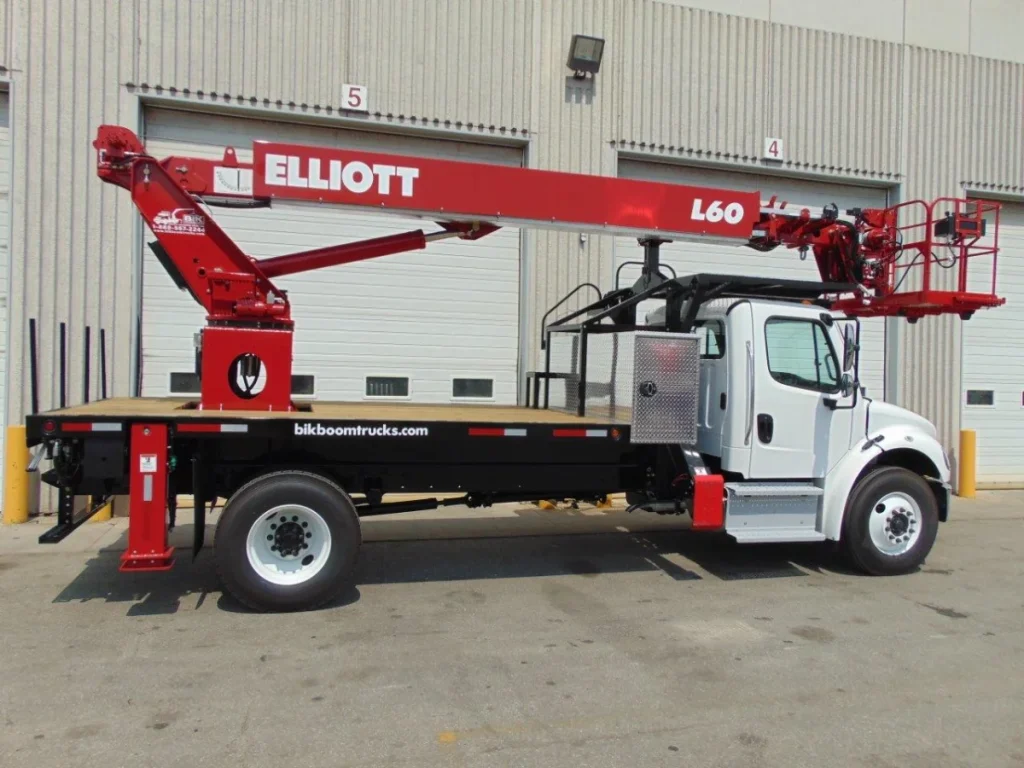

NEW ELLIOTT L60R HI-REACH AERIAL WORK PLATFORM

• 62′ Max Working Height
• 56′ Max Side Reach
• Steel 3-Section Telescopic Boom
• Front Mount Configuration with Rotating Turret
• Electronic/Hydraulic Controls
• Overall Height (Including Truck) – 11′ 9″
• Unit Weight (Bare) – 13,500 lbs

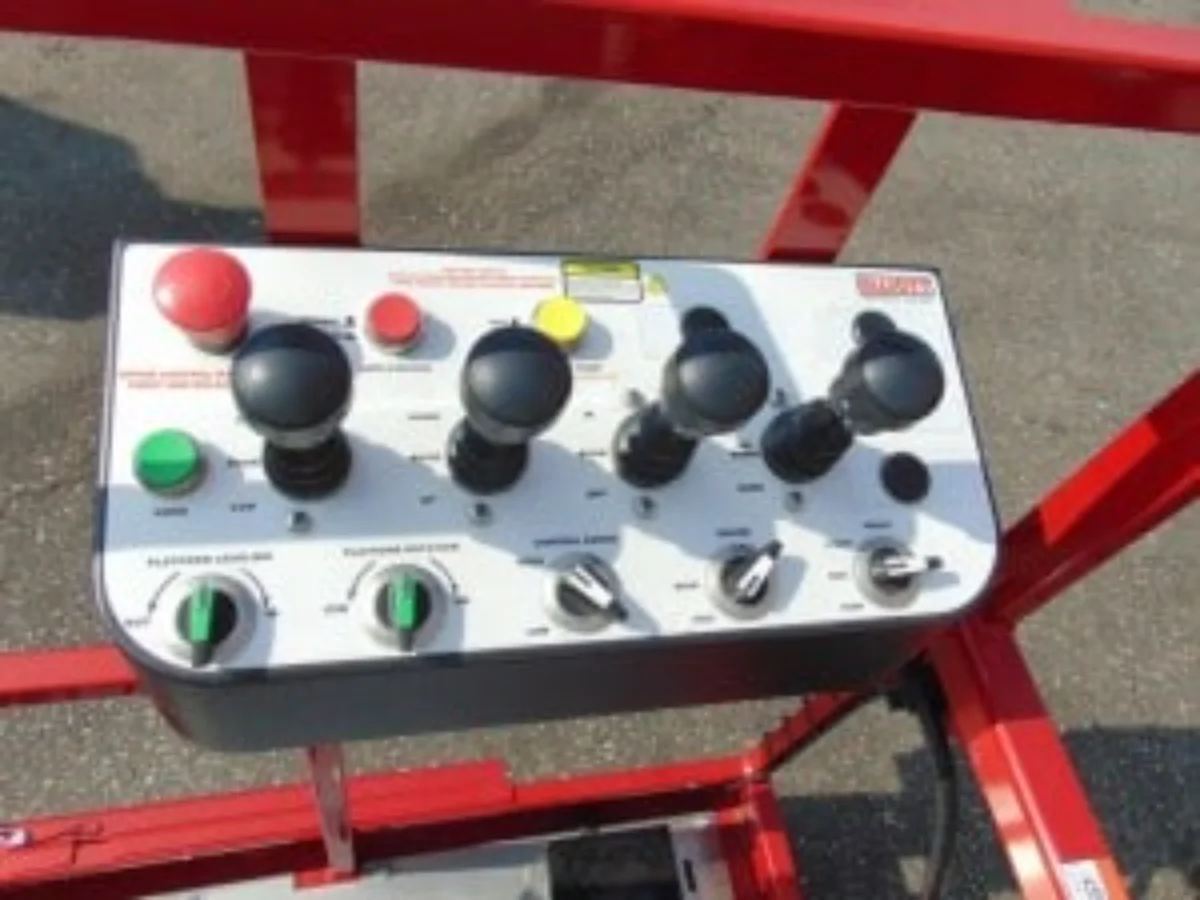

• Electronic Proportional Remote Controls on Platform

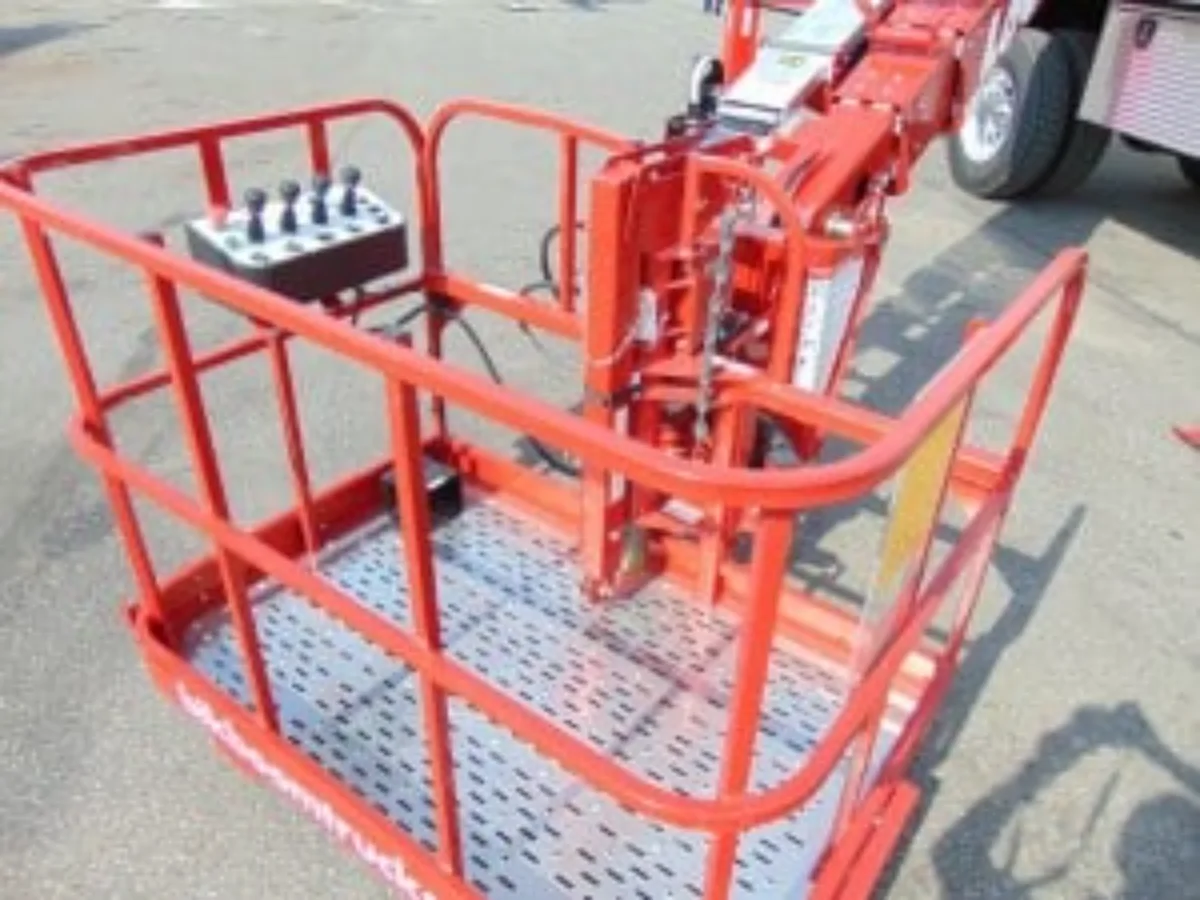

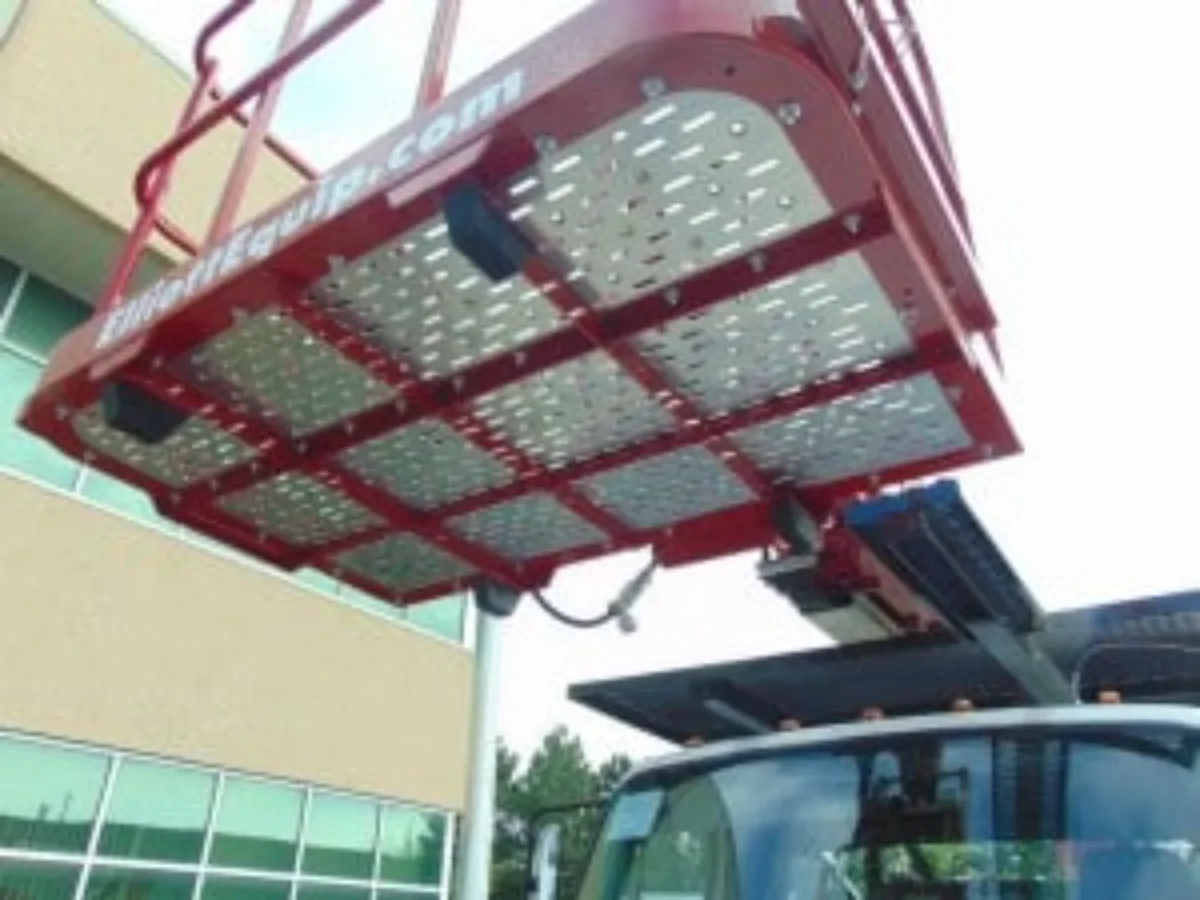

PLATFORM:

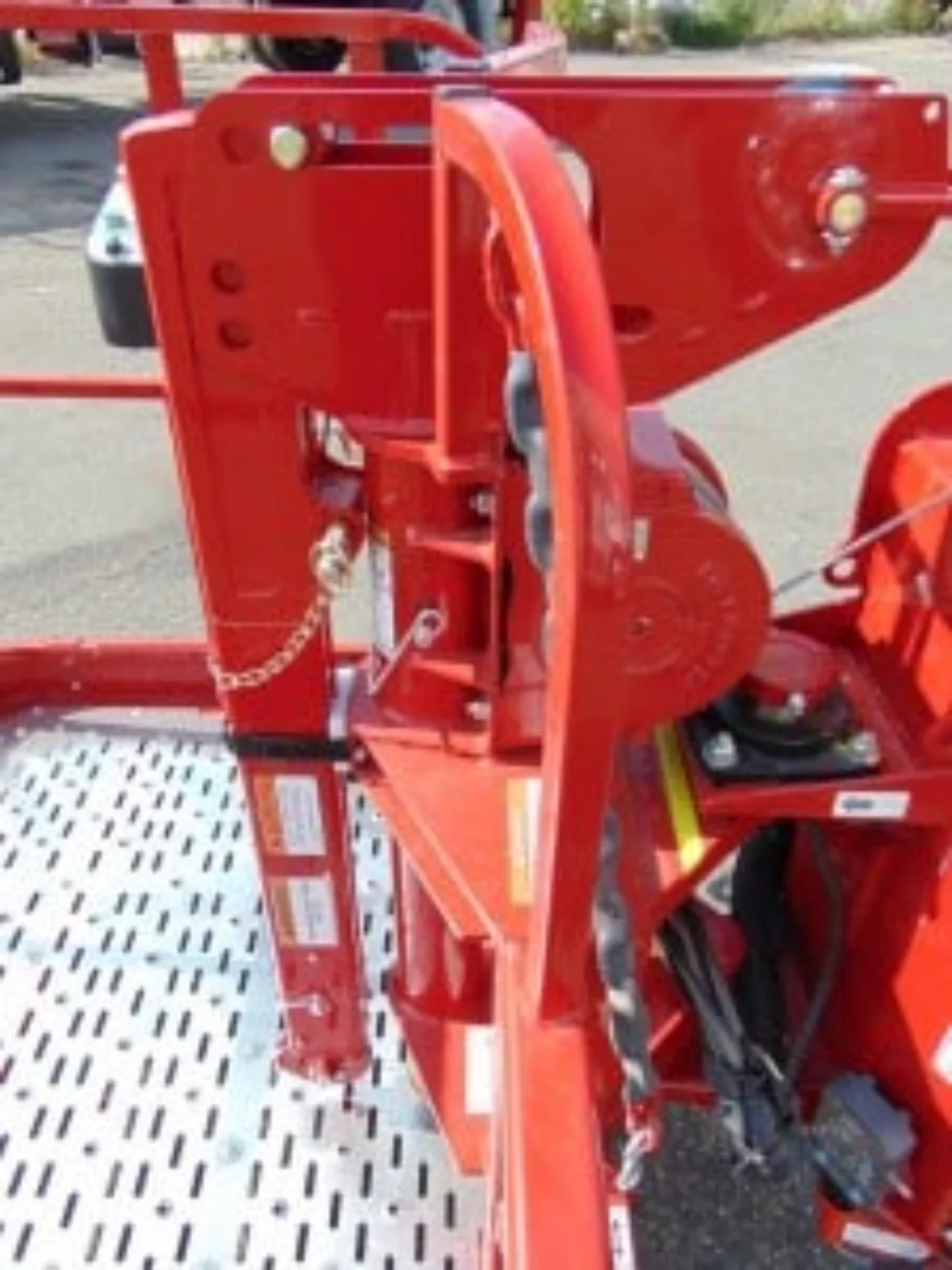

• Top Mount Platform
• 500 lbs Platform Capacity
• EZR Platform Type (Easy Mount & Unmount)
• Size of Platform = 30″ x 54″
• 40″ High Rails

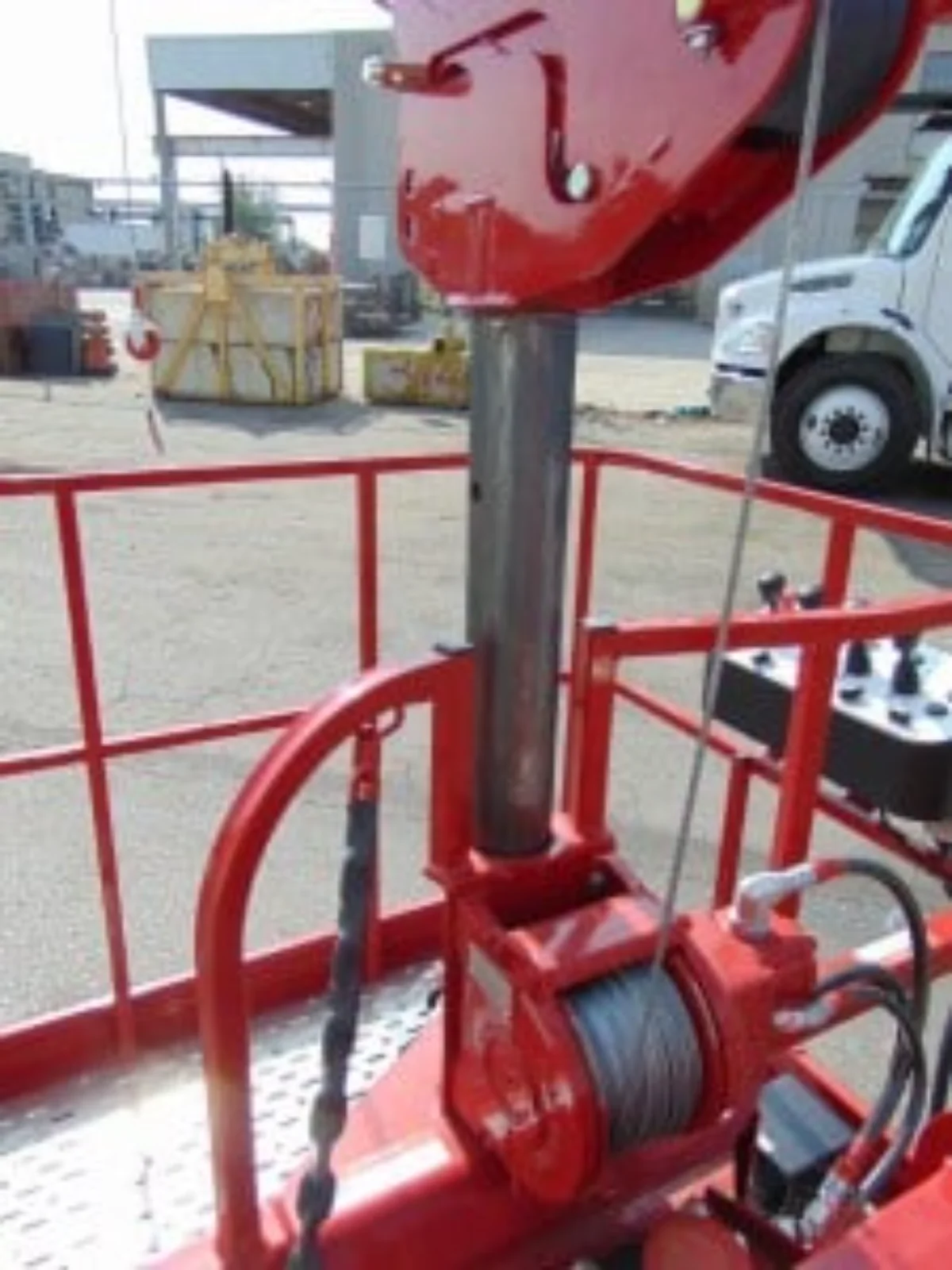

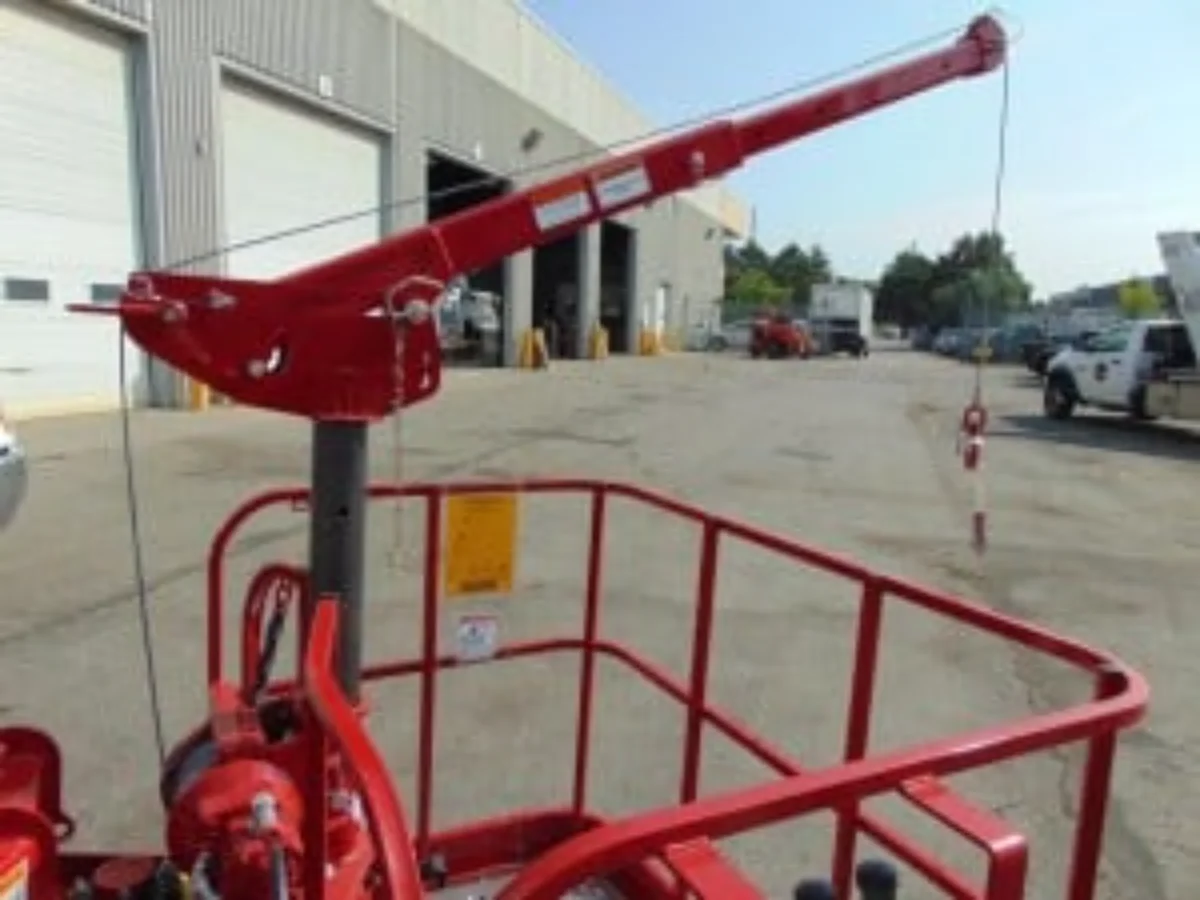

• Platform Jib with Electric Winch – 500 lbs Capacity
• 5900 lbs Lifting Capacity at Main Winch

OUTRIGGERS & ROTATION:

• 2 Front “MH” Type Down & Out Outriggers – 18′ Spread
• 2 Secondary “A” Type Modular Outriggers – 12′ 5″ Spread
• 360 Degree Continuous Rotation
• 2 Speed Throttle Control

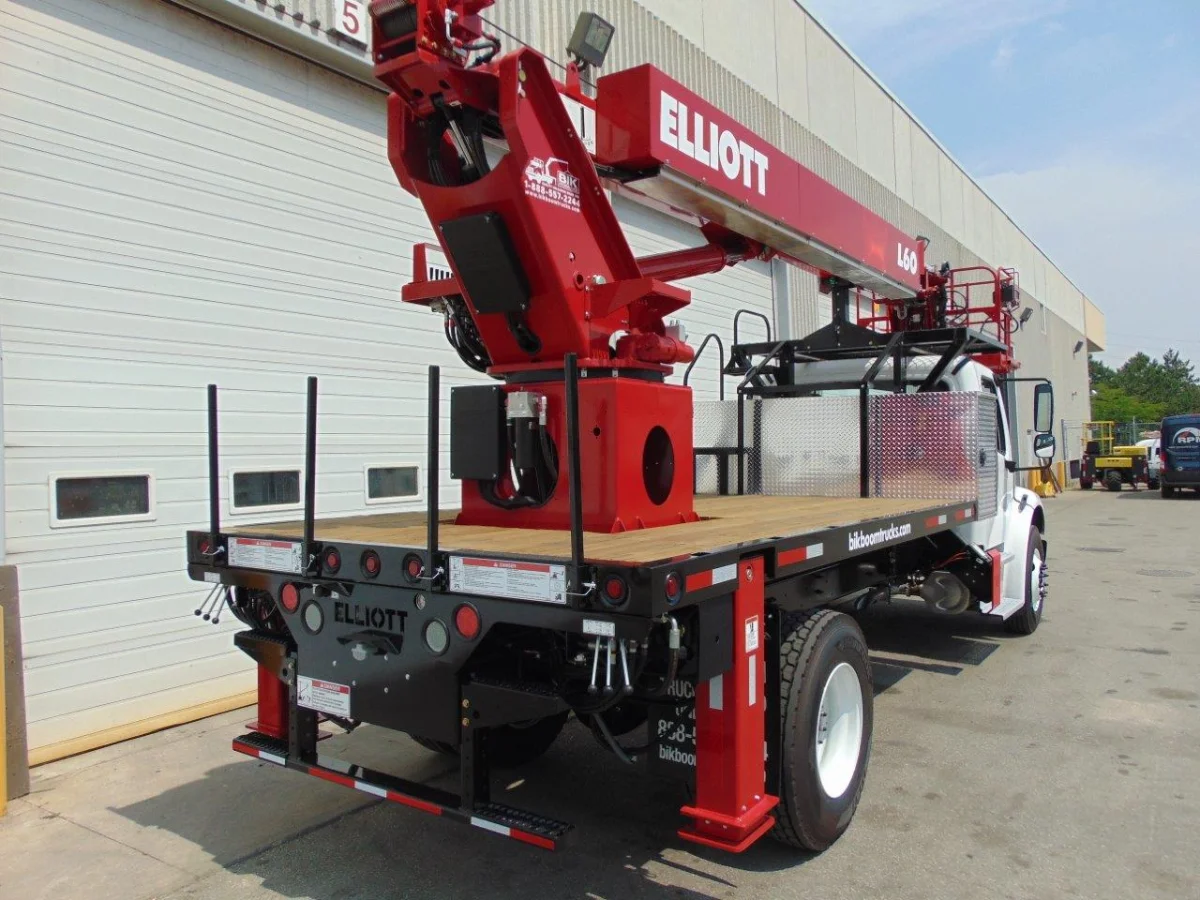

NEW 14′ LOW PROFILE STEEL FLAT DECK

• Steps to Bed
• Tie-Down Rails on Both Sides of the Bed
• 6″ Rub Rail
• 2′ x 102″ Tool Box (Back of Cab)
• Stake Pockets on Either Side of the Bed
• Rear Distance & Side Markers on Bed
• ICC Rear Bumper

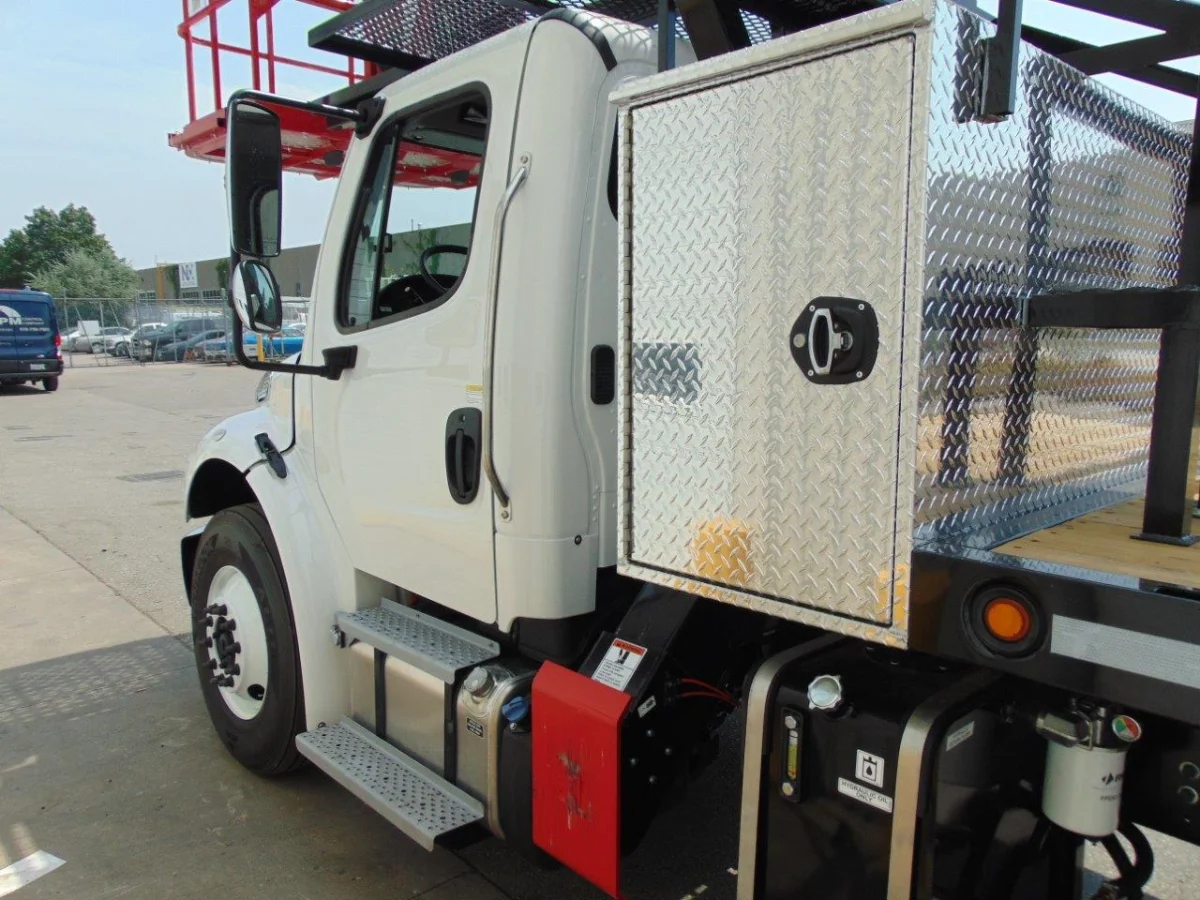

• 5 Chrome Tool Boxes on Truck

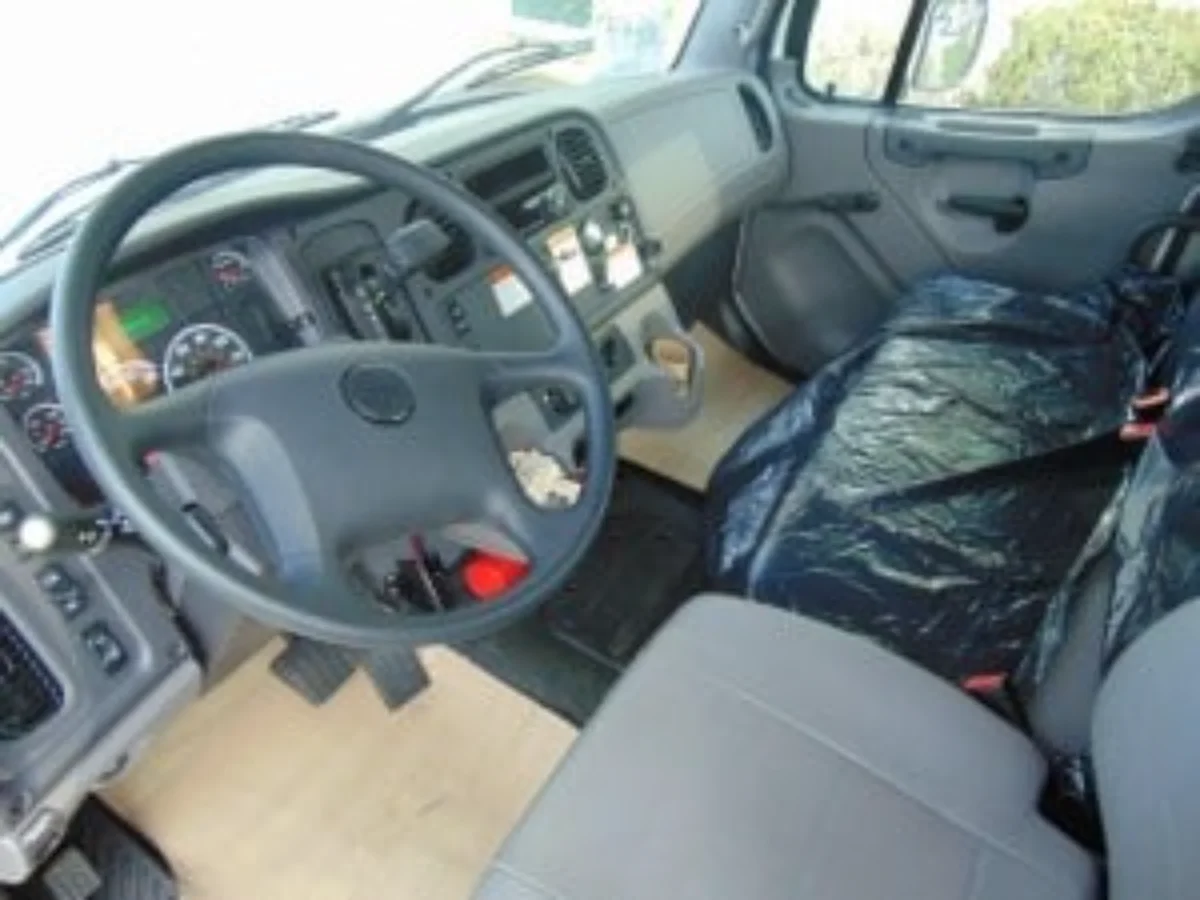

NEW 2019 FREIGHTLINER M2-106 S/A TRUCK – 33,000 lb GVWR, Hydraulic Brakes, (NOTE: Also Available Derated to 26,000 lb GVWR)

• Cummins – 240 HP Engine
• Auto Transmission
• 12,000 lb Front Axle
• 21,000 lb Rear Axle
• 33,000 GVWR
• 80-Gallon Fuel Tank
• Hydraulic Brakes

For More Info Call:416-679-3838 OR 1-888-557-2244
