While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

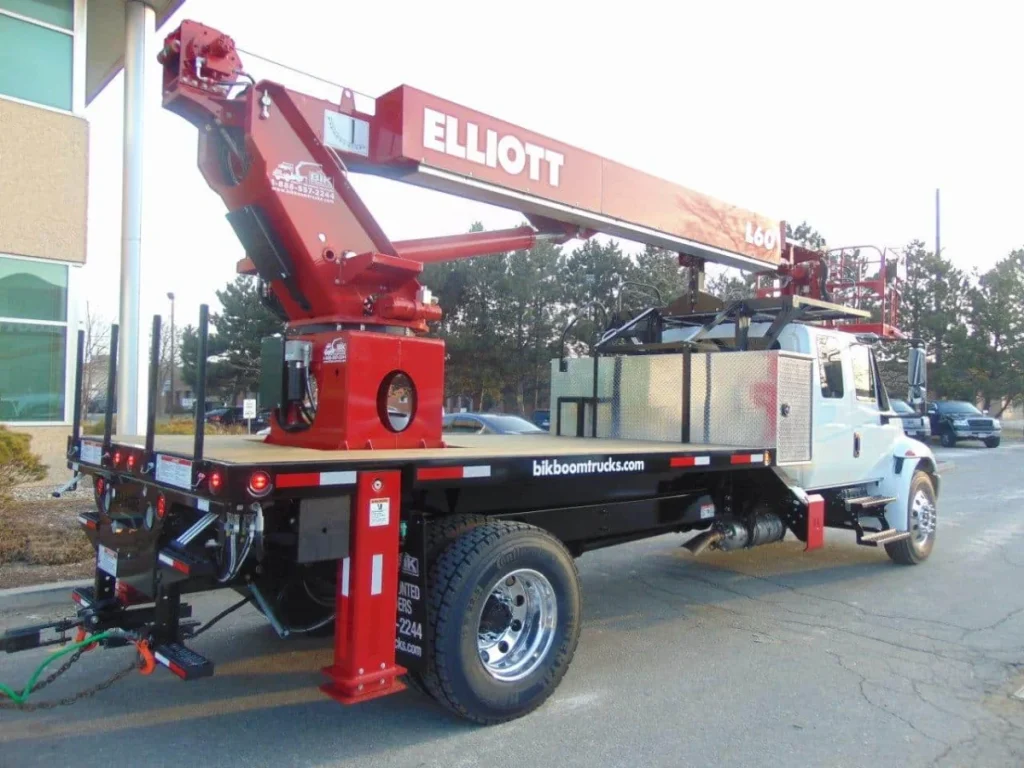

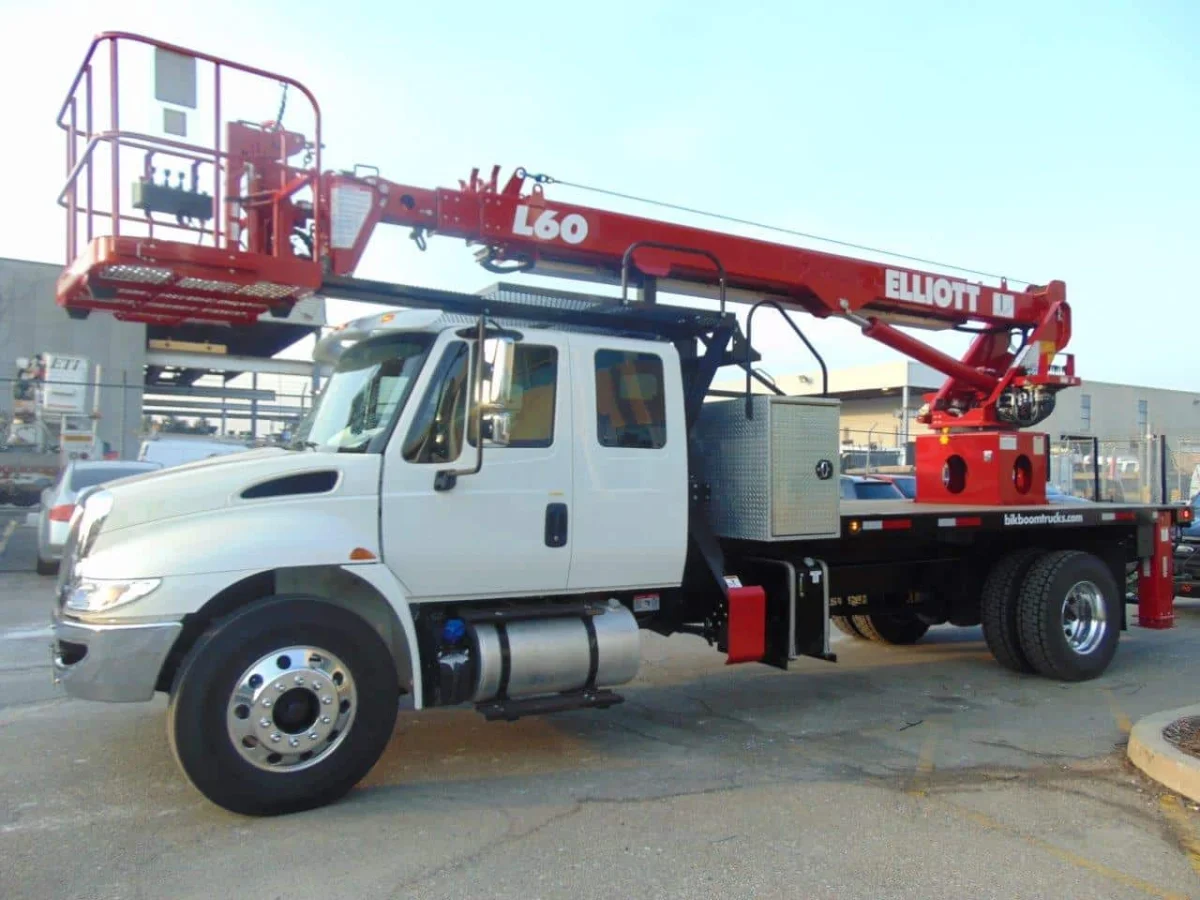

NEW – ELLIOTT L60R HI-REACH AERIAL WORK PLATFORM:

• 62′ Max Working Height
• 56′ Max Side Reach
• Steel 3-Section Telescopic Boom
• Front Mount Configuration with Rotating Turret
• Electronic / Hydraulic Controls
• Overall Height (Including Truck) – 11′ 9″
• Unit Weight (Bare) – 13,500 lbs
• Electronic Proportional Remote Controls on Platform

PLATFORM:

• Top Mount Platform
• 2500 lbs Platform Capacity
• EZR Platform Type (Easy Mount & Unmount)
• Size of Platform = 30″ x 54″
• 40″ High Rails
• Platform Jib with Electric Winch – 500 lbs Capacity
• 5900 lbs Lifting Capacity at Main Winch

OUTRIGGERS & ROTATION:

• 2 Front “MH” Type Down & Out Outriggers – 18′ Spread
• 2 Secondary “A” Type Modular Outriggers – 12′ 5″ Spread
• 360 Degree Continuous Rotation
• 2 Speed Throttle Control

NEW 14′ LOW PROFILE STEEL FLAT DECK

• Steps to Bed
• Tie-Down Rails on Both Sides of the Bed
• 6″ Rub Rail
• 2′ x 102″ Tool Box (Back of Cab)
• Stake Pockets on Either Side of the Bed
• Rear Distance & Side Markers on Bed
• ICC Rear Bumper
• 5 Chrome Tool Boxes on Truck

NEW 2019 INTERNATIONAL 4300 S/A TRUCK WITH EXTENDED CAB – 33,000 LB GVWR, Hydraulic Brakes (NOTE: Also Available Derated to 26,000 lb GVWR)

• Cummins – 260 HP Engine
• Auto Transmission
• 12,000 lb Front Axle with 11R22.5 Tires on Aluminum Rims
• 21,000 lb Rear Axle with 11R22.5 Tires on Aluminum Rims
• 33,000 GVWR
• 80-Gallon Fuel Tank, Chrome Bumper & Grill
• Hydraulic Brakes

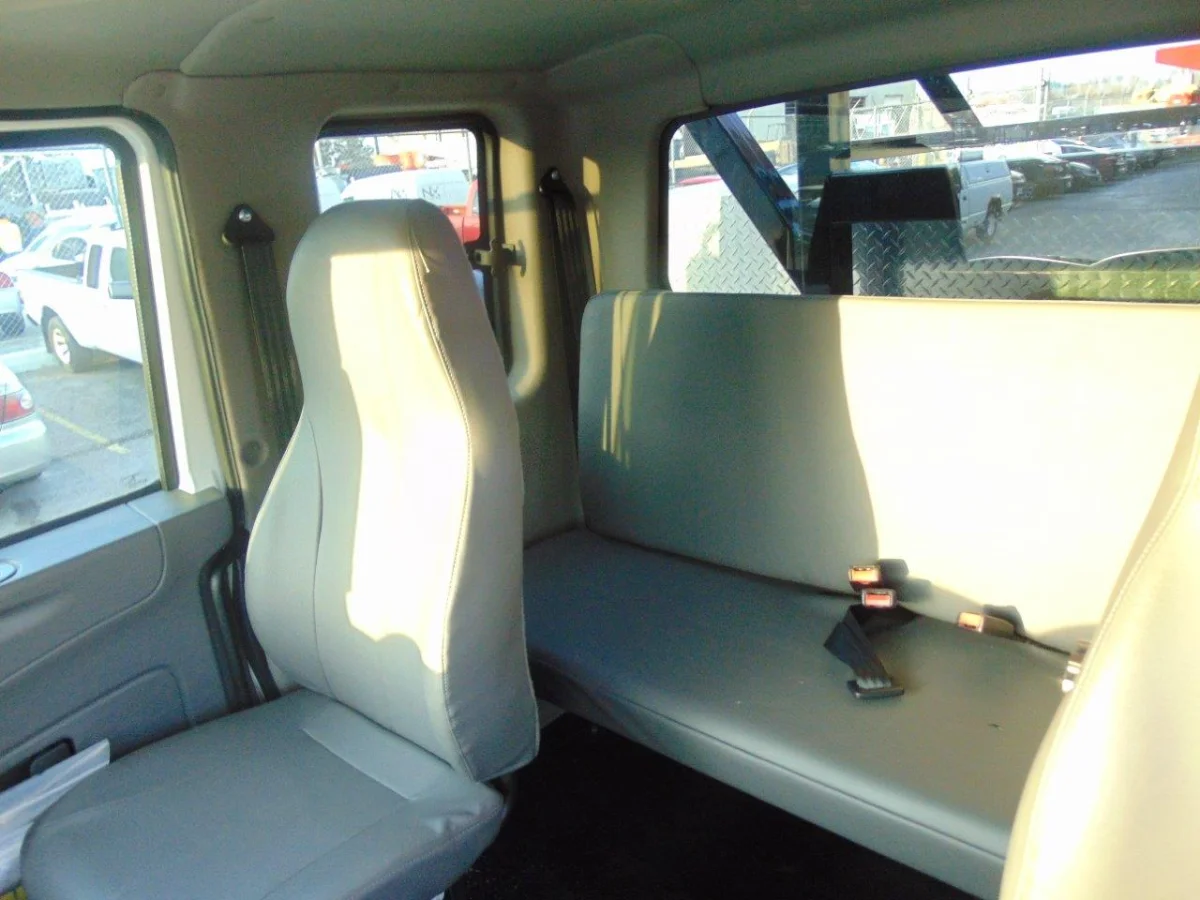

• 5-Passenger Unit with Bench Fold Down Seat at Rear, Air Cond, Cruise, Stereo, Heated Mirrors
