While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

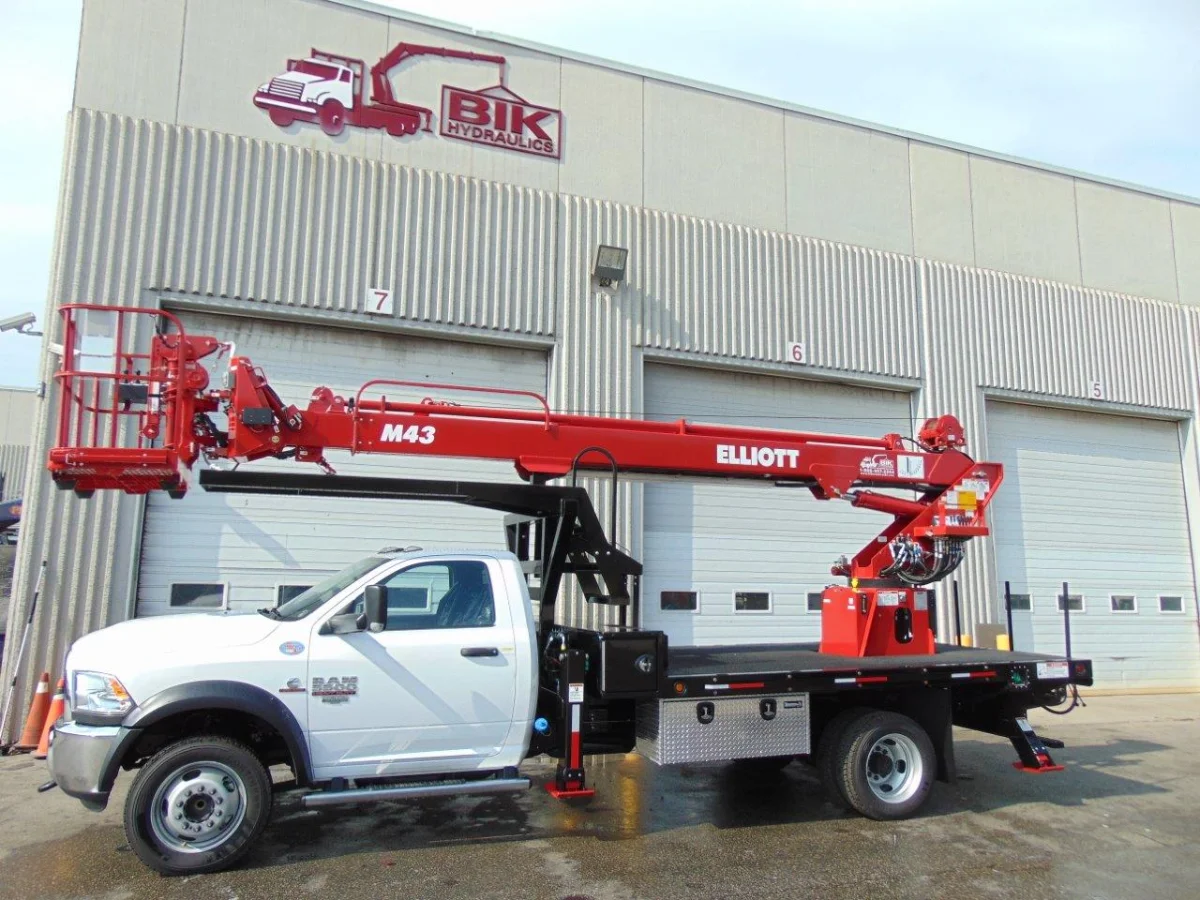

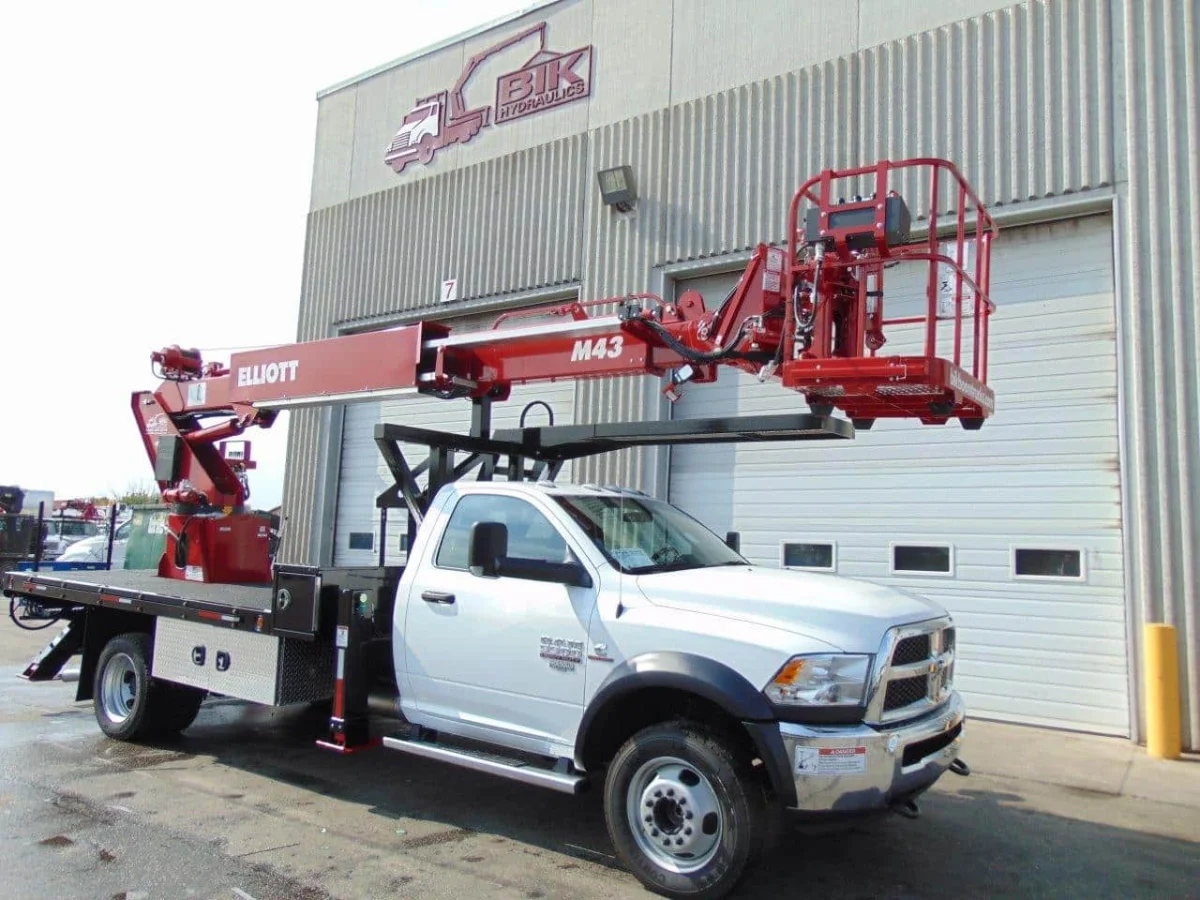

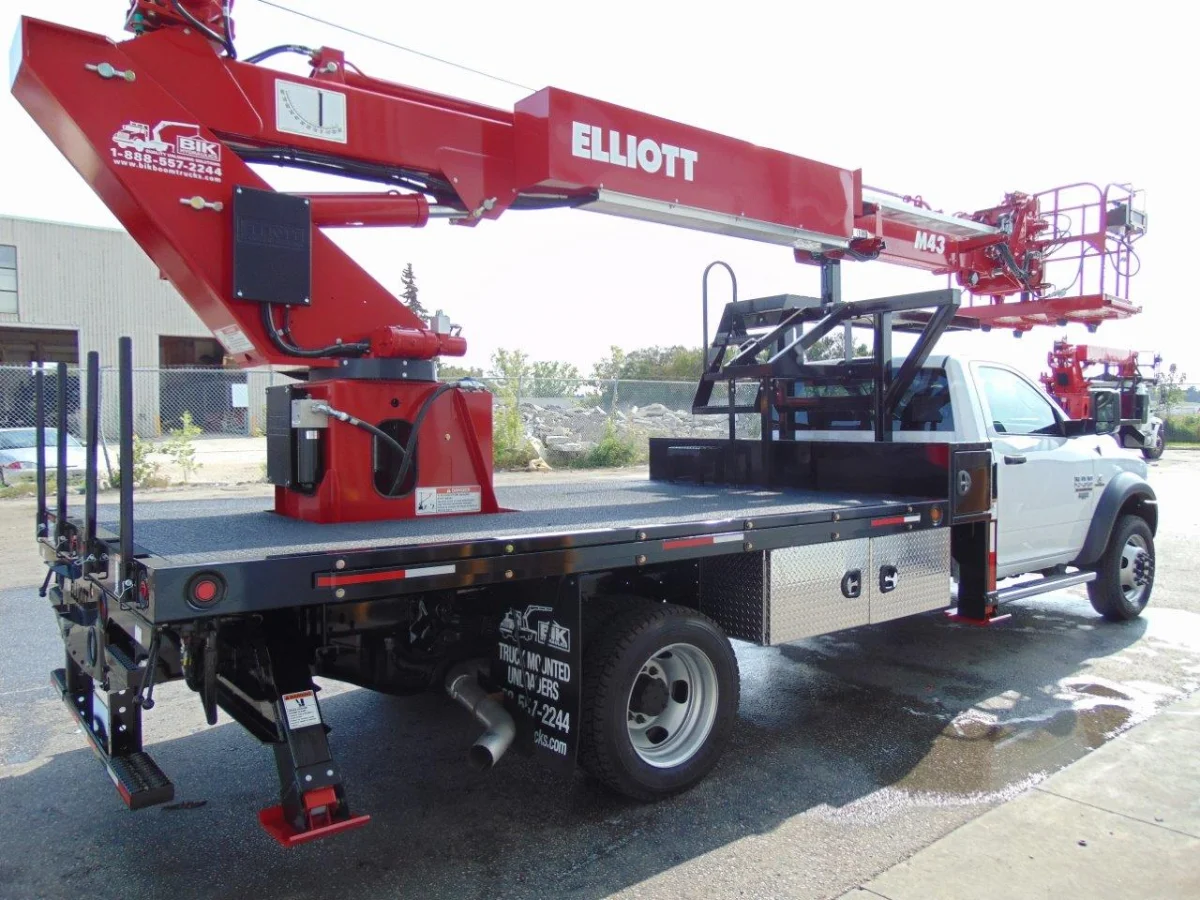

NEW – ELLIOTT M43 HiREACH:

• Hydraulic Reach to 48′ Working Height and 36′ Working Side Reach – Platform Capacity 500 lbs
• Installed by Elliott Factory Technicians, Prepped, Primed and Painted.
• New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines
• Hydraulic Tank Mounted on Truck Frame w/Shut-off Valve.  Load Tested

Standard Features Include:

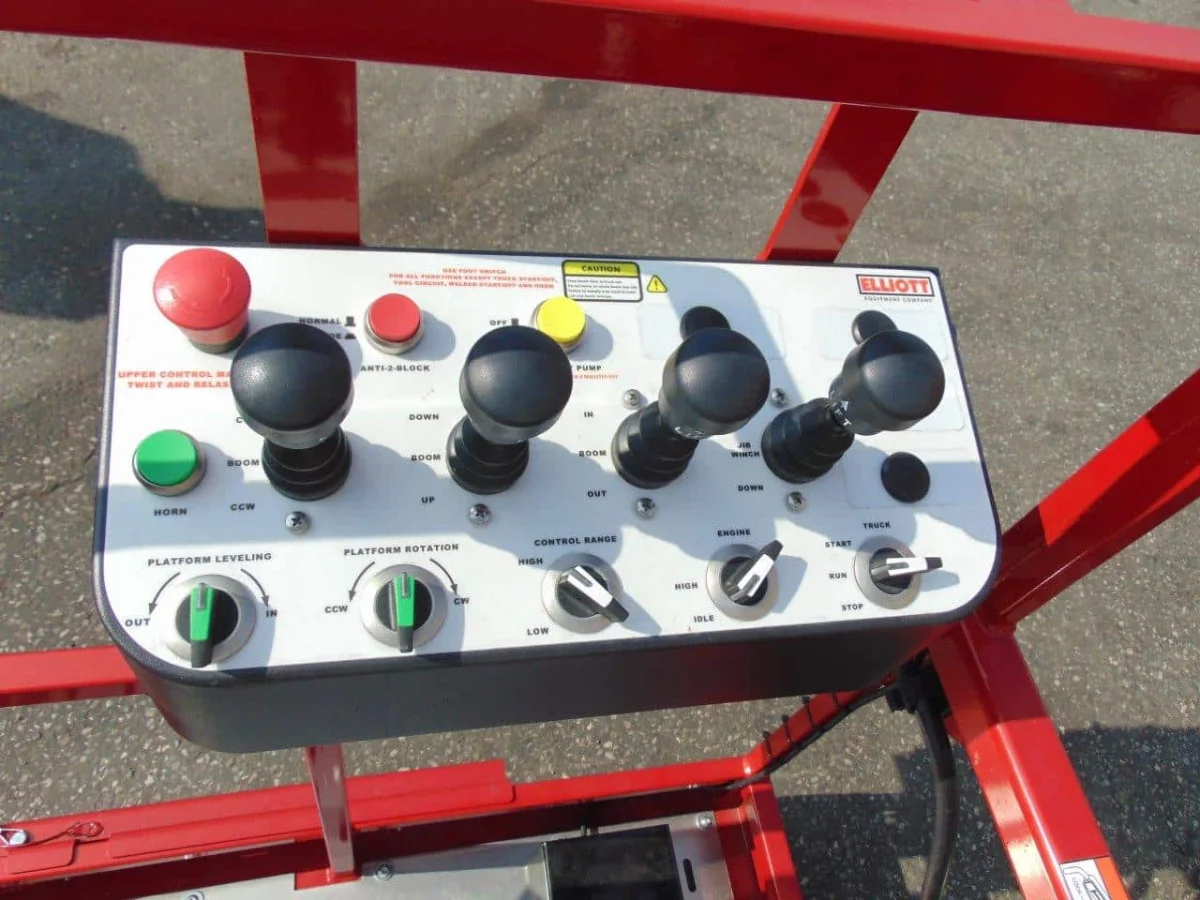

• Three Individual Proportional Electronic Controllers.  Boom Ground Controls Located on Roadside of Turret, Remote Controls for Boom Operations from Platform Operate from a Removable Control Box (Hi, Low and Start/Stop Toggles are also located in the Platform)

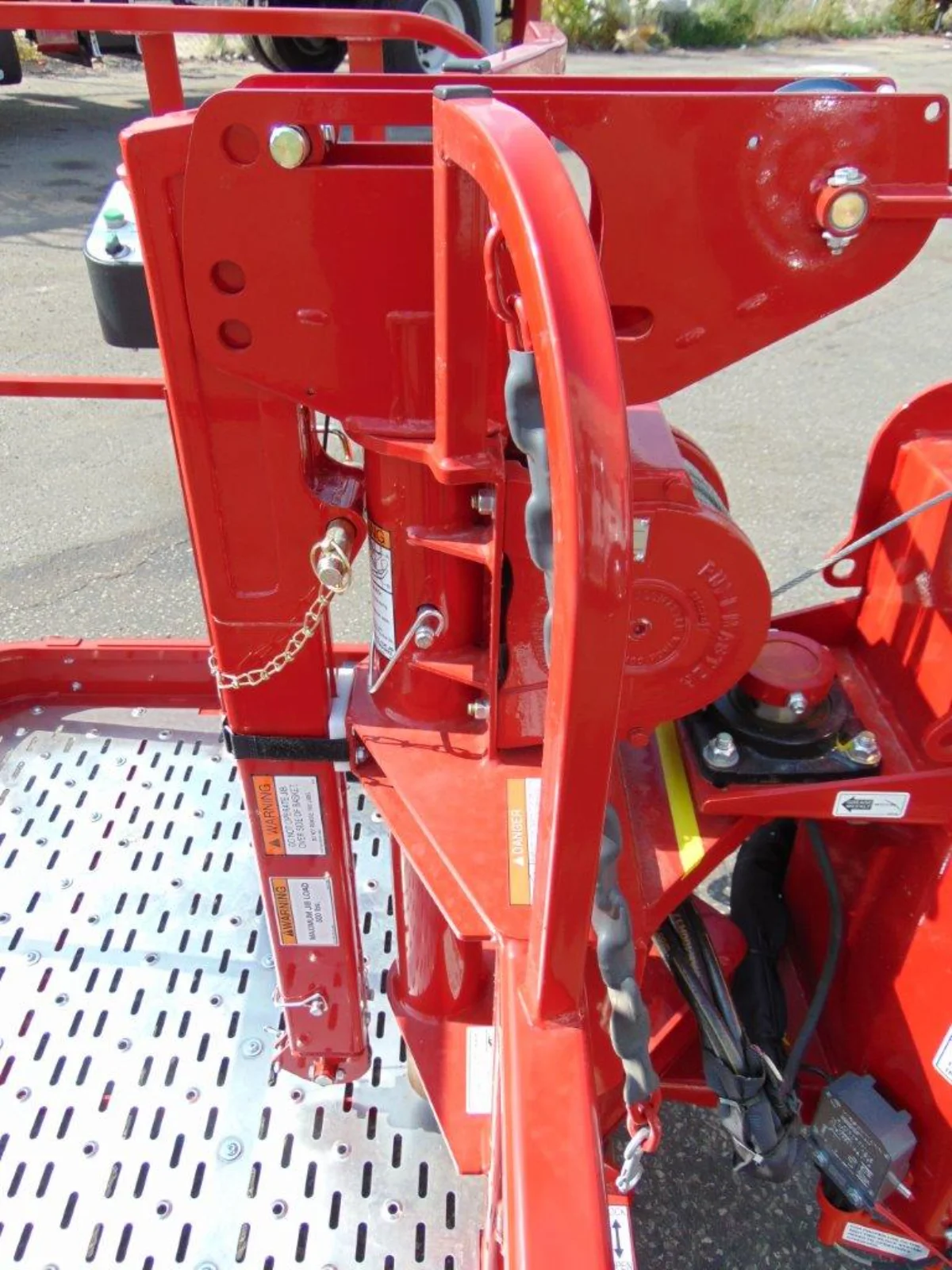

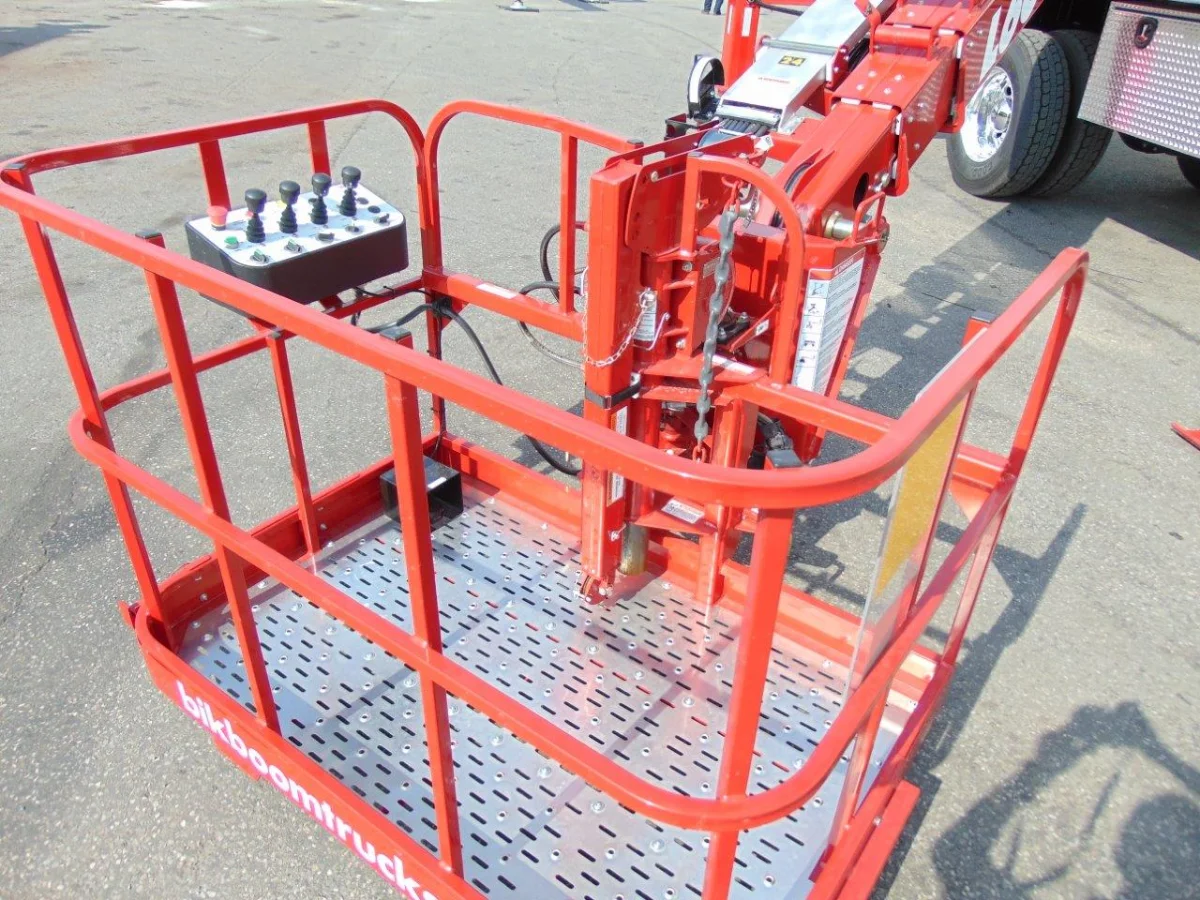

• Work Platform is an EZR Hydraulically Self-Leveling and Rotating, 30″ X 54″ with 40″ High Rails Work Platform, with Safety Attachment Loops
• Remote Start & Stop at Upper and Lower Controls

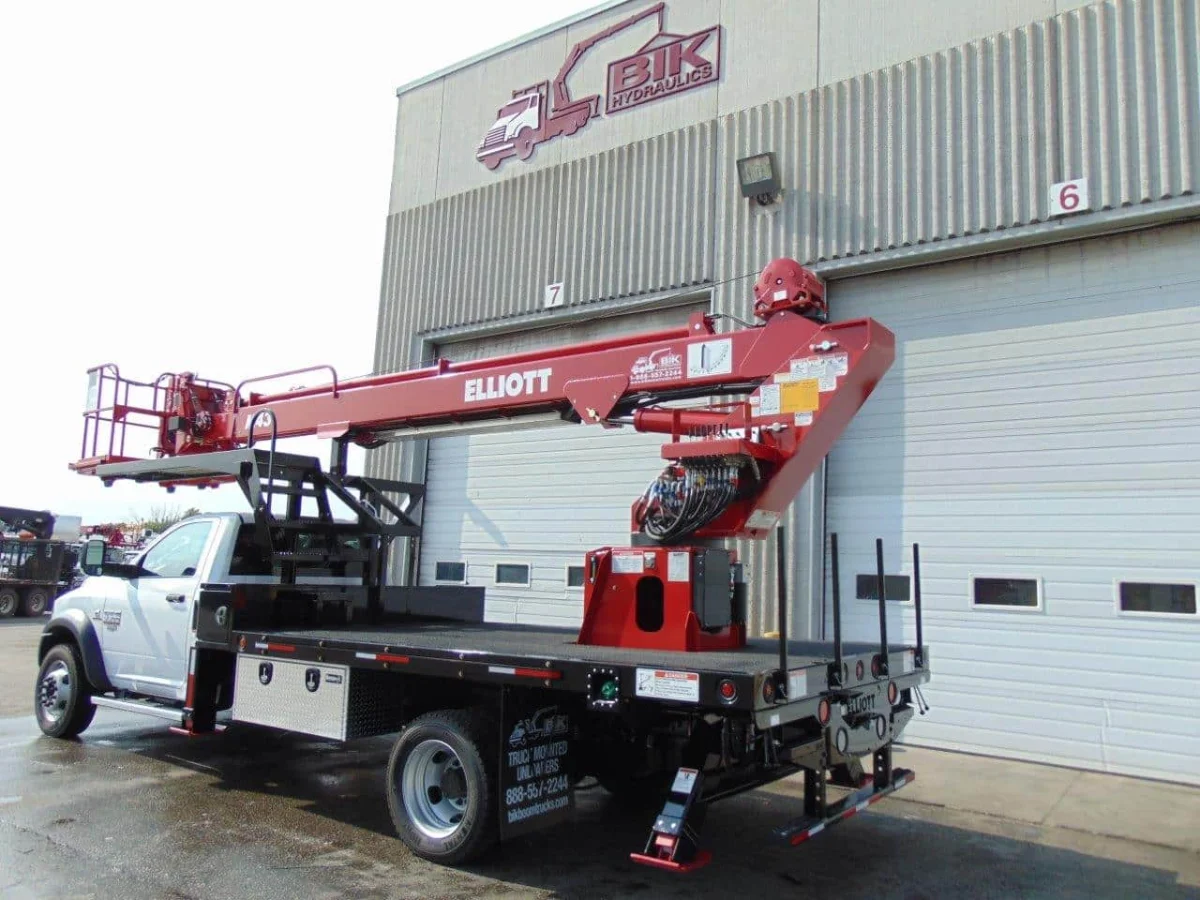

• Front Outriggers Straight Down, Rear A-Frame Type Hydraulic Stabilizers at Rear
• Hydraulically Powered Continuous Rotation with No Stops with Ball Bearing Slewing Bearing and Self Locking Gear Box
• Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load

Included Options Are:

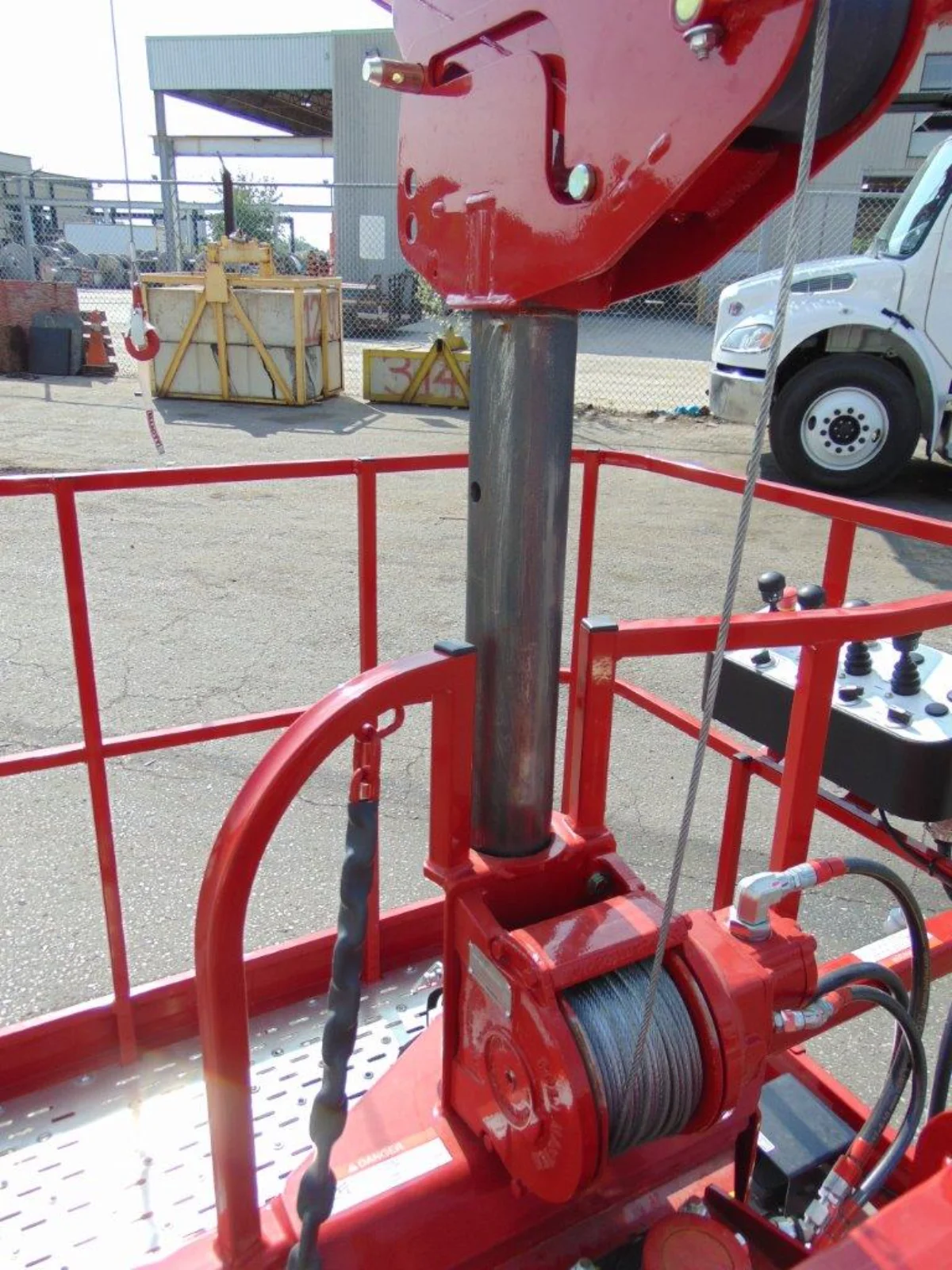

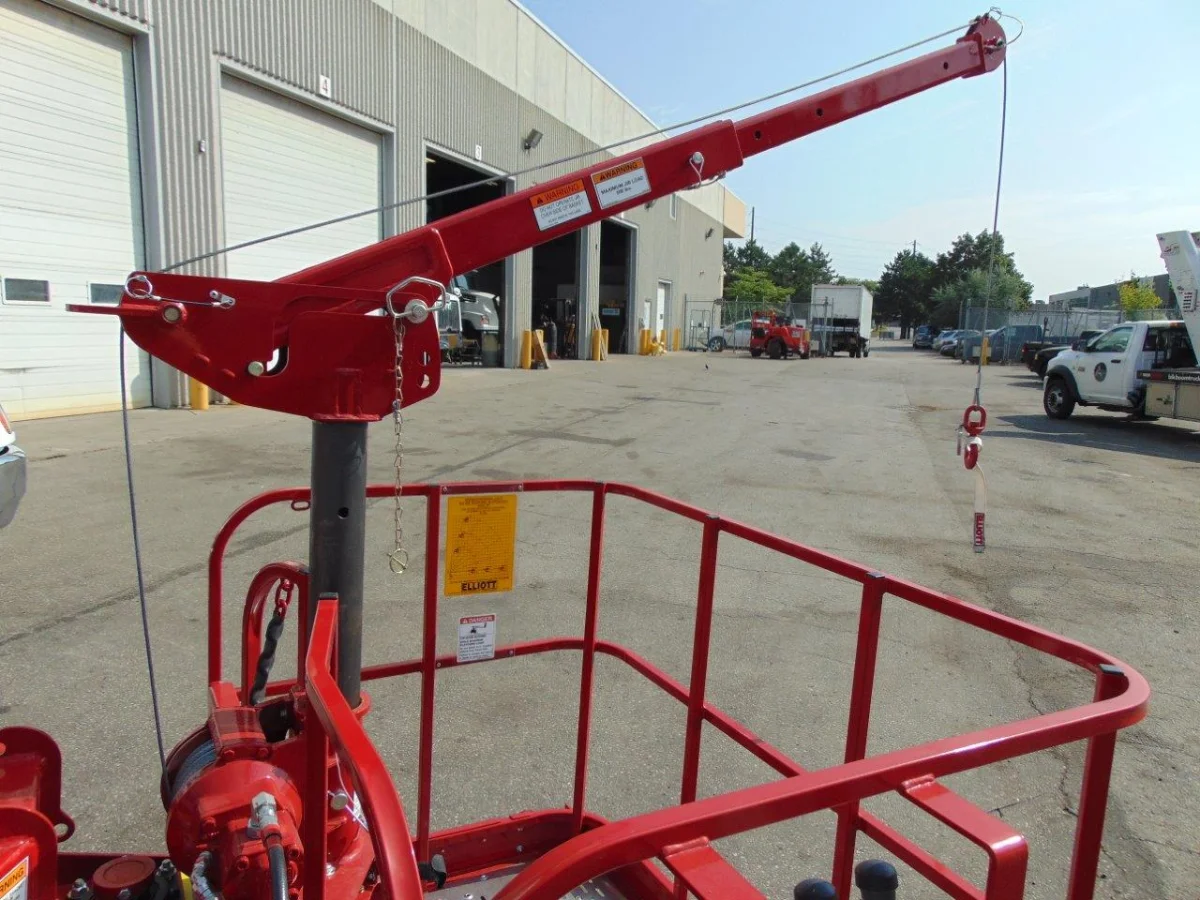

• 500 lb Cap. Jib Winch in Basket
• 13′ Low Profile Deck with Hardwood Deck Surface
• 2,000 lb Planetary Main Boom Winch with Anti Two Block Switch, Horn, Cable & Retainer Ring

NEW –2017 DODGE 5500 SINGLE AXLE CHASSIS:  19,500 lb GVWR – Hydraulic Brakes:

• 325 hp Cummins Turbo Diesel Engine, 6 Speed Automatic Transmission, White Cab
• 7,000 lb Front Axle, 13,500 lb Rear Axle with 225/17R19.5 All Season Tires on Aluminum Rims, Hydraulic Brakes

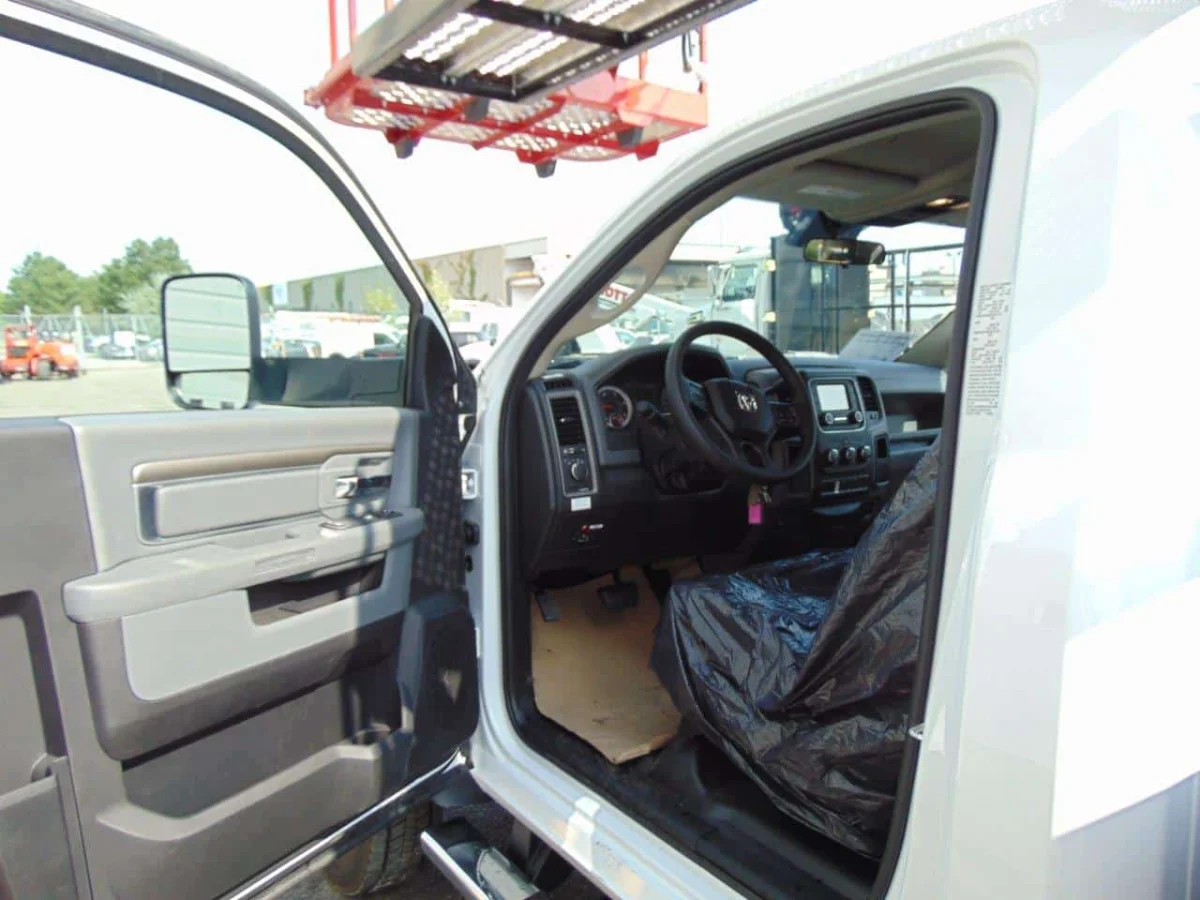

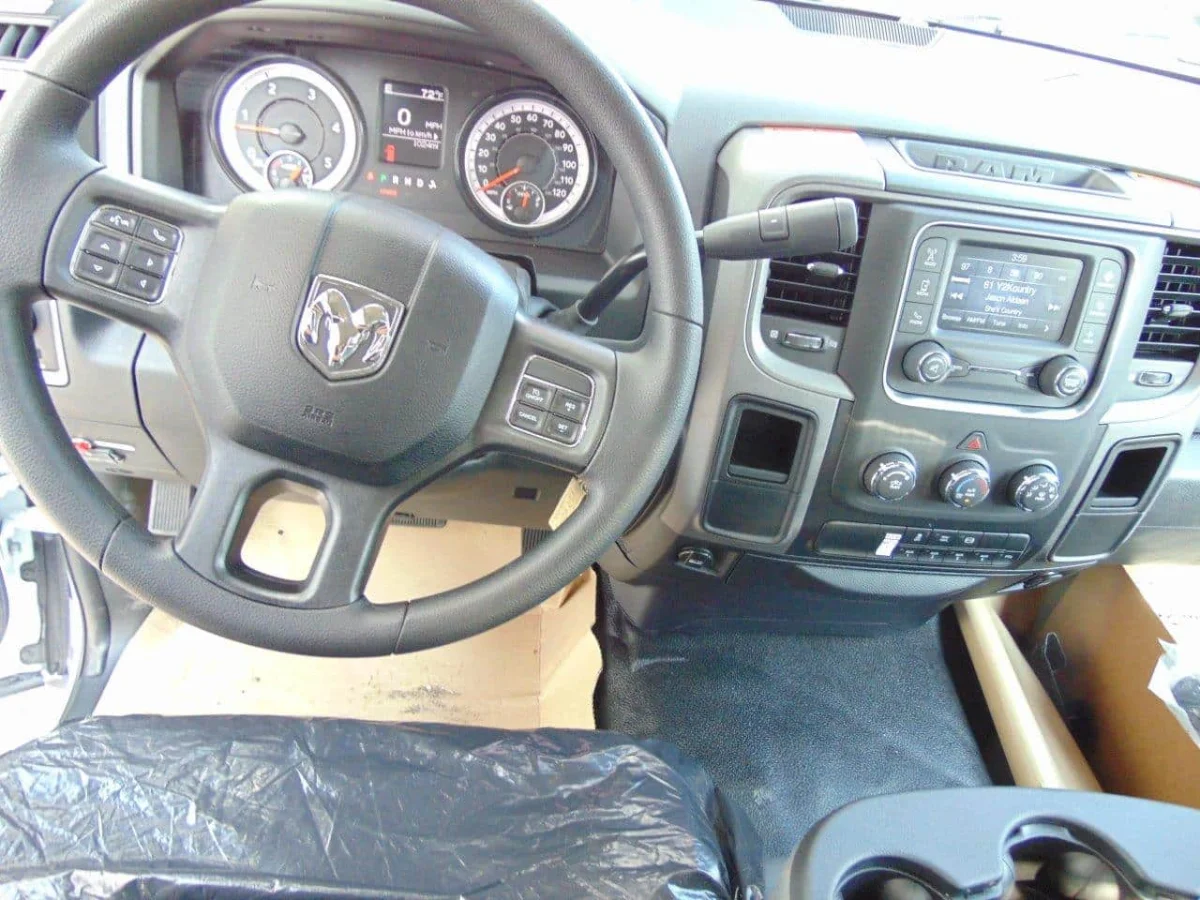

• Features Include:  A/C, AM/FM Stereo, Cruise Control, Engine Block Heater, 40/20/40 3-Person Front Seating, Power Windows/Door Locks/Mirrors, Tilt & Telescopic Steering, BlueTooth, 12-Volt In Dash Power Supply, Touch Screen AM/FM/Sirius Accommodation, etc…

Call for Details at: 888-557-2244 or 416-679-3838
