While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

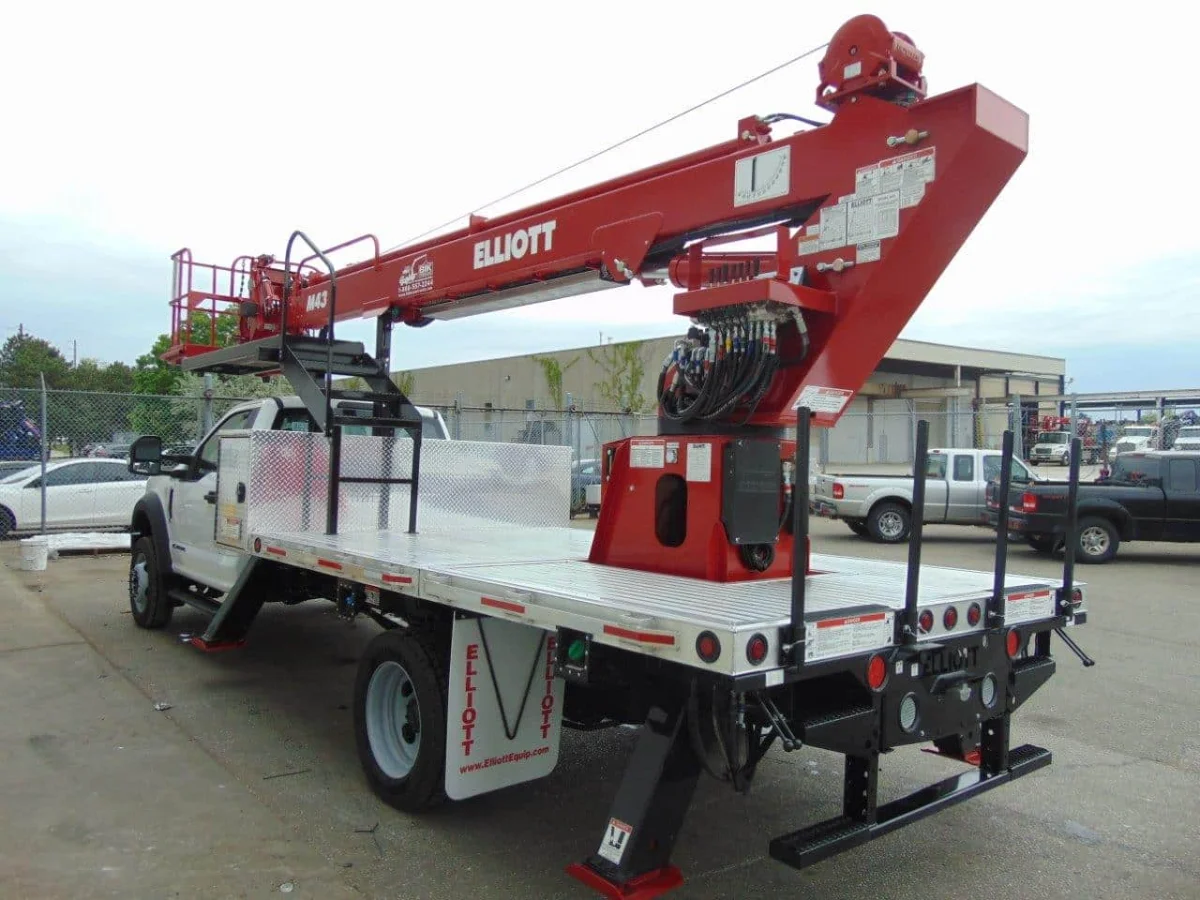

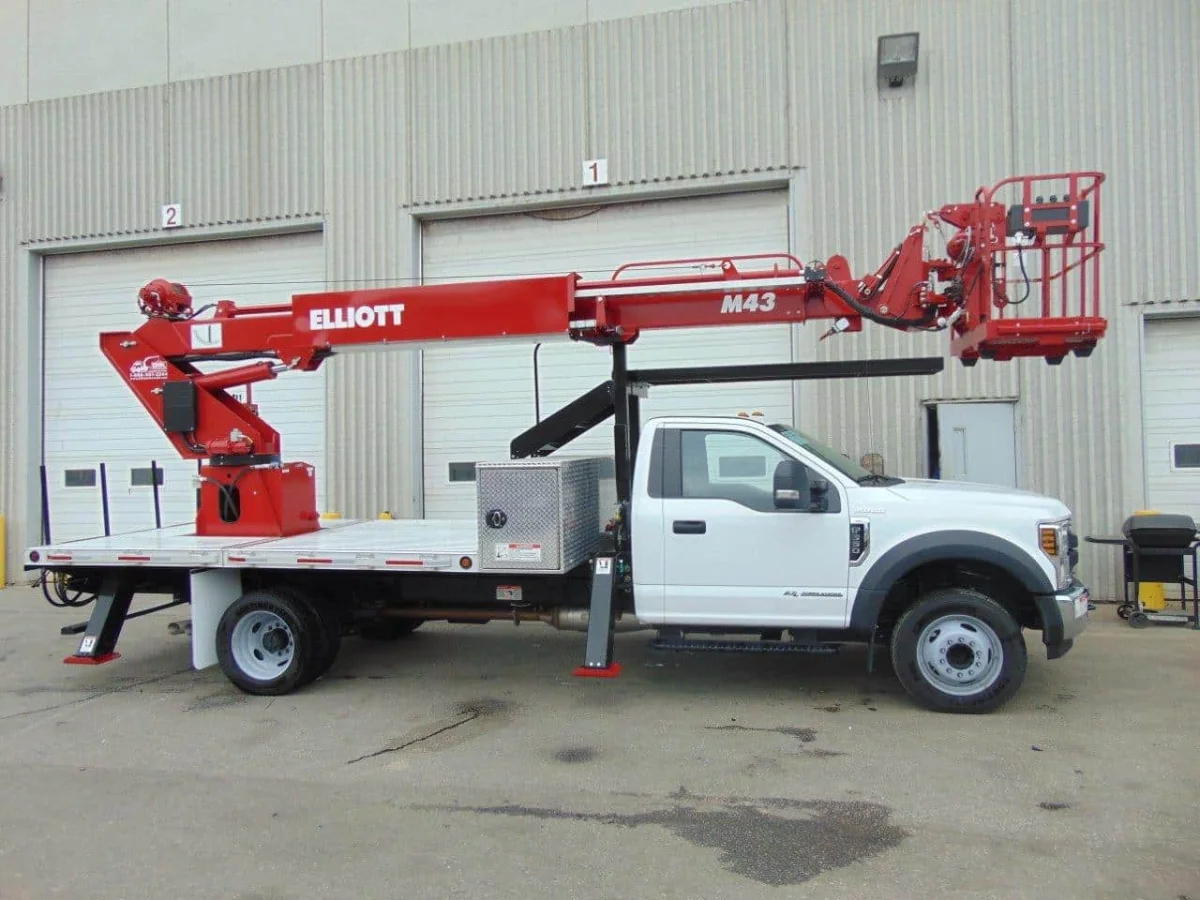

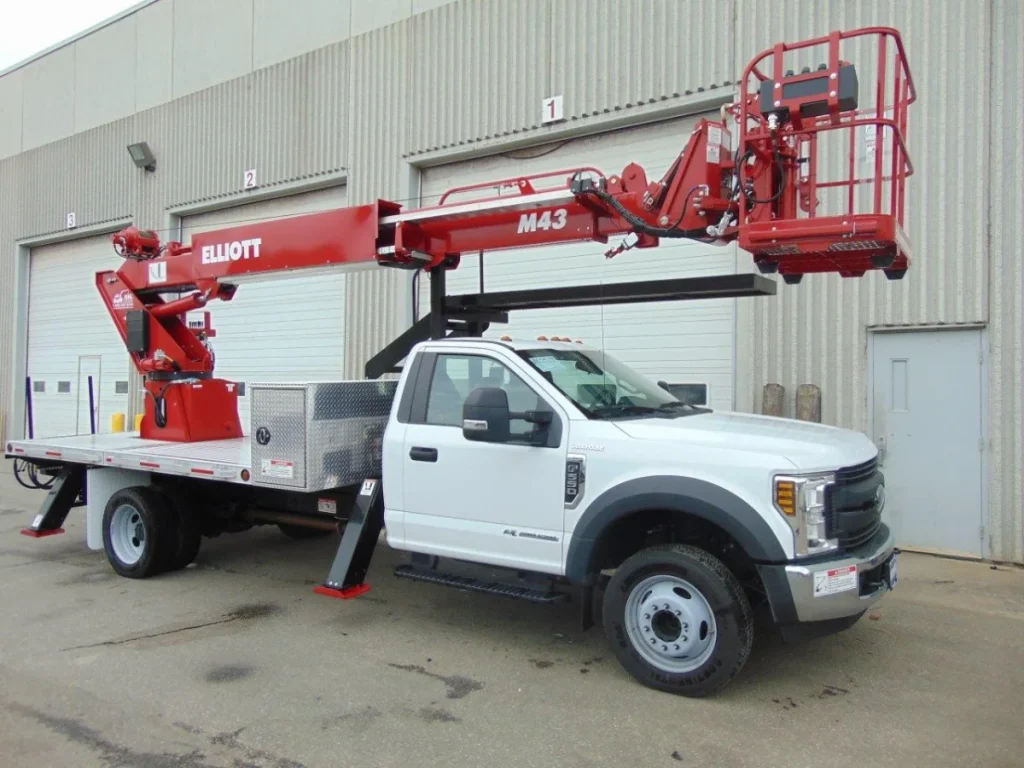

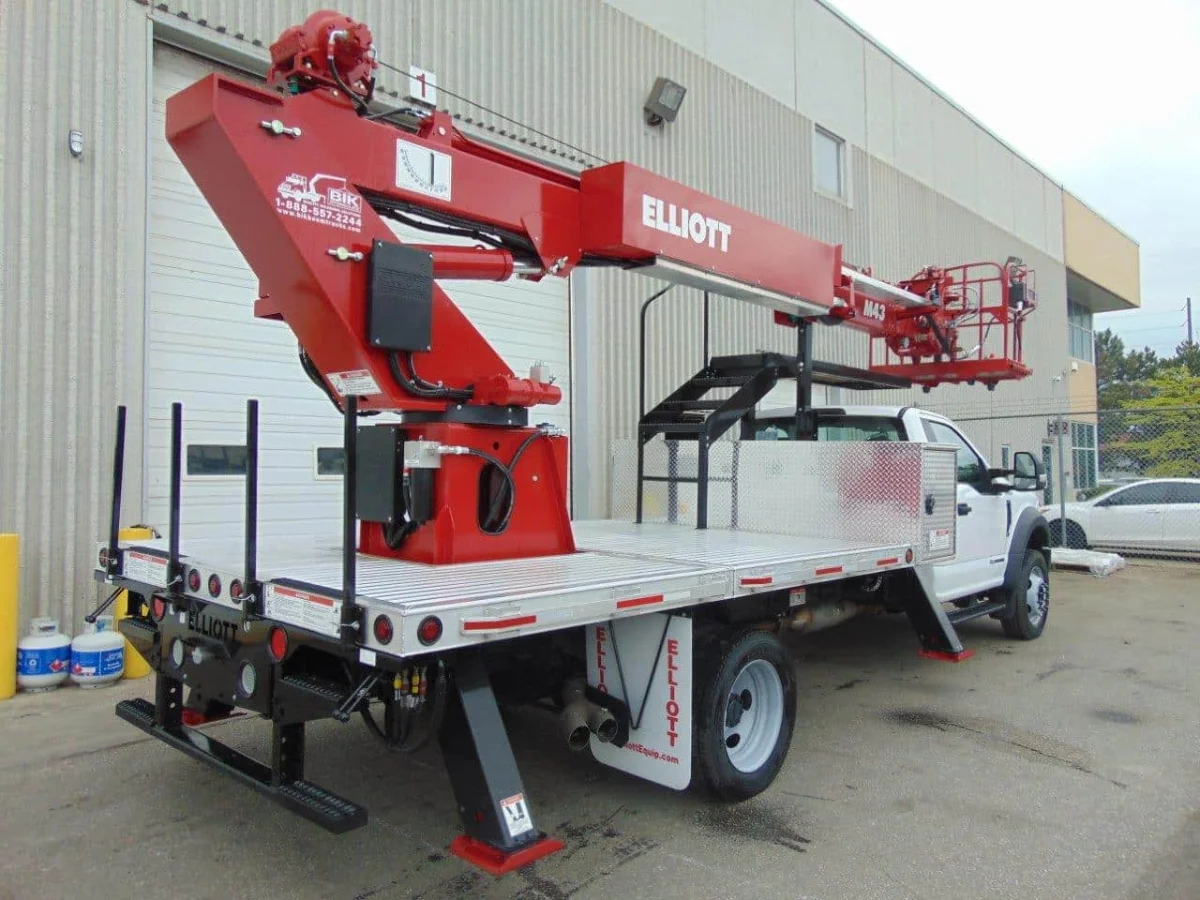

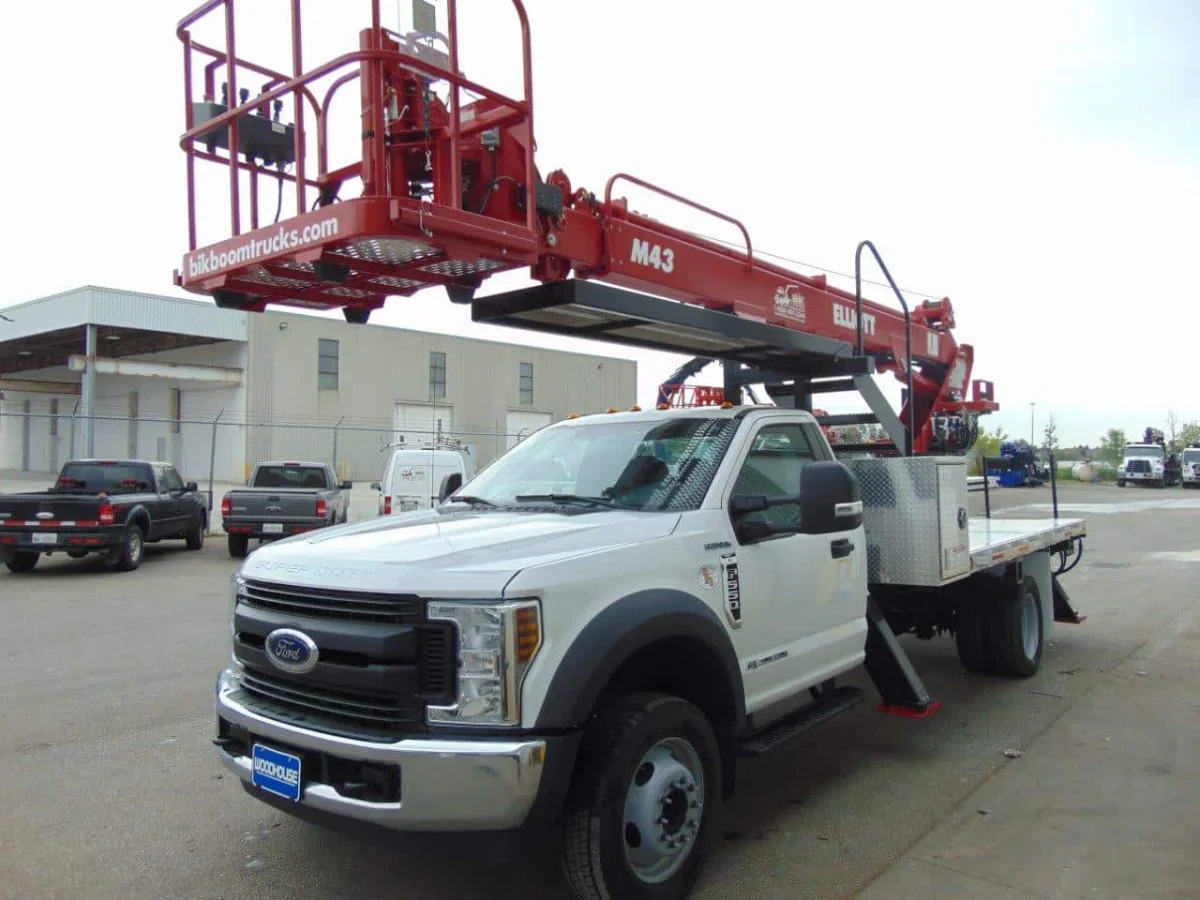

New – Elliott M43 HiReach:

• Hydraulic reach to 48’ working height and 36’ working side reach– Platform Capacity 500 lbs
• Installed  by Elliott factory technicians, prepped, primed and painted
• New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines
• Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.

Standard Features include:

• Two individual proportional electronic controllers. Boom ground controls located on roadside of turret, remote controls for boom operations from platform (HI, Low and start stop toggles are also located in the platform).
• Work platform is a EZR hydraulically self-levelling and rotating, 30” x 54” with 40” high rails work platform, with safety attachment loops.
• Remote start & stop at upper and lower controls
• Front outriggers straight down rear A-Frame type hydraulic stabilizers at rear
• Hydraulically powered continuous rotation rotation with no stops with ball bearing slewing bearing and self locking gear box.
• Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

New – Ford F-600 XL 4×2, 330 HP 6.7L V8 Turbo Diesel – 22,500 GVWR:

• Engine, 50 state emiss, 193″ WB, 108″ CA
• Ford Torqshift 10-speed automatic transmission
• 7,500 lb front axle
• 15,500 lb rear axle, P245/70R19.5G A/S front & rear tires
• 4.88 axle ratio
• Anti spin rear axle
• PTO prep, 40 gal rear fuel tank

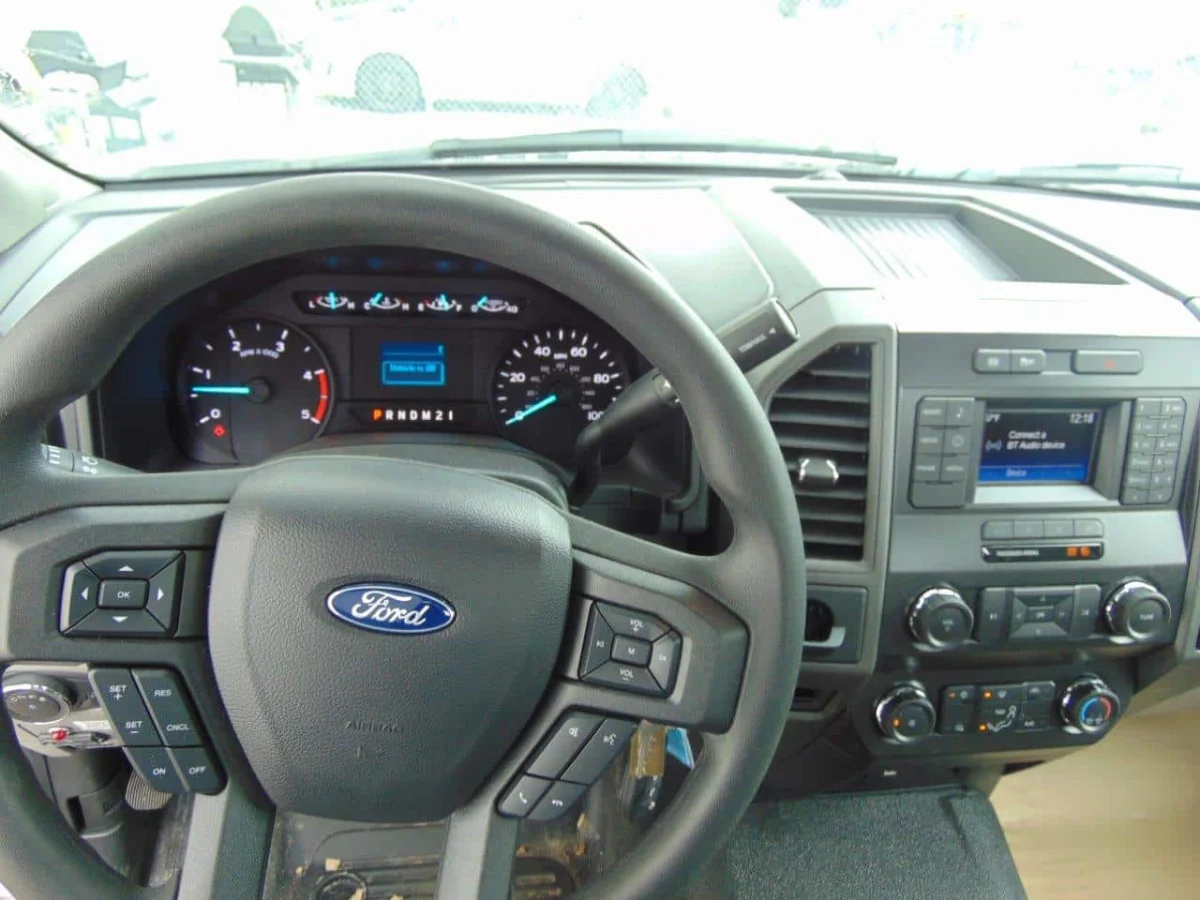

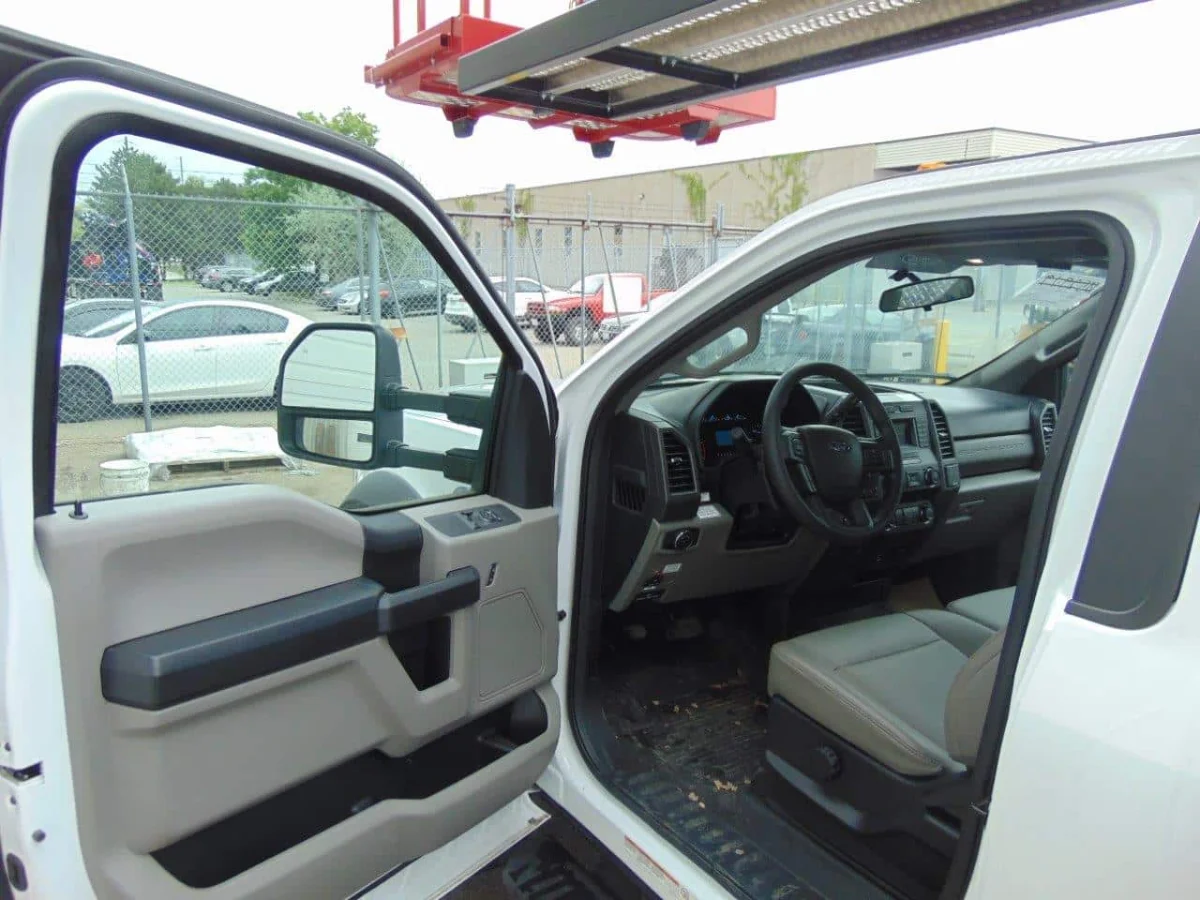

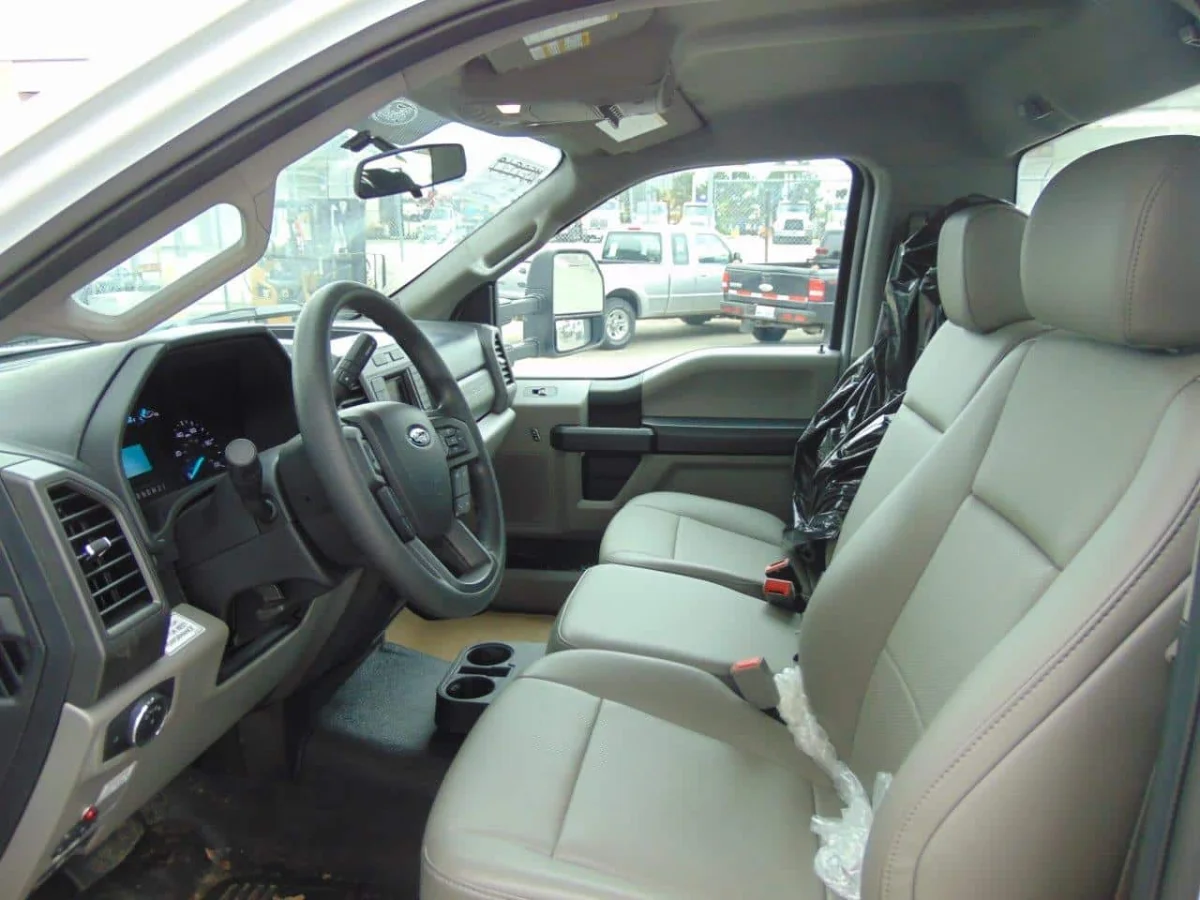

• Platform running boards, engine block heater, cruise control, air conditioning, AM/FM with Bluetooth, 40/20/40 vinyl split bench seat, power windows & locks. Color: White.

Included Options Are:

• 500 lb cap jib winch in basket
• 13’ low profile Aluminum Deck – 8’ wide Aluminum cross box
• 2,000 lb Planetary Main Boom Winch with Anti Two Block Switch, Horn, Cable & Retainer Ring

Optional Equipment:

• Aluminum Under Deck Storage Boxes
• Hydraulic oil tank heater
• Drawplate with pintle hook

48′ WORKING HEIGHT AND 36′ WORKING SIDE REACH
2,000LBS MAIN BOOM WINCH AND 500LB BASKET WINCH

Call for Details at: 1-888-557-2244 or 416-679-3838
