While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

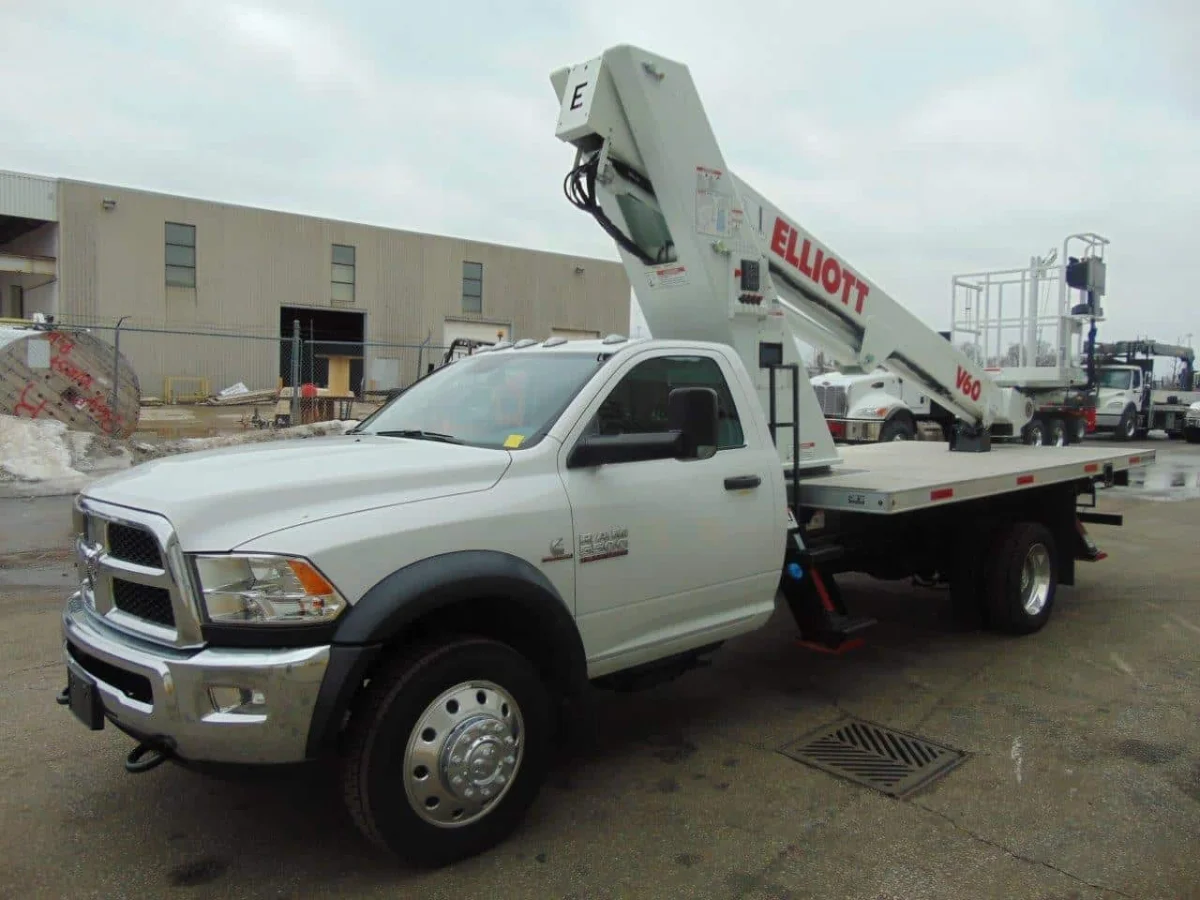

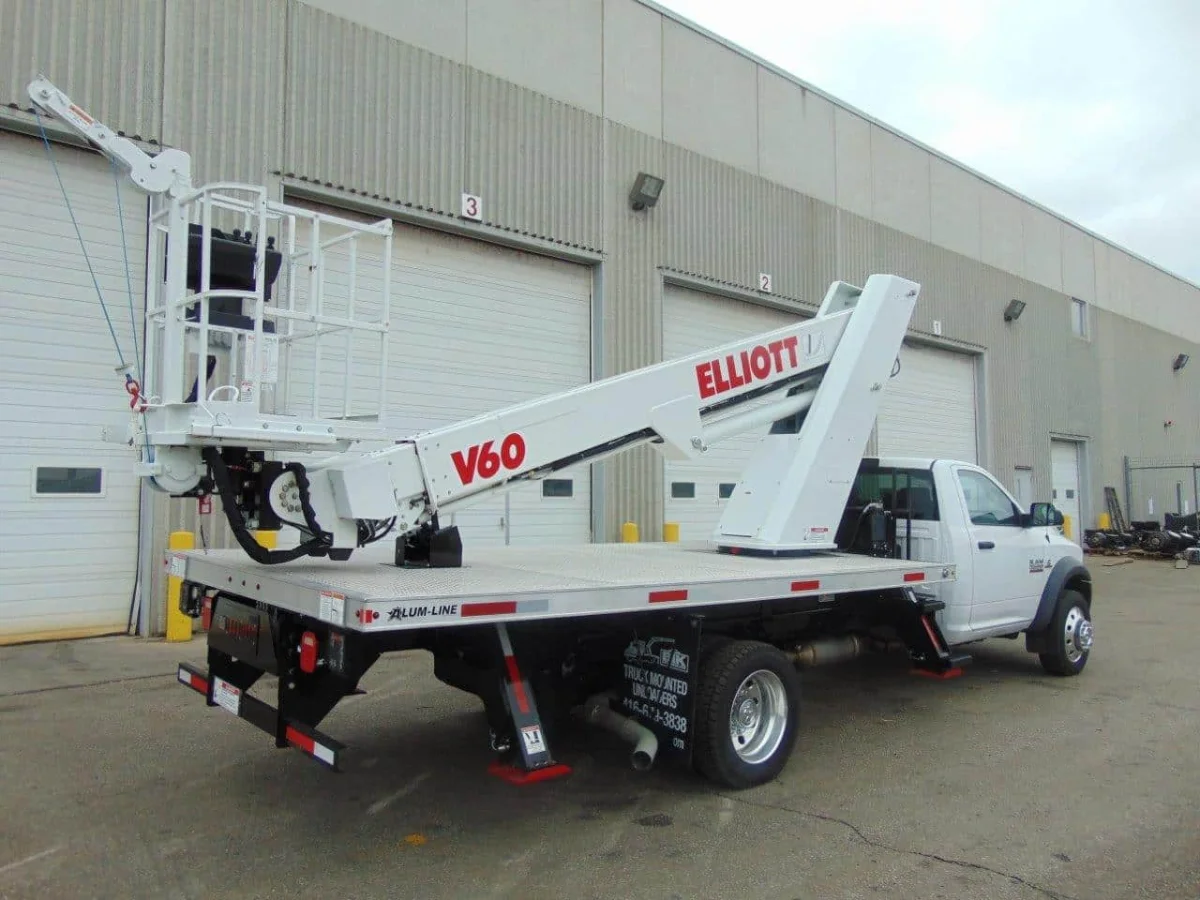

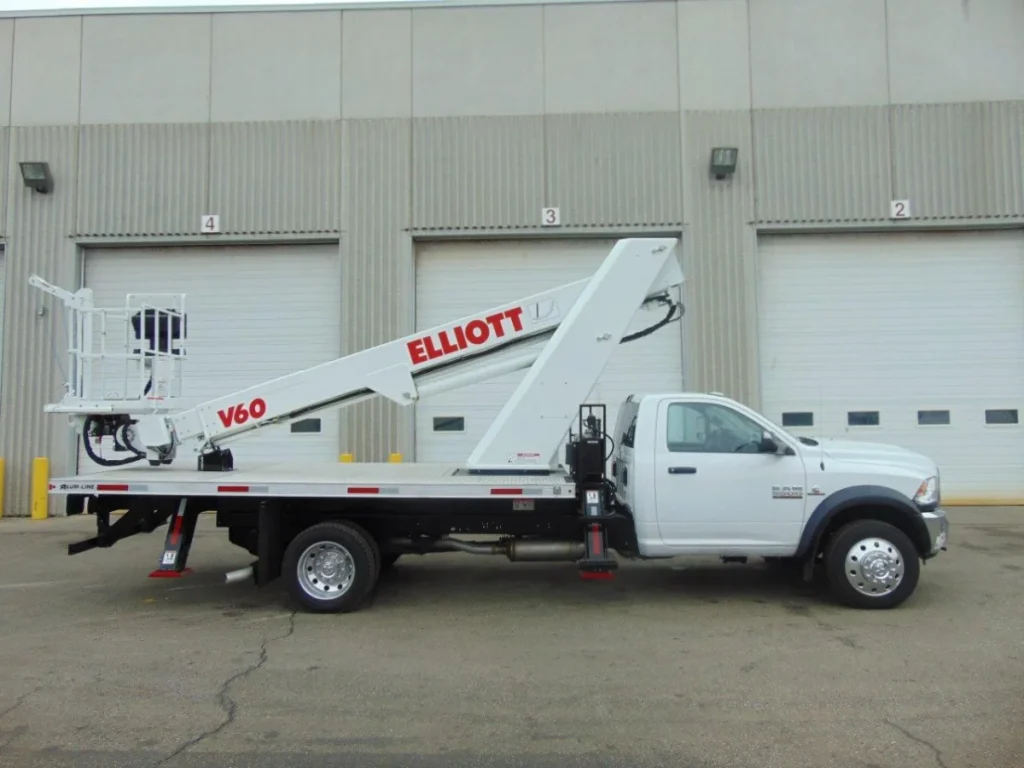

NEW – ELLIOTT V-60 HiREACH:

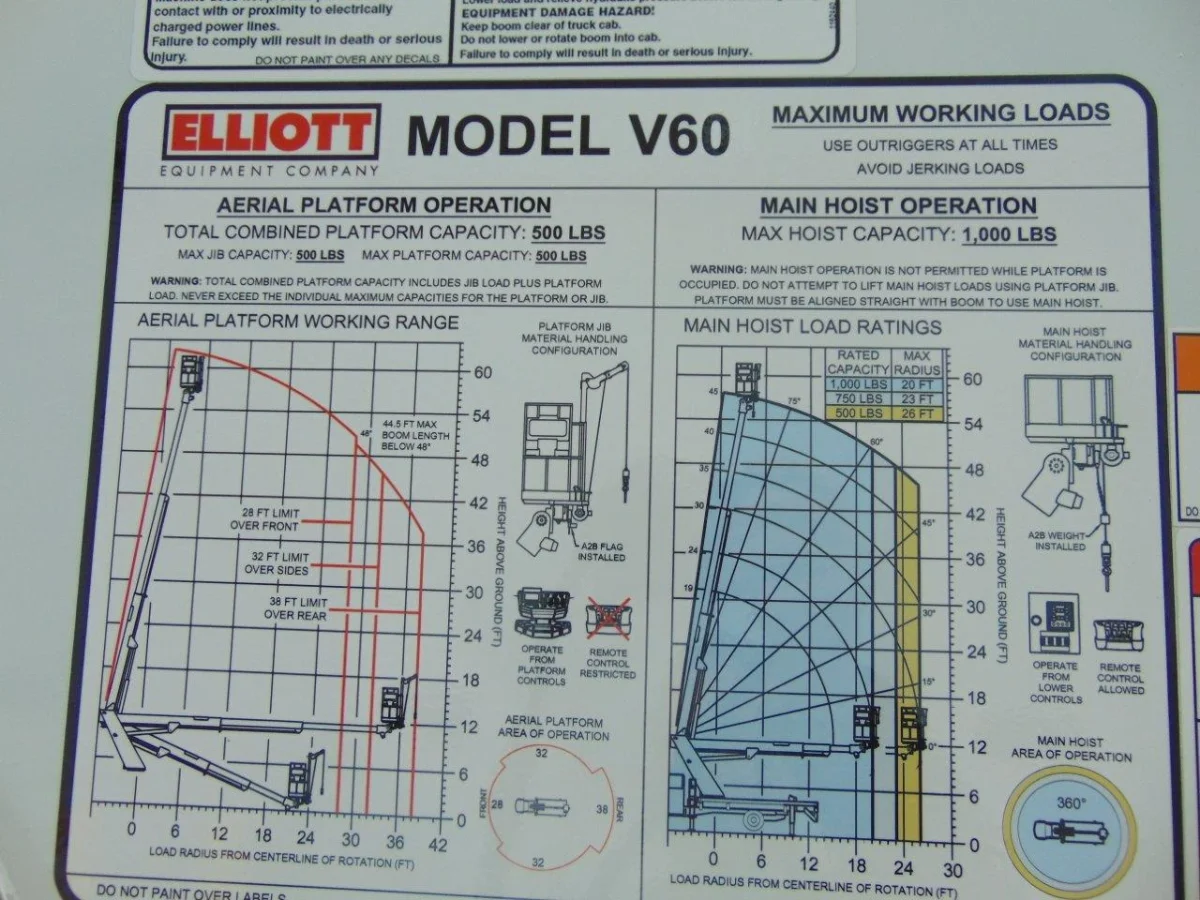

• Hydraulic Reach to 63’ Working Height and 38’ Working Side Reach– Platform Capacity 500 lbs
• Installed by Elliott Factory Technicians, Prepped, Primed and Painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines, Hydraulic Tank Mounted on Truck Frame w/Shut-off Valve. Load Tested.

Standard Features Include:

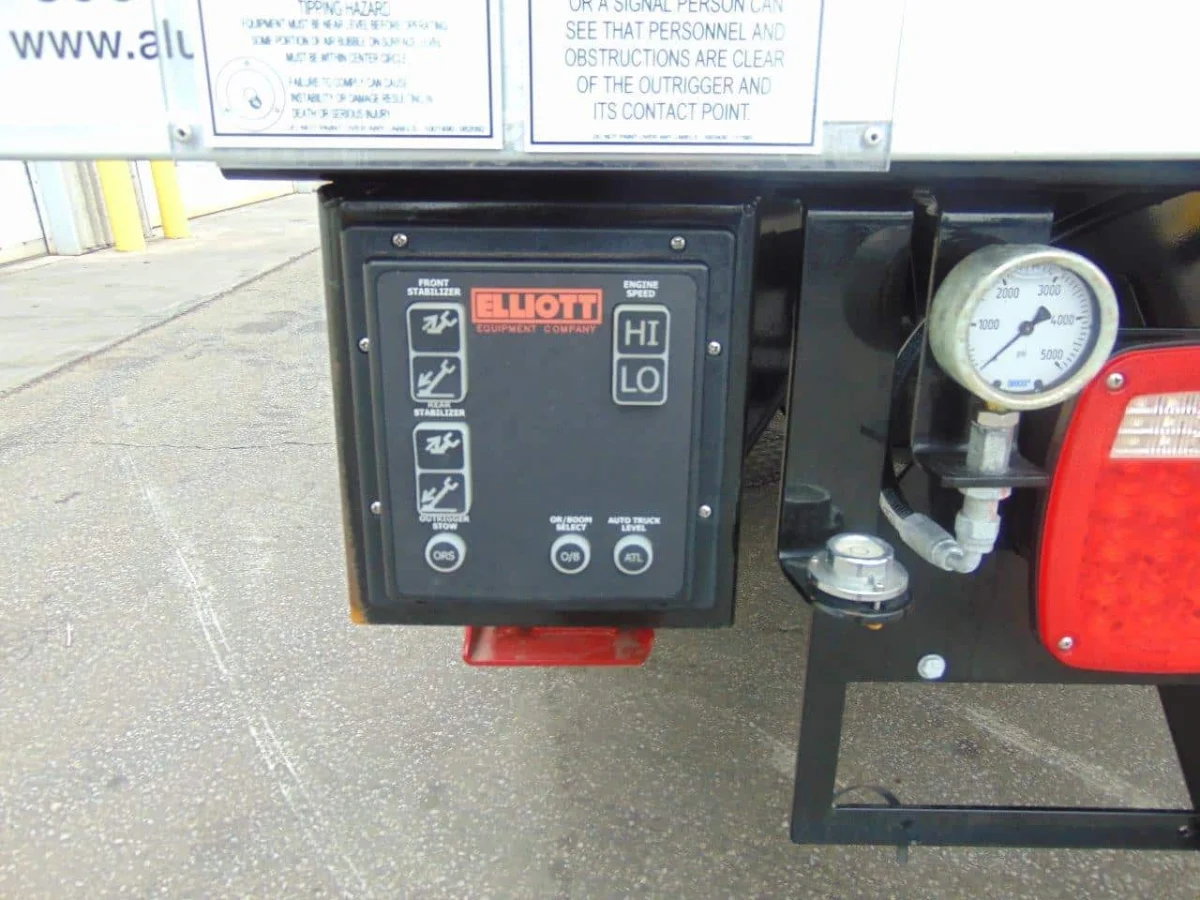

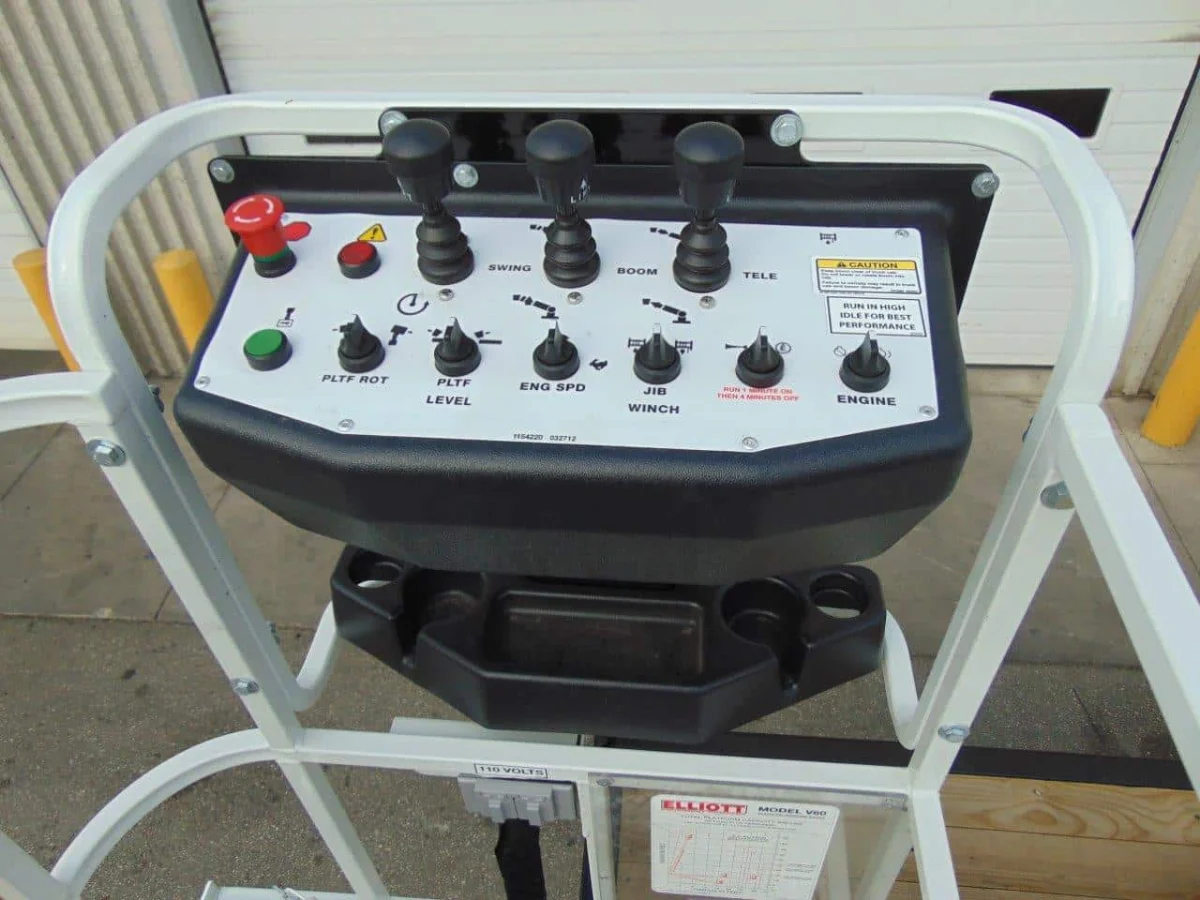

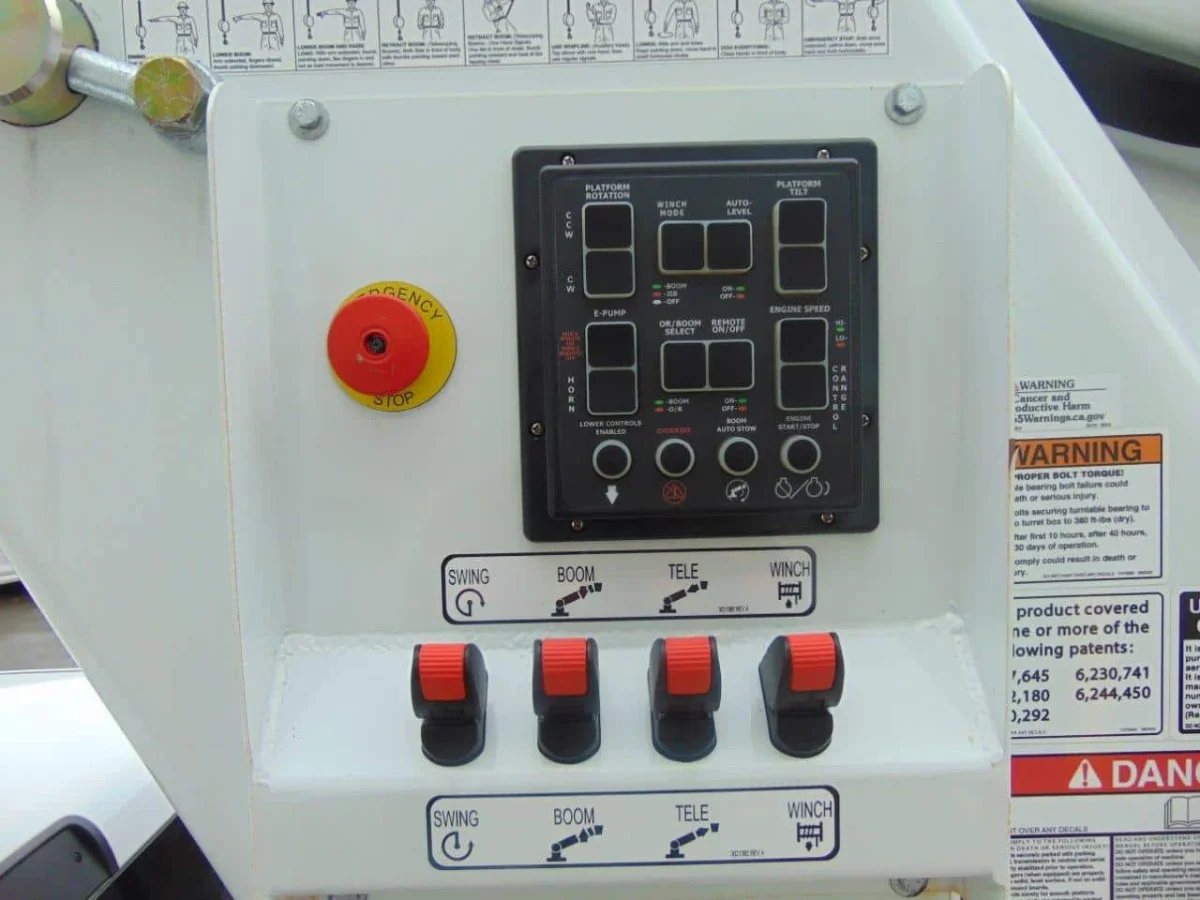

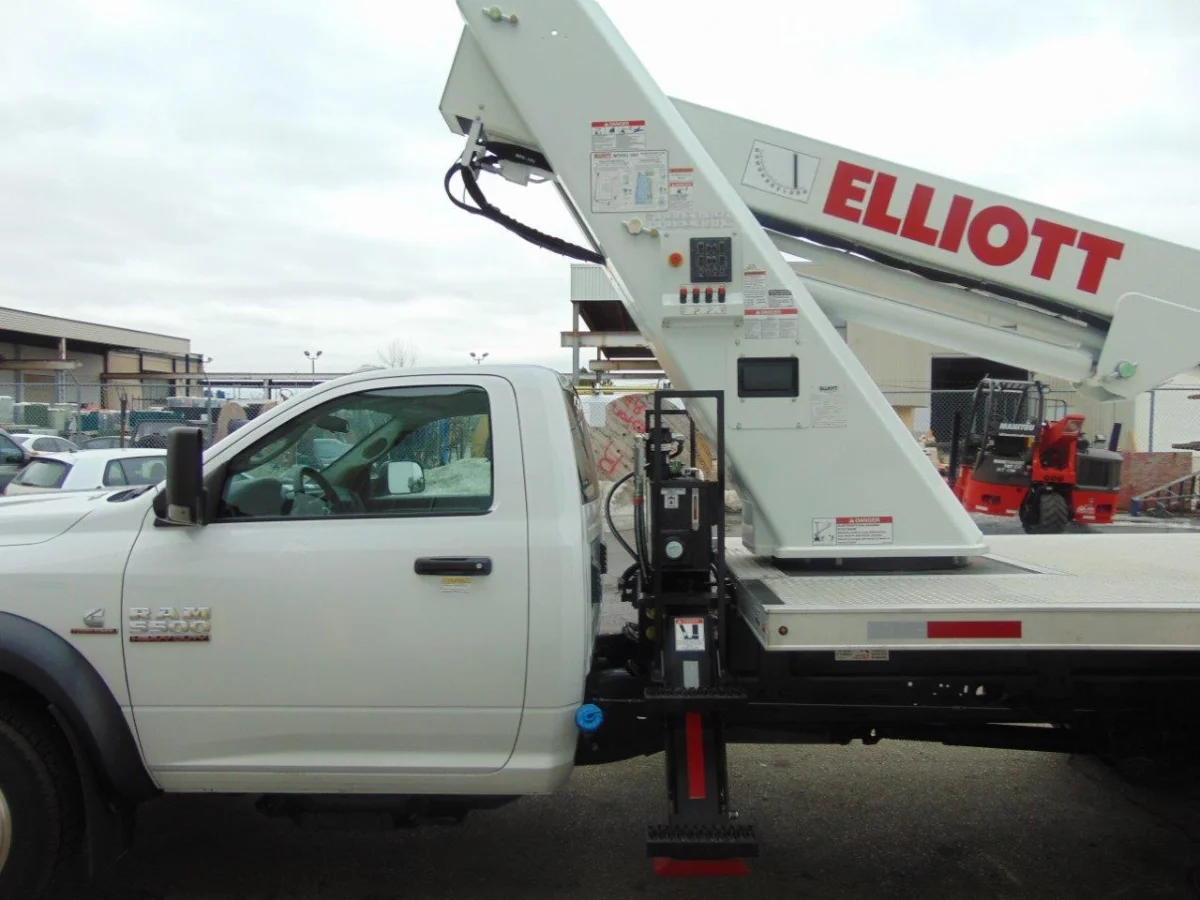

• Three Individual Proportional Electronic Controllers. Boom Ground Controls Located on Roadside of Turret, Remote Controls for Boom Operations from Platform Operate from a Removable Control Box (Hi, Low and Start / Stop Toggles are also Located in the Platform).

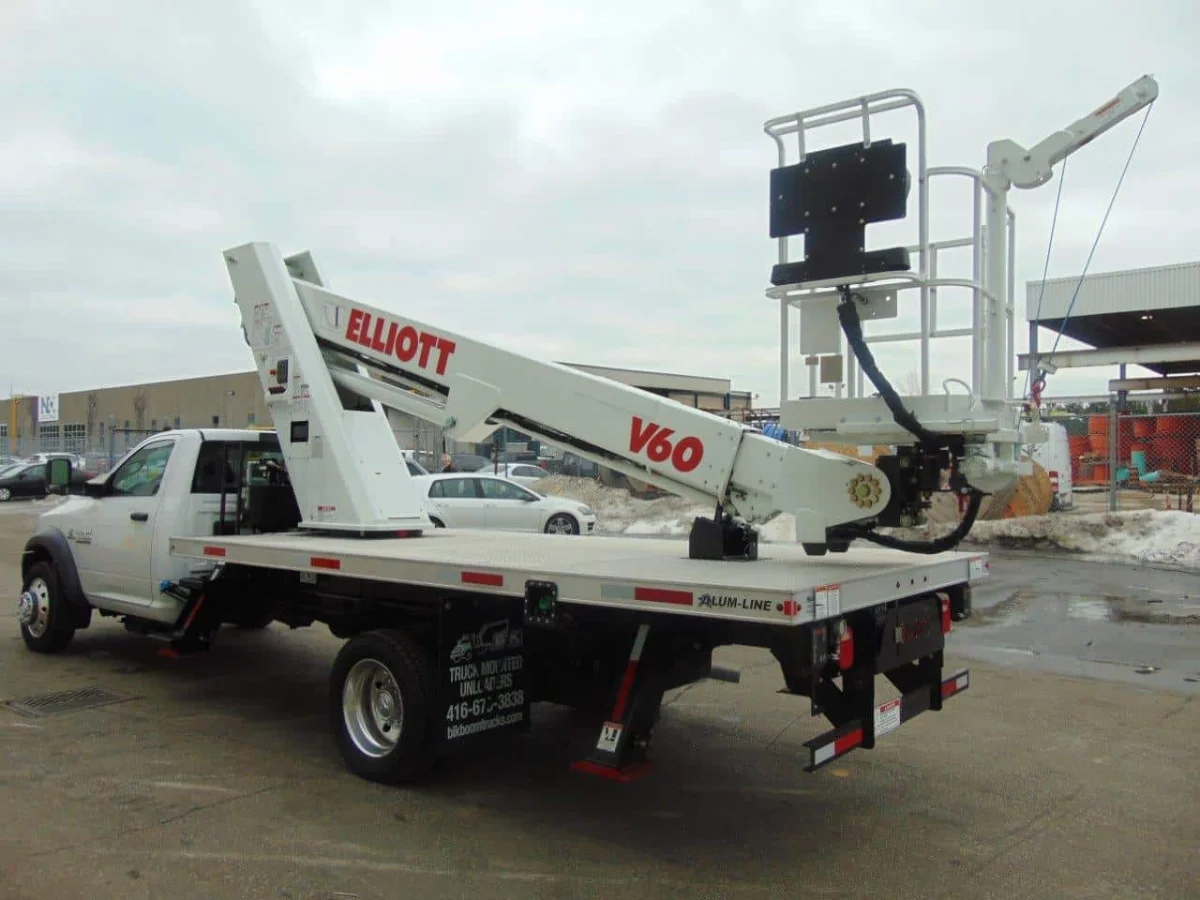

• Work Platform is Hydraulically Self-Leveling and Rotating, Top Mount 30” x 40” High Rails Work Platform, with Safety Attachment Loops.
• Remote Start & Stop at Upper and Lower Controls.

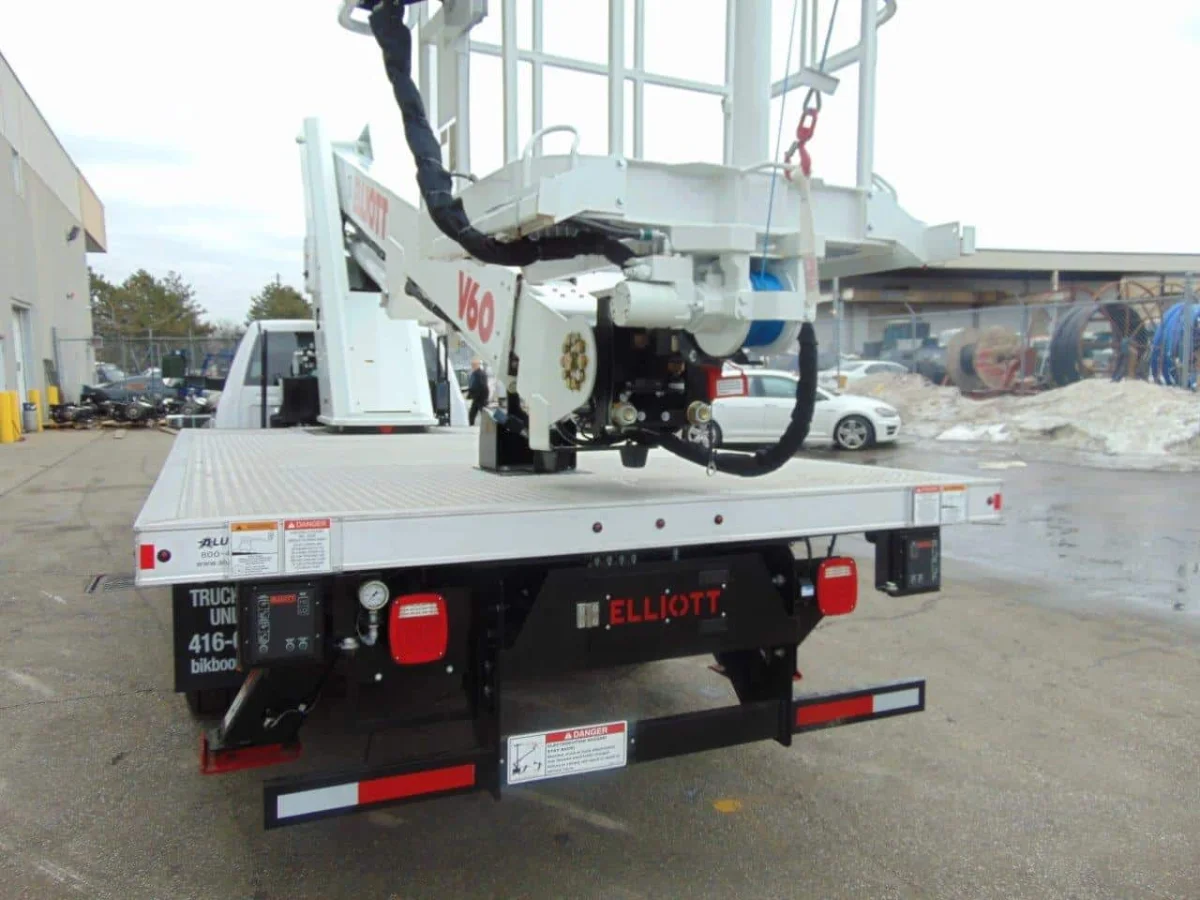

• A Frame-type Hydraulic Stabilizers at Rear.
• Hydraulically Powered Continuous Rotation with Ball Bearing Slewing Bearing and Self-Locking Gear Box.
• Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load.

Included Options Are:

• 500 lb Capacity Jib Winch in Basket

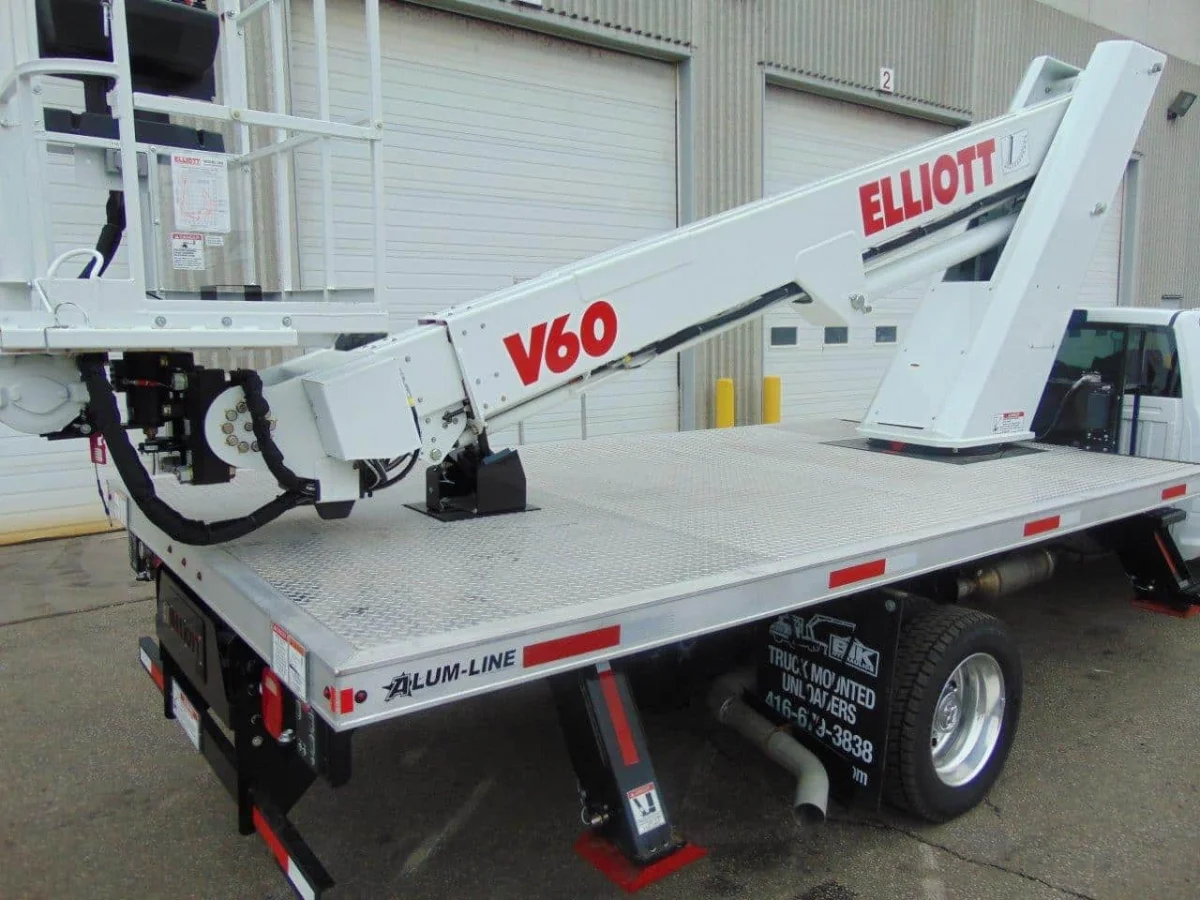

• 16’ Low Profile Aluminum deck with aluminum deck surface

NEW –2018 DODGE 5500 SINGLE AXLE CHASSIS: 19,500 lb GVWR – Hydraulic Brakes

• 325 hp Cummins Turbo Diesel Engine
• 6 Speed Automatic Transmission
• White Cab
• 7,000 lb Front Axle
• 13,500 lb Rear Axle with 225/17R19.5 All Season Tires on Aluminum Rims
• Hydraulic Brakes

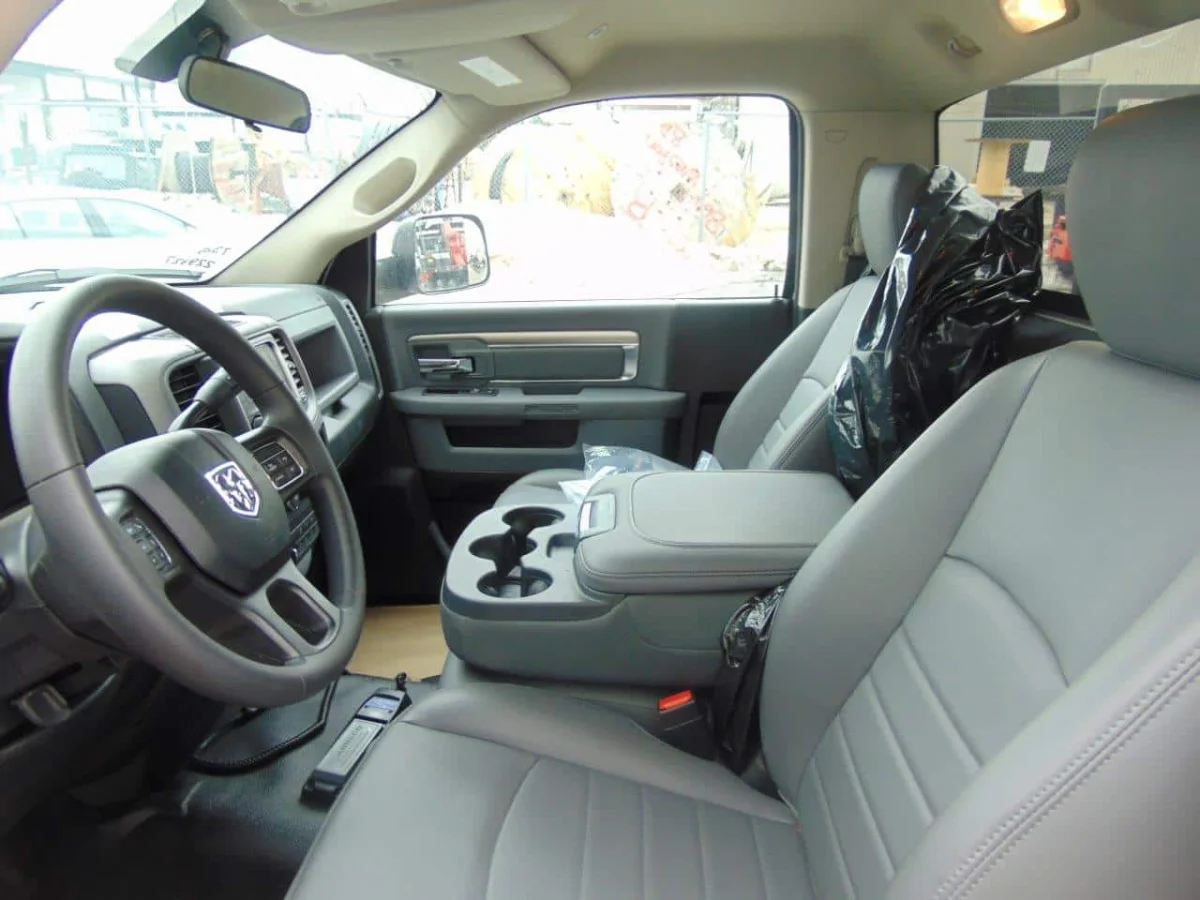

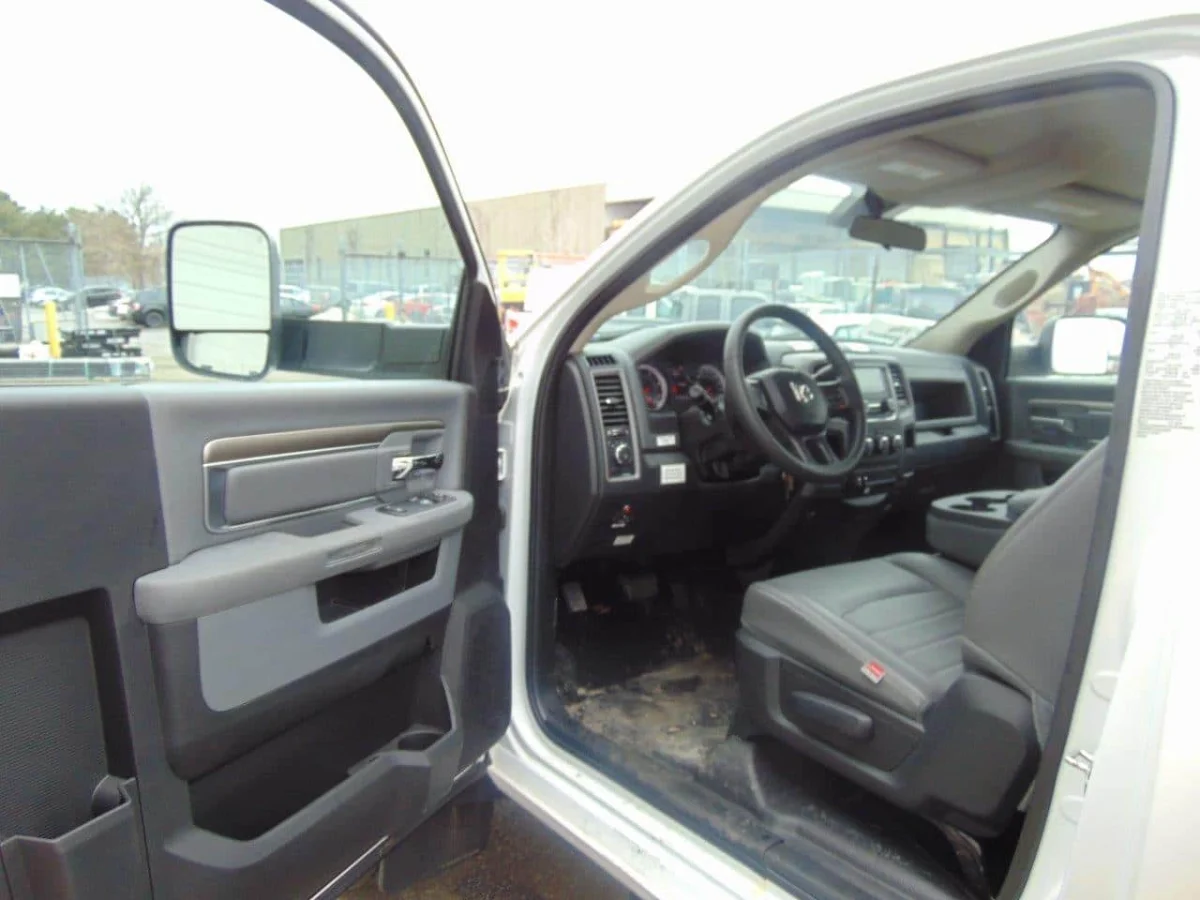

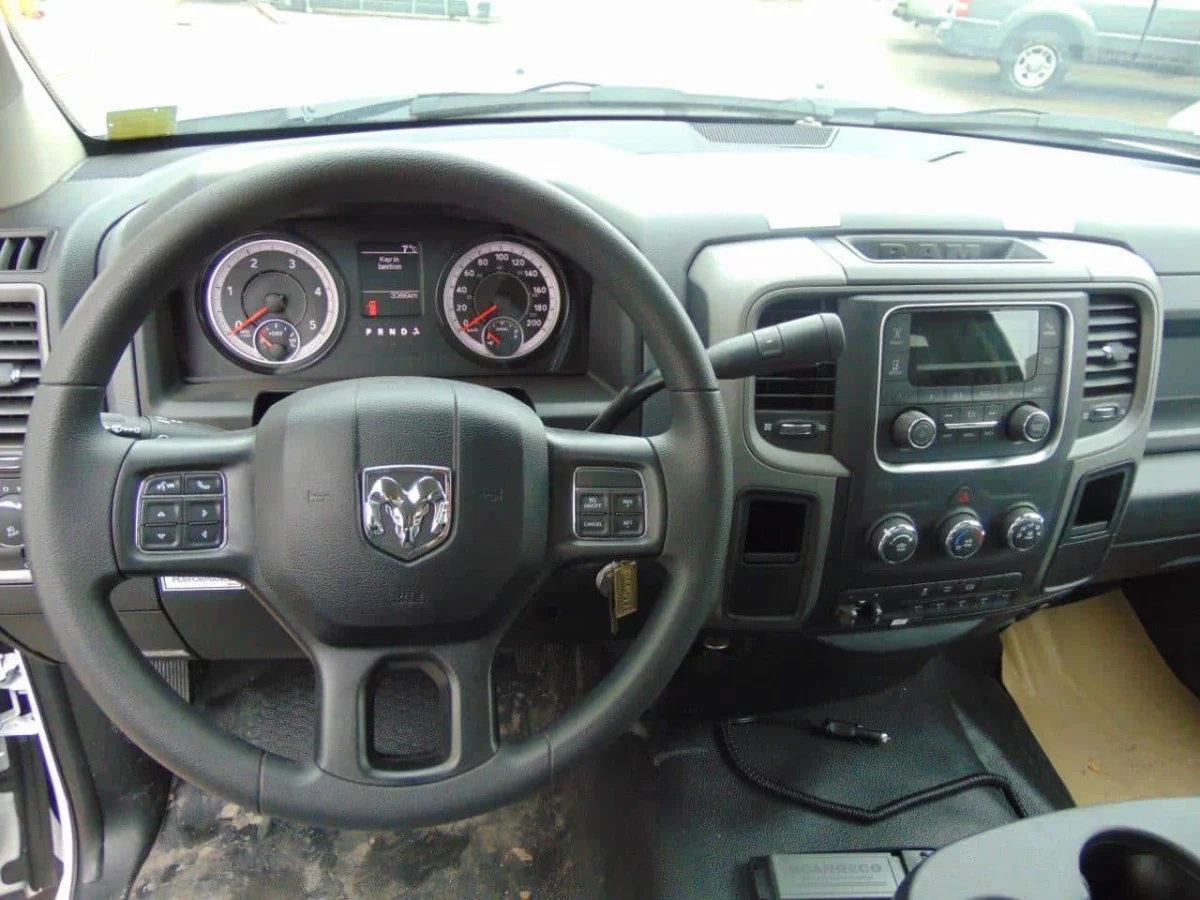

• Features Include:  A/C, AM/FM Stereo, Cruise Control, Engine Block Heater, 40/20/40 3-Person Front Seating, Back-up Camera, Power Windows, Door Locks, Mirrors, Tilt and Telescopic Steering, Bluetooth, 12-Volt In-Dash Power Supply, Touch Screen AM/FM Sirius Accommodation, etc…

Optional Storage Boxes and Trailer Hitch Available In Stock and Ready to Work !!! 

Call for Details at: 888-557-2244 OR 416-679-3838
