Heila Cranes stands for high quality and reliability in marine cranes and lifting equipment. Our cranes meet the specific needs of our customers. Heila Cranes produces a wide range of stiff boom cranes, telescopic boom cranes, knuckle boom cranes, fully foldable telescopic cranes and heavy-duty cranes. Our cranes are used for numerous applications, often in harsh conditions.

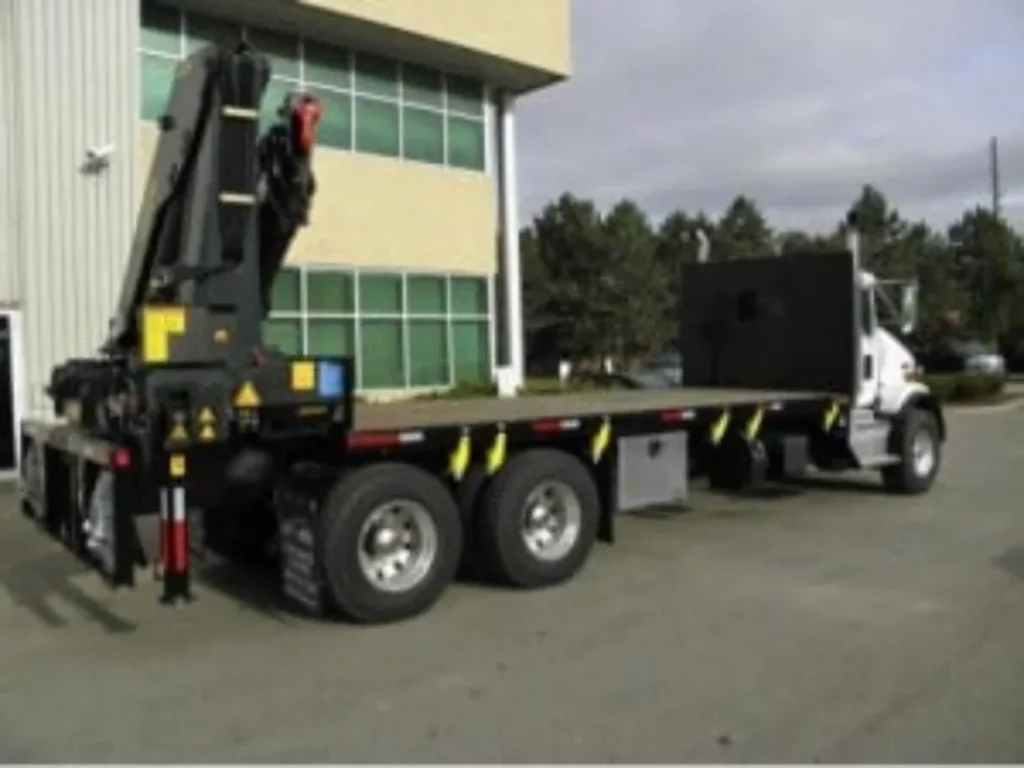

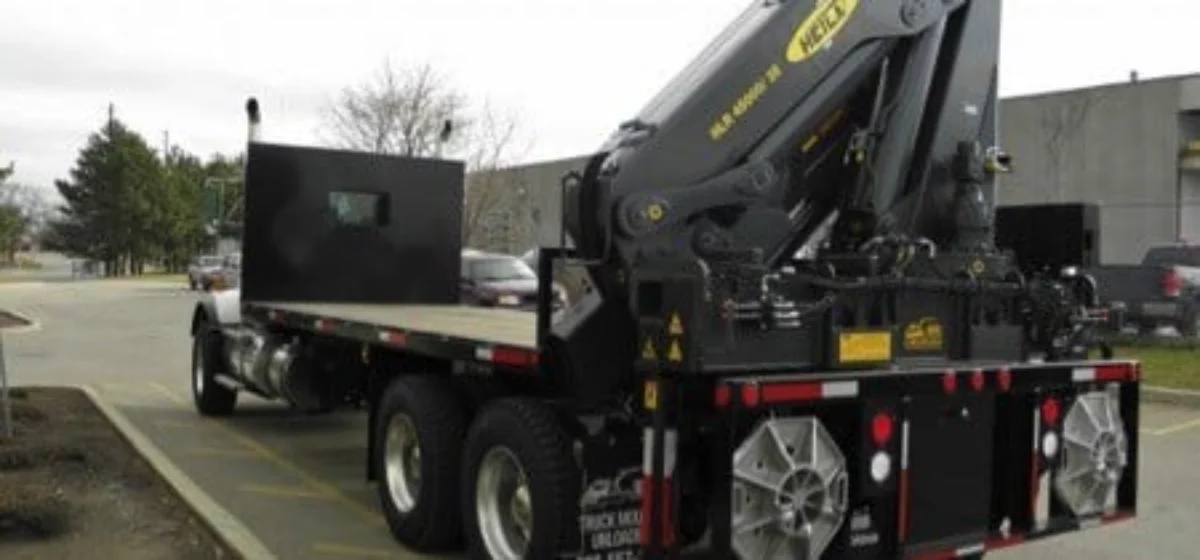

NEW – HEILA HLR 45.000-3S KNUCKLE BOOM:

• With Hydraulic Out & Down Stabilizers, 3 Hydraulic Extensions to 36’ of Side Reach

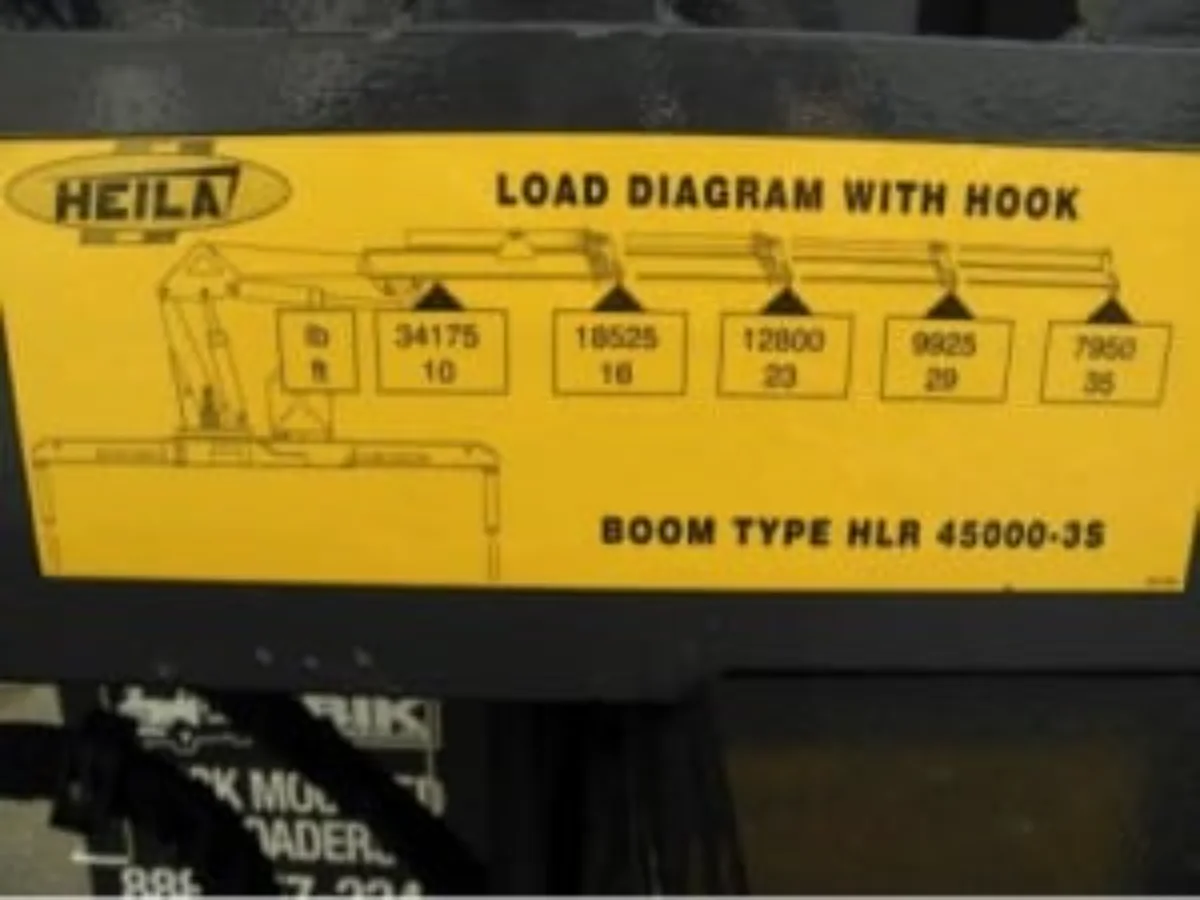

• Boom Capacities:   34,000 lb @ 10’, 18,500 lb @ 17’, 12,450 lb @ 23’, 10,000 lb @ 30’, 8,000 lb @ 36’
• Installed End of Frame on Shear-Plated Sub Frame, Prepped, Primed and Painted
• New Air Operated PTO, Hydraulic Pump, Supply and Return Lines
• Hydraulic Tank Mounted Under Deck w/Shut-off Valve
• 12 Volt Connections to Radio Remote Control
• DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station w/ Fully Proportional Operator Control
• SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
• Radio Remote includes:  5 Micro Mode Speed-Reducing Settings, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
• Hydraulic Overload Load Limiting Device – Greatly Increases Life Span of Crane and Provides Added Safety
• Planetary Pedestal Rotation – Superior Control & Turning Torque to 10 Deg Angle – Best in its Class, Reduced Maintenance

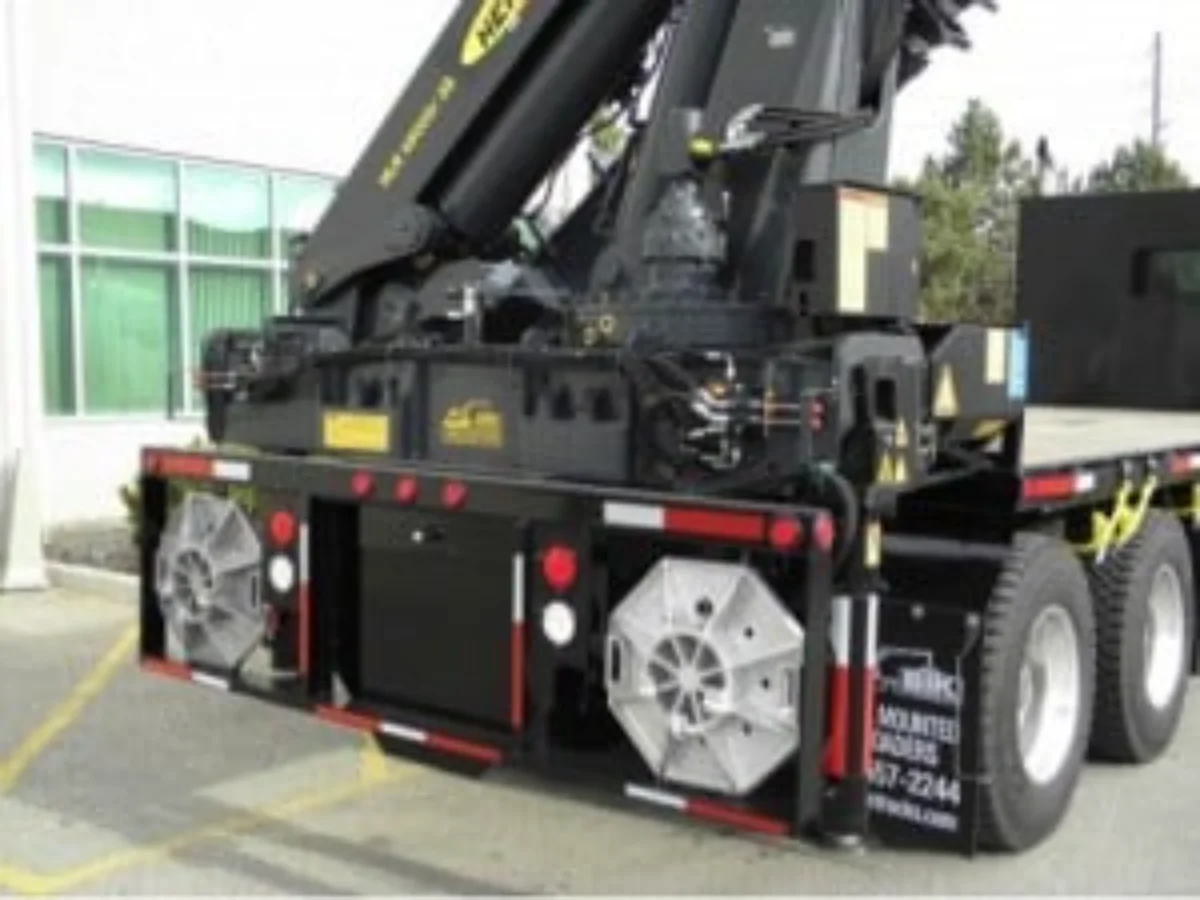

• 450 Degree Rotation, Hydraulic OUT and DOWN 2-Sided, Independently Controlled Stabilizers Beneath Pedestal
• Ground Level Main Danfoss Valve Bank, Easy Access for Manual Controls at Ground Level

NEW – 21′ STEEL FLAT DECK

• Hardwood 1-3/8″ Bed Floor Surface
• 5 Sliding Tie-Down Winch Straps with Chain Hooks or Flat Ends
• 5′ High Headboard
• 36″ Aluminum Tool Box
• Winch Bar & Winch Bar Holder
• 2 Aluminum Stabilizer Pads w/Holders

NEW – 2020 WESTERN STAR 4700 TANDEM-AXLE TRUCK

• Detroit Diesel DD13 470 hp Engine
• 18 Speed Transmission
• 20,000 lbs Tandem Steer Front Axle on 425/65/R22.5 Tires
• 46,000 lbs Rear Axle on 11R22.5
• Tuftrac Suspension
• 66,000 lbs GVWR

Included Truck Options:

• AM/FM/CD Stereo
• A/C
• Dual 80-Gallon Fuel Tanks
• Power Windows
• Power Locks
• Aluminum Front & Rear Rims

Call for Details at: 888-557-2244 or 416-679-3838
