The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

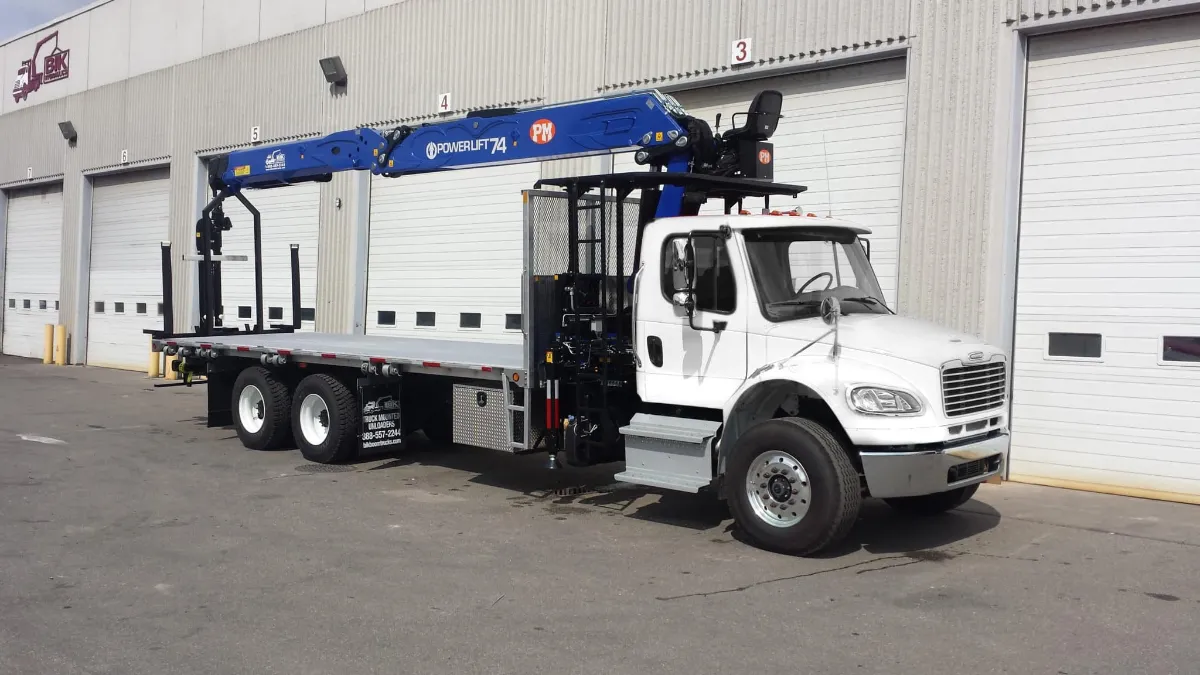

NEW – PM POWERLIFT-74 WALLBOARD SERIES BOOM  8^th

• 35 Ton/M Size Strength
• 4 Hydraulic Extensions to 62’ Horizontal Reach (74’ Vertical)

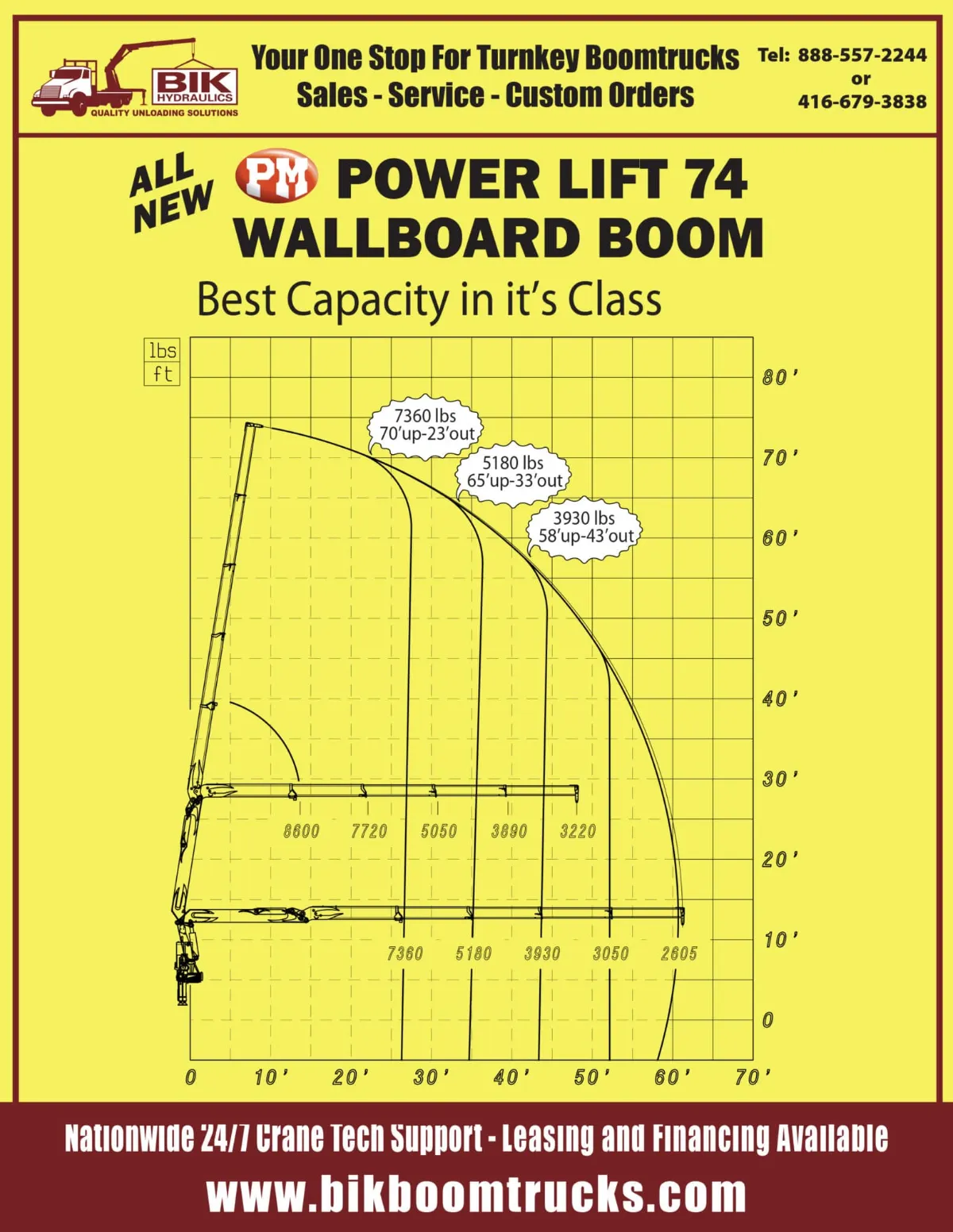

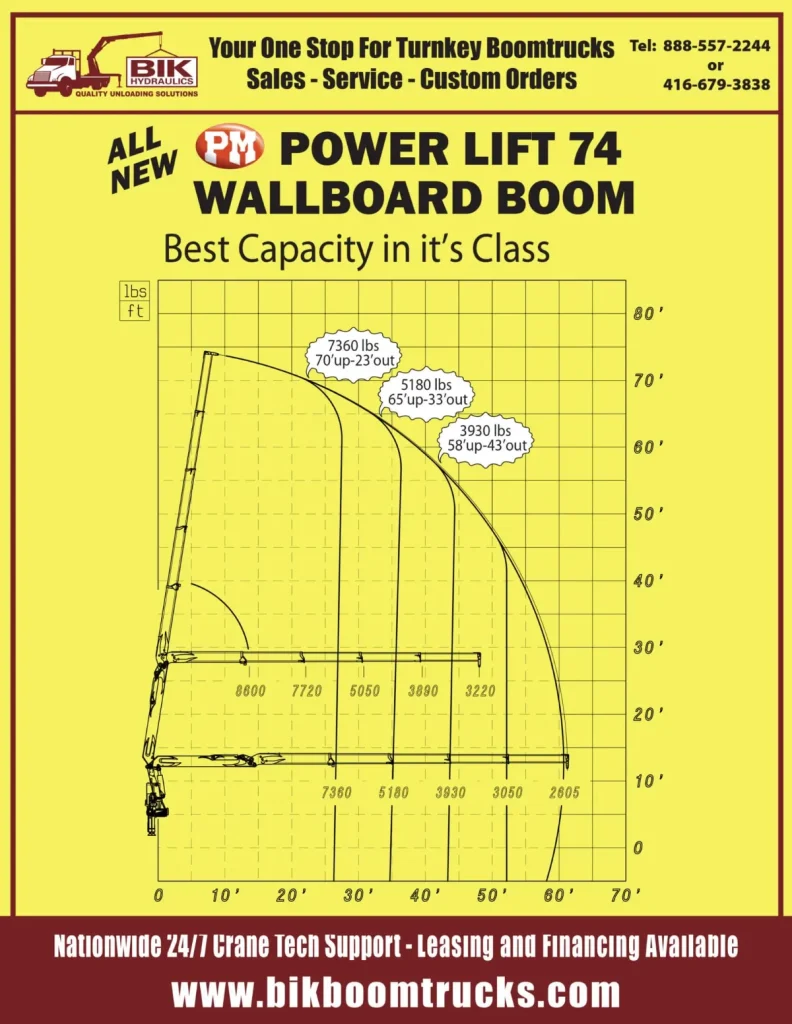

• Horizontal Capacities are:
  • 7,360 lb @ 27’
  • 5,180 lb @ 36’
  • 3,930 lb @ 44’
  • 3,050 lb @ 53’
  • 2,605 lb @ 61’ 3”
• Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard. (2^nd Off-Center Boom Rest Position at Rear TBD)
• Rack & Pinion Type 390 Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
• Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
• Extra-Wide Stabilizers – 24’3” Span, Hydraulic Out and Down Type
• Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
• Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
• DANFOSS Valve – At Ground Level Controls & SCANRECO Proportional  Radio Remote Control
• Radio Remote Control Includes:  2 Batteries, In-Cab Charger, and Back-up Cord
• Continuous Rotation Drywall Forks
• Crane Painted PM Blue, Load Chart on Boom in FT. & LBS.
• Load Tested & Installed Back of Cab, with Integral Sub-Frame and Specialized Torsion Bracing to Meet or Exceed All CMVSS Standards

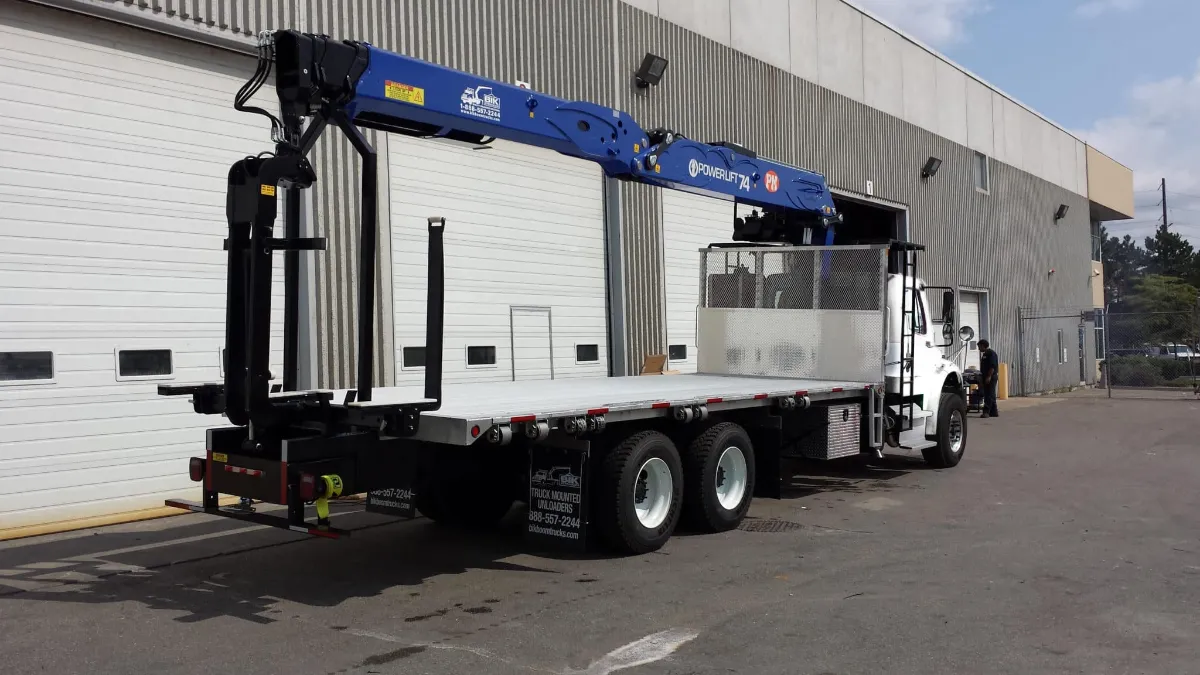

NEW – 24’4” X 102” ALUMINUM FLAT DECK

• Installed on 6” x 3” x 3/8” Sub Frame / Torque Box
• Aluminum Extruded Deck Surface – Strong & Durable
• Removable 66” Aluminum Headboard
• 8 Sliding Tie-Down Winch Straps on Passenger Side
• Winch Bar Holder and Winch Bar, Ladder, Reflectors and 5-Side Lights, as Required

NEW – FREIGHTLINER M2-106 T/A DIESEL TRUCK:  60,000 lb GVWR

• Cummins Diesel – 350 hp, 1,000 ft/lb Torque
• Allison Automatic Transmission
• 20,000 lb Fronts with 385/65R22.5 Front Flotation Tires on Aluminum Rims
• 40,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Steel White Rims
• 278” Wheel Base, Double Frame Chassis

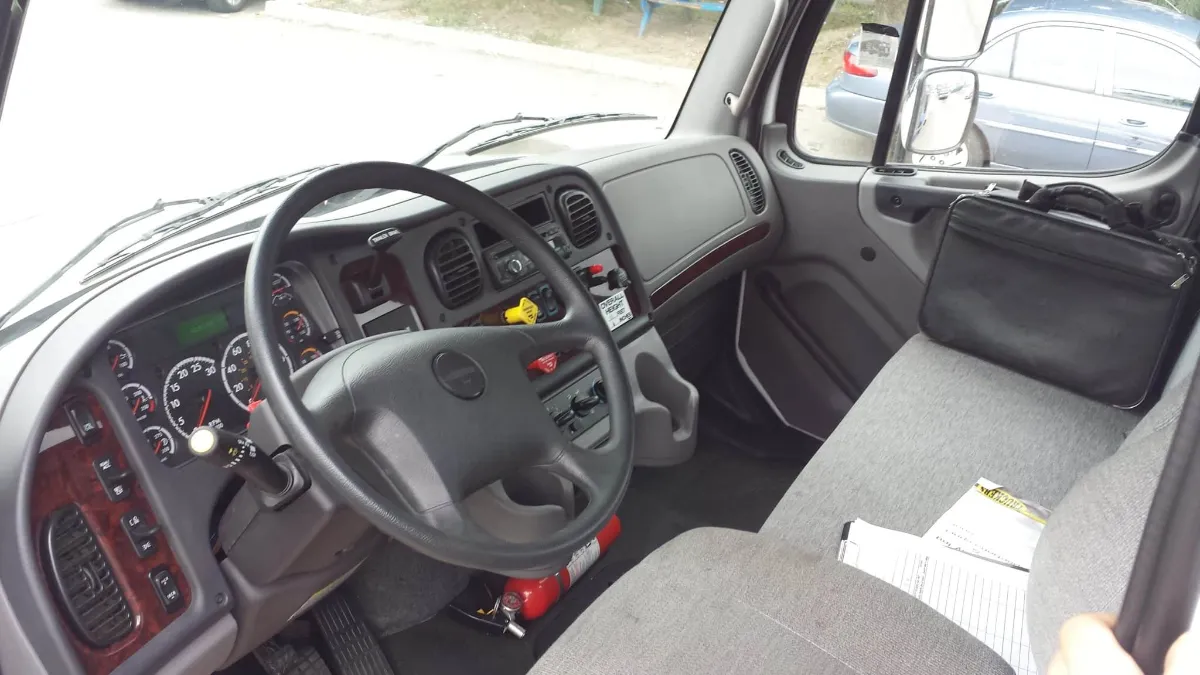

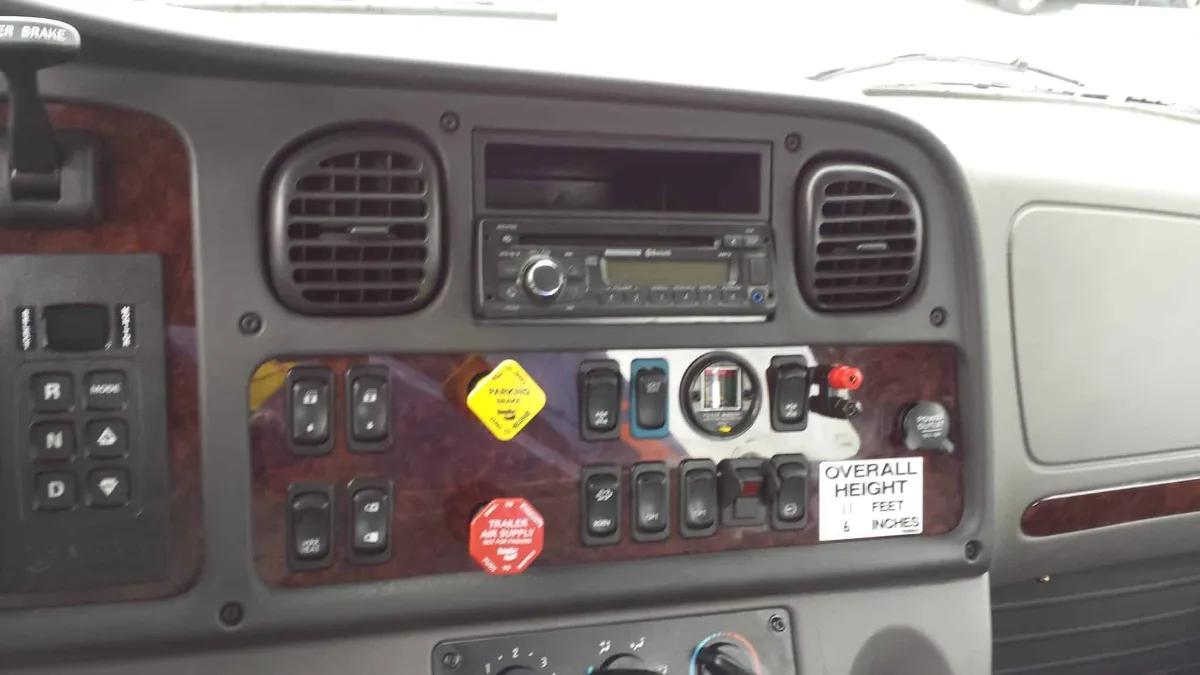

• Truck Features Include:   A/C, AM/FM Stereo, Cruise, Tilt/Telescopic Steering Column, Power Windows & Door locks, Chrome Bumper and Grill, Heated Mirrors, Chrome Hood-Mounted Mirror, Engine Block Heater, Trailer Air Tow Package, Rear Wheel Lock-ups, 80-Gallon Aluminum Fuel Tank, etc…

BEST CAPACITY IN ITS CLASS!

4- Hyd Extensions to 62’ horizontal reach (74’ vertical )

Call for Details at:1-888-557-2244 OR 416-679-3838
