BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

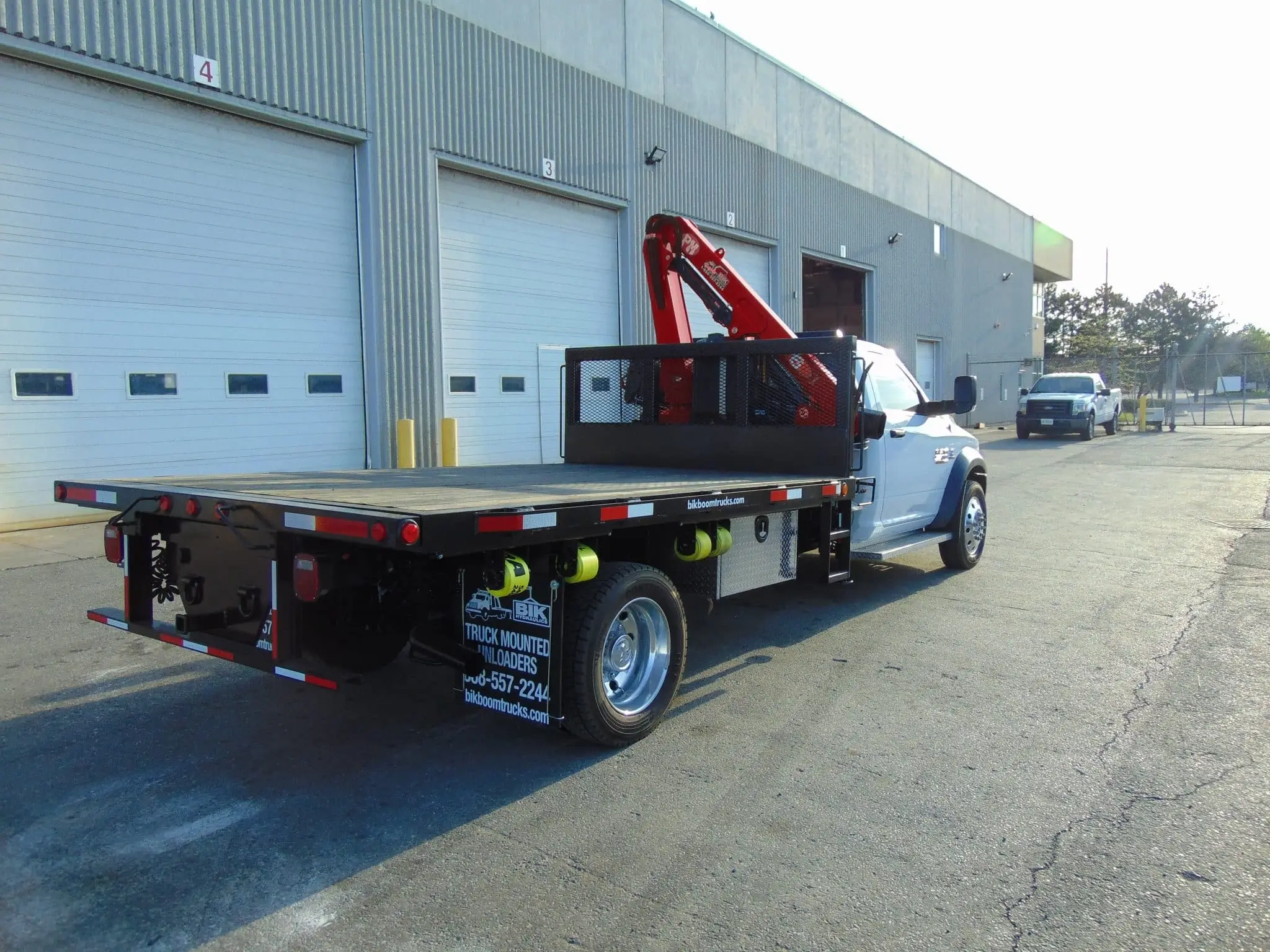

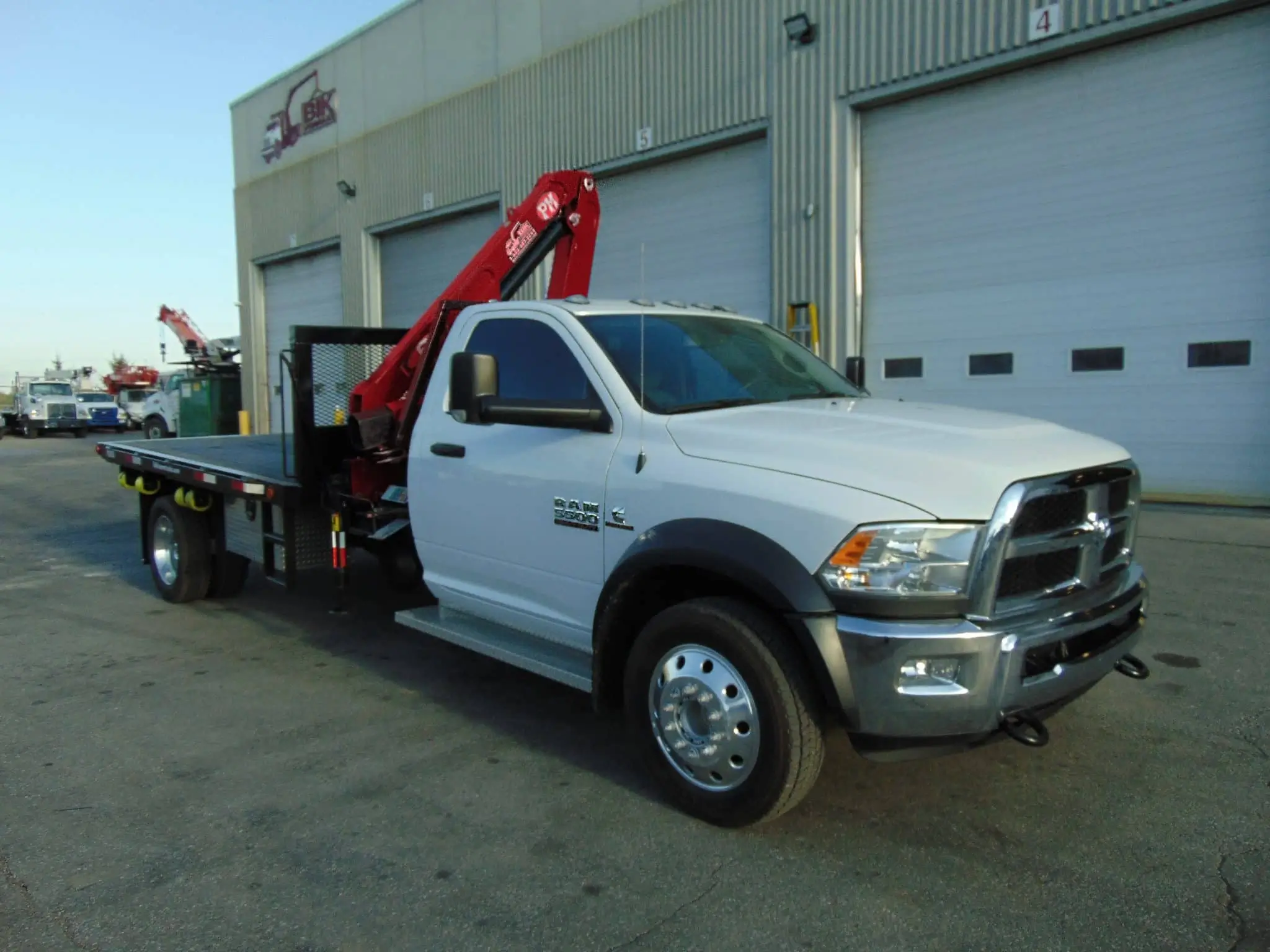

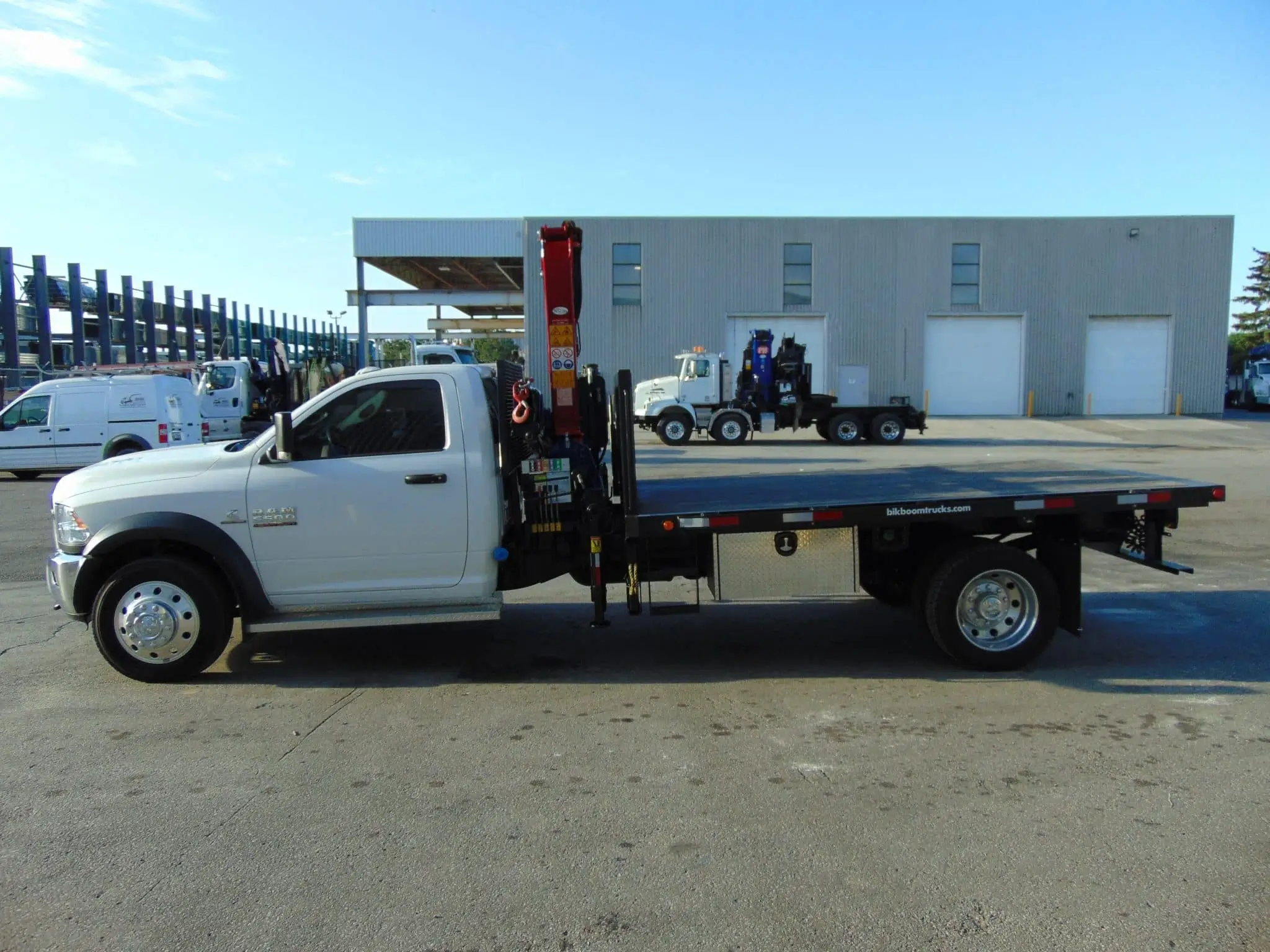

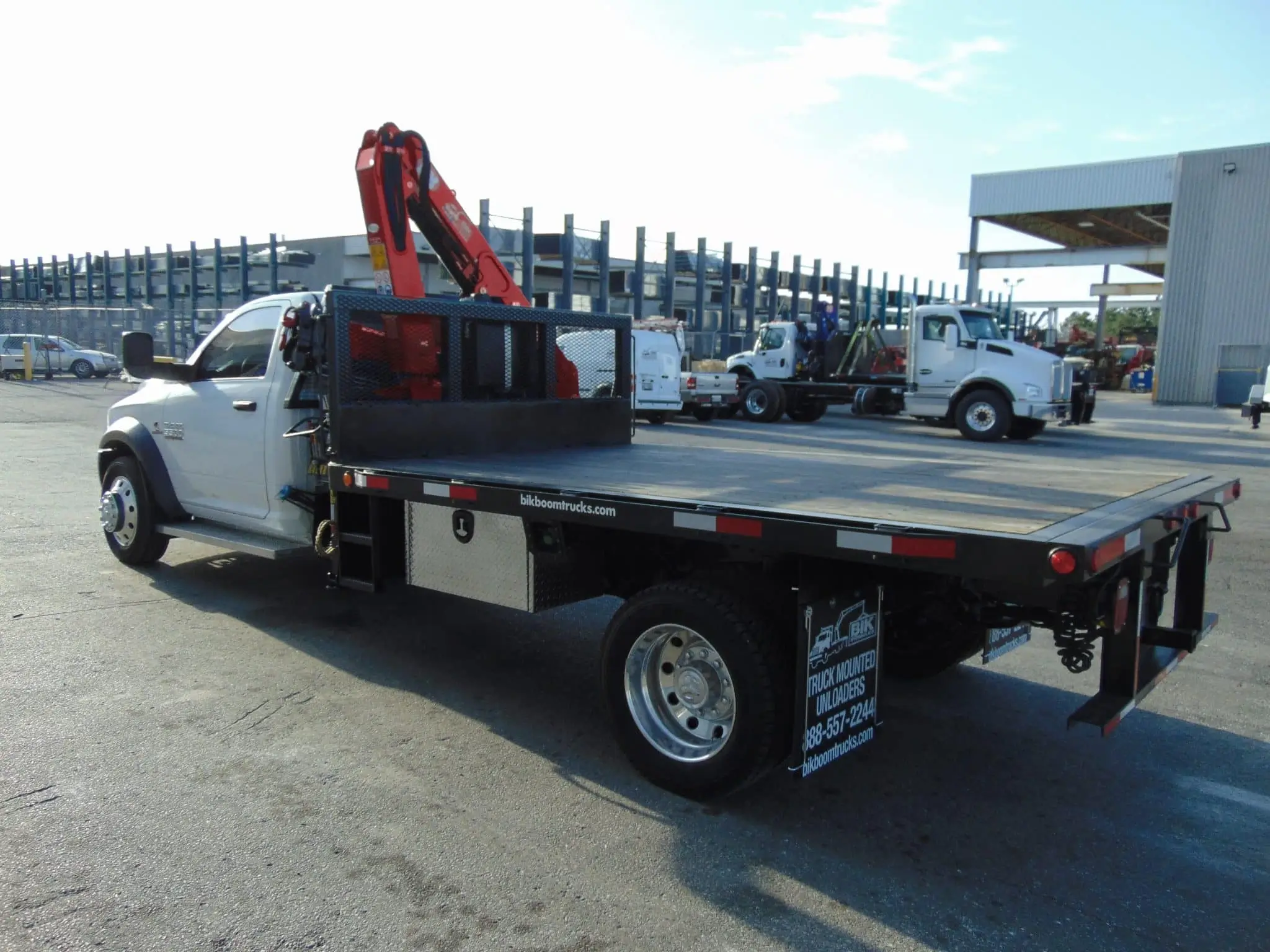

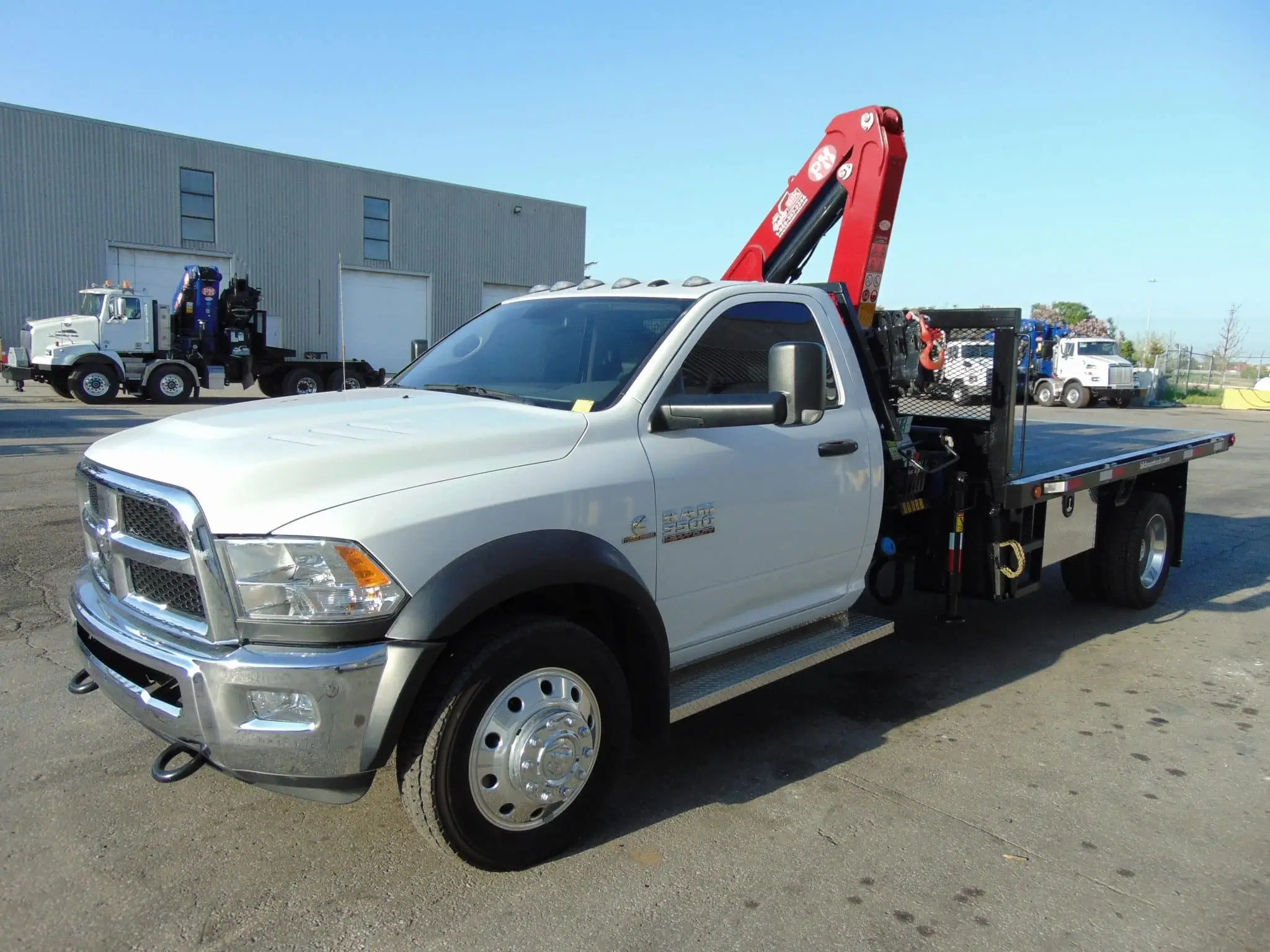

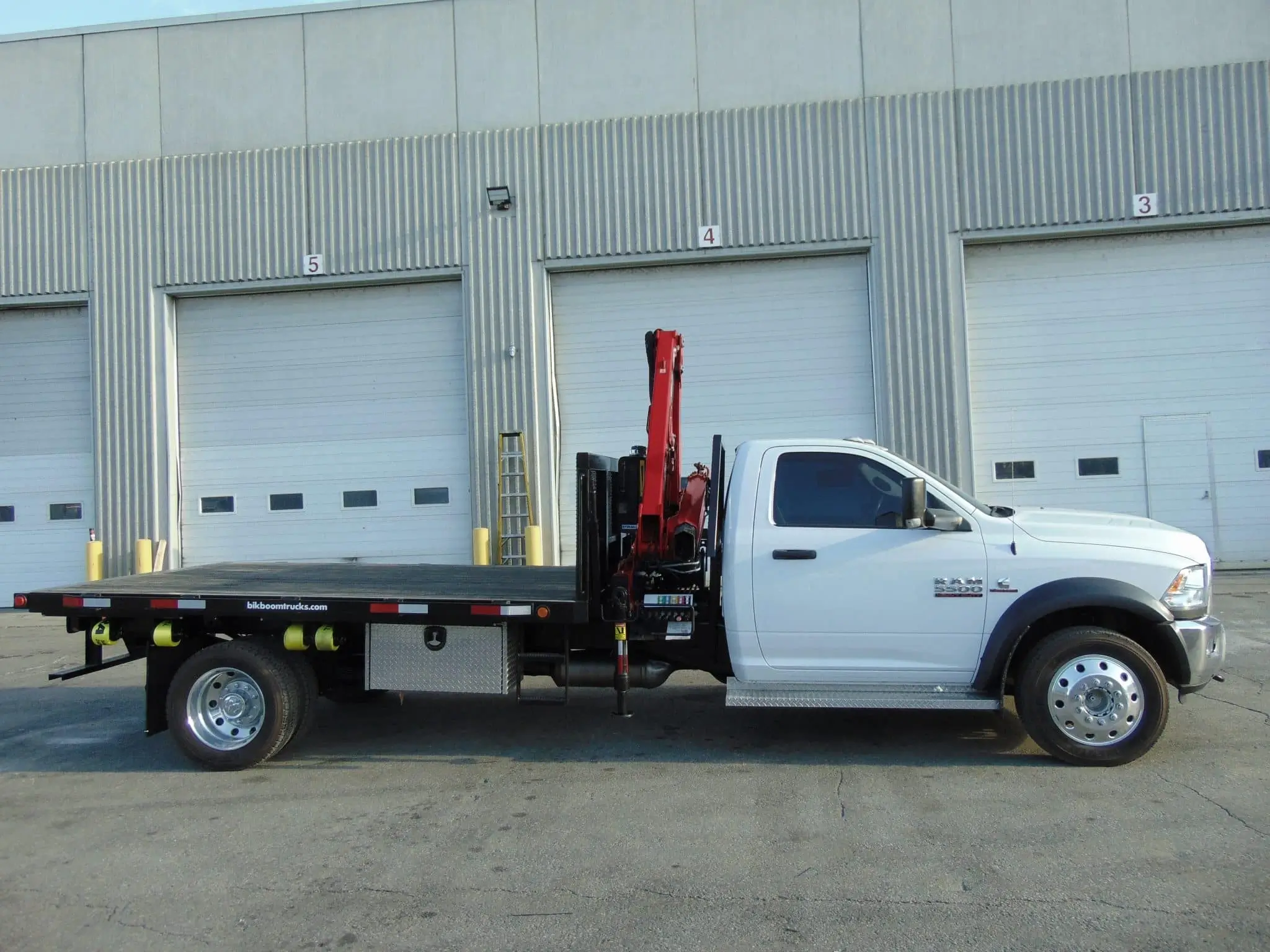

NEW – PM 6023 KNUCKLE BOOM

• 2-sided ground controls, 3-hydraulic extensions to 27′ Horizontal reach.
• Horizontal Capacity:
  • • 5,900 lbs@ 6′
    • 3,025 lbs@ 11′
    • 2,020 lbs@ 17′
    • 1,425 lbs@ 21′
    • 1,040 lbs@ 27′
• Installed Back of Cab on custom, shear-plated Sub Frame by BIK, prepped, primed and painted. New PTO, Hyd Pump,
  Supply and Return Lines, Hydraulic tank mounted on pedestal w/ shut-off valve. Load Testing and operator orientation by BIK personnel.

Standard Features Includes :

• Manual OUT & Hydraulic DOWN – Radial, manual tilting 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
• Load Holding Valves on cylinders for Safety and Security of Operator and Load
• Heavy Duty Pedestal Turning Cylinders for greater turning Torque, reduced wear, and improved precision- 400 degrees rotation

12′ x 96″ Deck with hardwood or steel surface:

• 14′ overall length, 8′ wide+ rub rail/pockets
• 36″ headboard, sliding winch track on passenger side with 4 sliding winches and straps
• winch bar holder, painted black with conspicuity tape and
  proper marker lights
• 48″ pull out deck extension at rear
• Access ladder step up on both sides.

NEW – DODGE 5,500 SINGLE AXLE CHASSIS:  19,500 lb GVWR – HYDRAULIC BRAKES

• 325 hp Cummins Turbo Diesel Engine, 6 speed automatic transmission, white cab.
• 7,000lb front axle, 13,500lb rear axle with225/17R19.5all season tires on aluminum rims, Hydraulic Brakes

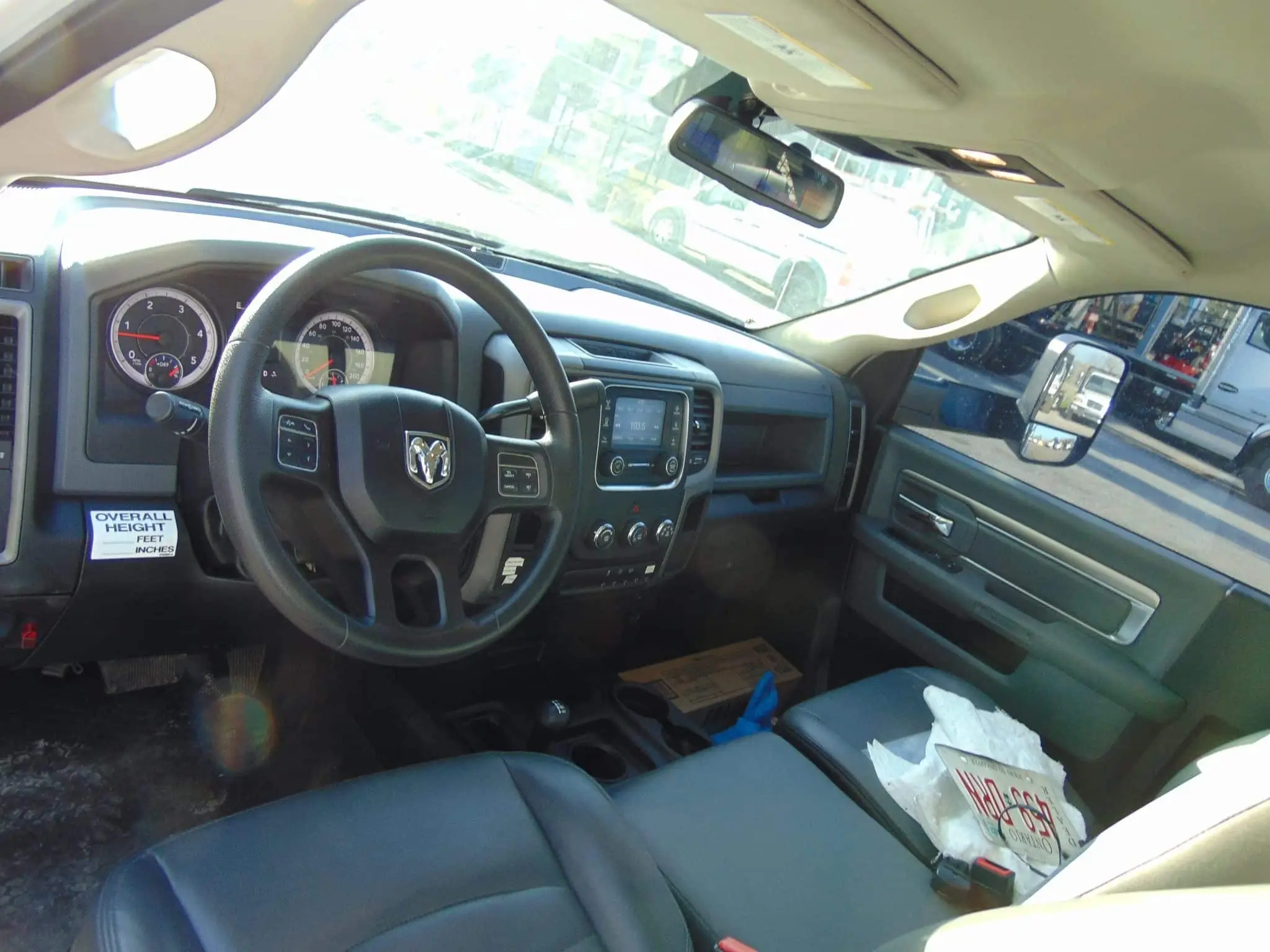

• Features Include: Air. Cond., am/ fm stereo, cruise control, engine block heater, 40/20/40 3-person front seating, etc.

Additional Options:

• Pair of PVC stabilizer pads mounted to rear bumper
• Clean up and re-paint deck black
• 4,500 lb cap Self leveling pallet forks
