While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

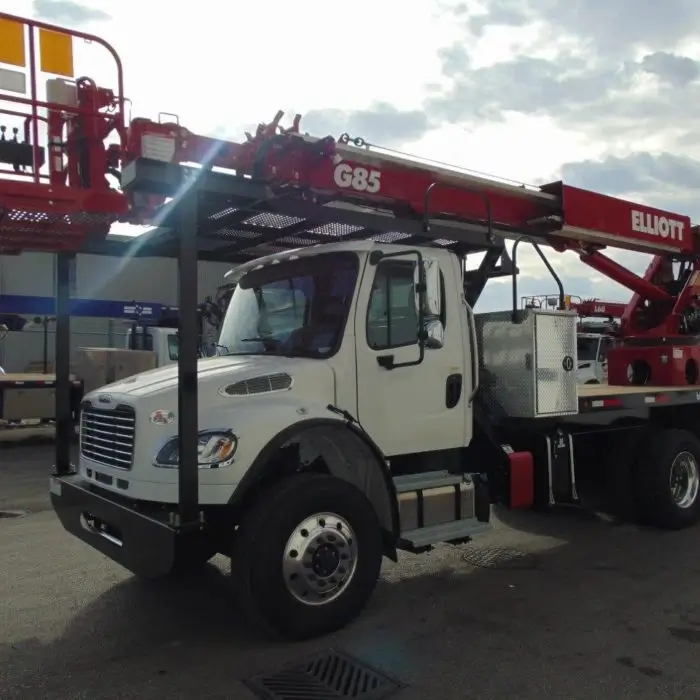

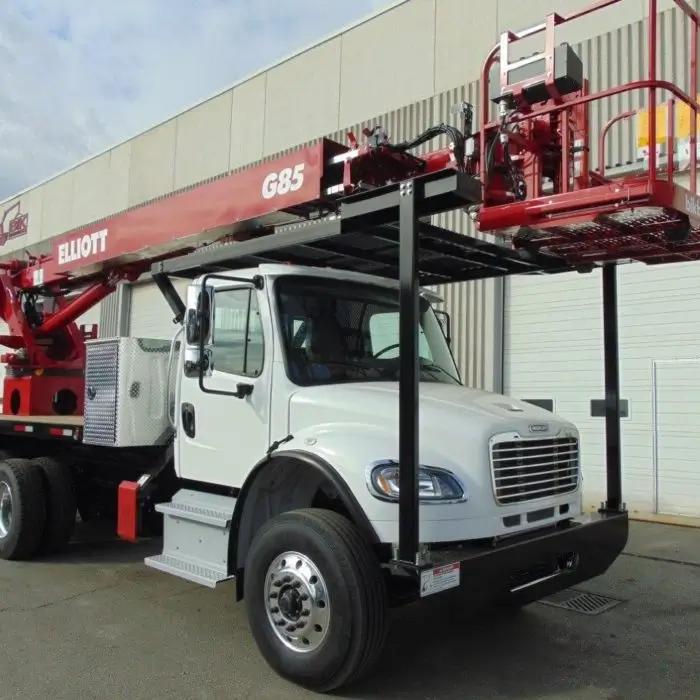

• NEW – ELLIOTT G85 Hi-REACH AERIAL WORK PLATFORM
• BOOM:
• 85′ Max Working Height
• 56′ Max Side Reach
• Steel 3-Section Telescopic Boom
• Front Mount Configuration with Rotating Turret
• Electronic / Hydraulic Controls
• Overall Height (Including Truck) – 11′ 9″
• Unit Weight (Bare) – 13,500 lbs
• Electronic Proportional Remote Controls on Platform
• PLATFORM:
• Top Mount Platform
• 1,000 lbs Platform Capacity
• EZR Platform Type (Easy Mount Un-Mount)
• Size of Platform = 30″ x 54″
• 40″ High Rails
• Platform Jib with Electric Winch – 500 lbs Capacity
• 5900 lbs Lifting Capacity at Main Winch
• OUTRIGGERS ROTATION:
• 2 Front “MH” Type Down Out Outriggers – 18′ Spread
• 2 Secondary “A” Type Modular Outriggers – 12′ 5″ Spread
• 360 Degree Continuous Rotation
• 2-Speed Throttle Control

• NEW – 2018 FREIGHTLINER M2-106
• Cummins-350 HP Engine
• Automatic Transmission
• 16,000 lbs Front Axle
• 40,000 lbs Rear Axle
• 56,000 GVWR
• 80-Gallon Fuel Tank
