While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.

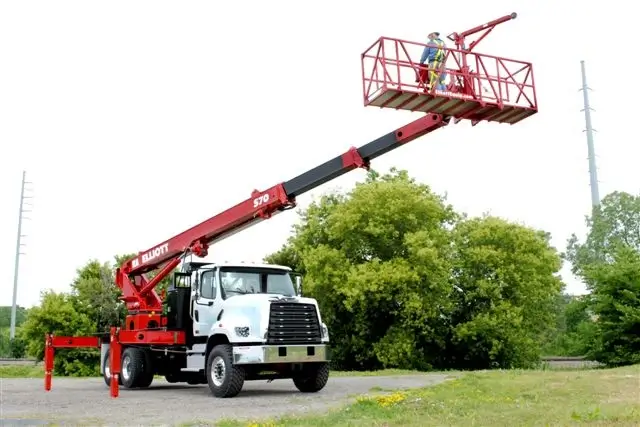

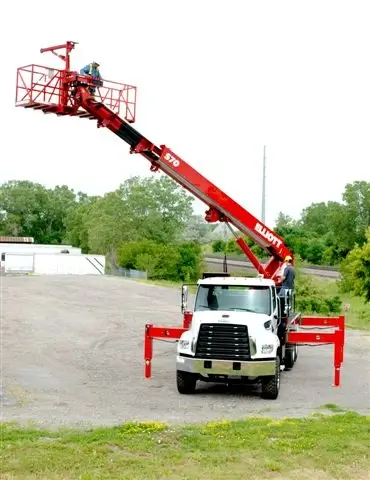

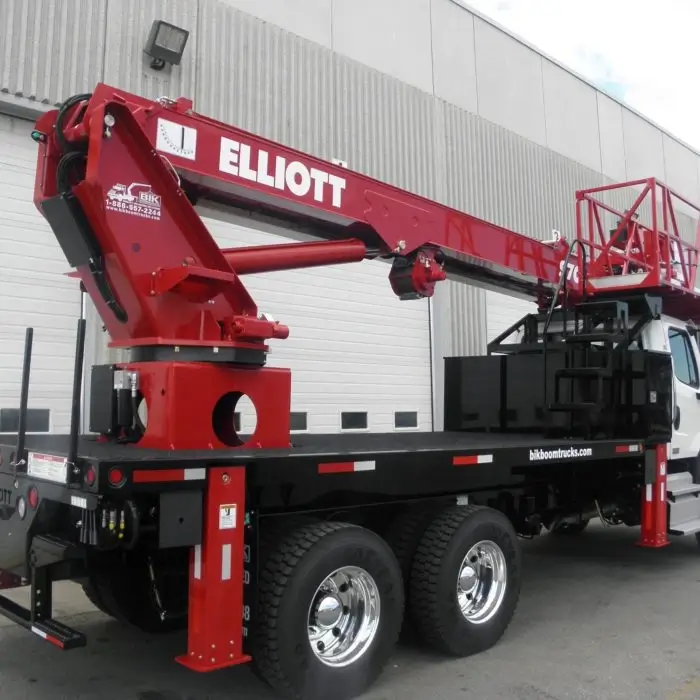

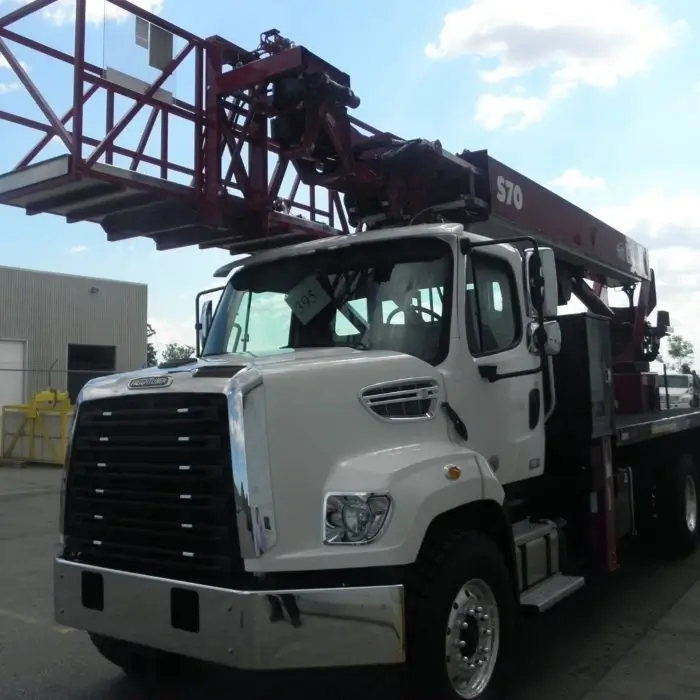

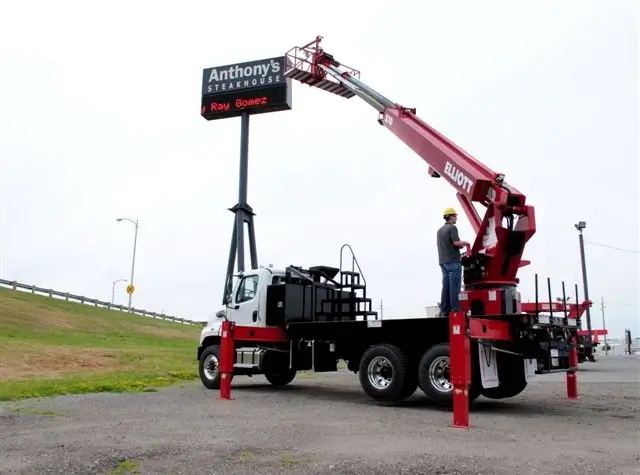

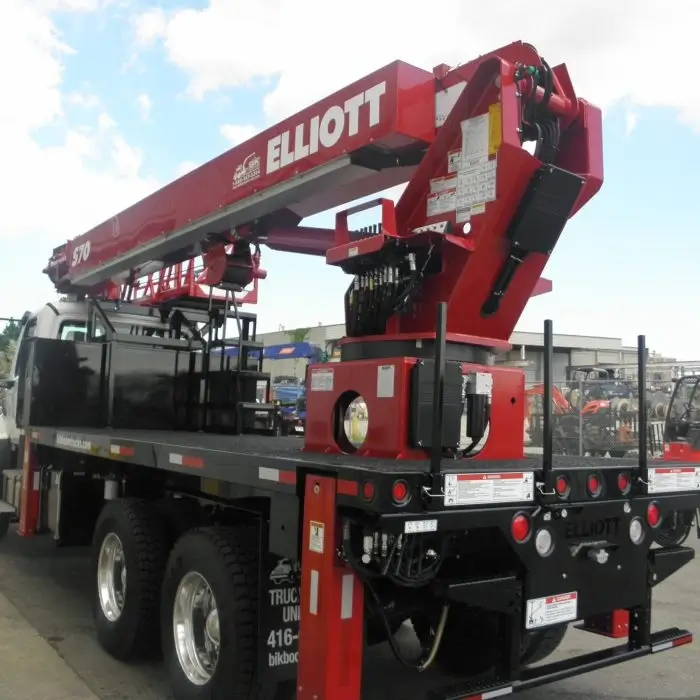

• • NEW – ELLIOTT S70 HI-REACH AERIAL WORK PLATFORM
  • BOOM:
  • 75′ Max Working Height
  • 65′ Max Side Reach
  • Steel 4 Section Telescopic Boom
  • Electronic/Hydraulic Controls
  • 21,000 lb Bare Weight of Unit
  • Overall Height (including truck) – 13′ 5″
  • Electronic Proportional Remote Controls on Platform

PLATFORM:

• • Side Mount Platform
  • 900 lbs Platform Capacity
  • 20″ x 120″ Working Platform Skywalk Type
  • 2 Safety Harnesses Equipped on Platform with 72″ Lanyards
  • 42″ High Rails
  • Platform Jib with Electric Winch – 1,000 lb Capacity
  • 5,900 lbs Lifting Capacity at Main Winch

OUTRIGGERS & ROTATION:

• 2 Front “MH” Type Down & Out Outriggers – 18′ Spread
• 2 Rear “MH” Type Modular Outriggers – 18′ Spread
• 360 degree Continuous Rotation
• 4 Speed Throttle Control

• NEW – 22’8″ HARDWOOD DECK
• 8′  Wide with Standard Rub Rail All Around
• 60″ Headboard Behind Cab
• Sliding Track on Passenger Side w/8 Winches
• Dual Front Access Ladders
• Winch Bar & Winch Bar Holder
• 2 Sets of Aluminum Stabilizer Pads with Holders
• 2 Pieces of 36″ Aluminum Storage Boxes

• NEW – 2018 KENWORTH T880 6-AXLE TRUCK
• Cummins ISX 500 hp Engine
• 18 Speed Ultrashift Transmission
• 20,000 lb Front Axle on 425/65/R22.5 Tires
• 46,000 lb Rears on Chalmers Suspension
• 10,000 lb Tag Axle
• 13,000 lb Lift Axle Ahead of Tandems
• Double Frame Chassis
• 89,000 lb GVWR
• Jake Brake
• 120 Gallon Fuel Tank
• Standard Included Options:
• GPS Navigation System
• AM/FM/CD Player/Weather Band
• Heated Mirrors
• Power Windows & Door Locks
• A/C
