BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

PM WB60 Wallboard Series Boom 8th Floor Lift:

Installed back of cab(was new in 2014) –4- Hyd Extensions to 60’ horizontal reach(72’ vertical ) Horizontal Capacities are: 6,170 lb @ 27’, 4,300 lb @ 36’, 3,200 lb @ 44’, 2,530 lb @ 52’, 2,100 lb @ 60’

• Internal cylinders on all boom extensions, Outer boom cylinder guard
• Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
• Flanged holding valves, double acting check valve for the down movement of the stabilizers
• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Valve – At Ground Level controls& SCANRECO ProportionalRadio Remote Control
• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord
• Continuous rotation Drywall forks with 84” wide
• Crane Painted PM Blue, load chart on boom in FT. & LBS.

24’ 4”  x 102” Steel Checkerplate Flat Deck installed. Removable 54” steel  headboard, 6 –  sliding tie-down winch straps on passenger side, winch bar holder and winch bar, ladder, reflectors and 5-side lights  as required.

Also Included are: Pair of Aluminum stabilizer pads with pad holders boom, Hook Up Remote Control to operate: engine start/stop, variable RPM & horn, Safety Cones (2 pcs) with holders and wheel chucks, 48” aluminum storage box installed (one on each side of truck), Truck to have a fresh truck Safety and boom to have current annual inspection. Truck and boom to be in good operating order. Truck frame/rims & deck to be sandblasted and repainted, new mud flaps, cleaned up and ready to work.

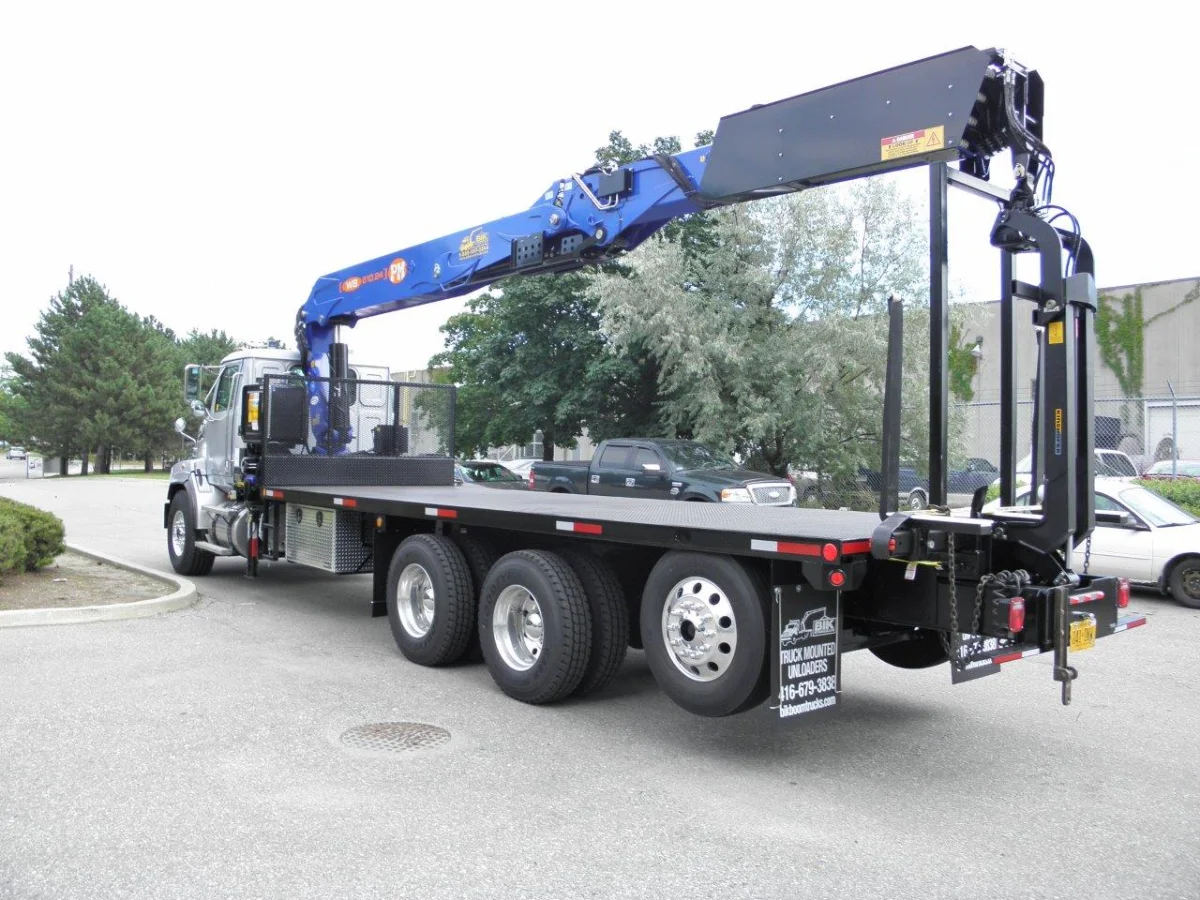

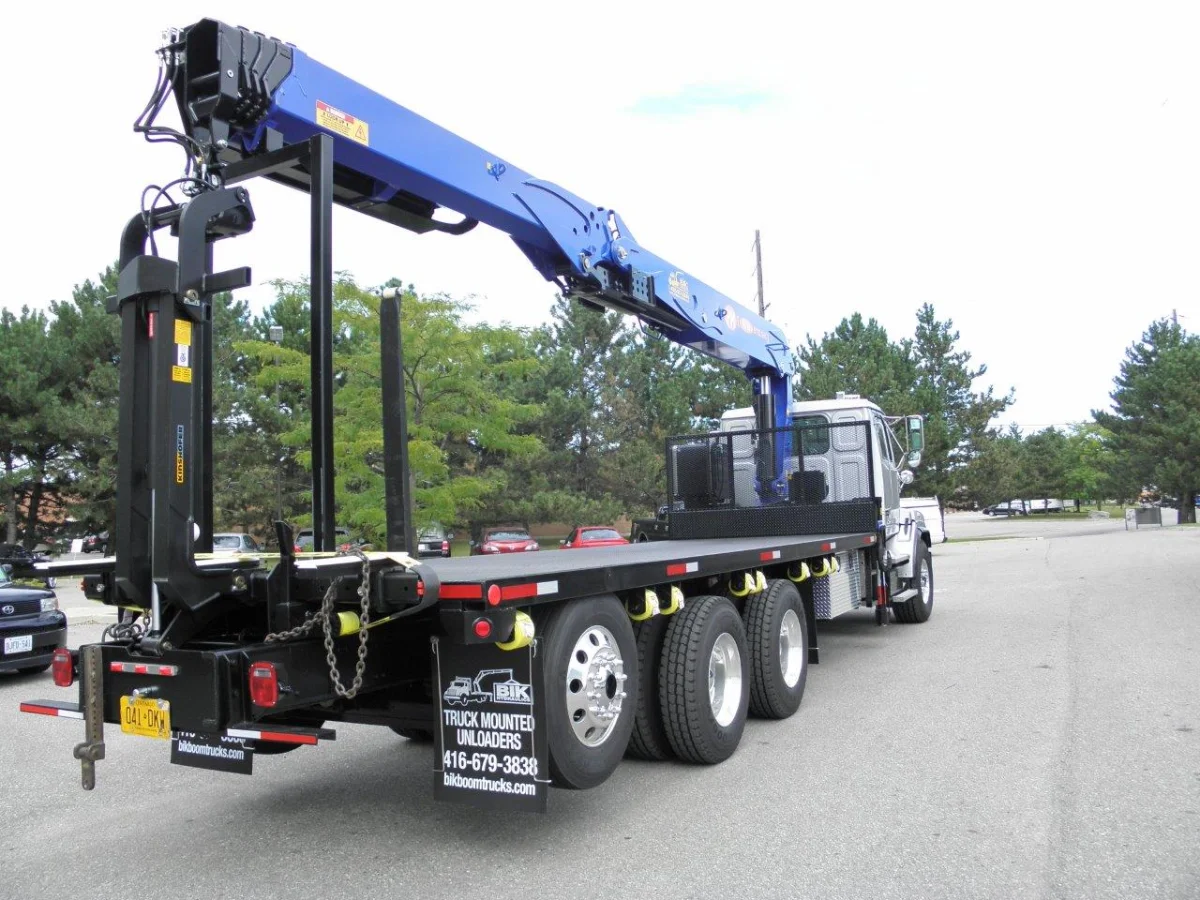

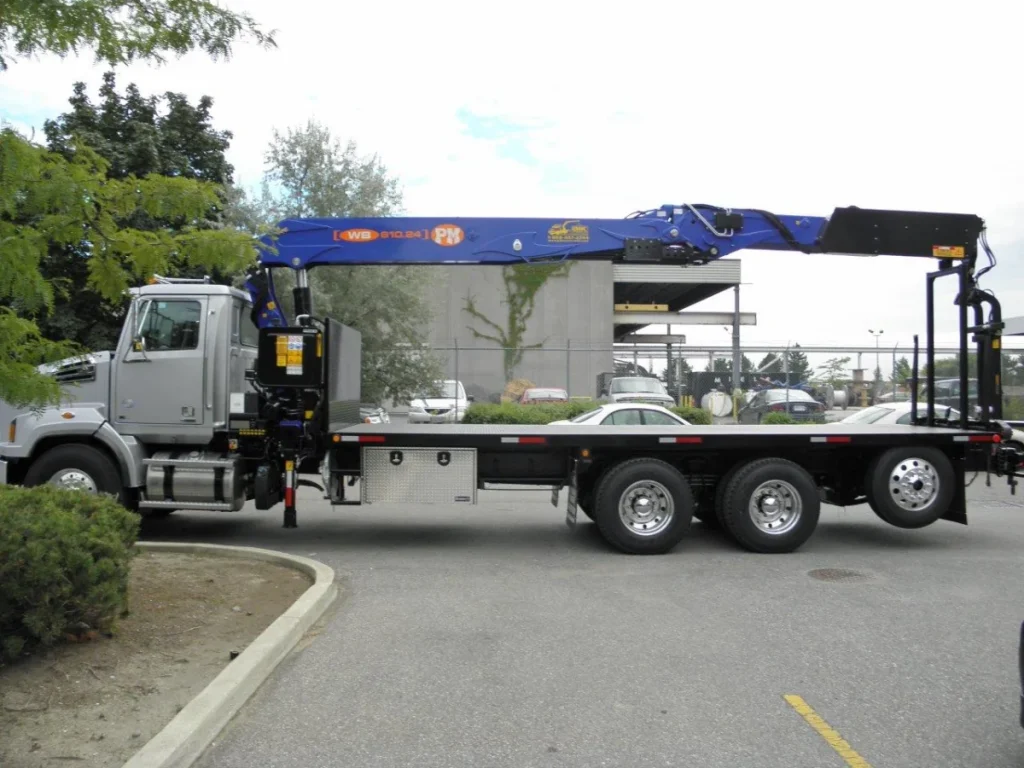

NOTE: Pictures shown are of the unit when it was new in 2014.

Used – 2014 Western Star 4700 Tandem Axle Diesel  Truck:   79,000 lb GVWR, Truck Cab Silver in Color, Detroit Diesel DDC 13 – 470 hp , 1,650 ft/lb torque, Automated Eaton-Fuller  8LL  trans (Ultrashift Plus)., Approx 125,000 miles 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims, 46,000 LB Rears on  Tuftrac Suspension with  11R22.5 tires on steel white rims,13,000 self steer tag axle behind t/a from factory,  278” wheel base, double frame chassis, 54” spread at tandems, Truck  Features Include: Two Stage Engine Brake,  Air Cond., AM/FM  stereo,  cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  heated mirrors,   dual chrome hood mtd mirrors,  eng block heater,  painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…

UNIT IN STOCK AND READ TO GO DOT CERTIFIABLE CONDITION
CALL FOR DETAILS AT: 866-213-7726
