BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

PM 65026S + J1316Knuckle BoomFolding Hydraulic 6 ext with Detachable 6 ext jib – 92’ Horizontal Reach(104’ Vertical) Main Boom Horizontal Capacity:48,500 lb @ 8’ 2”, 28,260 lb @ 14’ 5”, 15,340 lb @ 25’ 3”,10,000 lb @ 37’, 7,210 lb @ 50’ 2” Jib Horizontal Capacity: 3,850 lb @ 59’ 1”, 3,000 lb @74’ 6”, 2,340 lb @81’ 1”, 2,100 lb @ 86’ 8”, 1,800 lb @ 92’

• Maximum Lifting Moment 59 mt (429,640 ft-lbs)
• PM Power-Linkconnections at Main, Knuckle & Jib Cylinders,Dual Planetary Gear Motors & Continuous Boom Rotation
• Double pilot operated on slewing and pilot operated check valves on all cylinders
• 180 degree flip-up HydraulicExtra Wide Main outriggers at pedestal – 28’ – 7” spanwhen extended-360 degree full load chart stability
• Front Auxilary Stabilizers mounted under deck – Extra wide, dual beam type 23’ span when extended
• Hydraulic Oil Cooler, high pressure return filter and min. 80 –gallon hydoil tank with gate valves mounted at front under deck
• 7 – Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO ProportionalRadio Remote Control
• PM – Power Tronic onboardload & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
• Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified

Also Included: Truck to have a fresh truck Safety and boom to have current annual inspection. Truck and boom to be in good operating order. Truck frame/rims & deck to be sandblasted and repainted, new mud flaps & tie down straps, cleaned up and ready to work.

21’  x 102” Flat Deck:  steel headboard w/ Side Wrap Winches, Steel Checker plate Floor, winch bar and holder, Integral 6” sub-frame and    extension at rear as torque box for boom with all proper engineered sheer platting, X-braces & support, Deck painted black, 2-Deck access. Ladders at Headboard, 2-Ladders at rear, reflectors, conspicuity tape, and Mud-flaps, 10-Winches and tracks (sliding) under deck.

Deck & truck frame sandblasted and re-painted black.

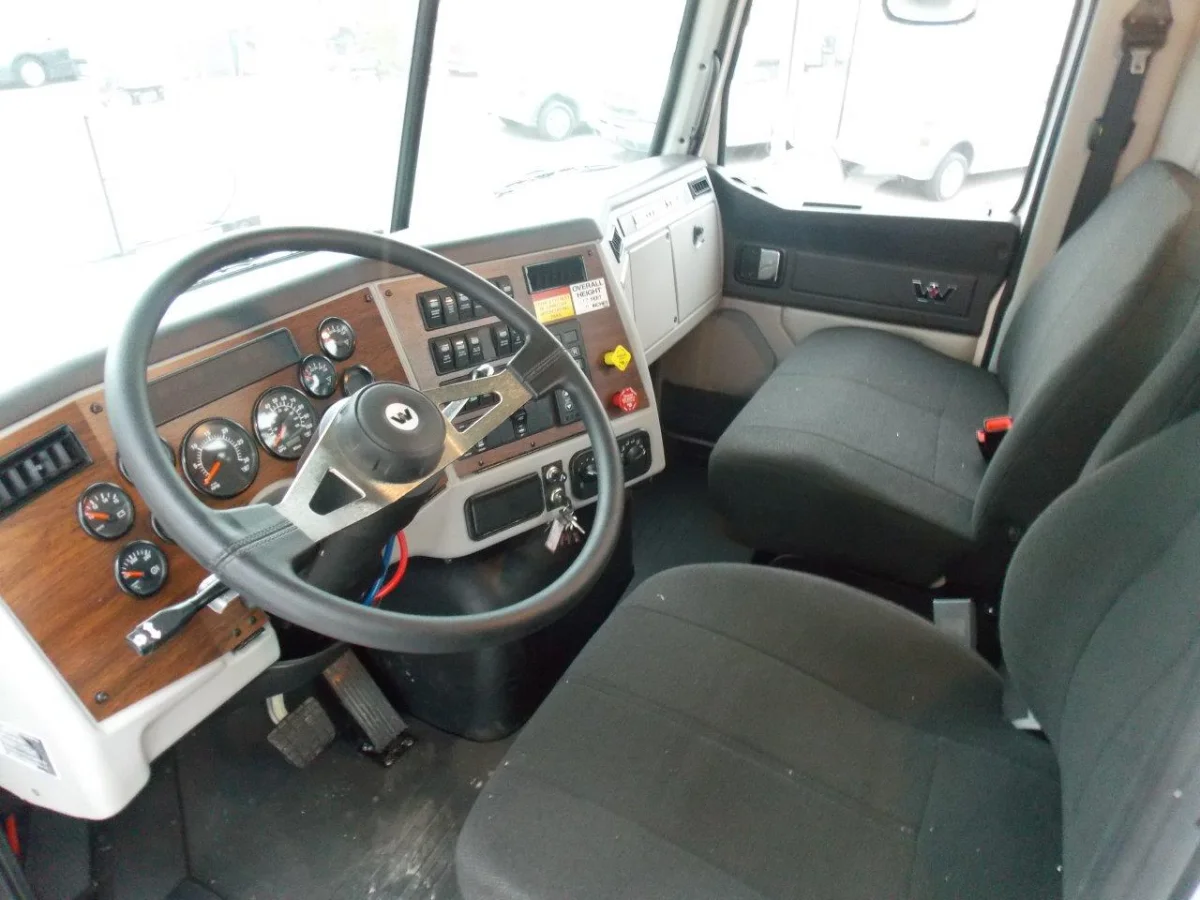

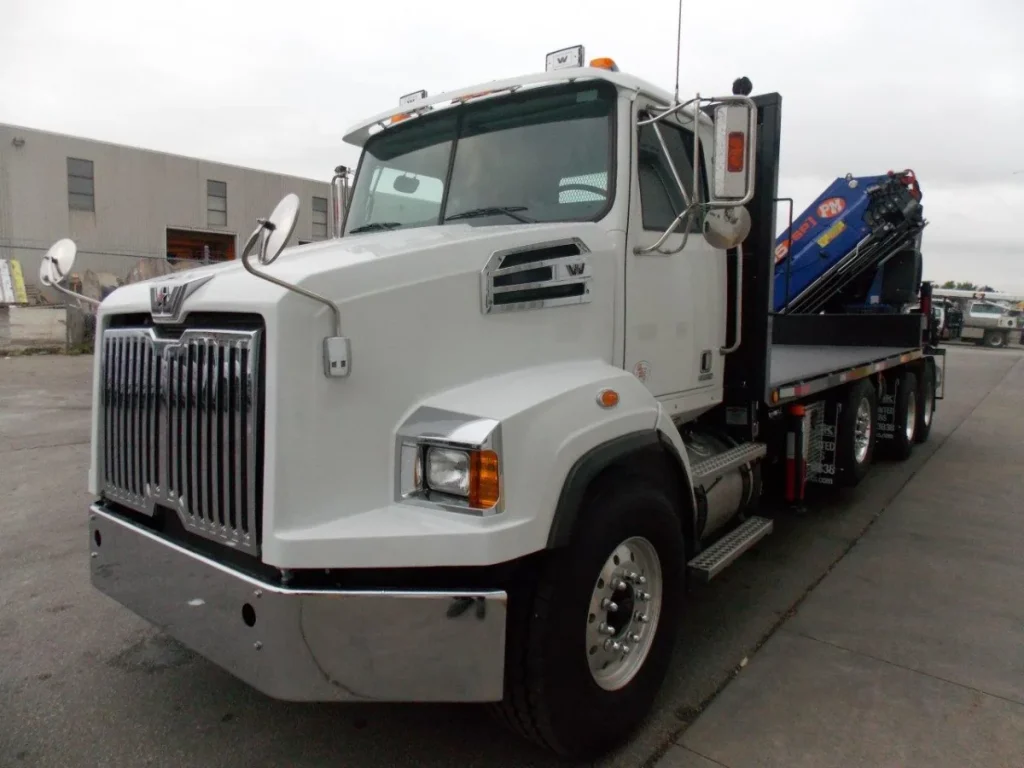

Used – 2014 Western Star 4700  Short Nose  Tri-Axle – 4 Axle:   DDC-13 Diesel – 470 hp with Jake,  approx. 40,000 miles, truck cab white,   Eaton Ultrashift Plus Automated 18 spd trans, 20,000 LB fronts with 425 / 65R22.5 tires,  20,000 lb self steer lift axle installed ahead of the tandems, 46,000 LB Rears on Tuftrac Susp., Double Frame, Polished ALCOA Aluminum Wheels   front  and outer rear, Dual Chrome single polished Exhaust, Chrome Grille &  Bumper, 80 gallon alum fuel tank.  Loaded with Options including:  A/C, Tilt/Telescopic steering, high level Interior,  AM/FM stereo, air driver’s seat,  fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power  windows/locks, Air ride cab,  full differential locks, trailer air tow package, etc…

UNIT IN STOCK AND READ TO GO DOT CERTIFIABLE CONDITION
CALL FOR DETAILS AT: 866-213-7726
