Description
PM 58526SP C Knuckle Boom – 6 – Hydraulic extensions to 54’ horizontal reach (66’ vertical) Horizontal Capacity: 29,060 lb @ 12’, 20,850 lb @ 17’ , 15,100 lb @ 23’ , 11,640 lb @ 29’, 7,760 lb @ 42’ 10”, 5,900 lb @ 54’
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 27’ span – 360 degree full load chart stability
- Hydraulic Oil Cooler, high pressure return filter and min. 70 –gallon hyd aluminum oil tank with gate valves mounted at front under deck
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with back up cord
- Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- Simplified Hydraulic Overload System – No Computers… allowing maximized uptime and ease of maintenance
Also Included: Wire & Program Remote Control to include: engine start/stop, 1” draw plate installed at rear for possible pintle hook, 36” Aluminum storage box installed, and Stabilizer pads with holders
22’ x 102” Deck with Hardwood deck surface, with 54” of main sill overhang for Sub-Frame of Knuckle Boom, your choice of Hardwood Deck surface, 66” Headboard, 6- sliding winch straps, proper clearance lights, tape and Reflectors, primed and painted Gloss Black.
Used – 2019 Kenworth T880 4-axle Diesel Truck (was new in July 2018): 79,000 lb GVWR, Paccar Diesel – 485 hp , 1,650 ft/lb torque, Eaton 18 spd stand trans, 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims, 13,000 lb self steer lift axle ahead of t/a with low profile 22” tires/alum rims, 46,000 LB Rears on Hendrickson Primax Air-Ride Suspension with 11R22.5 tires on alum outer rims, frame chassis, Truck Options Included: Two Stage Engine Brake, Air Cond., AM/FM stereo, Bluetooth, cruise, tilt/tele steer column, power windows and locks, chrome bumper/grill, heated mirrors, chrome hood mtd mirror, eng block heater, painted ext visor, trailer tow package, rear wheel lock ups, 100 gal alum fuel tank, etc…
Ideal Heavy Lift Precast / Septic Tank Unoader
Call for Details at:866-216-0895

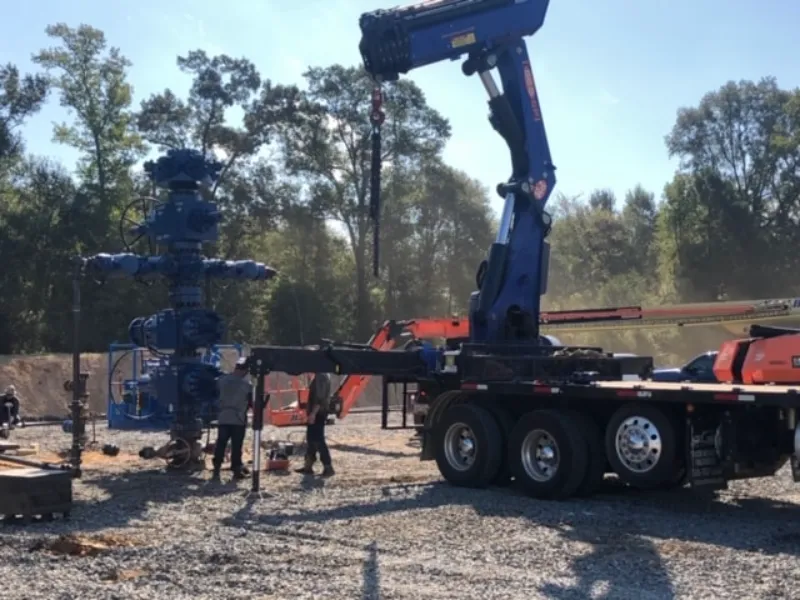

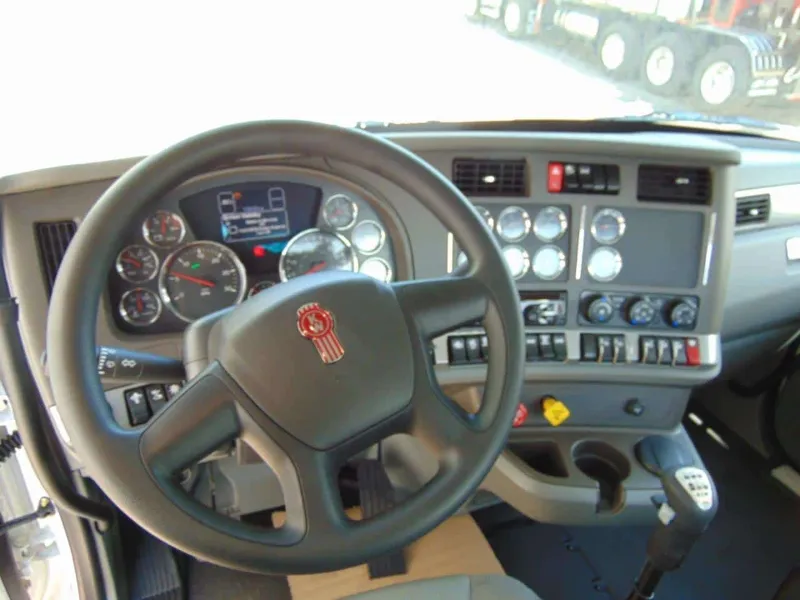

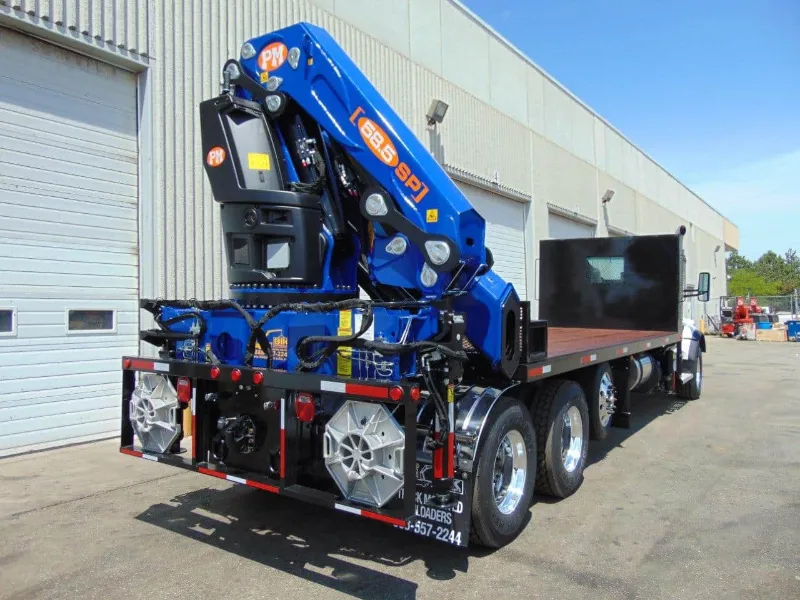

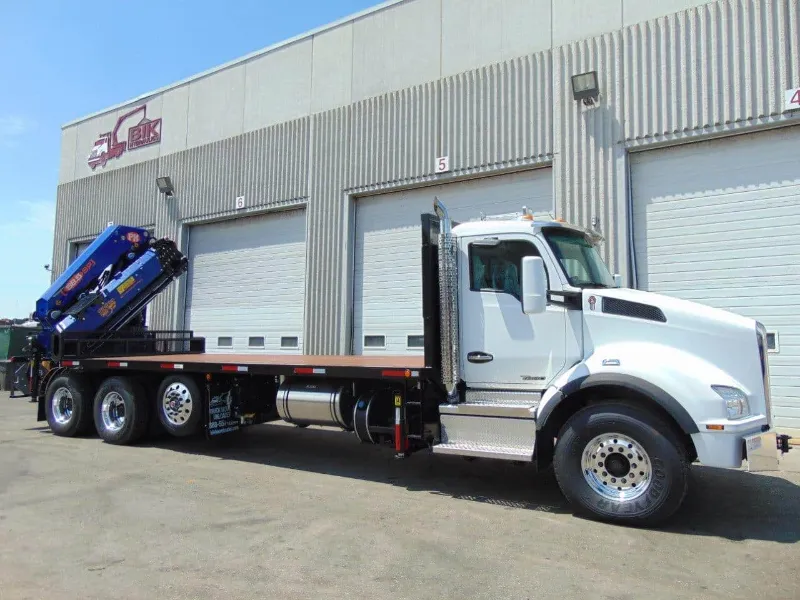

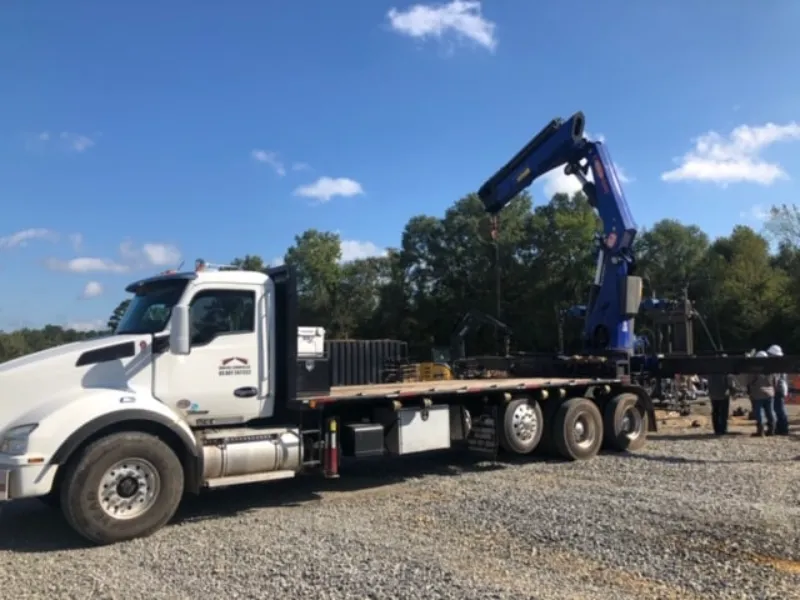

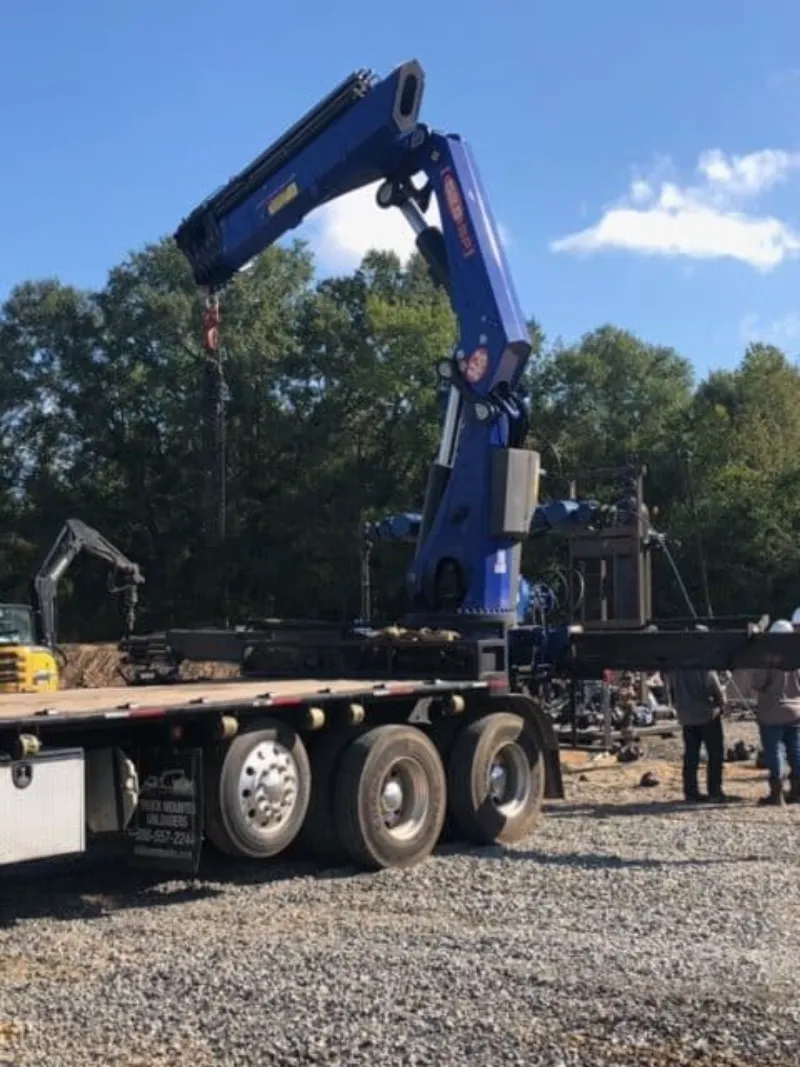

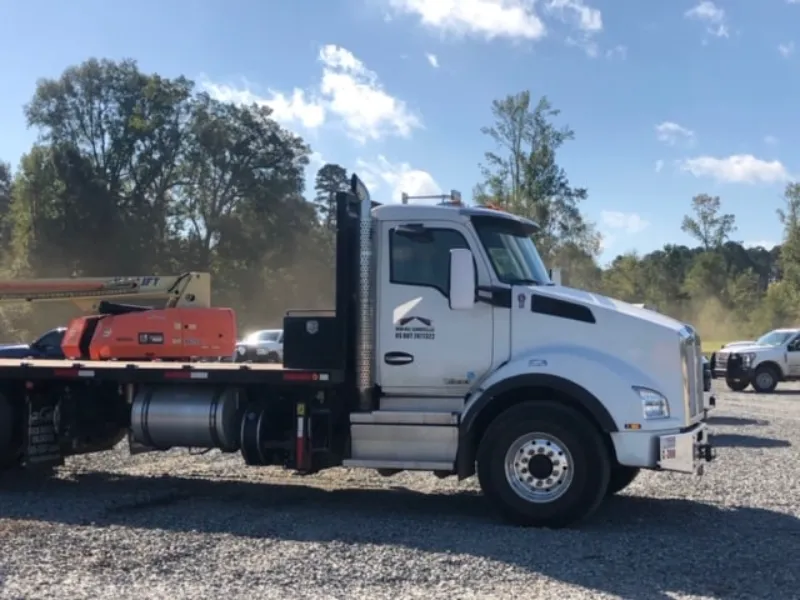

Please Note: First three pictures on this page is of unit when it was new in 2018. The 4th to 7th pictures are current. BIK does not guarantee accuracy of details provided on this description page.
