BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

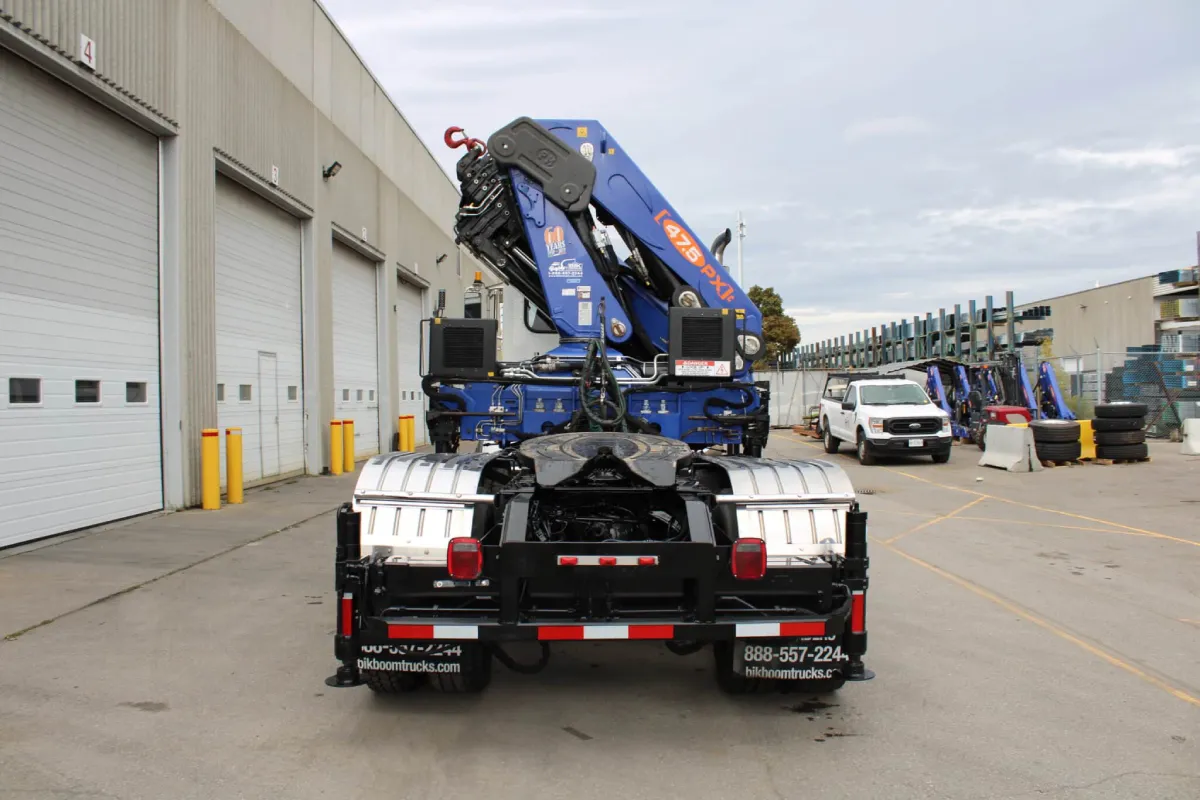

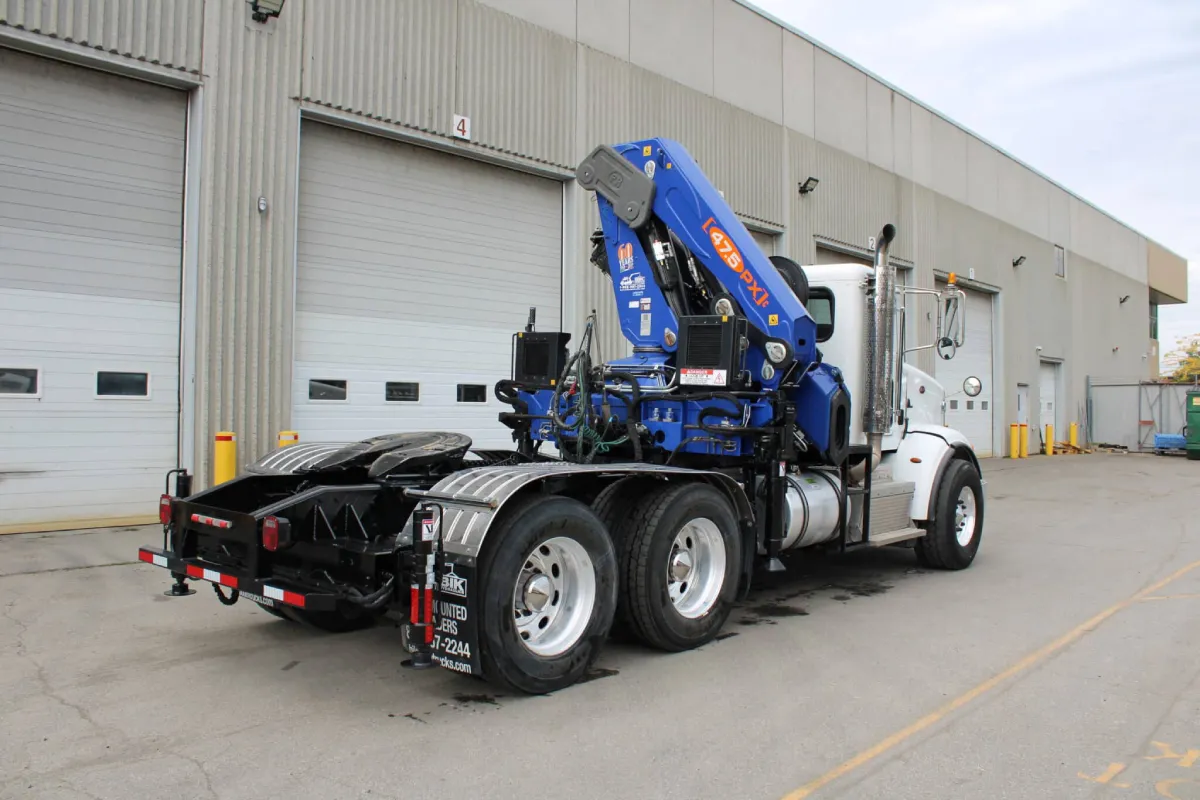

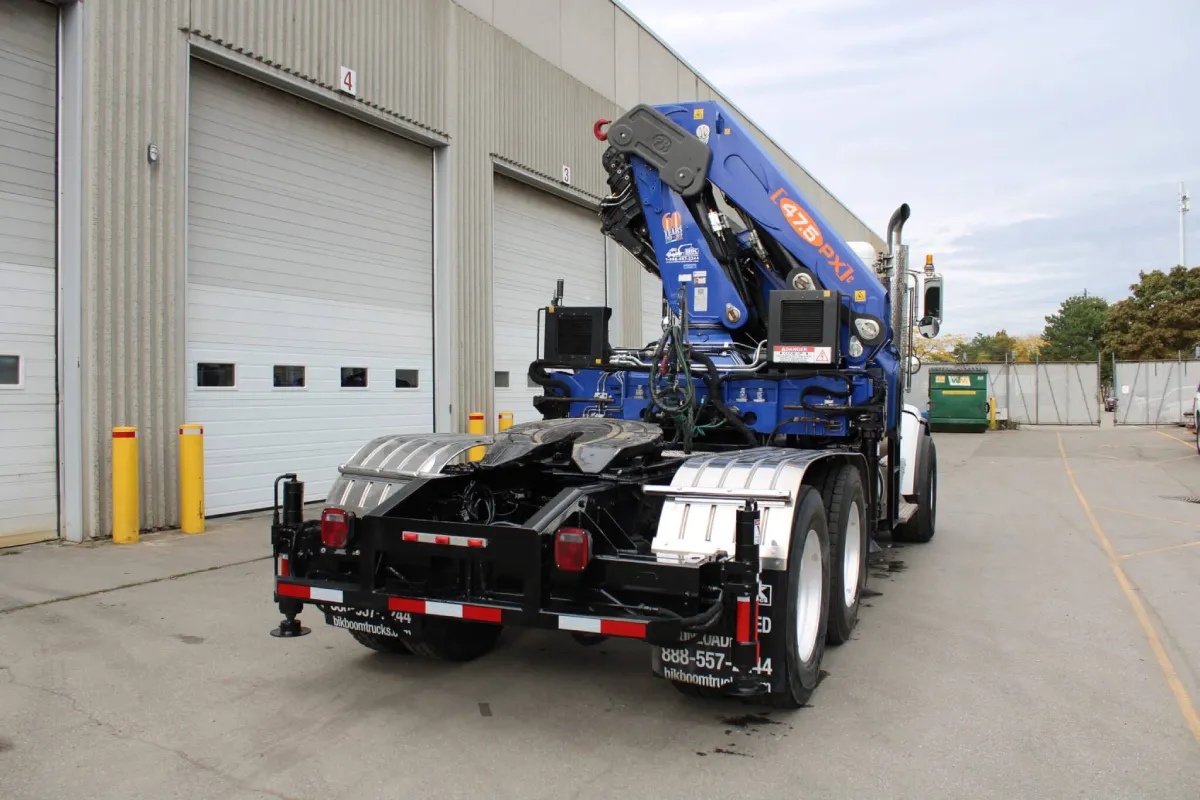

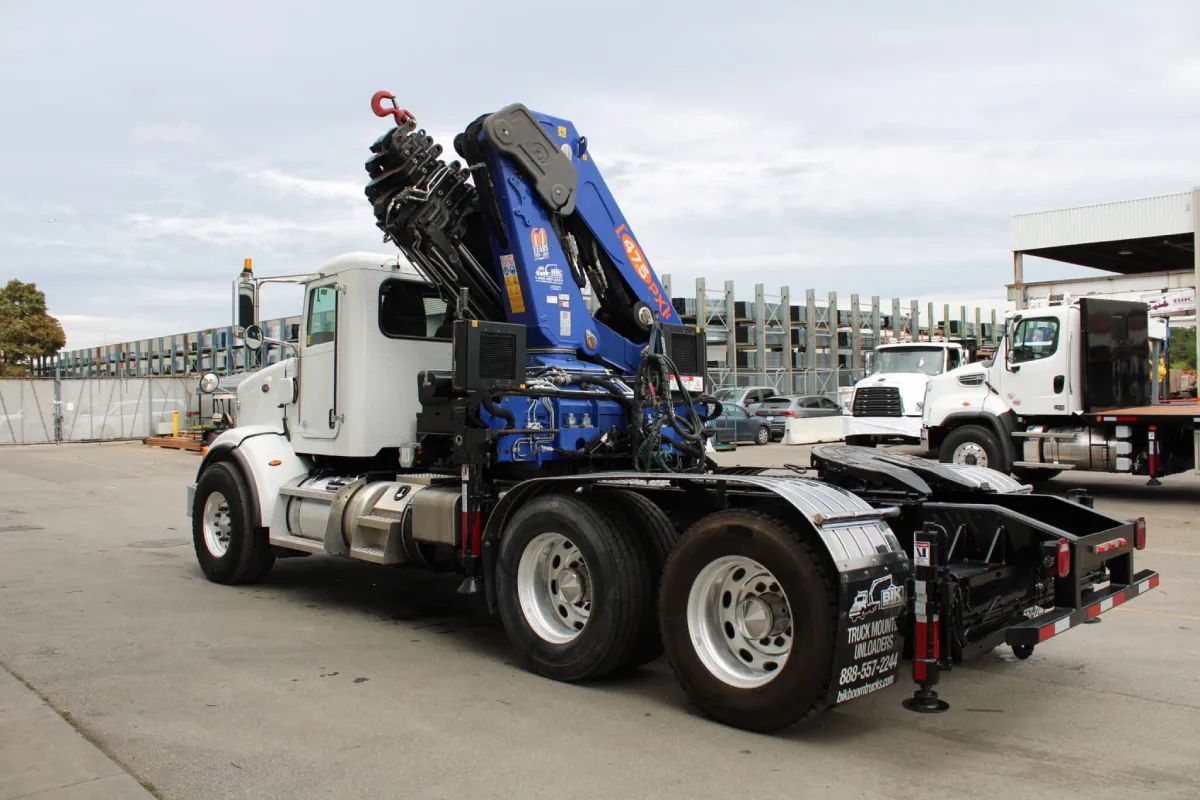

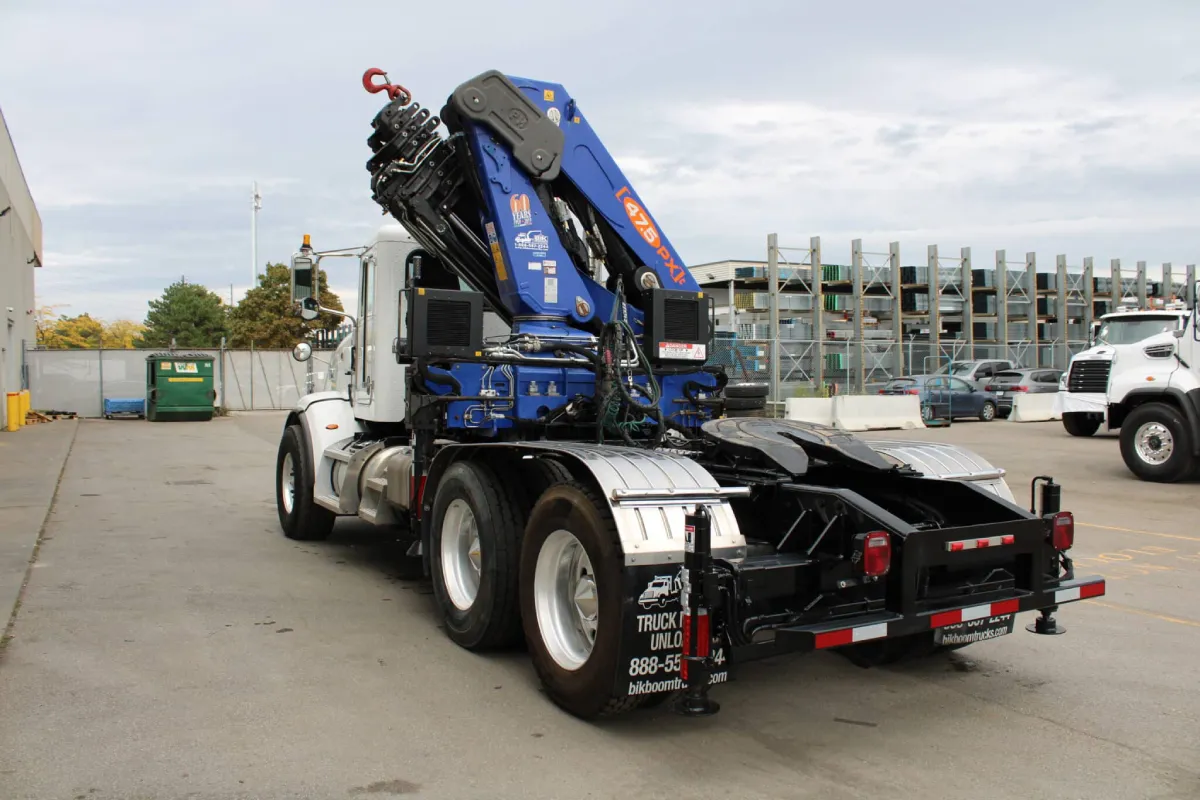

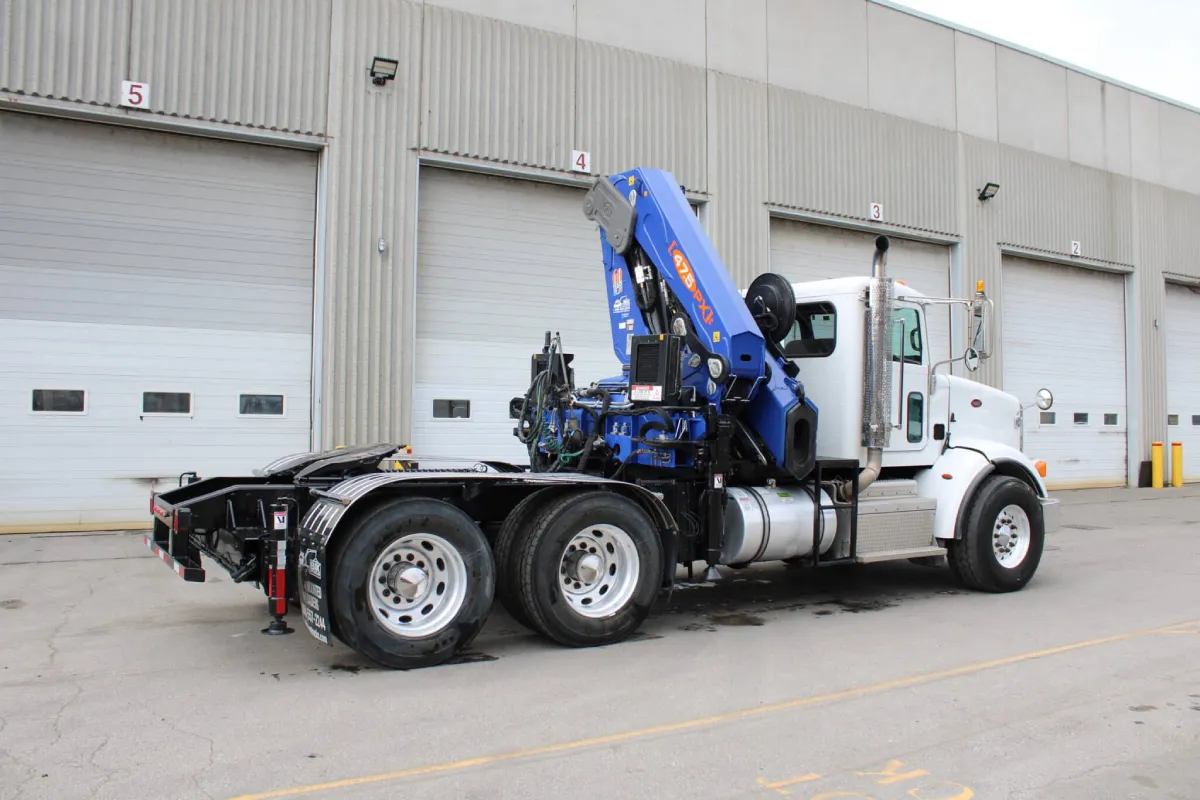

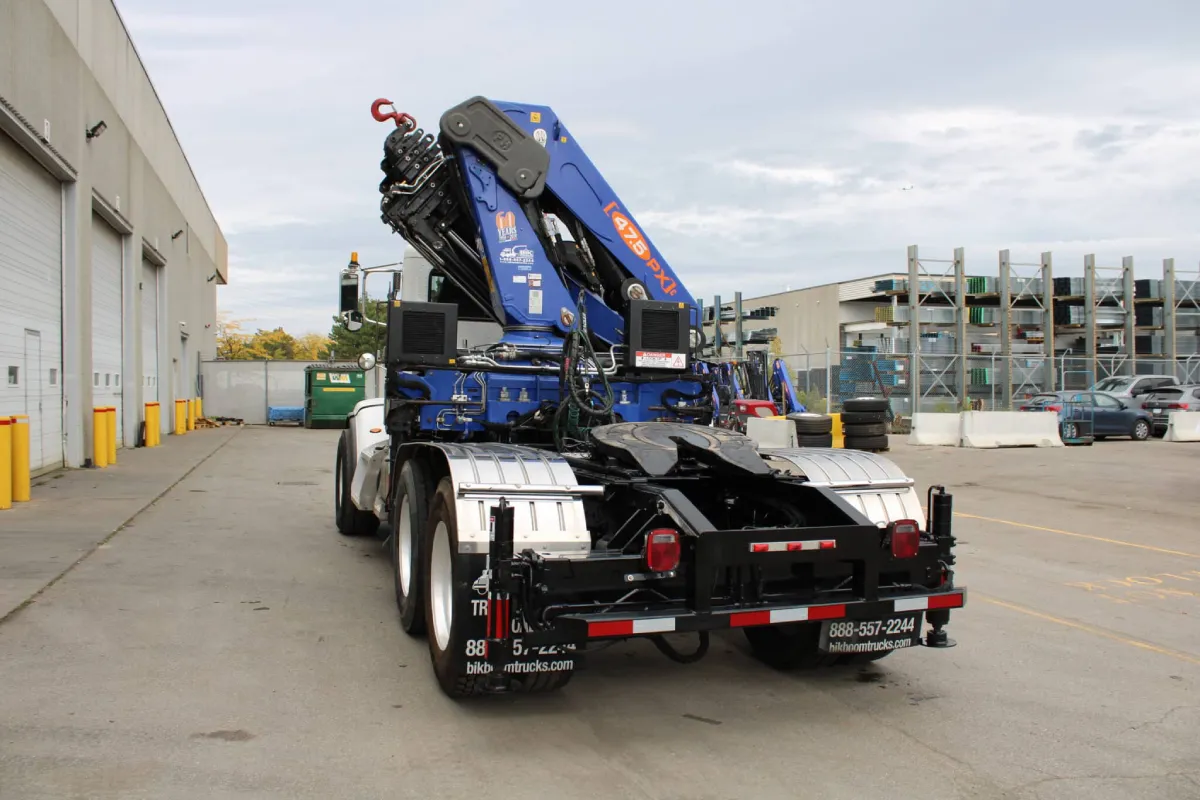

PM 47529S-C-PX  Knuckle Boom  Folding Hydraulic 9 ext Knuckle Boom  – 74’  6” Horizontal Reach   (86’ vertical)

• Horizontal Capacity:
  • 19,580 lb @ 13’
  • 10,000 lb @ 24’
  • 5,600 lb @  37’
  • 3,600 lb @  52’
  • 2,700 lb @ 66’
  • 2,400 lb @  74’

• PM Power-Link connections at Main, Knuckle & Jib Cylinders, High Torque Rack and gear 410 degree non-continuous rotation
• Double-pilot operated on slewing and pilot-operated check valves on all cylinders
• Extra Wide Main outriggers at pedestal, double beam – hyd out & down  26’  3” span,
• Rear Aux stabilizers – hyd out & down 16’ span,  Single Front Bumper Stabilizer  to allow full capacity over the front
• Hydraulic Oil Cooler, high-pressure return filter and min. 100–gallon hyd aluminum oil tank with gate valves mounted at the front under the deck
• Lift a 10’ cage up close at  2’ in front of the boom with a special LC-type extra retraction feature of the extensions
• Double speed extensions – 2^nd active valving for two boom extensions to extend and/or) retract at the same to allow for quick efficiency
• Simplified Hydraulics – Hydraulic overload LLD protection and load holding valve – Offers Simplicity, Reliability & low maintenance
• DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO Proportional  Radio Remote Control
• Radio Remote Control includes: 2 batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode

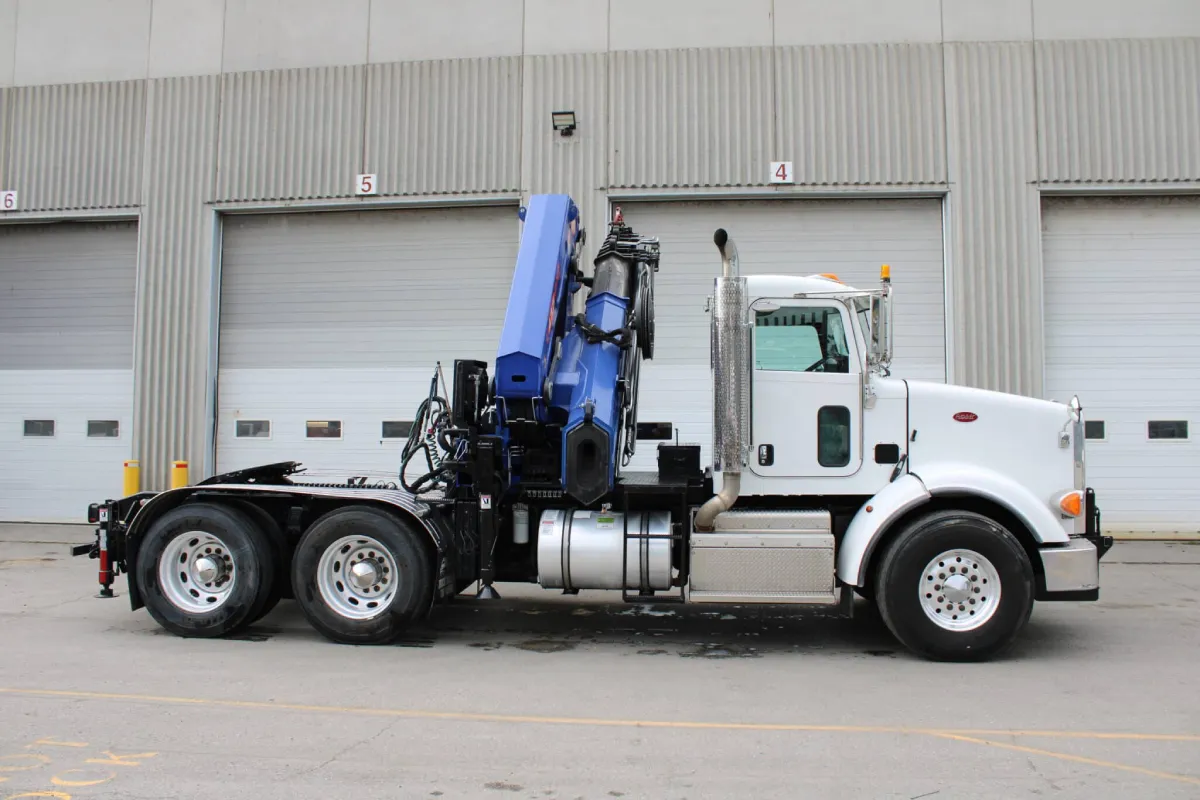

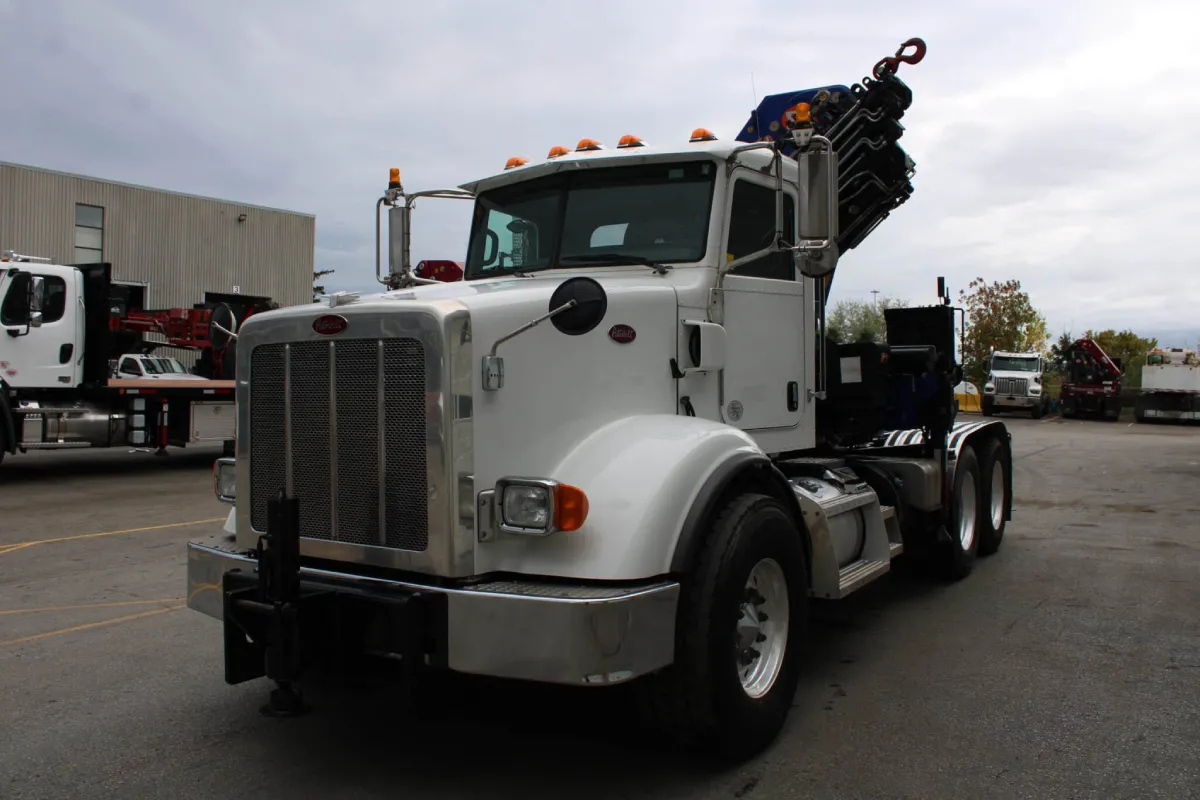

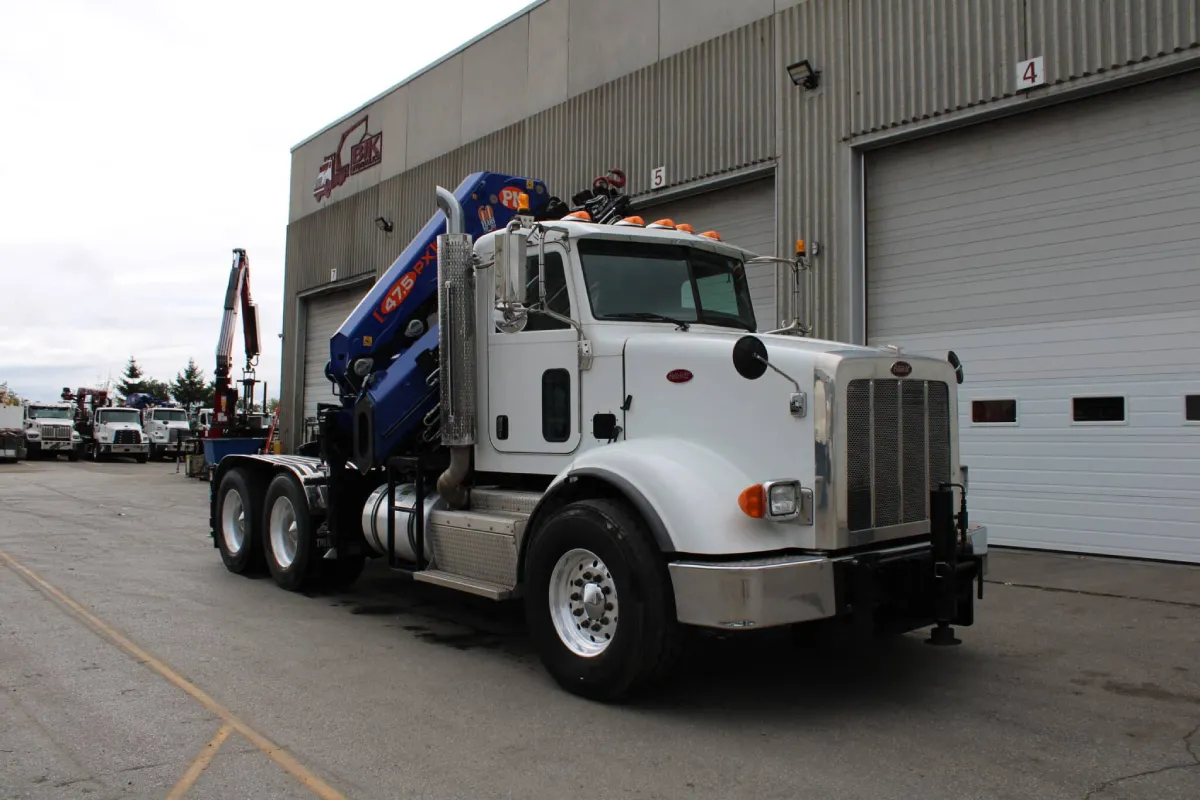

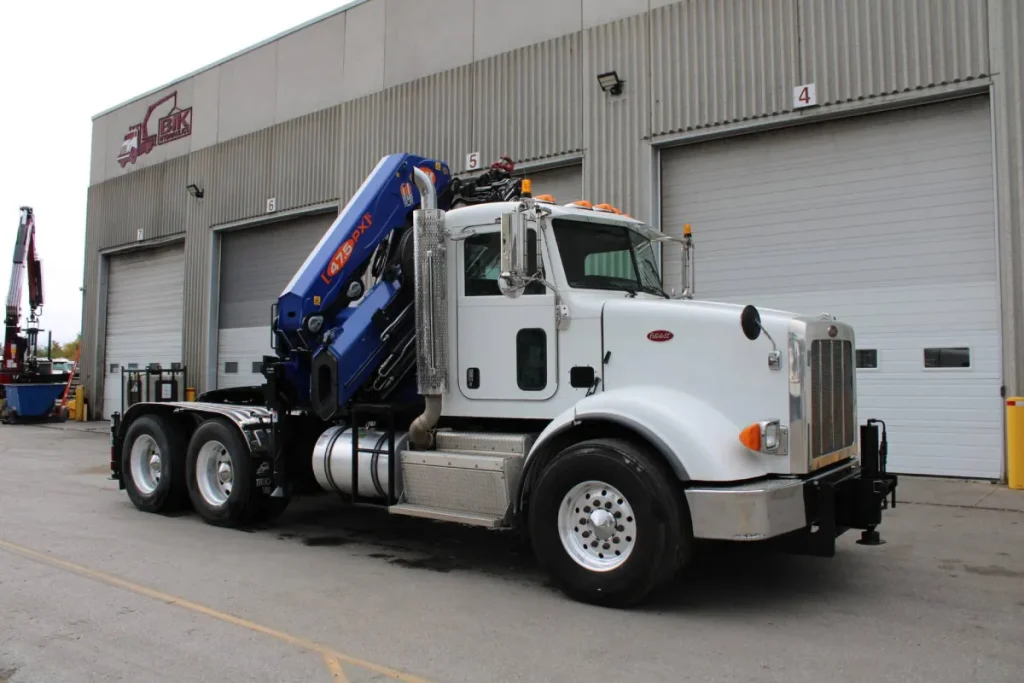

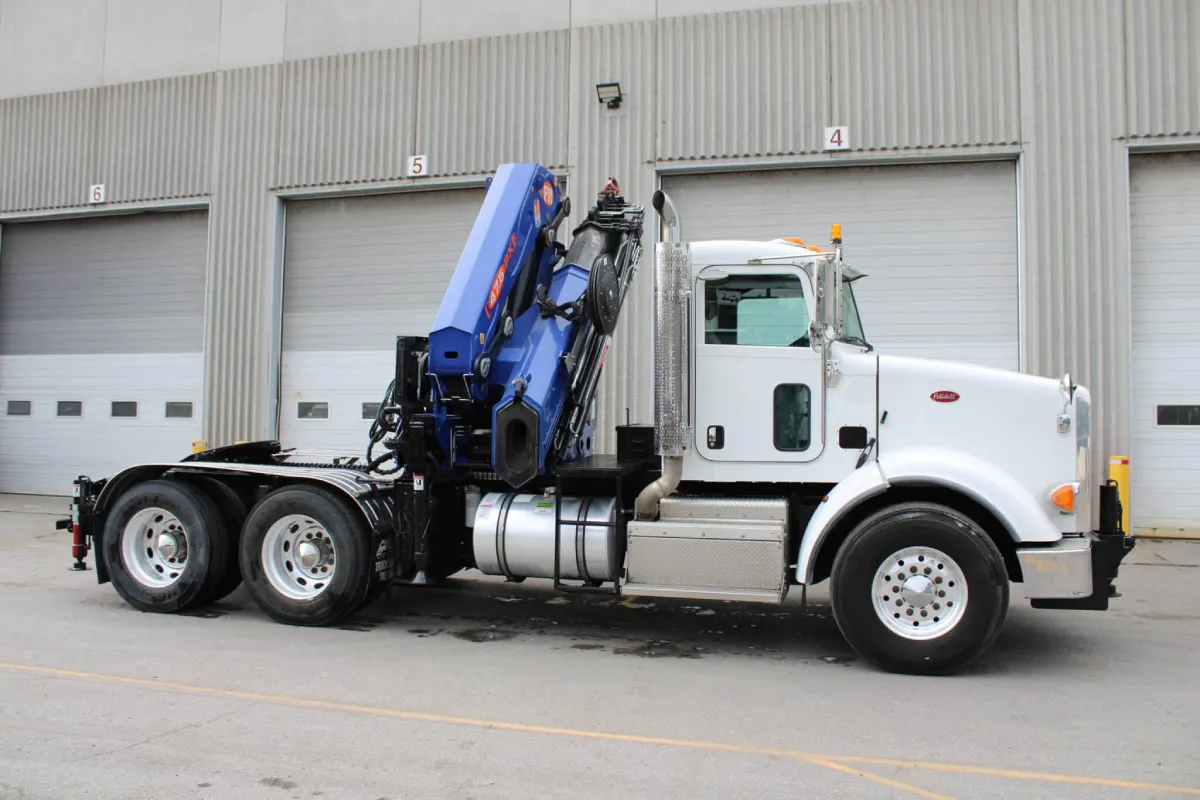

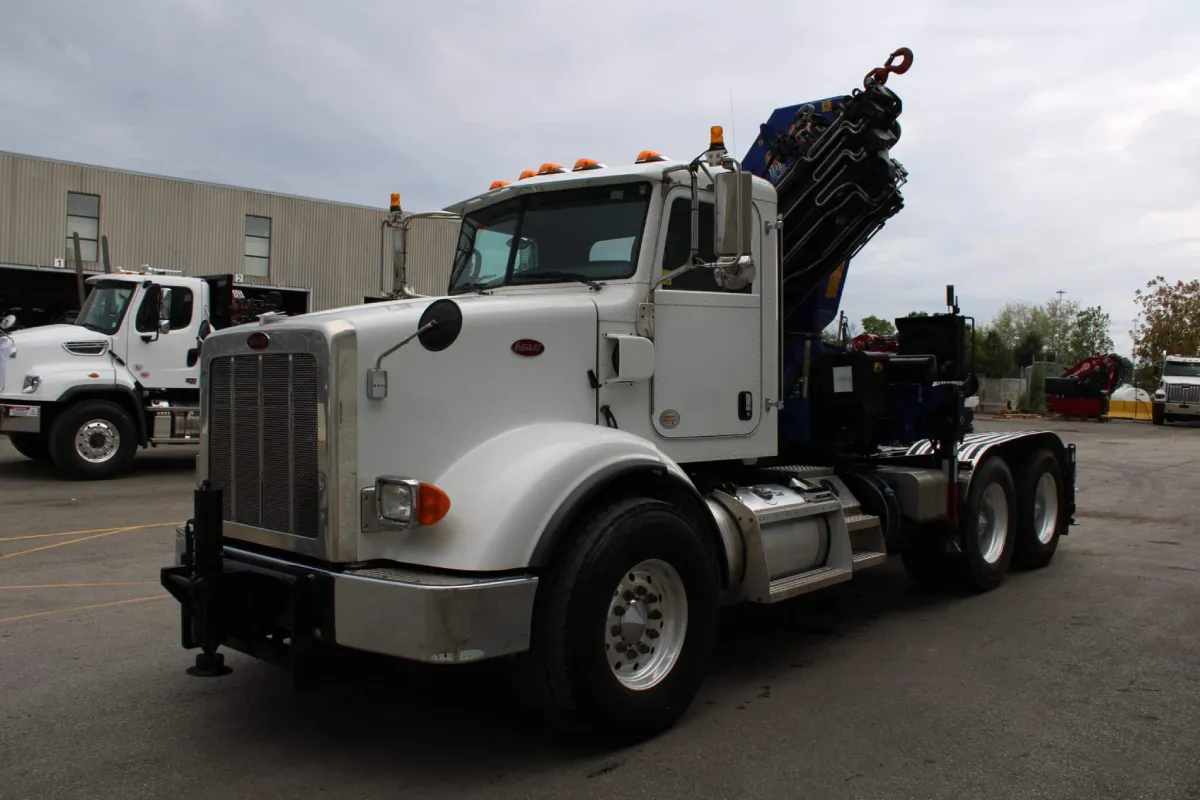

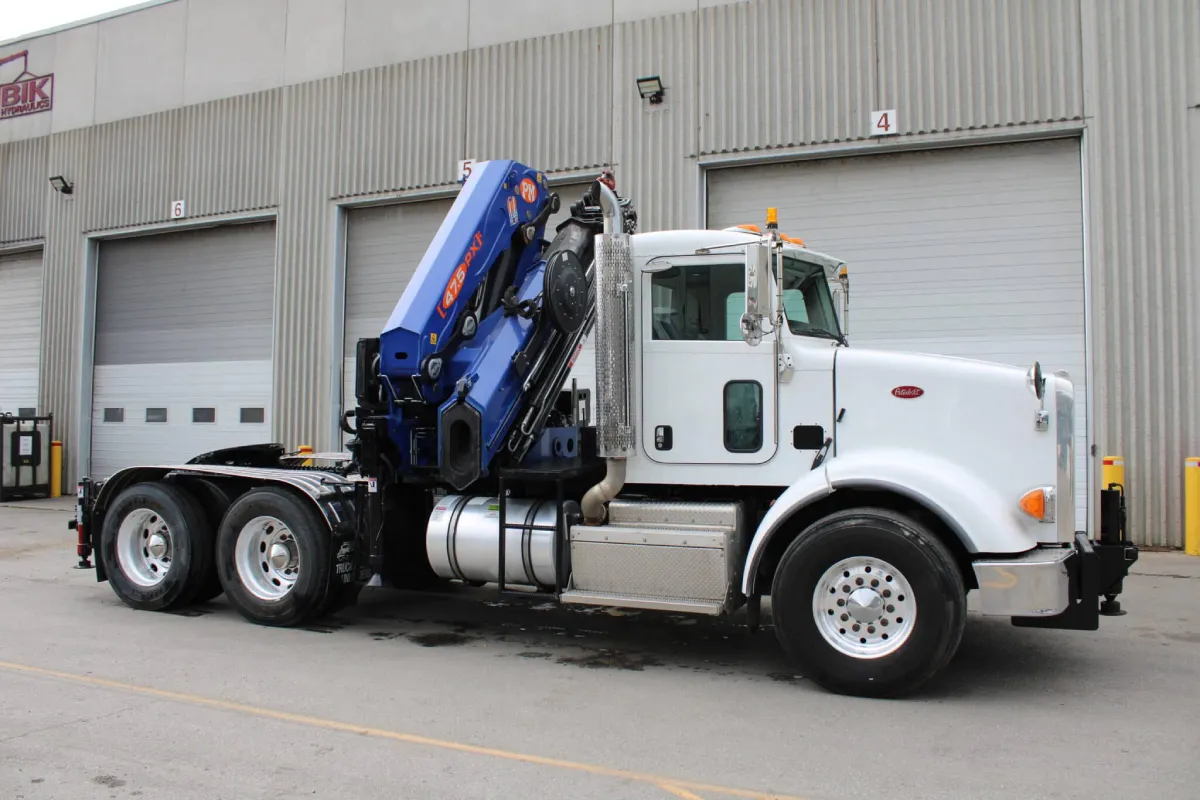

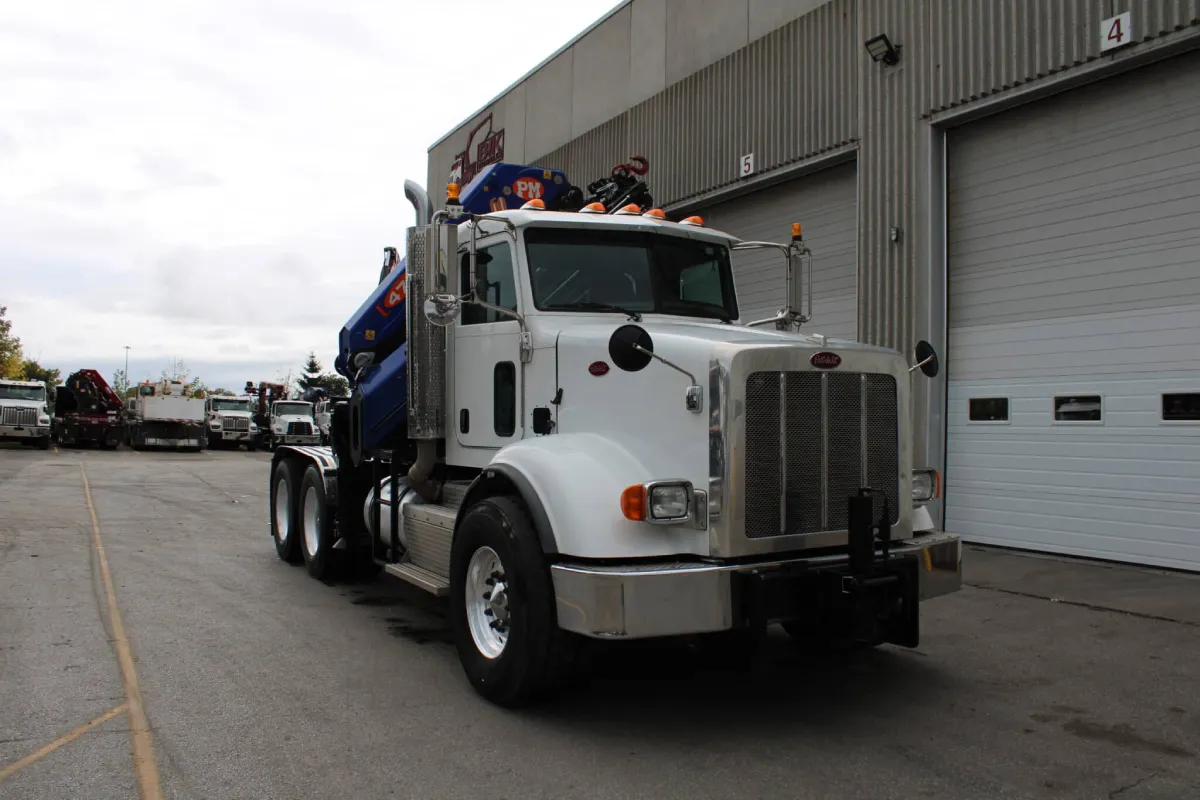

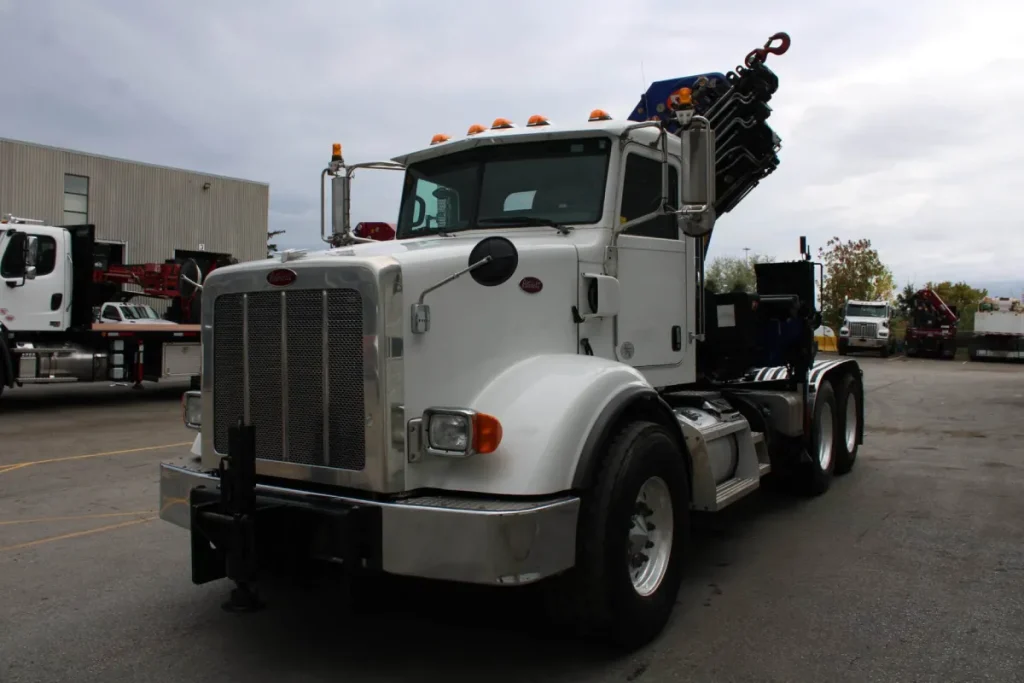

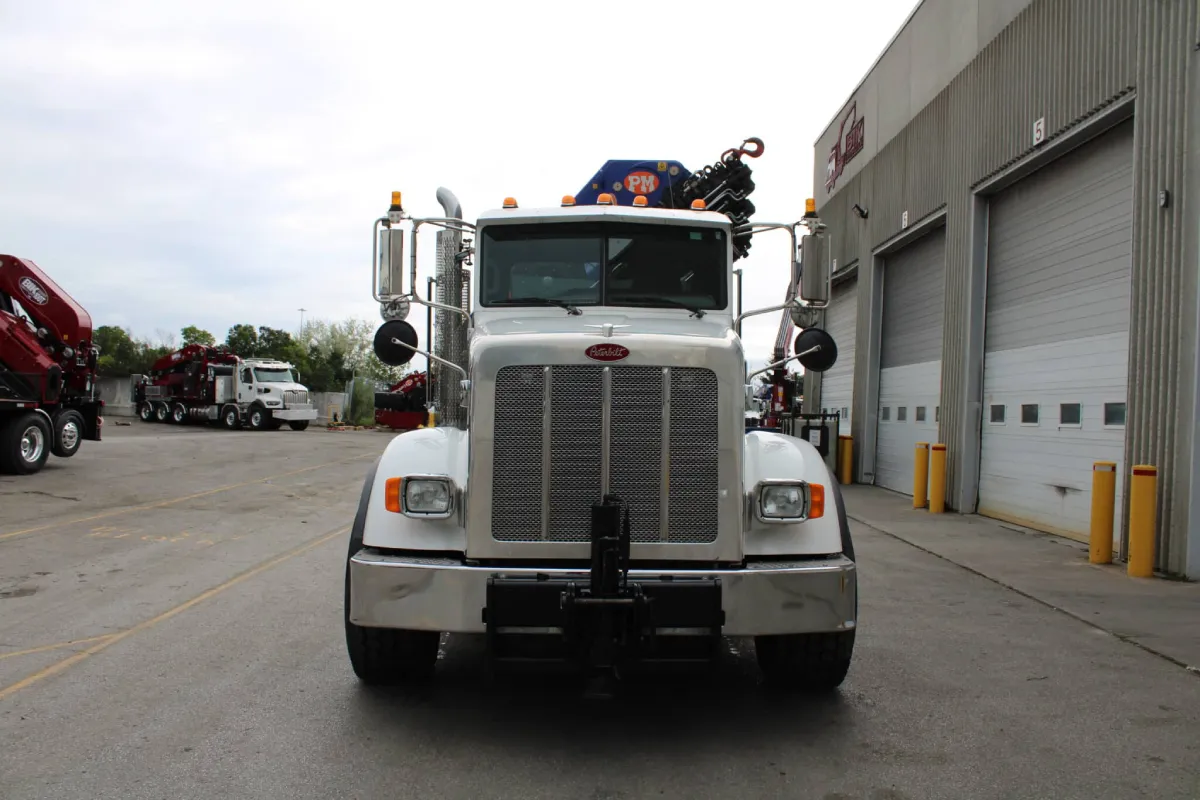

Used  – 2020 Peterbilt  365  3-axle Diesel Truck Tractor:   (was new in August 2020)…

• 66,000 lb GVWR
• Truck Cab White
• 12L Cummins
• 450 hp
• 1,650 ft/lb torque, Eaton Ultrashift Plus automated 13 spd trans.
• approx. 79,000 miles, 4,400 engine hours and 950 PTO hours
• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
• 46,000 LB Rears on Air-Ride Suspension
• double frame chassis

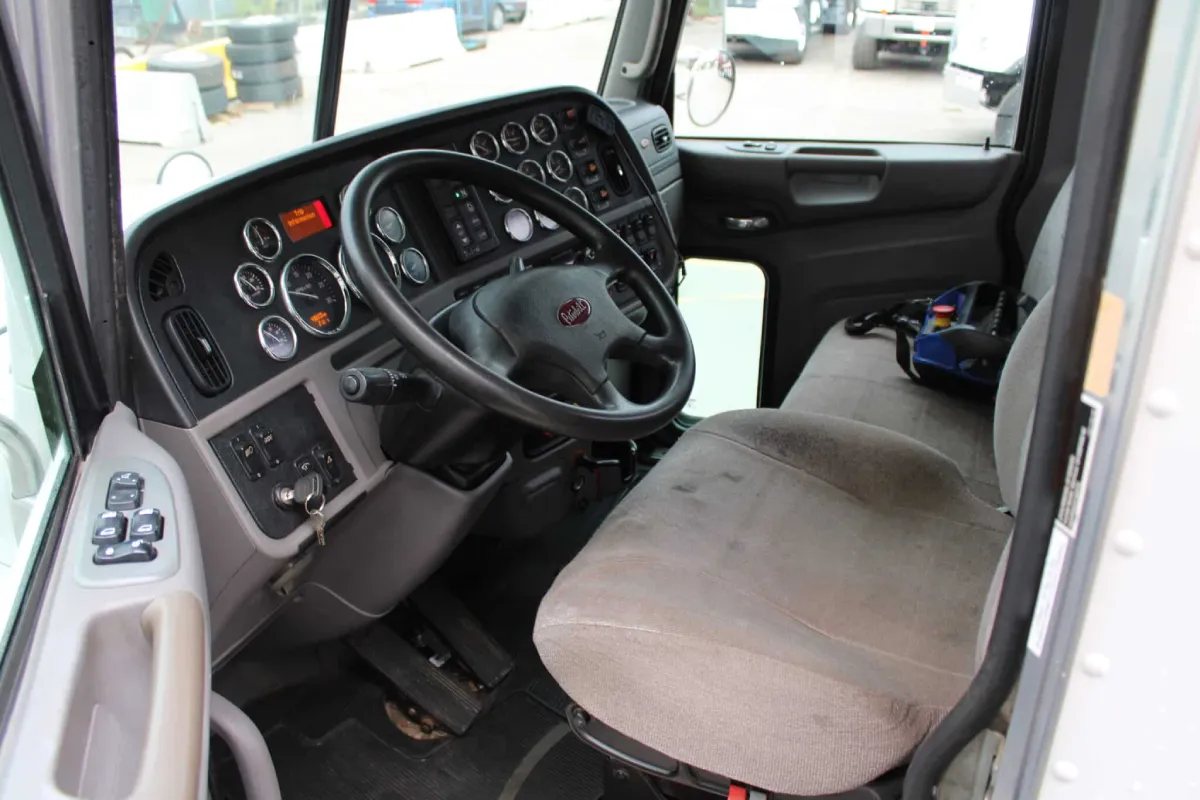

• Truck Loaded with Options  Including: Engine Brake, Air Cond., AM/FM  stereo, Bluetooth,  cruise, tilt/tele steer column, power windows & locks, chrome bumper/grill,  heated mirrors, eng block heater,  painted ext visor, trailer tow package, rear wheel lock ups, 100 gal alum fuel tank, etc…

Also Included Are:

• Engine start/stop and variable engine RPM control from remote
• (5 pcs) 2” PVC Stabilizer Pads with holders installed
• 36”  Aluminum Tool Box installed

Options at Extra Cost:

• 5 ton rated Hydraulic Hook rotator with reg latch hook added to end of boom extension

In Stock and Ready to Go – Clean unit

Approx 79,000 Miles | 4,400 Engine Hours | 950 PTO Hours
