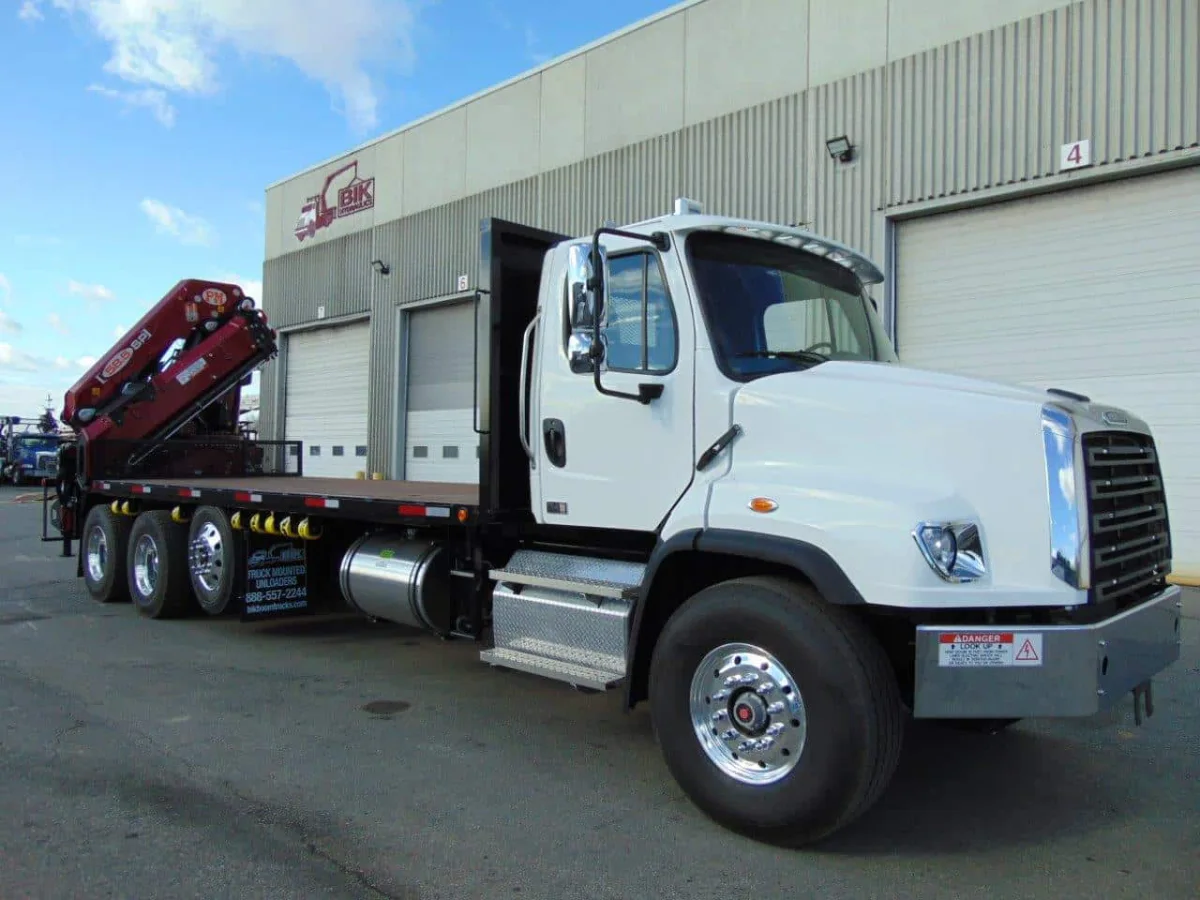

Used 2022 FLiner 114SD
4-Axle 22′ Deck
PM 58523 – for precast

PM 58523S   Knuckle Boom –  3 – Hydraulic extentions to 29’ horizontal reach (41’ vertical)

• Horizontal Capacity:      28,000 lb @  14’,      20,000 lb @ 19’,      15,110 lb @  25’,     12,110 lb @  32’
• PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
• 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 27’ span  –  360 degree full load chart stability
• Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon hyd aluminum oil tank with gate valves mounted at front under deck
• DANFOSS Proportional Control Valve on Boom Column &  SCANRECO Proportional  Radio Remote Control with back up cord
• Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
• Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
• Also Included Are:
  • Wire & Program Remote Control to include: engine start/stop
  • 1” draw plate installed at rear for possible pintle hook
  • Pair of Aluminum stabilizer pads (2) pcs with holder at rear bumper
  • 36” Aluminum storage box installed

Used – 2022 Freightliner 114SD  4-axle Diesel  Truck: 79,000 lb GVWR

• CUMMINS 12L Diesel – 455 hp , 1,600 ft/lb torque
• Standard 18 spd trans,  48,000 miles
• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
• 13,000 self steer ahead of t/a with alum rims & low profile 22.5” tires
• 46,000 LB Rears on Tuftrac Smooth-Ride Suspension with 11R22.5 tires  on alum outer rims
• 302” wheel base, double frame chassis,  54” spread at tandems
• Truck Loaded with Options Including: Two Stage Engine Brake, Air Cond., AM/FM  stereo, Bluetooth,  cruise, tilt/tele steer column, power windows/lock, chrome bumper/grill, heated mirrors, chrome hood mtd mirror, eng block heater,  painted ext visor, trailer tow package, rear wheel lock ups, 100 gal alum fuel tank, etc…

22’  x 102” Deck

• installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
• Hardwood Deck surface
• 66” Headboard
• 6- sliding winch straps, proper clearance lights, tape and Reflector

Extra Clean Unit – Sold with Fresh Truck and Boom Inspections
Available Mid March 2025
CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
