The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.

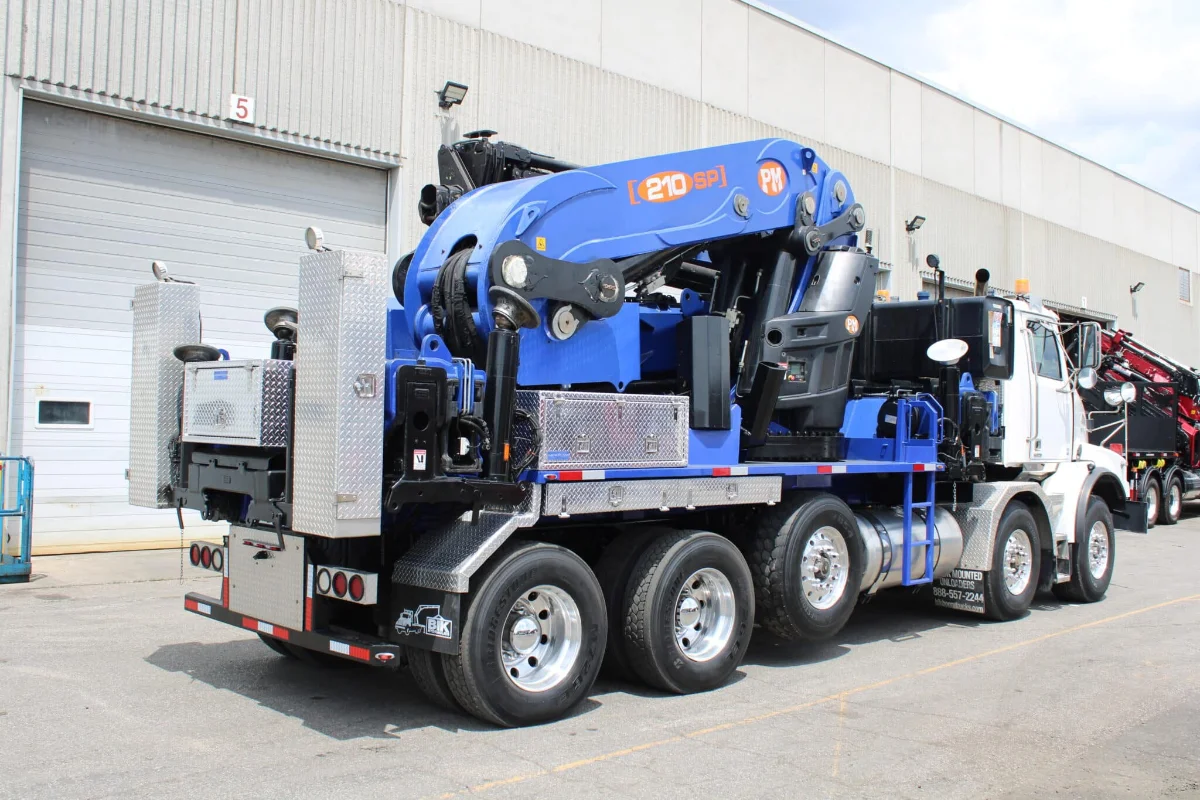

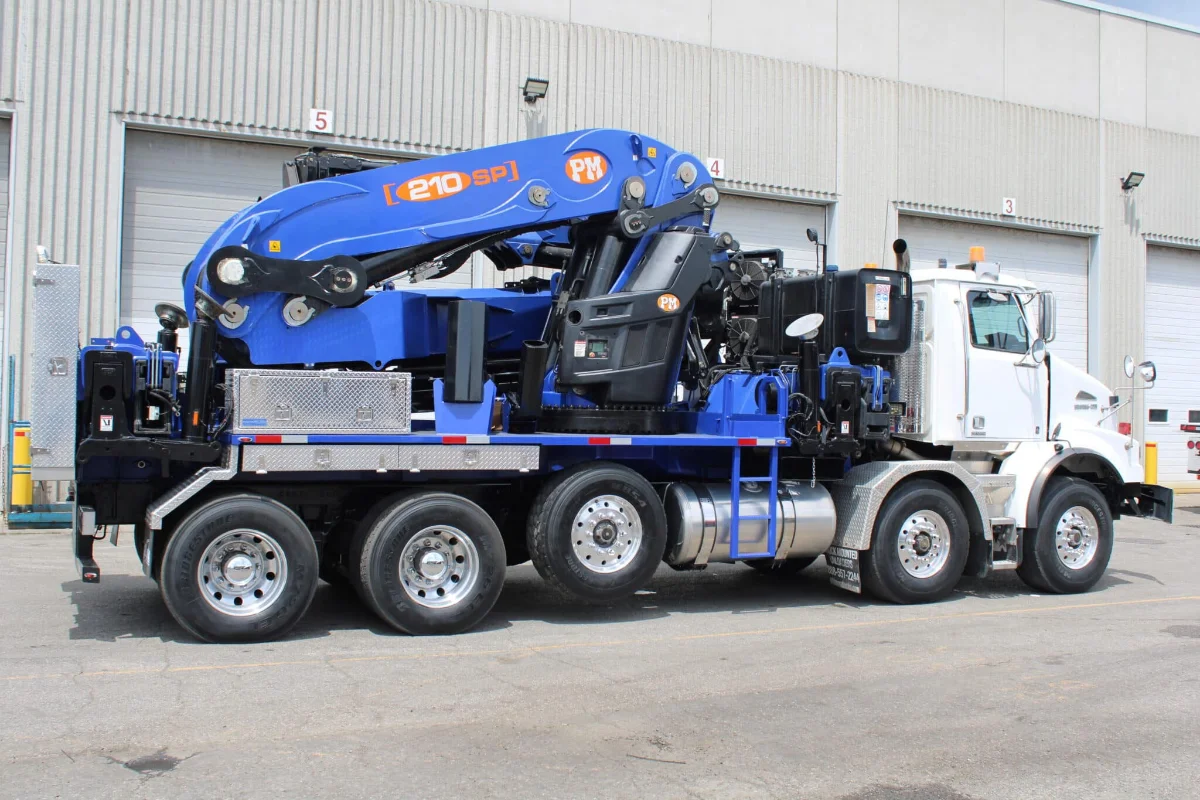

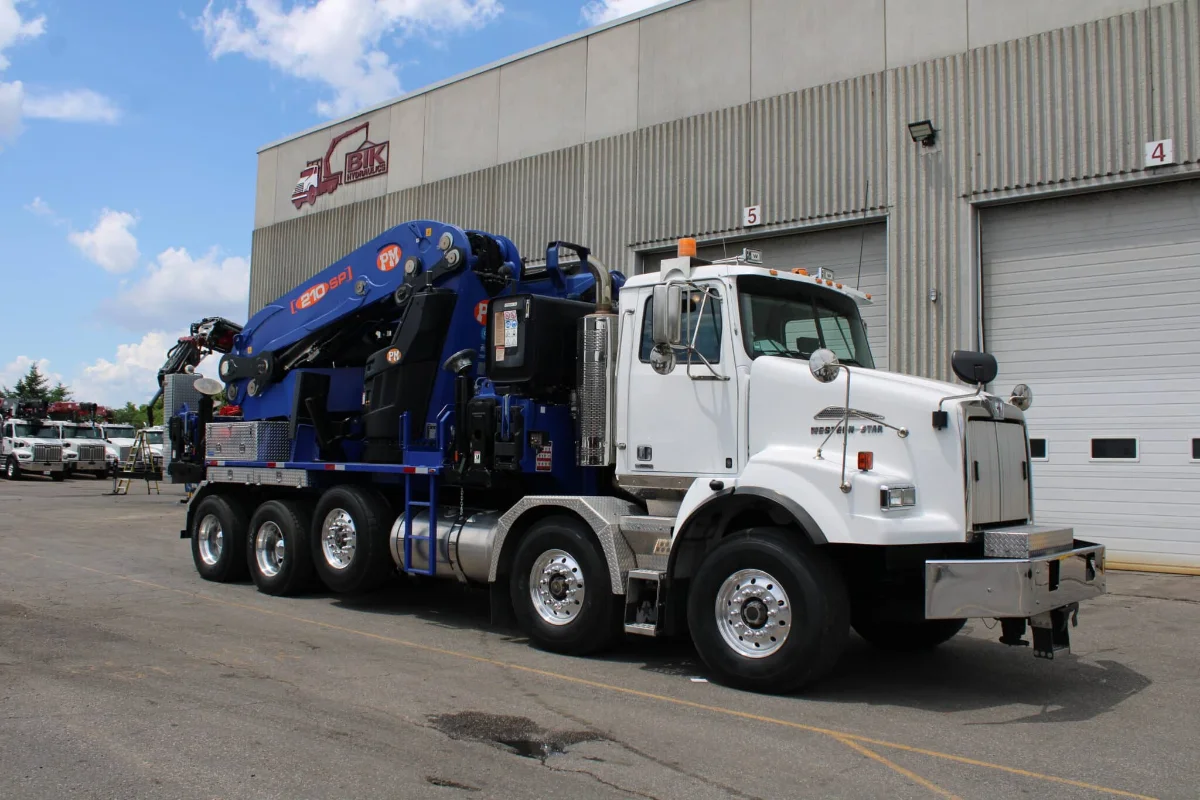

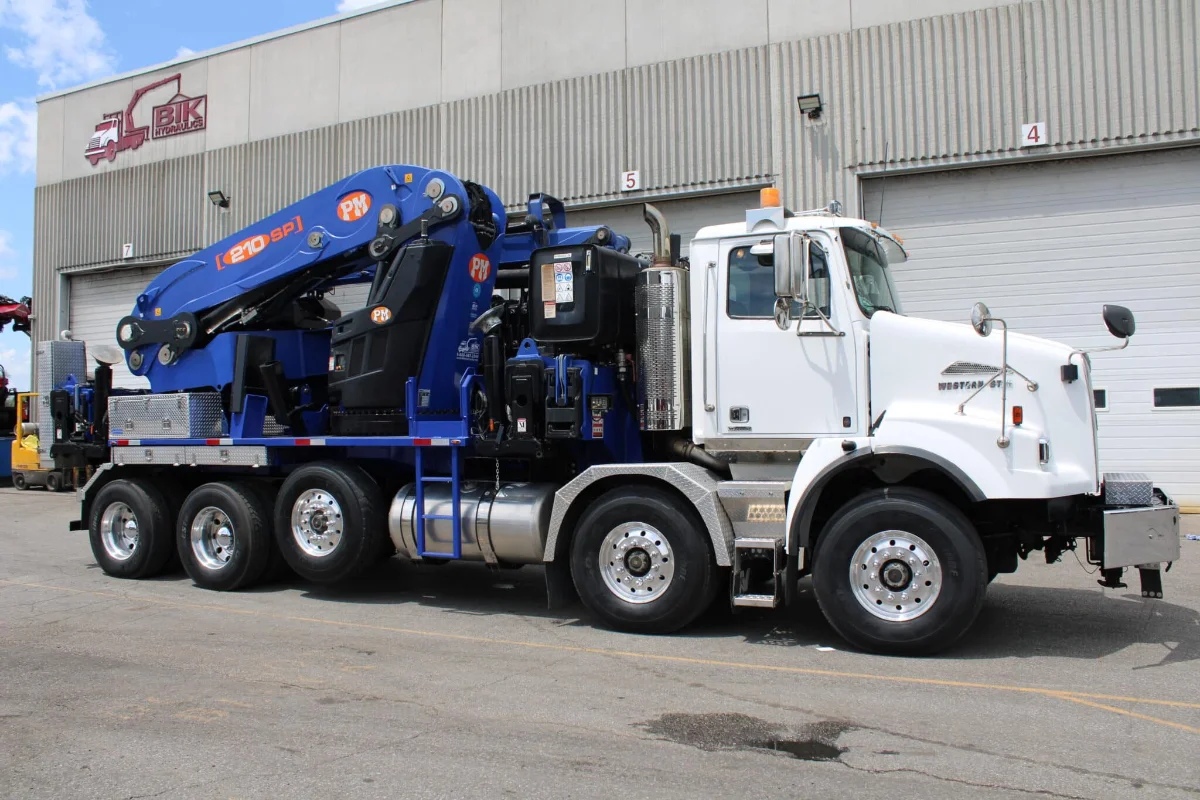

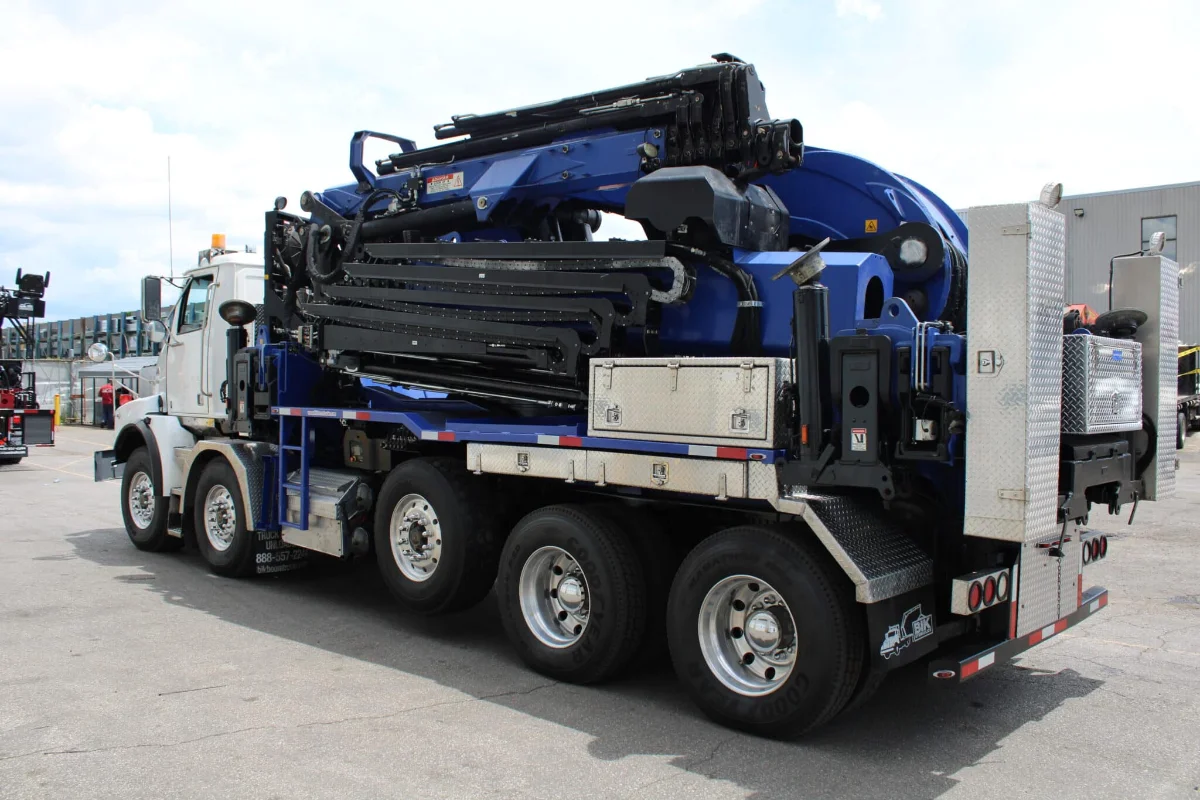

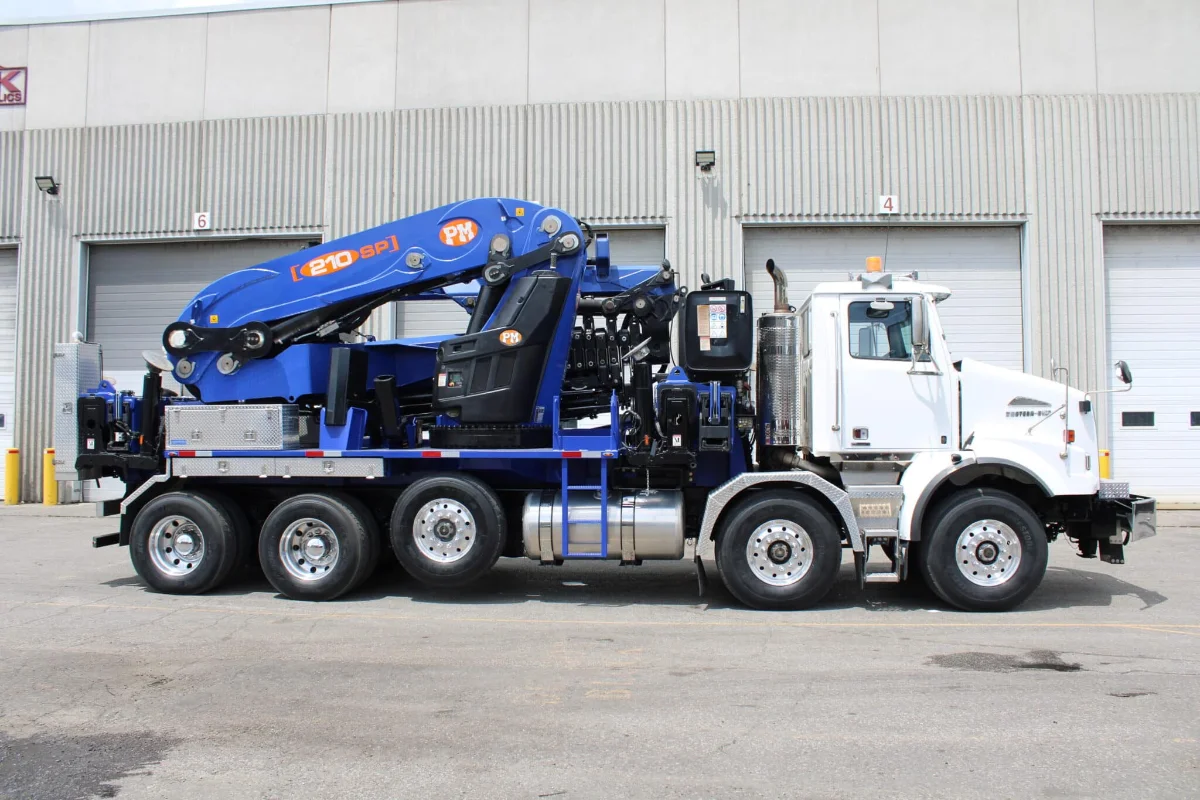

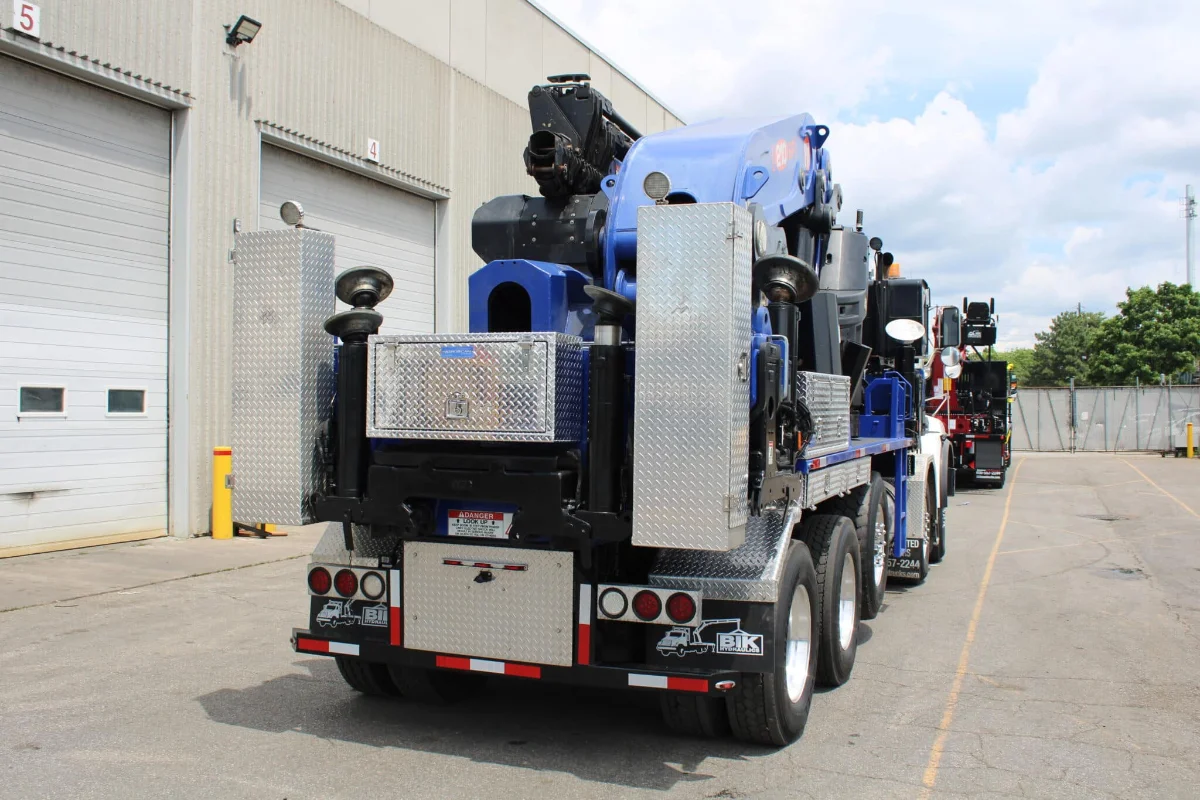

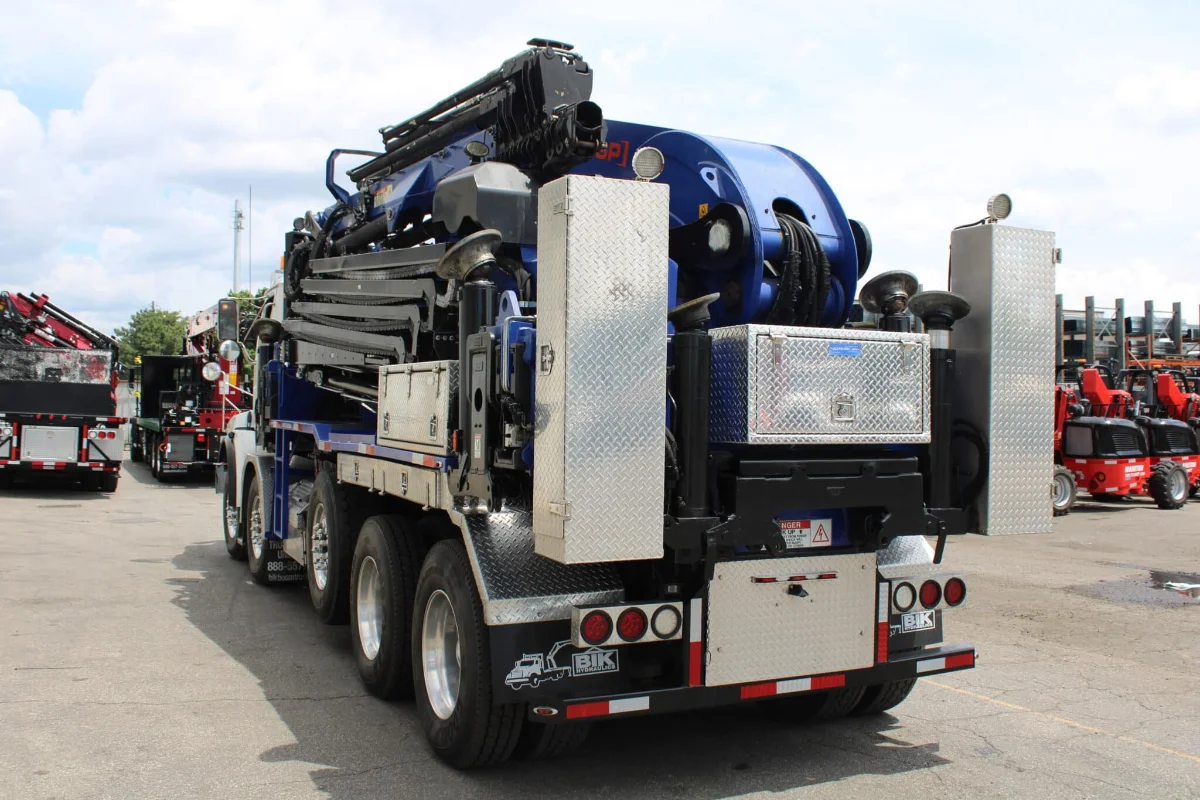

PM 210028SP+J3106SP Knuckle Boom Hydraulic Knuckle Boom with Jib fold on top of deck, 8 hyd extensions in main to 103’ vertical with boom angle at 85 degrees – best in its class,

• hyd extentions in jib booms to  162’ total vertical reach – with two optional manual pull out extentions up to 178’ vertical reach
• Continuous Rotation and Dual Planetary Gear Rotation, Double pilot operated on slewing & pilot operated check valves on all cylinders
• Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
• Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red
• Hydraulic Extra Wide Main outriggers at pedestal – 40’ – hydraulic tilting when retracted

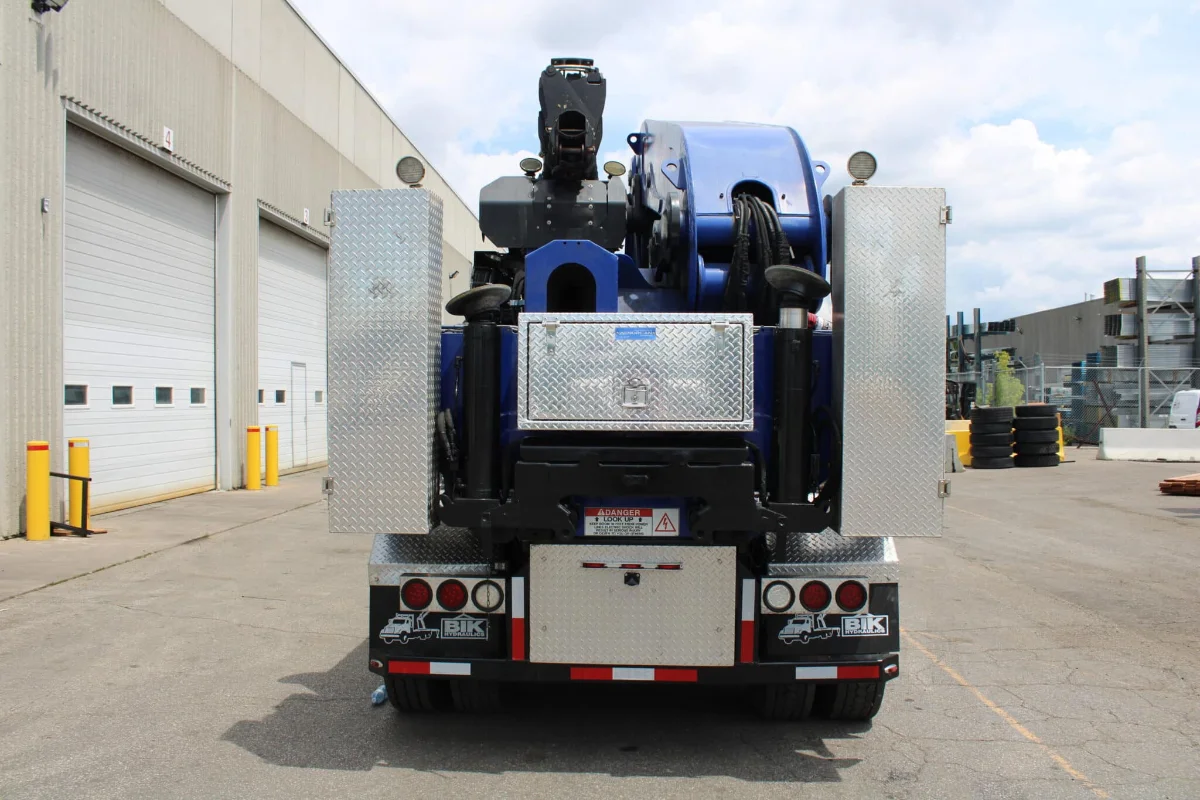

• Auxilary 34’ spread stabilizers installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer
• Dual PTO’s and Hydraulic Pumps inst on Aux Trans for consistent operation speed & power when activating multifunction movement –
• Dual Hydraulic Oil Coolers, dual high pressure & return filters and min. 125-gallon oil tank for boom
• 7 ton single part line lifting winch plumbed to the end of jib with custom jib stowe brackets on top of bed wings
• DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
• PM Power Tronic Electronic System allowing constant crane monitoring & visual display
• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
• Bed Wings on both sides of unit with access ladders and winch accessory storage areas including two 36” storage boxes

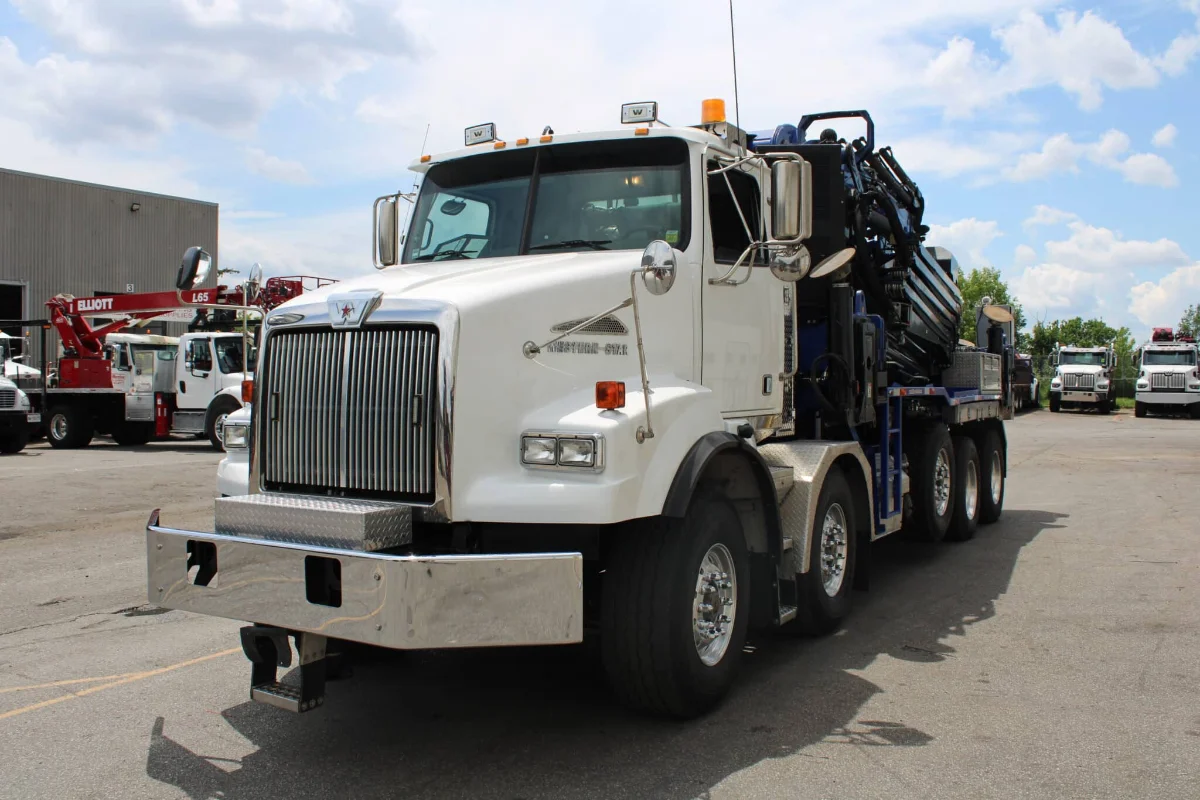

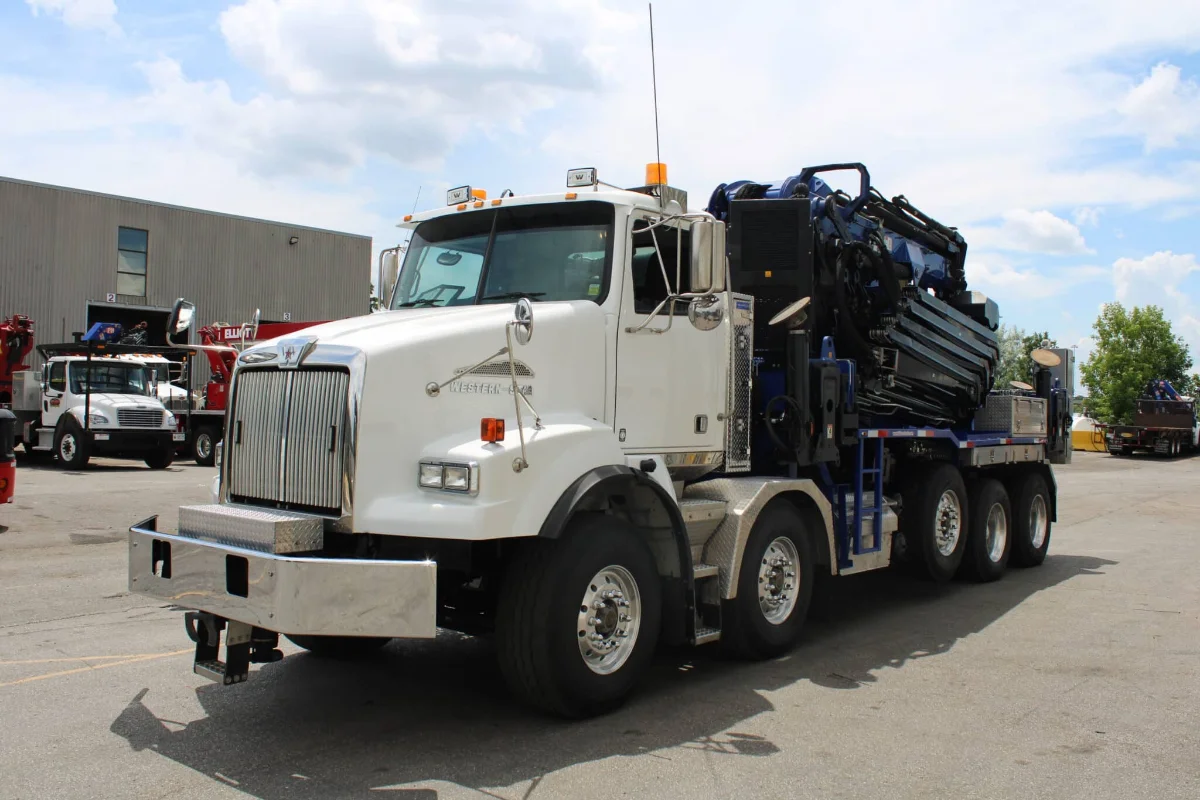

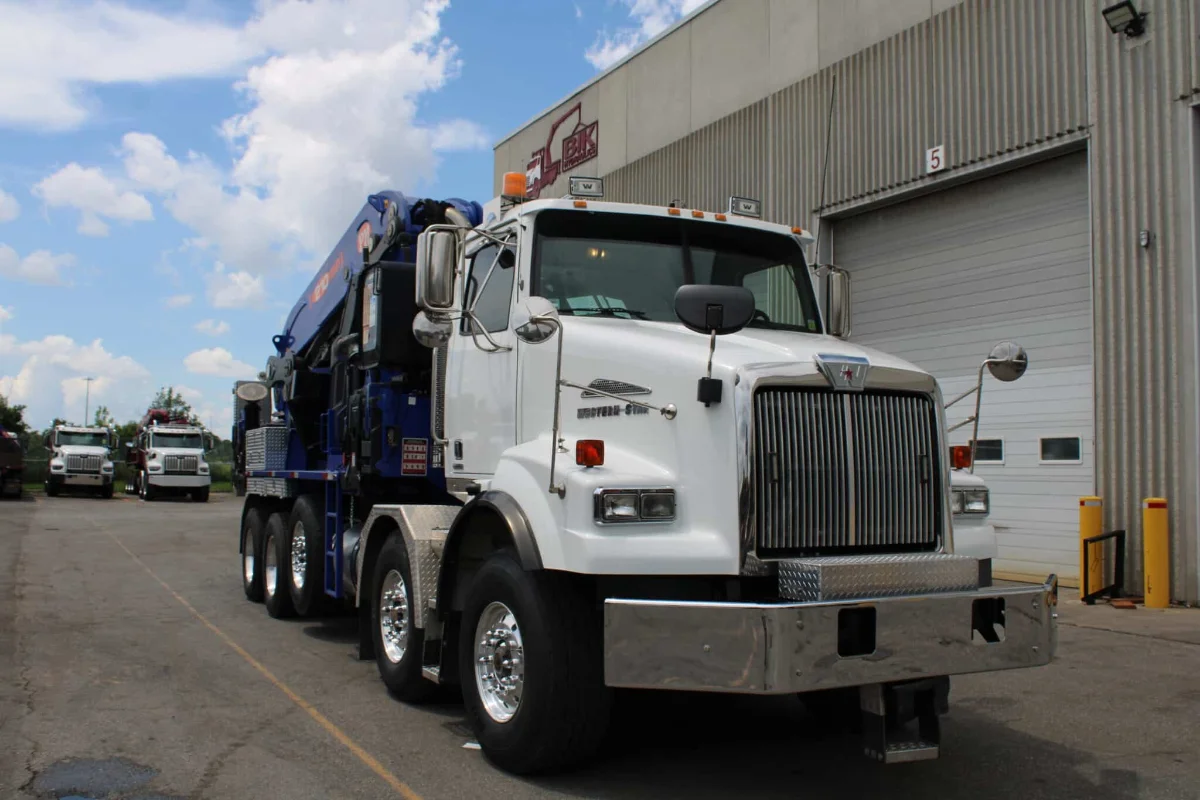

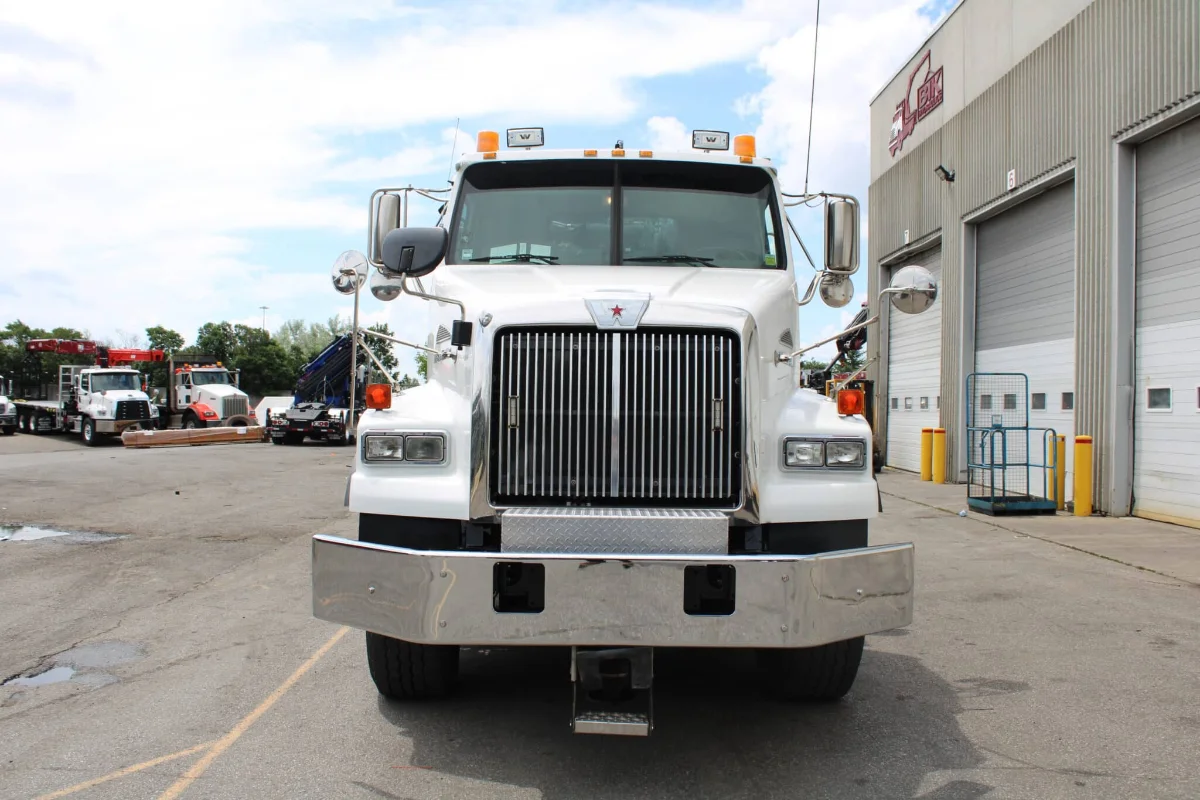

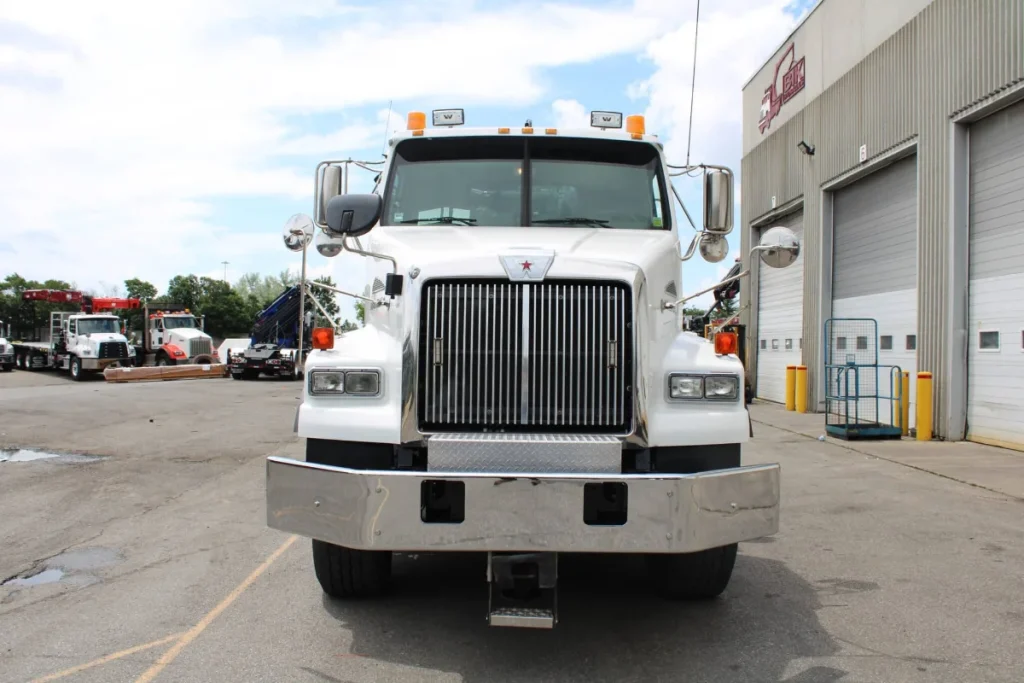

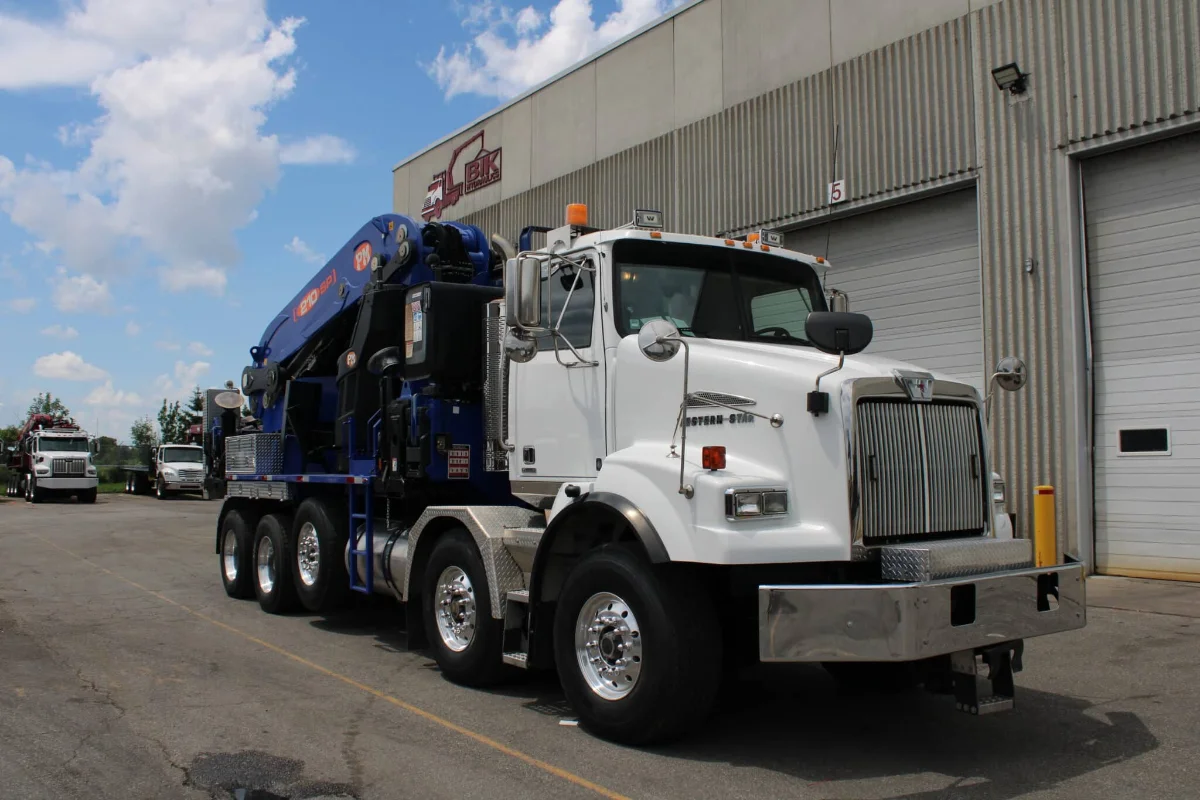

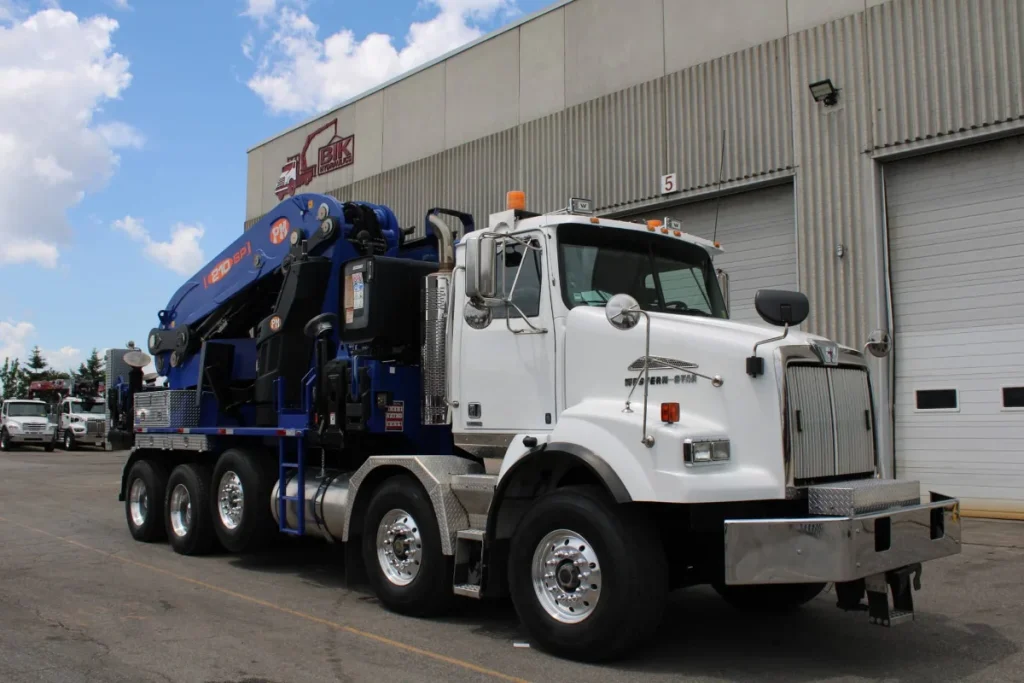

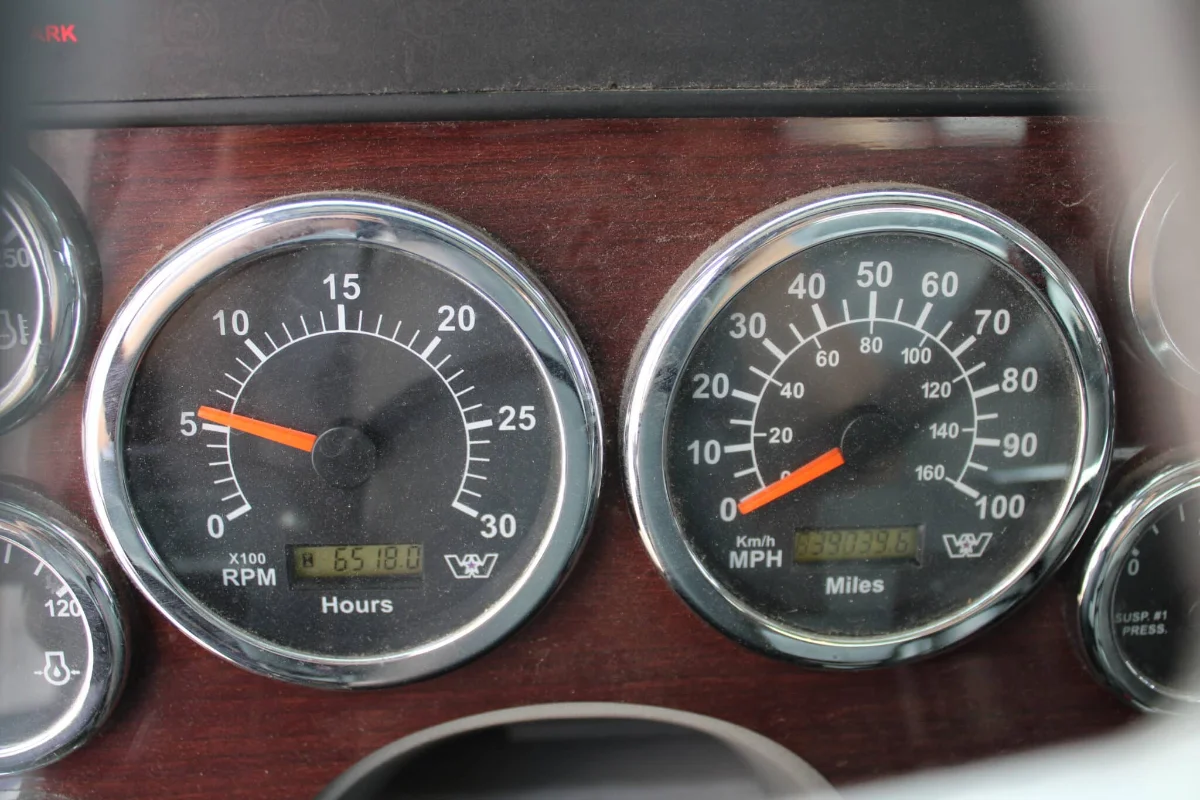

USED 2018 Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear with Lift axle– 5 Axle:

• DDC-13 Diesel
• 470 hp with Jake
• Eaton Ultrashift 18 spd trans .
• Factory auxuilary Transmission for dual PTO drives
• (2) x 20,000 LB fronts with 425 / 65R22.5 tires
• 46,000 LB Rears on air ride Susp., 20,000 lb self-steer lift axle ahead of t/a’s
• Double Frame
• Polished ALCOA Aluminum Wheels front and outer rear
• Chrome single polished Exhaust
• Chrome Grille & Bumper
• 100-gallon aluminum fuel tank

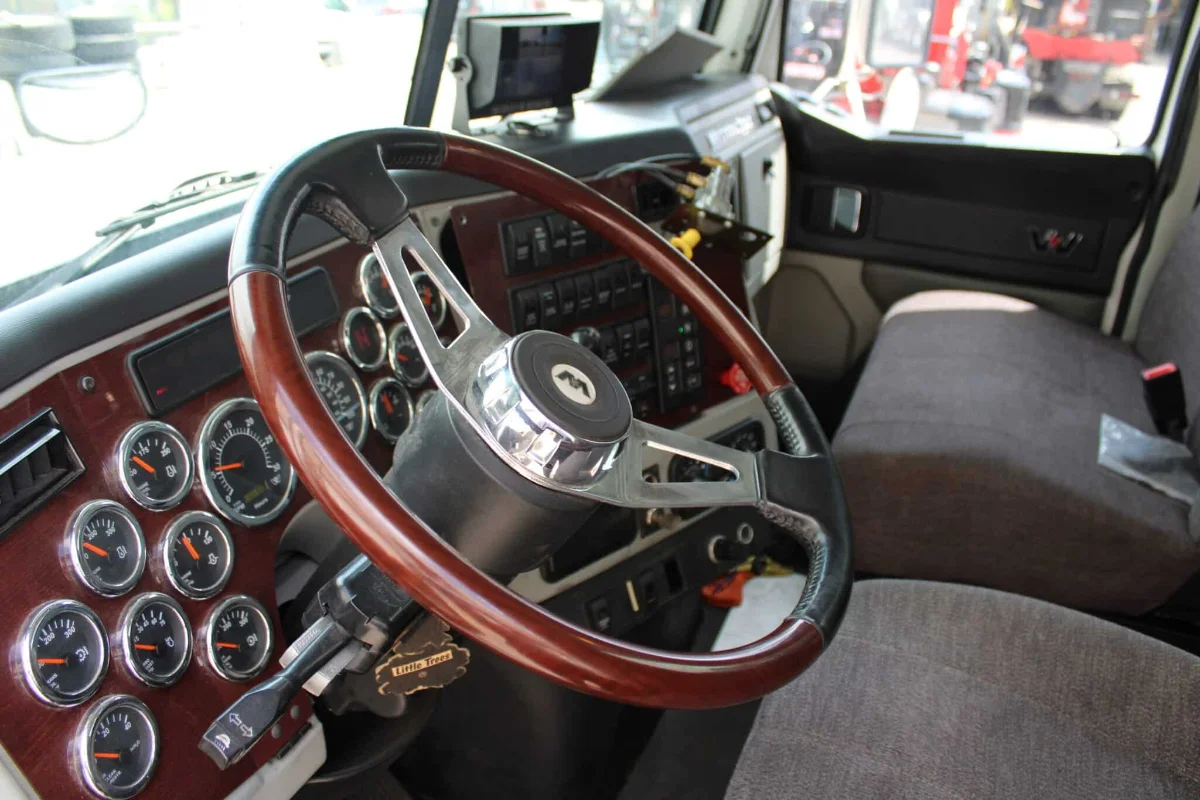

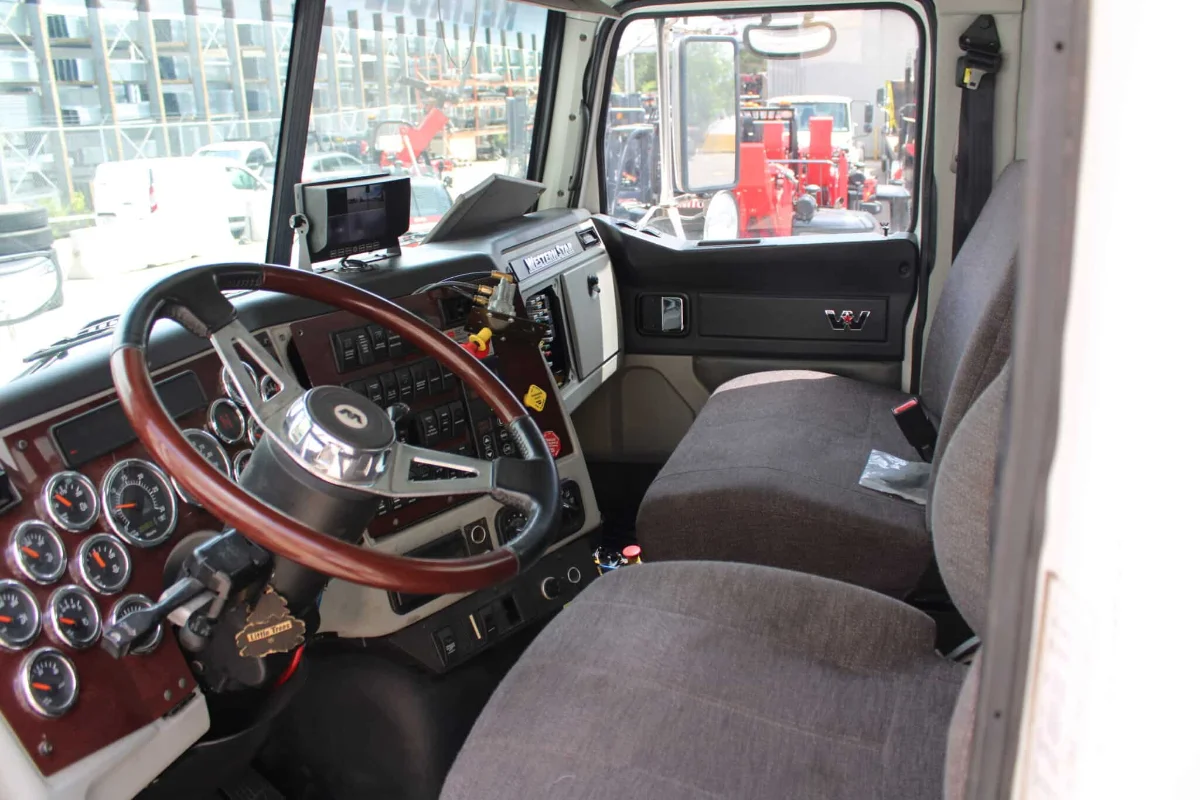

• Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides , power mirrors & door locks, Air ride cab, full differential locks, trailer air tow package, truck cab white color, Dot bumper, etc…

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
